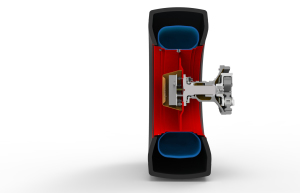

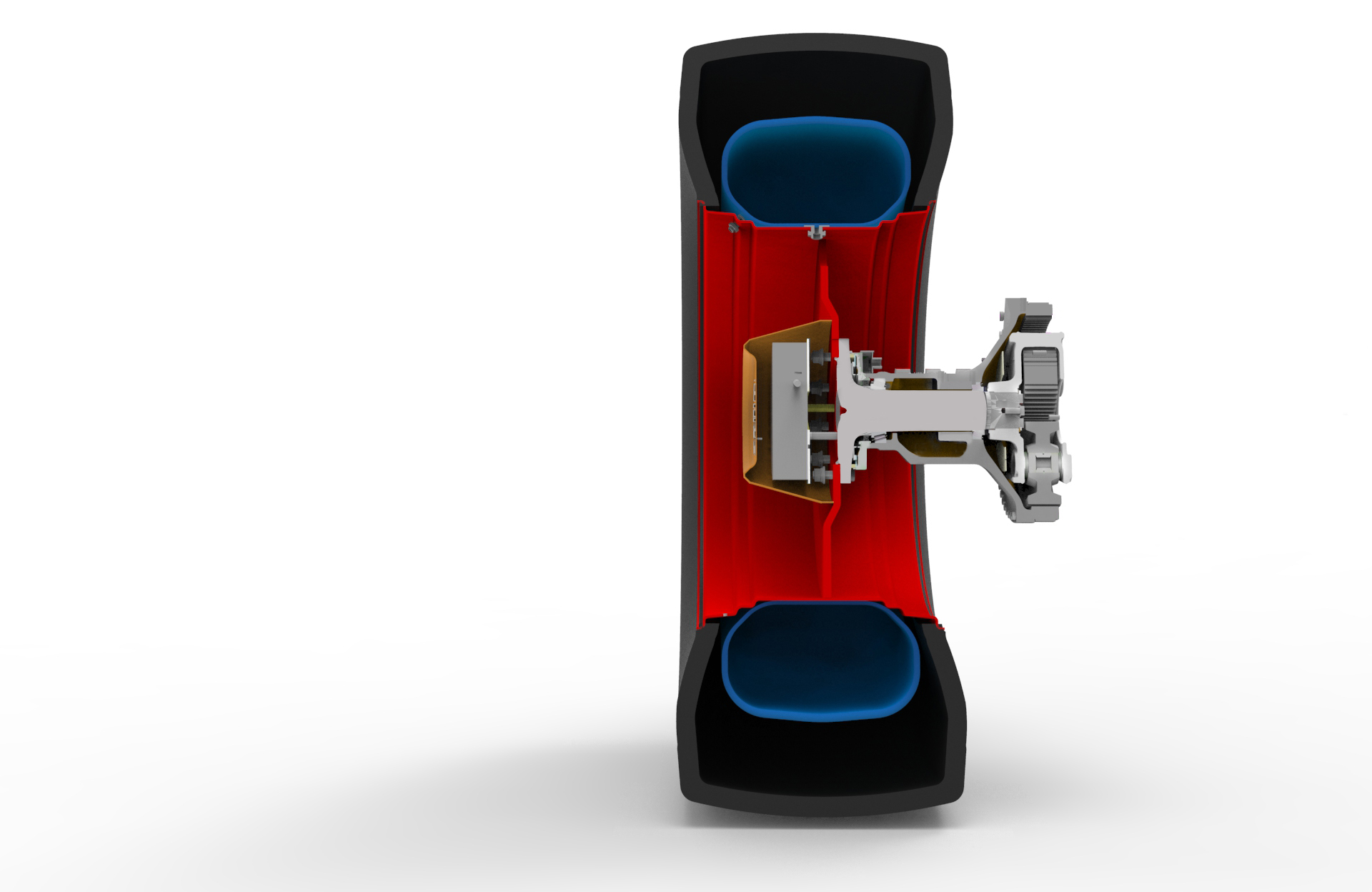

A well-adjusted tyre pressure effectively reduces slip and rolling resistance when working in the field. That has a positive effect on area coverage and saves fuel. Furthermore, a low tyre pressure promotes soil fertility. For safe, efficient driving at transport speeds on the road, the tyre pressure must be increased again. The new VarioGrip Pro system boasts a filling time of only 30 seconds. A new design concept was developed, where an inner tyre is integrated in the outer tyre of the rear wheel. On the one hand, this design reduces the net volume of the outer tyre, which needs to be filled, by about 30 percent. On the other, the inner tyre also serves as a pressure reservoir and fills the outer tyre.
VarioGrip Pro is the further development of the VarioGrip tyre pressure regulation system from AGCO/Fendt. With the new design concept, developed in collaboration with Mitas, the agricultural equipment manufacturer provides the option of integrating an additional inner tyre to reduce filling time significantly. That is especially important for work like applying slurry or transporting maize from the field, when the tractor must switch quickly between field work and on-road driving.
Inner tyre as pressure reservoir
The intelligent wheel
AGCO/Fendt places great value on precision, user-friendliness and cost savings. The optimal tyre pressure can be set easily and conveniently using the Varioterminal, which noticeably reduces operator stress. The sensor system and valve assembly of the VarioGrip Pro tyre pressure regulation system are attached directly to the wheel. Control commands, sensor data and electric energy are transferred between the wheel and tractor body without contact, and therefore without wear. The pressure supply has been improved through the further development of the pneumatic rotary union. The extremely fast pressure adjustment of the VarioGrip Pro system reduces filling time by more than 80 percent. Pressure regulation takes place without delay and is highly precise. Furthermore, the air pressure can be adjusted for each individual wheel.
Higher working safety through pressure control
The engine speed does not need to be increased to achieve shorter filling times for the tyre. That saves fuel and reduces noise emissions. Additional safety is provided through continuous monitoring of the tyre pressure. For example, damage to the tyre can be quickly detected through a drop in air pressure.
VarioGrip Pro is available as an option for the Fendt 900 Vario with a tyre size of 710/75R42 starting November 2016.
