Forage harvesting non-stop.
With the Fendt Cutter drum mower.

The perfect cut is the foundation of quality forage. With the Fendt Cutter drum mowers, the perfect cut is easy as 1-2-3, regardless of the conditions. The key features of the Fendt Cutter include the proven technology, great durability and new, smart details which make work easier.

Well-thought out in every detail.

Drums that have proven their worth a thousand times over

Two main features of all Fendt Cutter drum mowers with their four drums are low ground pressure and carefully handling of the sward. The drums distribute the weight evenly onto the ground, and can therefore be used in heavy conditions. Two clean swathes are always delivered, as the mower drums operate in pairs.

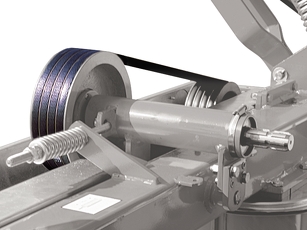

Automatically under tension

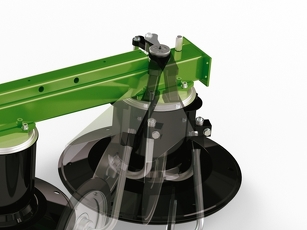

The elastic V-belt drive, which always sits perfectly thanks to the automatically tensioning device, directs the force effectively to the hex shaft, ensures even force output, and protects against overload. The Gleason teeth of the spiral bevel gears ensure smooth running, coupled with an exceptionally low noise level and fuel consumption

Fatigue-resistant design

Fendt Cutter drum mowers with their expansive square stainless steel frames are built to last. The mower mount is reinforced by a U-profile for an especially long lifetime. This maintains stability inside the mower, and means that brief load peaks on the outer ends have no impact. Maintenance is quick and easy thanks to the laterally fitted inspection holes.

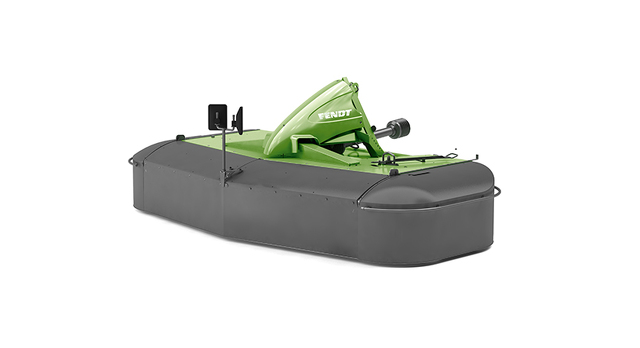

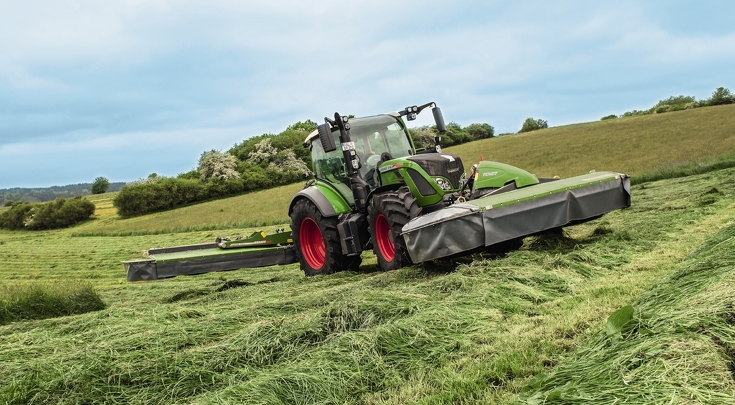

Fendt Cutter Front Mounting

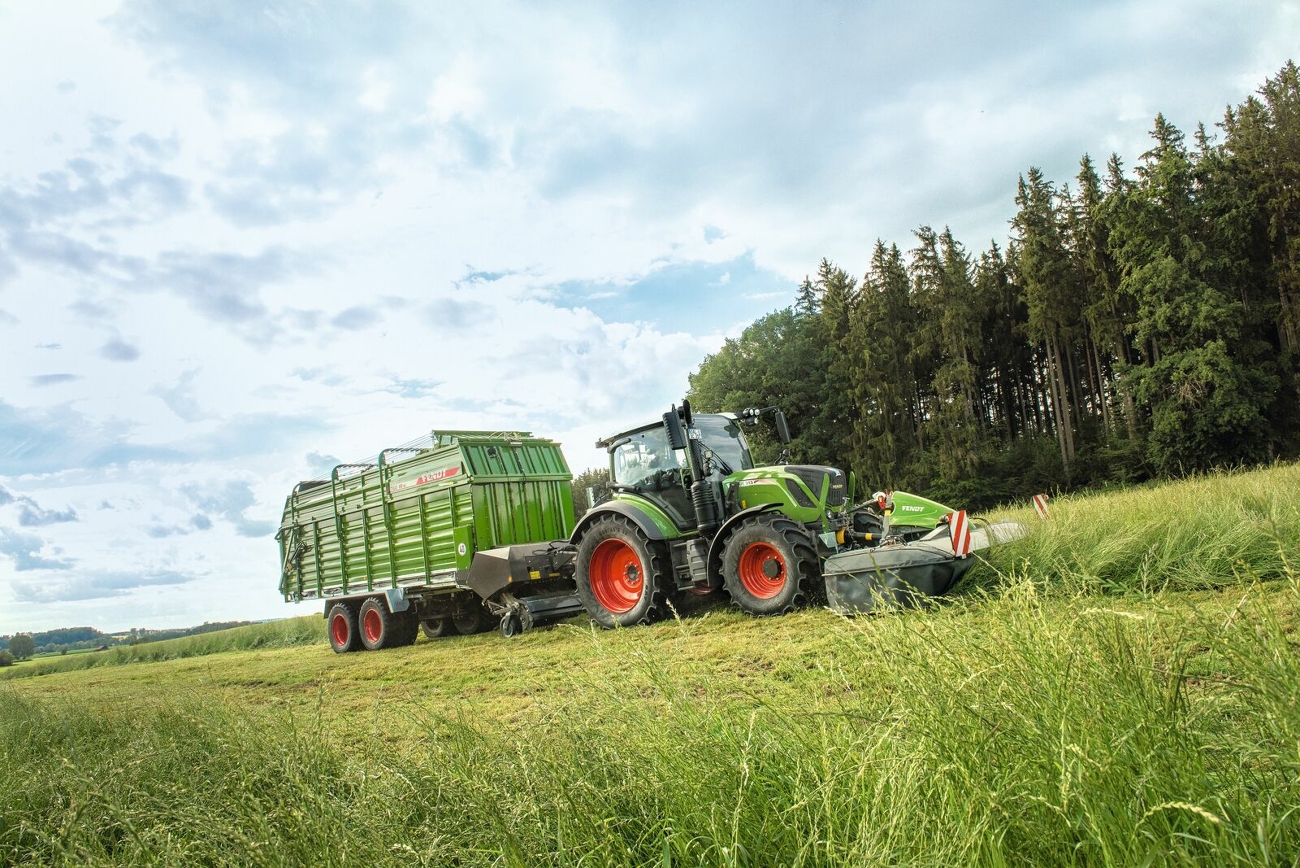

The Cutter front mower is a huge favourite, especially for green fodder recovery. Combined with a Fendt loader wagon, this gives you superior quality feed for your animals, with the best sward protection. And you can have plenty of fun in the process.

Fendt Cutter FPV: Front-mounting with swing linkage

	Cutter 2940 FPV	Cutter 3140 FPV	Cutter 3340 FPV
Working width (m)	2,86	3,06	3,26
Cutting drums (Number)	4	4	4
Baldes per cutting drum (Number)	3	3	3

Fendt Cutter FPV: Front-mounting with swing linkage

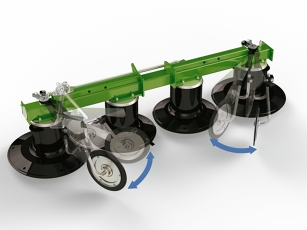

Computer-generated illustration of a Fendt mower with four exposed, black mower discs on a white background. Two blue arrows illustrate the flexible adjustment of the swathing discs to adapt the swath width. The mechanism is clearly visible, without prote

Flexible width

The mowed swatch can be perfectly adjusted to the following work steps using the flexible swath width adjustment. Using a central adjustment lever on the top of the mower, you can quickly and easily adjust the swath width from 1.2 to 1.75 m depending on the model, by swivelling the two swath discs. Additional swath discs are available as an option, and form an even narrower swatch from 0.65 m to 1.4 m depending on the model.

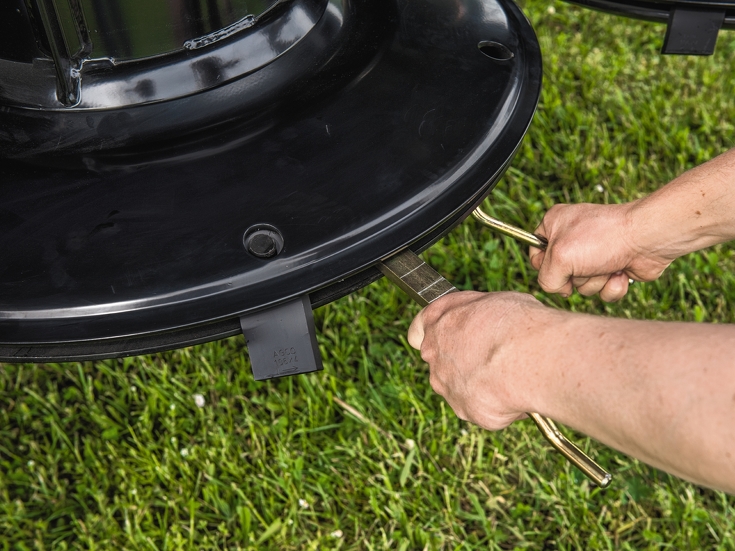

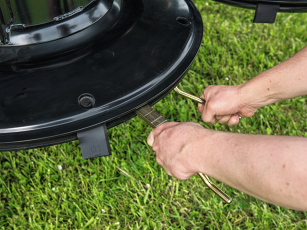

Close-up of a person using a gold-coloured tool to adjust the cutting height of a black cutting disc plate on a Fendt front mower. The machine is standing on green grass, the tool is inserted into the drum holder.

Adjustable by hand

The easy cutting height adjustment comes standard on all front mowers. On mowers with a front pendulum block, the height can be infinitely adjusted from 45–73 mm by turning the wear-resistant skid plate. A practical tool is always kept close at hand on the machine.

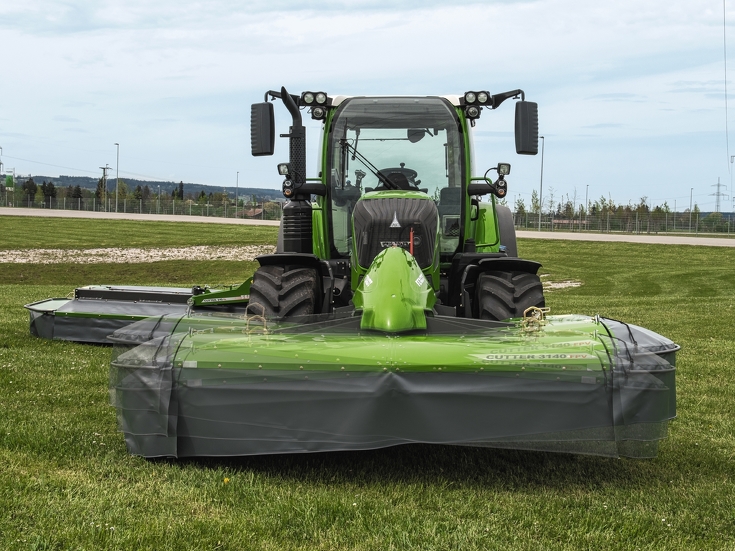

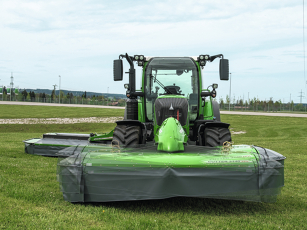

Front view of a green Fendt tractor with attached front mower on a level meadow. The mower is fully folded out, with grey protective covers and green-painted cladding. The system enables a transverse swivelling of +/- 5° for ideal ground adaptation.

Perfectly balanced

In order to achieve perfect even on difficult terrain, the Fendt Cutter drum mowers’ swivel headstock to swing +/- 5° from side-to-side. The spring relief or the oscillating front linkage of the Fendt Vario tractors guarantees low ground pressure. Combined with the front linkage control of the Fendt Vario tractors, this gives you unparalleled ground following and sward protection. The automatic hub centring provides additional safety on the roads.

Close-up of a green Fendt front mower with four black mowing discs on green grass. The cutting height is manually adjustable via a robust, wear-resistant drum slide mechanism. Grey protective covers can be seen on the side.

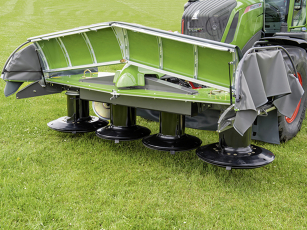

Best access

In order to perform maintenance, cleaning and a knife change quickly, special attention has been paid to accessibility throughout the machine. All guards open wide at the top and remain secure there thanks to the gas springs. Knives are changed in seconds using a practical special tool. The optional hydraulically opened side guards enable you to switch fields easily without having to climb out.

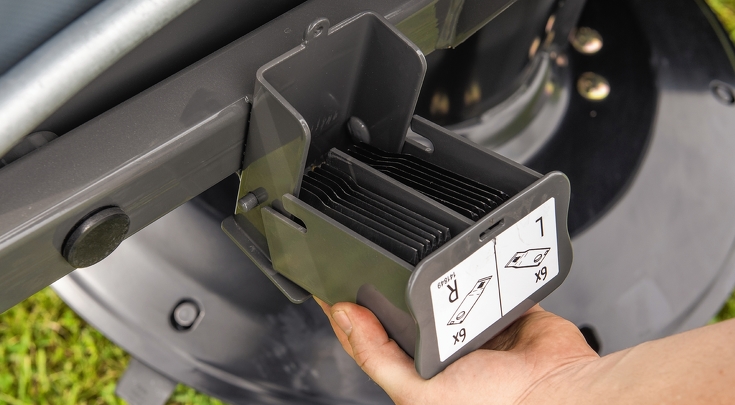

The knife box is perfectly integrated on the mower.

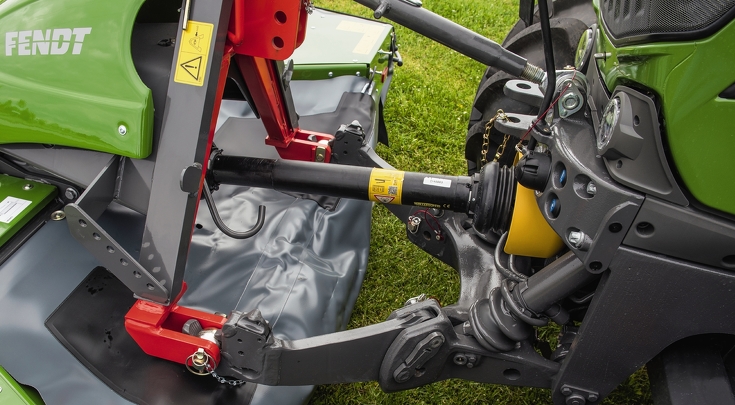

The Fendt Cutter FPVs are fitted close to the tractor. This ensures better ground following and provides more safety on steep gradients on the roads.

Fendt Cutter Rear Mounting

On the Fendt Cutter TL drum mowers with centre mounting for the rear hitch, the patented TurboLift System provides a floating cut, and the ultimate in sward protection and forage quality. Even in damp and wet areas, the forage remains free of dirt.

Fendt Cutter TL: Rear mounting with centre suspension

	Cutter 310 TL
Working width (m)	3,06
Cutting drums (Number)	4
Blades per cutting drum (Number)	3

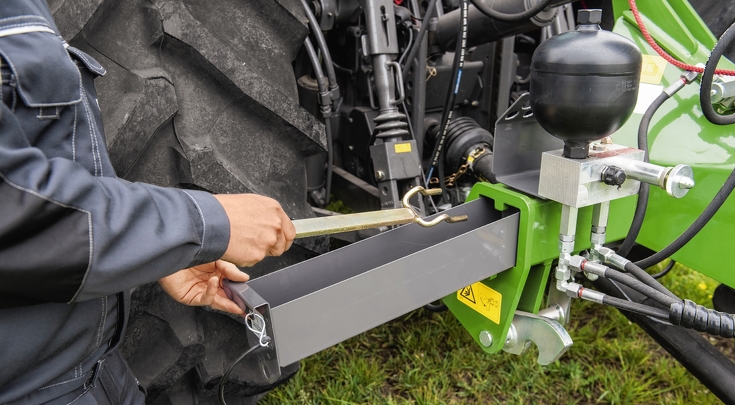

The integrated tool box allows you to take useful tools with you on the machine.

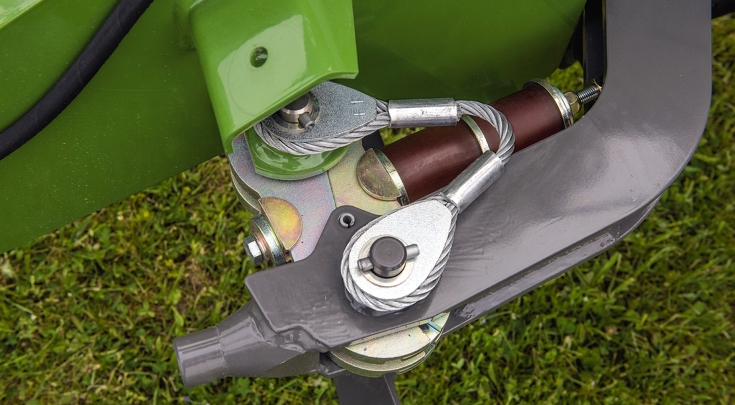

The impact guard protects the mower in the event of a collision, and automatically locks into place again when reversing.

Experience a floating cut.

Steplessly adjustable with TurboLift

The TurboLift system makes it easy to adjust the desired contact pressure of the mower. In changing operating conditions, you can reduce the contact pressure at any time from the tractor seat and increase it again to the default pressure, all assisted by the well-positioned and easily readable pressure gauge. On headlands, the system always calibrates itself. Alongside perfect forage quality, TurboLift means that little tractive power is required and also means significant fuel savings. The compensation cylinder stabilises the mower unit on headlands and on the roads.

Mowers’ exceptional mobility

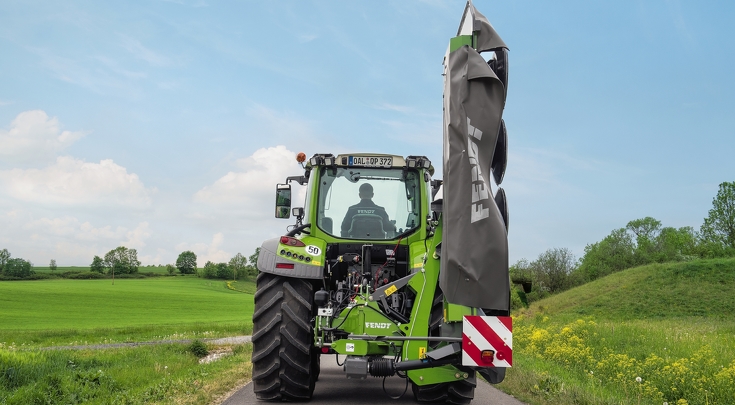

Since the unexpected can happen at any time, Fendt Cutter drum mowers provide the functions in the rear mounting that make all the difference. Thanks to the mowers’ exceptional mobility, you can also mow slopes of up to 28°. The transport position puts the mowers at an angle of 90° and means that they can be driven safely on the roads, while taking everything you need with you in the spacious integrated tool box. The standard, spring-loaded impact guard reliably protects the Fendt Cutter rear mowers against damage from obstacles.
