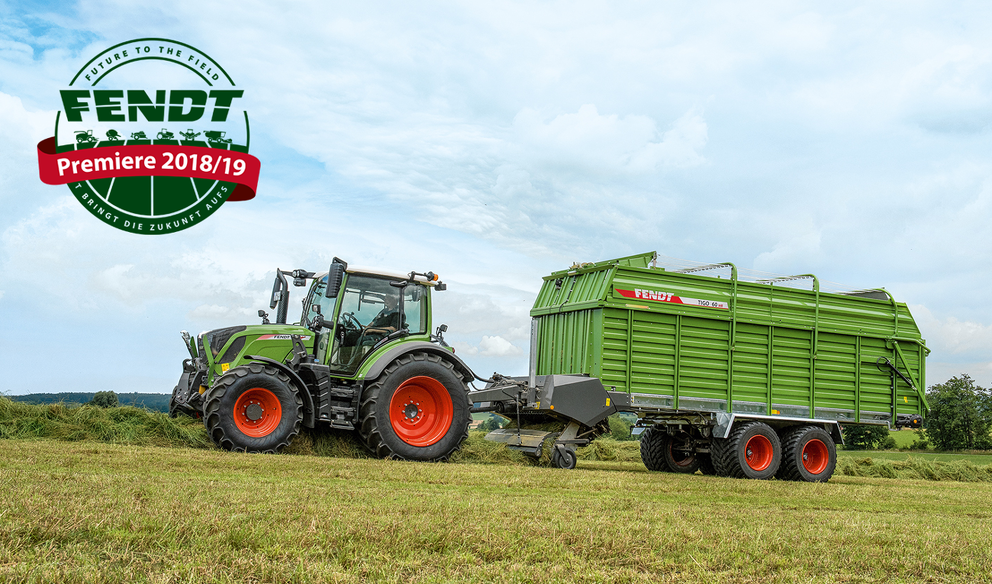

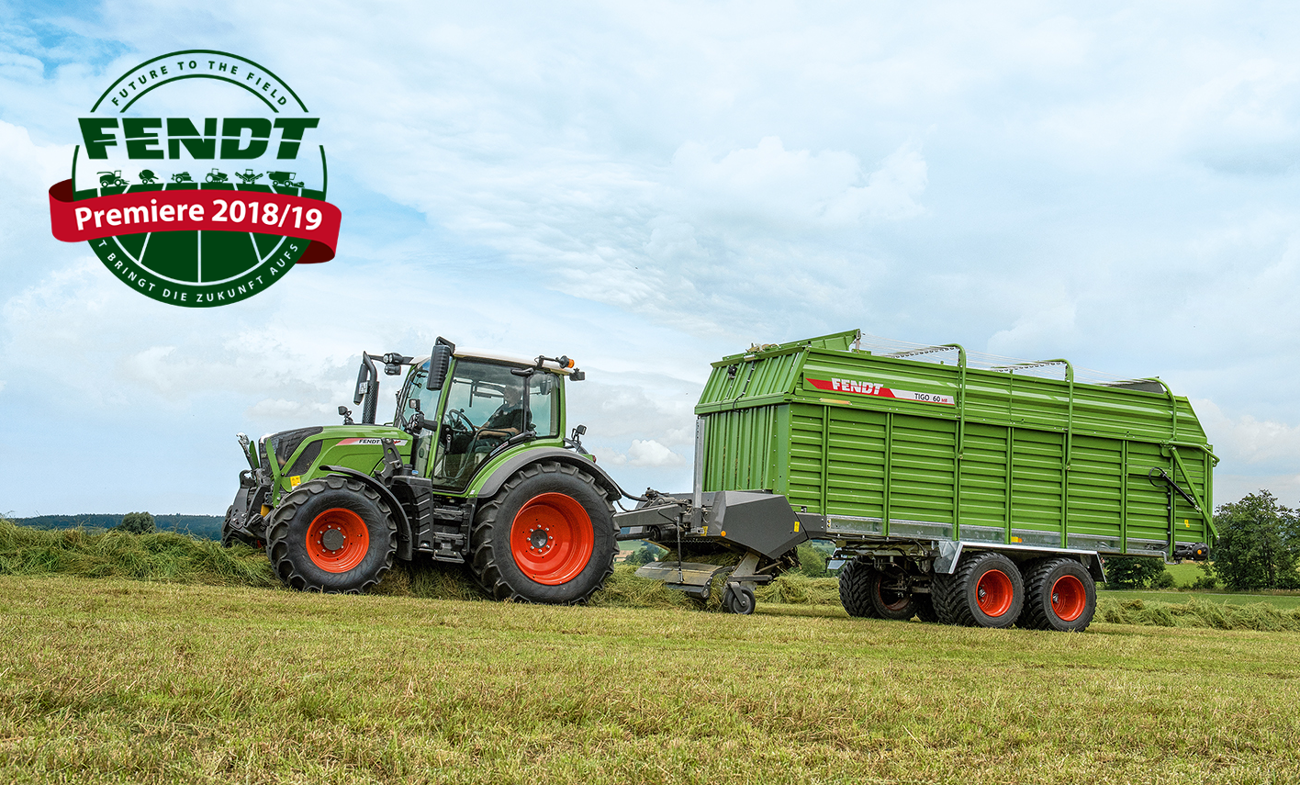

Mid-size professional solutions: The new loader wagons Fendt Tigo MS, MR and MR Profi
After the successful introduction of the Fendt combi machines Tigo PR and XR in 2017, now we have loading wagons for the mid-size range, so medium to large companies can also benefit from the professional solutions of Fendt Tigo models.

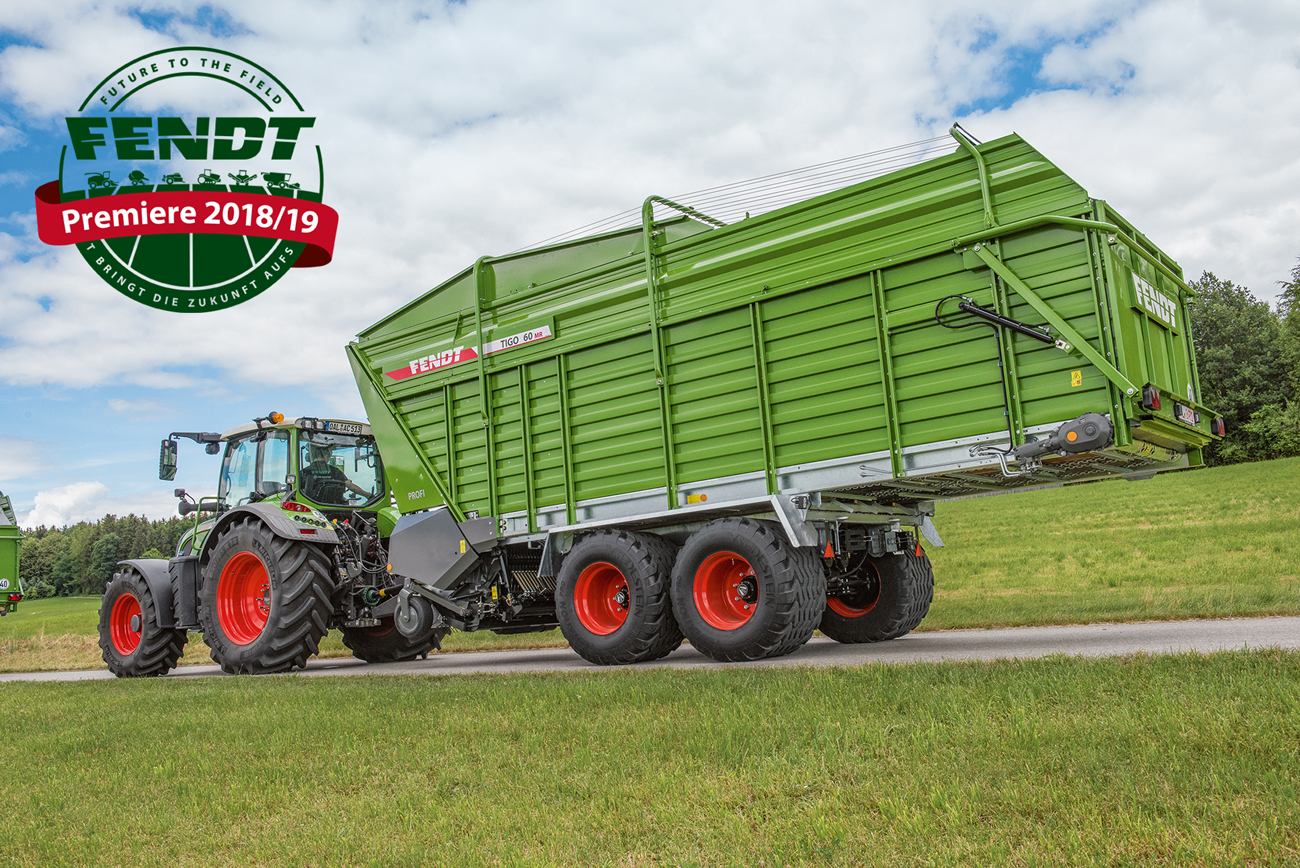

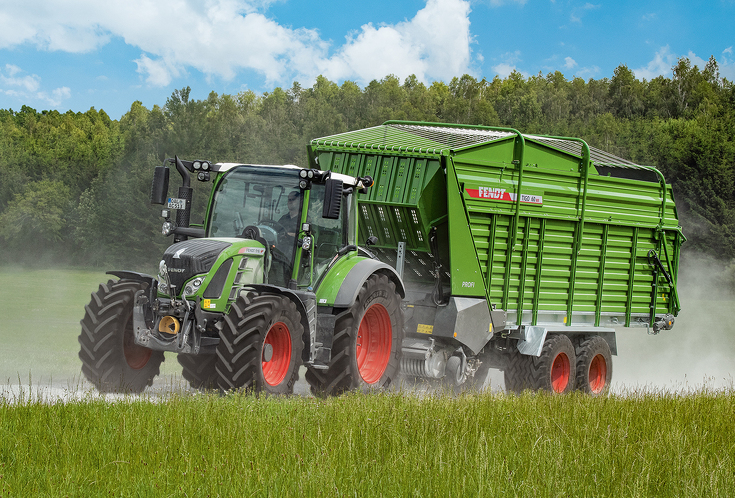

The new Tigo 60 MR.
Better feed quality
All three model series are equipped with an automated pick-up. They run quietly and provide an even crop flow even at high speeds. The hitch of the 1.80 m wide pivot pick-up results in an excellent ground adjustment even over cropped terrain. Five rows of tines for clean raking. All models are equipped with a tine-loss safety device to stop tines entering the feed and causing damage to the animal or machine. Since the pick-up is not only automated but also fully hot-dip galvanised, all three model series are sure to last longer and maintenance-free.
An additional roller protects the pick-up and prevents the tines from piercing the ground by guiding the pick-up no matter how uneven or wet the ground is. The result: The best forage quality because soil and dirt can't get into the feed.
The Trimatic system
For a continuously high cut quality, all three model series are fitted with the spring-based tripping system, Trimatic. The single knife guard protects the blade and rotor against potential foreign bodies. If the rotor pushes a foreign object onto the knife, the spring buckles and immediately reduces the force onto the knife. This tension automatically returns the knife to its operating position after the foreign body has passed through.

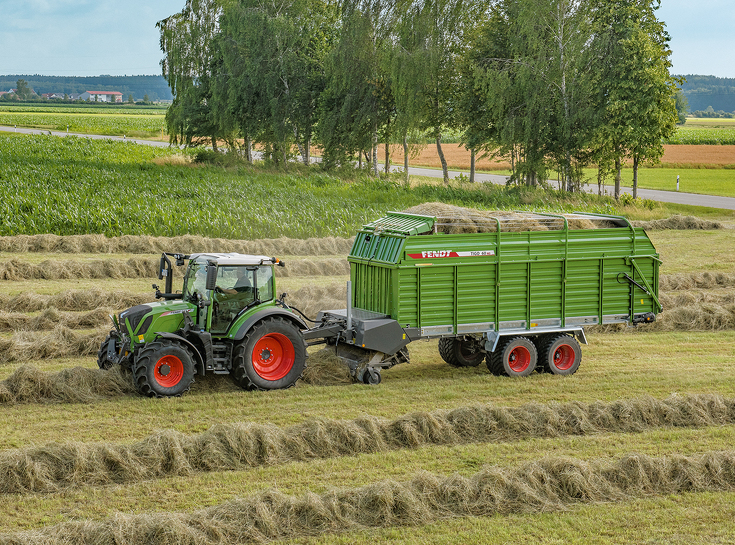

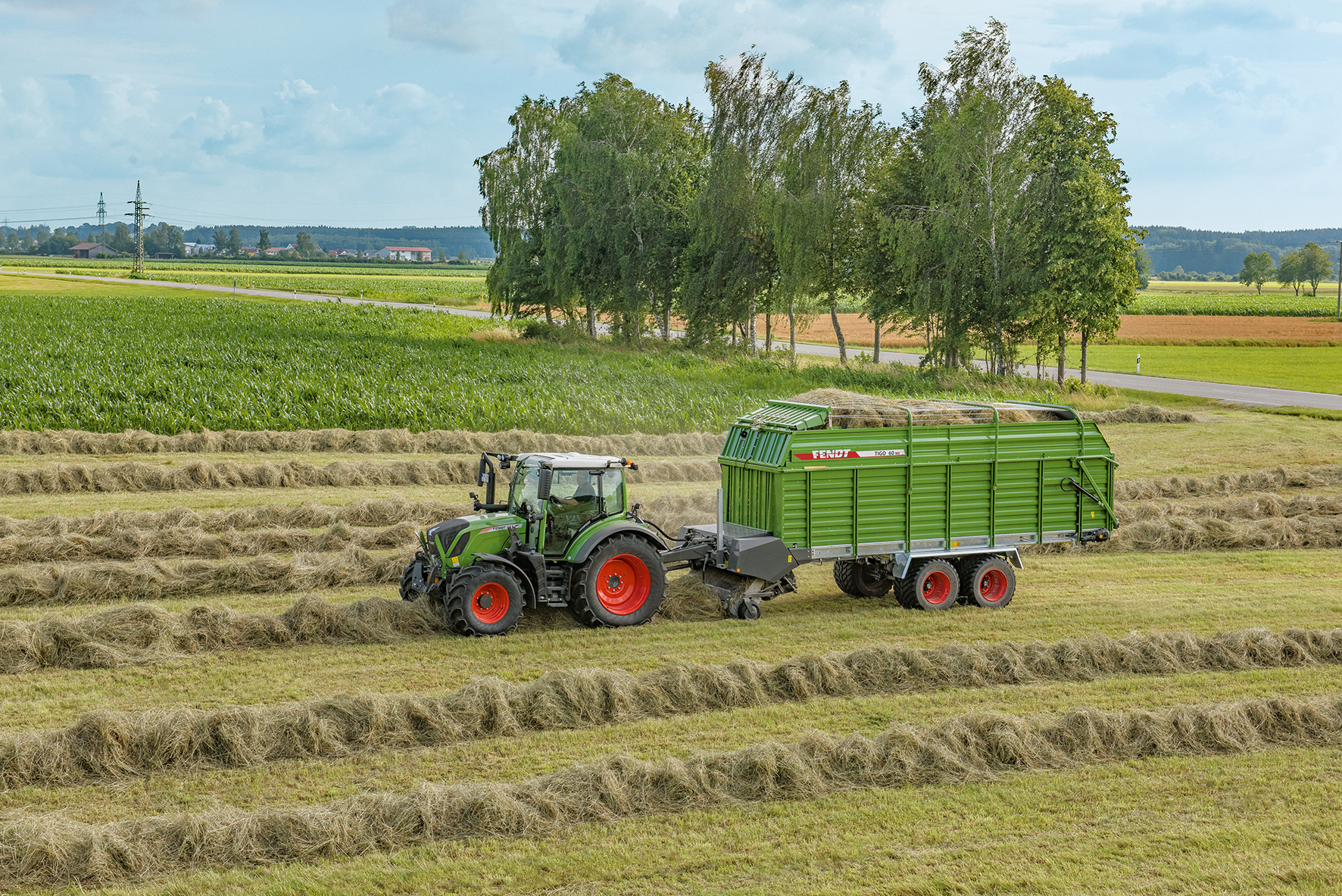

The new Tigo 60 MS.
The scraper floor solution
On the smaller model series, 2 scraper floor chains, with a breaking load of 25 t, help the precise loading and unloading of the feed. The larger model series, including the Tigo MR Pro and all models from the Tigo MS 60 up, are equipped with 4 chains with a breaking load of 50 t and positioned rails. On all model series, the scraper floor itself consists of pressure-treated wood. When the loading space is completely full, the scraper floor automatically stops and the driver receives a signal to prevent possible damage. All three loading wagons can also be equipped with 2 or 3 dispensing rollers. In combination with the dispensing rollers, you can also choose to purchase a hydraulically driven cross conveyor belt to directly carry the feed. The 700 mm wide conveyor belt can eject both to the left and to the right and be folded back down for normal use.
The spur gear drive
Like its predecessors, the new Fendt Tigo models also use a spur gear drive. Without the old chain drive, maintenance is reduced and there is no longer the risk of the feed being contaminated by chain lubrication. Even at higher performance rates, this drive system ensures a comfortable and quiet drive.
Ease of use and driving experience
All loader wagon functions can be controlled via ISOBUS on the Fendt terminal or on the loading wagon terminal. All three model series also have an interconnected tandem suspension. This high suspension ensures a uniform load distribution and a better road positioning and ground adjustment, even under heavy loads and difficult ground conditions. An optional rear axle can be locked automatically with Isobus control when the set speed is reached or when the drive is reversed.

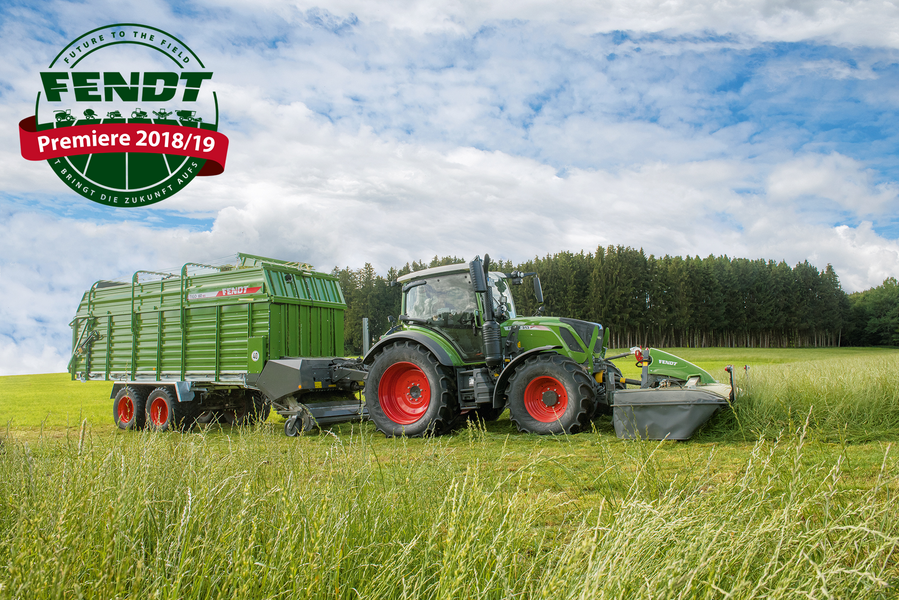

The new Tigo MS loading wagon
Loader unit
This high-capacity wagon with comb bars is equipped with a loading unit that's gentle to the forage. With the kidney-shaped cam track of the comb bar, the individual rakes are pulled straight back out of the feed stock. This prevents the feed from being taken with the rake towards the scrapers and being crushed. Also ensuring a gentle transport into the loading space is the fork effect, which loads feed loosely and in layers. The new Tigo MS stands out with its full rocking of the loader wagon as it works quietly while the forage is evenly loaded and cut with precision. Low maintenance and longevity of the loader unit are shown in features such as the individual bearings for the conveyor rotors and the central lubrication for the individual rakes as standard. The loader unit is driven by a spur gear drive, also known for its steady and quiet running even under loads that vary or are particularly heavy.
Cutting quality
All Tigo MS models are equipped with a main cutting frame with 17 blades, and you can opt to add a silage package with a further 16 blades. The blades can cut up to 38 mm and their shape results in a long and shearing cut. If a blade needs replacing, just swivel the blades downwards. For heavier maintenance work, the knife bar can also be driven out on optional transport wheels. The double prongs of the conveyor keep the cutting gap so small that cutting quality is even better.
Automatic loading
The Tigo MS can also be equipped with a two-stage automatic loading mechanism for improved loading of the trailer space. Use the automatic loading system to add light pressure to the rakes or medium to firm pressure to the wall of the automatic loading mechanism. The automatic loading mechanism pushes the feed from the bottom all the way to the top until the space is filled up. As soon as the loading area is full, the scraper floor is automatically activated. When the loading space is completely full, the scraper floor automatically stops and the driver receives a signal.
All the features at a glance:
Automated and swinging pick-up
Gentle loader unit with comb bar
Lubricating strips as standard for conveyor rotors
Quiet and stable spur gear
2 rows of up to 33 blades with a possible cutting length of 38 mm
Trimatic single blade protection
ISOBUS control
Optional automatic loading mechanism

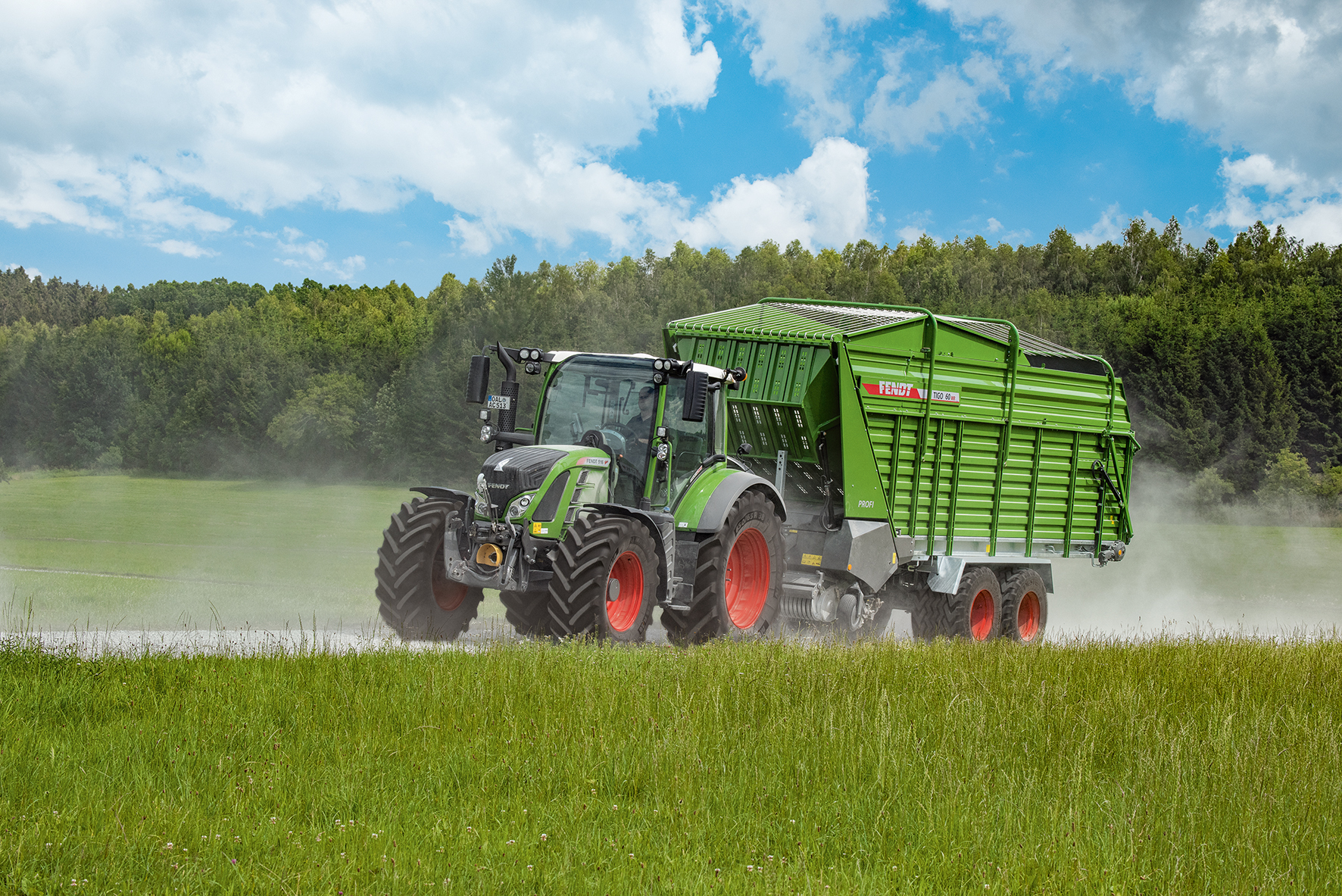

The new Tigo MR and MR Profi
Pick-up power and feed protection
The new loader wagons Tigo MR and MR Profi are characterised by a maintenance-friendly rotor with hardened and individually interchangeable rotor segments. The rotor tines with a contact surface of 25 mm have a large conveyor surface. As they pull out of the feed at a 90° angle, they help protect the feed. The coordinated interaction between pick-up and rotor also provides a gentle handling. This keeps the distance from pick-up to the rotor so short that crop flow is improved even further. The feed is also protected by the aligned and synchronised speed of pick-up and rotor. The standard spur drive also means lower power requirements and a smooth run. The rotor is particularly easy to maintain thanks to its design that means all rotor segments are individually removable and interchangeable.
Cutting quality
Both model series have 31 blades with a potential cutting length of 45 mm. Wide rotor tines provide a particularly small cutting gap. The result: the feed can't escape but is actively pushed through the blade and cut precisely by the rotor tines. To change the cutting unit, the blade bar can be swivelled out to the side without the need for tools.
Loading technology
Like the Tigo MS models, you can also opt to equip your MR model with a two-stage automatic loading system, giving you light and medium to firm pressing options. Owners of MR Profis can enjoy all the benefits of VarioFill and the cowl. As with predecessor models, the 80° multi-functional cowl allows an additional loading space of 5m3. Because of the weight saved by the compact design, the Tigo MR Profi is characterised by a higher payload. The VarioFill automatic loading and unloading system means you can apply the right pressure and make full use of the loading space, and clean and efficient emptying when unloading.
All the features at a glance:
Automated and swinging pick-up
Individually interchangeable rotor segments
Small distance between pick-up and rotor
31 blades with a potential cutting length of 45 mm
