Always on the ideal track

With Fendt VarioGuide you can drive reliably and accurately, even in areas with difficult reception conditions. Fendt VarioGuide permits the highest possible utilisation of your machines, because you can work without actively having to steer, even at night or with large working widths. With VarioGuide, the tractor automatically maintains the ideal line so that you can concentrate fully on the implement. Overlapping is reduced and, depending on the working procedure, savings of three to ten percent can be achieved. Depending on the application, you can work with two different accuracy levels: the VarioGuide Standard achieves a precision of approx. 20 cm, while the VarioGuide RTK delivers 2 cm accuracy.

Unique flexibility in receiver selection

With Fendt VarioGuide, there are now two different receiver systems available, NovAtel® and Trimble®. The VarioGuide steering system ensures optimum work results and maximum comfort. With the NovAtel receiver, the correction signals SBAS, TerraStar-L & C and RTK keep you on track. Choose a Trimble® receiver to use SBAS, RangePoint™ RTX™, CenterPoint RTX™ and RTK. If you lose your RTK signal due to the terrain, VarioGuide continues to work reliably up to 20 minutes thanks to the Trimble®-xFill™ or NovAtel® RTK Assist solution.

VarioGuide

Precise track, perfect application, higher yield.

New waylines with Fendt Contour Assistant

Fendt machines with the Varioterminal 10.4 and VarioGuide system with NovAtel® or Trimble® receivers can now use the Fendt Contour Assistant. With the new Contour Segments and Single Track features added to the familiar VarioGuide wayline types, your work is now even easier and more efficient. With Contour Segments, you can record the various segments of the field with just one round-trip, a quick and easy way to add field boundaries. With Single Track, drive along the entire tramline length to record it almost as an infinite contour line.

Automated savings

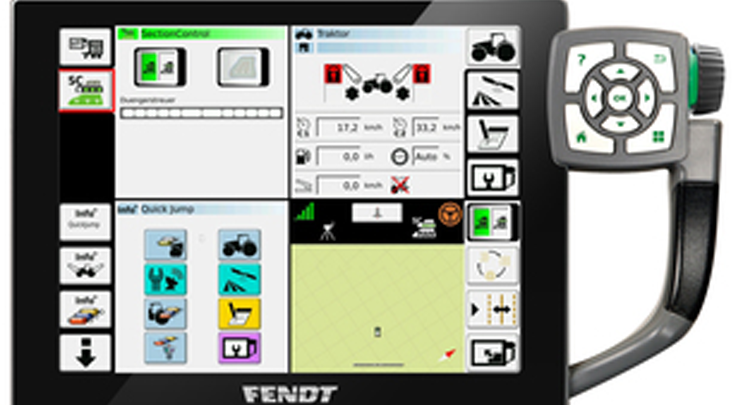

With the fully automatic SectionControl for ISOBUS implements, you can apply seeds, fertiliser or pesticides without overlapping at up to 36 section widths. This prevents double treatment and areas worked outside of the field boundaries. With the aid of the SectionControl assistant, you can set the correction values for each implement, quickly and easily. The switch on and off points can be set precisely from the very beginning, which automatically results in economical application.

With VariableRateControl (VRC), you can farm according to site-specific application maps, depending on the ground and crop. So you can save on inputs.

VariableRateControl

One terminal for everything: 100% ISOBUS compatible

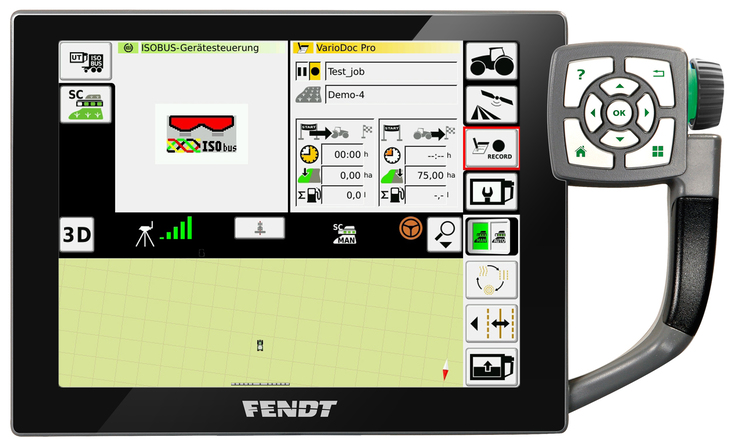

The Fendt Varioterminal communicates with all ISOBUS standards. You can control all ISOBUS-capable implements on only one terminal – and enjoy all the additional benefits of a range of features – from documentation up to section control. In short: You are completely flexible with only one terminal.

ISOBUS

Automatic SectionControl

Your benefits: Your Fendt software is updated during servicing in the workshop, including new, additional features.

The ISOBUS implement control is perfectly integrated in the Varioterminal 7" and Varioterminal 10.4". The implement is controlled with the terminal and joystick, an additional terminal is not required.

Connections that add more value.

Your work at a glance with Fendt VarioDoc

Documentation is the most important basis for farm management for agricultural businesses. With VarioDoc, relevant data can be recorded with a minimum of effort, documented in the field record and then analysed, all in the shortest amount of time. The data is transferred wirelessly from the Varioterminal to the field database using the ISOBUS Standard TC-BAS. Data on the quantity of seeds and fertiliser applied or the fuel consumption per hectare is available immediately after the work is done. Additionally, jobs can be created in the PC and sent to the terminal

Documentation in realtime: Fendt VarioDoc Pro

More options with the Fendt VarioDoc Pro documentation. With GPS recordings and specific settings sent over the mobile network, the key data is documented instantly and directly. This enables the automatic, seamless exchange with ISOXMLcompatible field management software and mapping. Data including remaining time, remaining surface area and fuel required is sent and shown on the Varioterminal while you are working.

VarioDoc enables wireless data transfer from the Varioterminal to the field database. VarioDoc Pro continually records position and machine data and data transfer is possible via mobile network.

Variable application with VariableRateControl (VRC)

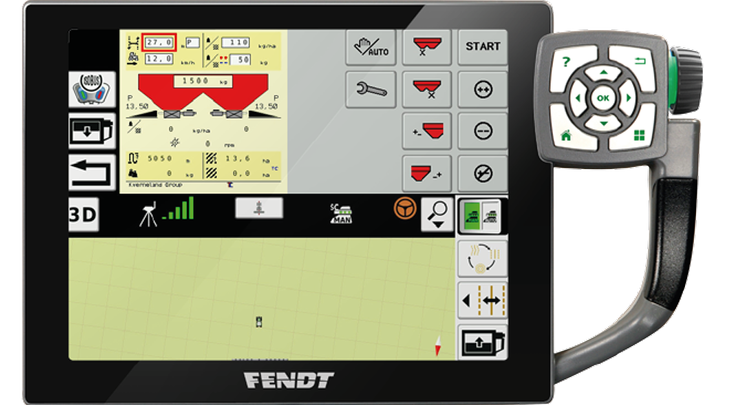

Data transfer with VarioDoc Pro now permits variable rate application, based on the needs of the soil or plants, and therefore saves operating inputs. Based on VarioDoc Pro for documentation, a solution for precision farming, variable rate control function (VRC), is now available. The individual requirements for seeds, fertiliser and pesticides are shown on application maps. They are then called up during operation and automatically executed. The big advantage: operating inputs can be defined and planned with the aid of the field database and then applied with utmost precision.

Efficient from tractor up to data management

Those who invest in a tractor, also invest in the future. As soon as you get your machines well connected, you will optimise the capacity of your fleet. The newest interfaces and software solutions already permit machine data to be called up independent of location today, which enables immediate reaction. This increases the response and operating times of your entire fleet at the push of a button. The new AGCO Connectivity Module (ACM) is the interface between your tractor and the office, taking over the entire telemetry of the data transfer as the central transmission unit on the tractor.
