For those who prefer precision – Guidance system from Fendt.

After a long day working on the field, still no end in sight? With Fendt's guidance system, you work with the highest precision at all times – even at night and in poor visibility.

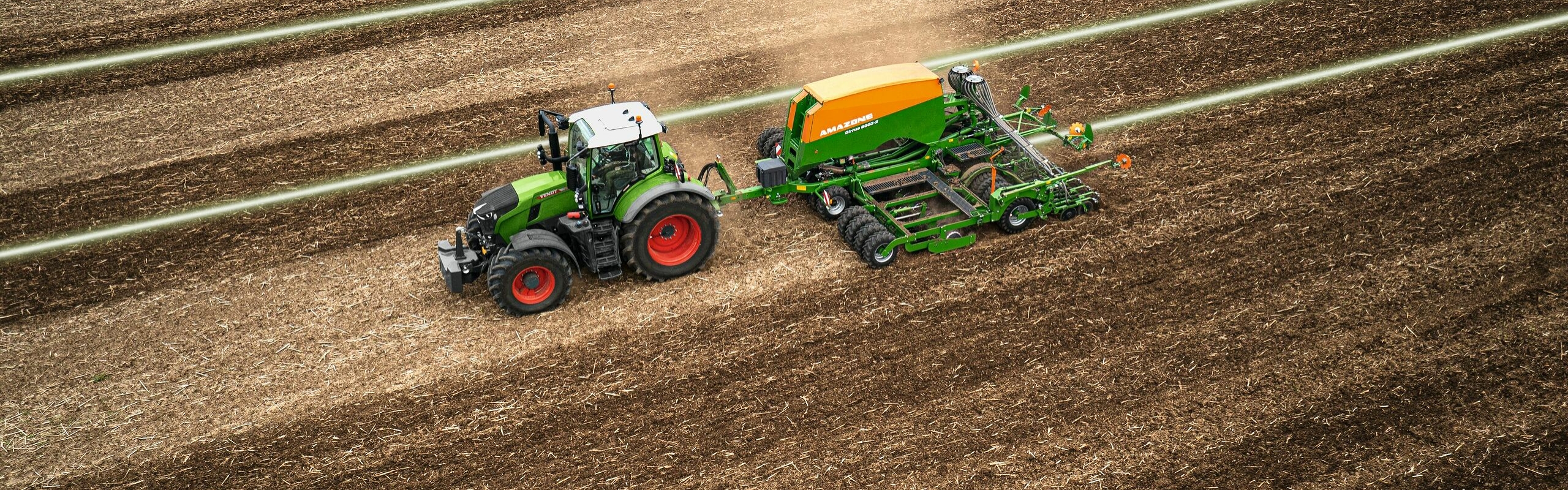

Precision and load-relief with guidance system from Fendt

Fendt Guide
+ enhanced guidance system functions for inside the field Fendt Contour Assistant
+ complete package for professional results at the headlandFendt TI Headland



Your benefits with VarioGuide / Fendt Guide:

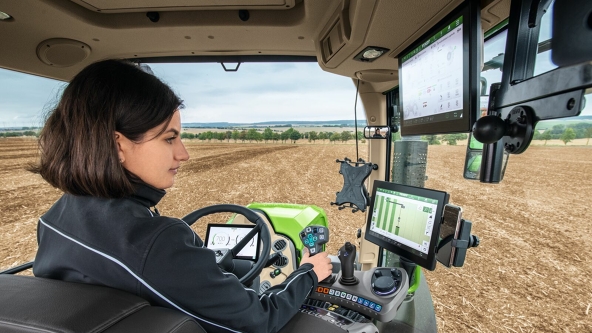

  • Makes the driver's life easier: You can fully concentrate on the equipment and easily monitor the processed fields

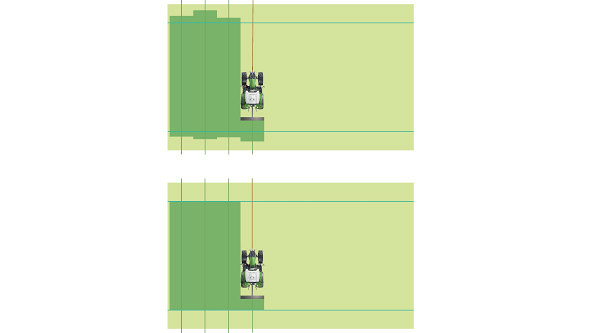

  • Savings potential: Greater area coverage by taking full advantage of the working width, while minimising unwanted overlaps and reducing use of resources
  • Sustainable land management: minimise soil compaction by reducing overlaps and optimising turning processes

Choose the right receiver for your needs.

Equip your guidance system with either a NovAtel or Trimble satellite receiver. Depending on your work and individual requirements, you can choose from correction signals with different accuracy levels. The functionality of VarioGuide / Fendt Guide is the same regardless of who is using it.

Receivers – the choice is yours.

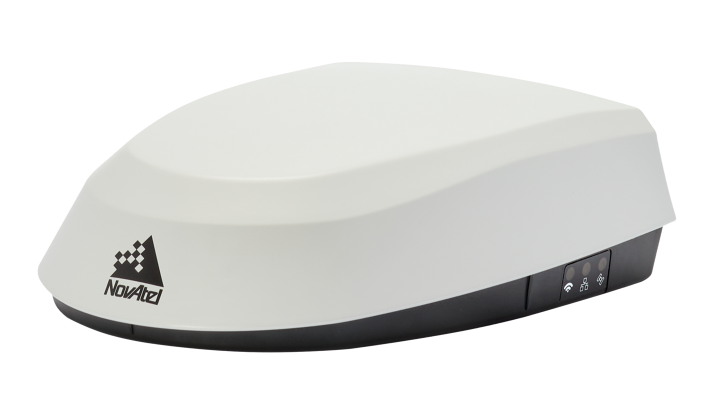

NovAtel®-Receiver

NovAtel®-Standard:

  • Correction signal: SBAS (EGNOS & WAAS) ± 15-30 cm track-to-track accuracy; ± 150 cm repeatable accuracy

NovAtel® – scalable correction signals:

  • Correction signal: TerraStar-L ± 15 cm track-to-track accuracy; ± 50 cm repeatable accuracy
  • Correction signal: TerraStar-C Pro ± 2 cm track-to-track accuracy; ± 3 cm repeatable accuracy

RTK:

  • Correction signal: RTK ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

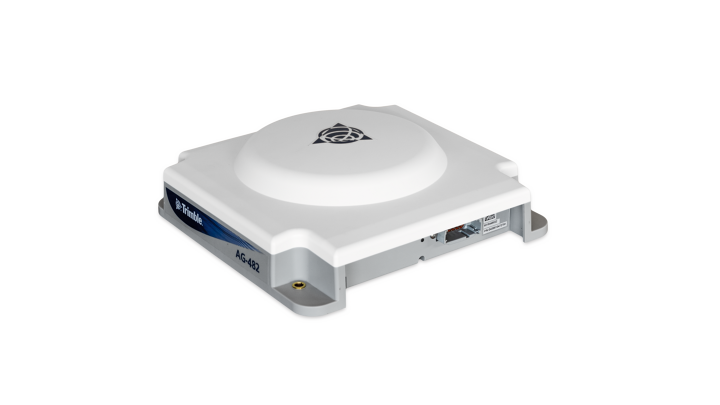

Trimble®-Receiver

Trimble®-Standard:

  • Correction signal: SBAS (EGNOS & WAAS) ± 15-30 cm track-to-track accuracy; ± 150 cm repeatable accuracy

Trimble® – scalable correction signals:

  • Correction signal: RangePoint® RTX ± 15 cm track-to-track accuracy; ± 50 cm repeatable accuracy
  • Correction signal: CenterPoint® RTX and CenterPoint® RTX Fast ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

RTK:

  • Correction signal: RTK ± 2,5 cm track-to-track accuracy; ± 2,5 cm repeatable accuracy

Making lane-keeping even easier – VarioGuide / Fendt Contour Assistant.

Efficient and easy fieldwork

The VarioGuide / Fendt Guide Contour Assistant is a useful function package that will make your fieldwork even more efficient and easier. The Contour Assistant adds the wayline types Contour Segments, Single Contour and Single Contour Segments to your guidance system.

Saves time and money – Contour Segments

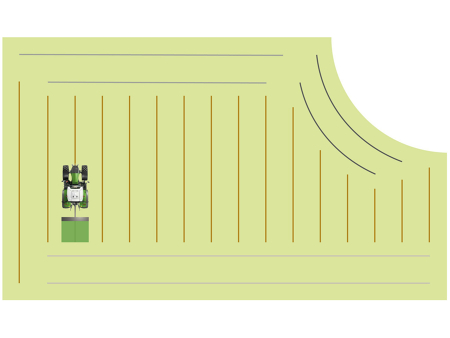

The new wayline type Contour Segments minimises the complexity of the work and is a useful tool for overcoming several obstacles in practice.

  • Time-saving and convenient: quick and easy wayline mapping, automatic creation of contour segments based on the field boundary, consistent use of the steering system even at the headland
  • Data retention and processing: option to convert previously recorded (over many years) waylines into contour segments

For stress-free maintenance work – Single Contour

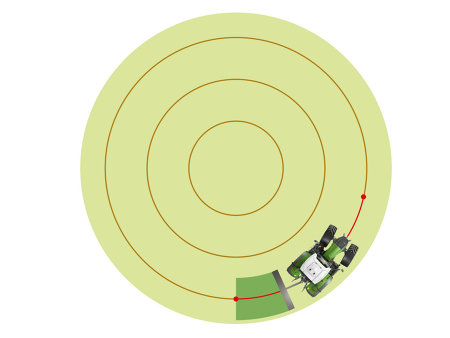

Single Contour Mode allows you to record a track with a free contour.

  • Clear benefits even for crops that were not sown with the steering system
  • Easily record any lane (e.g. driving lane), which can be driven down exactly the same line

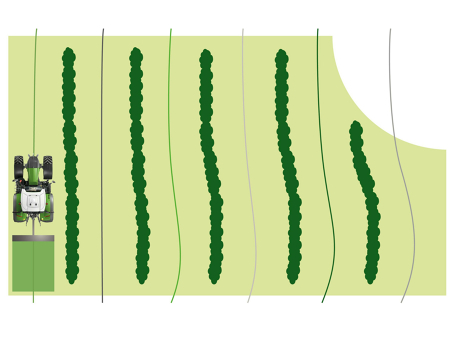

For individuality - Single Contour Segments

  • In contrast to contour segments, several individual single tracks can be created without duplication
  • This makes this function particularly suitable for perennial or permanent crops

Own the headland – VariotronicTI / Fendt TI and Fendt TI Headland.

Easily store repeat processes and activate them at the right time

For a clean headland, you need to make several hand movements in the right place at the right time – not that easy while concentrating on the actual work. Wouldn't it be great if you could save repeat processes and activate them when you want? Now you can, saving time and allowing you to work stress-free and error-free.

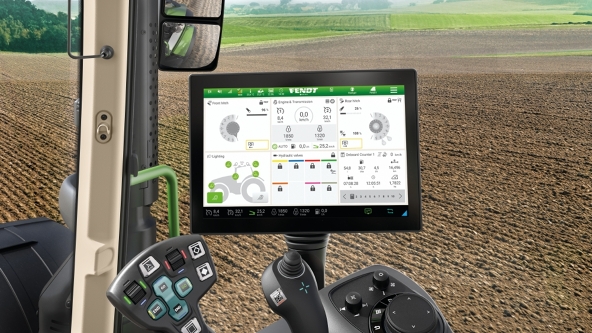

Relief at the push of a button – VariotronicTI / Fendt TI

With VariotronicTI / Fendt TI, the driver can conveniently create the best operating sequence manually at a standstill or record and save it while driving. The defined sequence of work steps is activated at the push of a button. Leaving you to give the actual field work your full and undivided attention.

Get even more from your guidance system. Fendt TI Headland

Fendt TI Headland is the complete package for professional results at the headland. It consists of the two products VariotronicTI automatic / Fendt TI Auto and VariotronicTI Turn Assistant.

VariotronicTI automatic / Fendt TI Auto

  • Save and automatically trigger a sequence of work steps at the headland

VariotronicTI Turn Assistant

  • Automatic turning at the headland (initially available for the current driver's workstation)

In the right place at the right time – VariotronicTI automatic / Fendt TI Auto

With VariotronicTI automatic / Fendt TI Auto, not only can you enjoy the advantages of automatic sequencing, but also use your position data as guidance. In combination with VarioGuide / Fendt Guide, individual sequences (such as lowering the rear hydraulics) are automatically activated by the position determined by the guidance system on a headland – you don't have to lift a finger. How to use your steering system effectively even at the headland: Always keep the same distance to the field boundary.

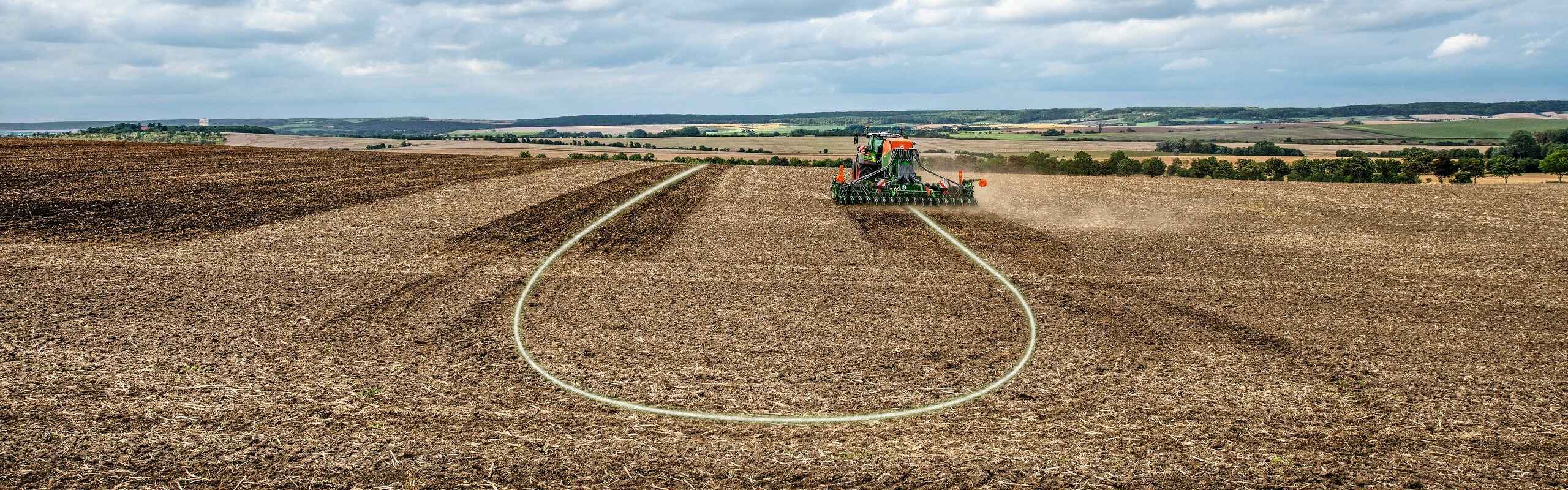

Automated turning: VariotronicTI Turn Assistant

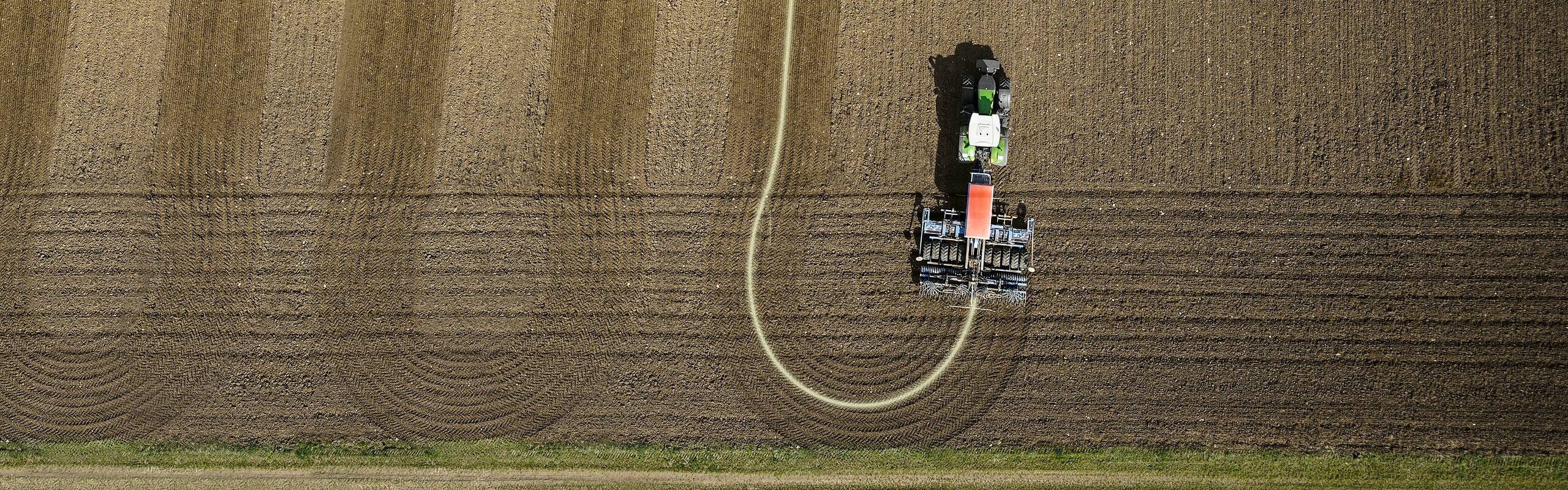

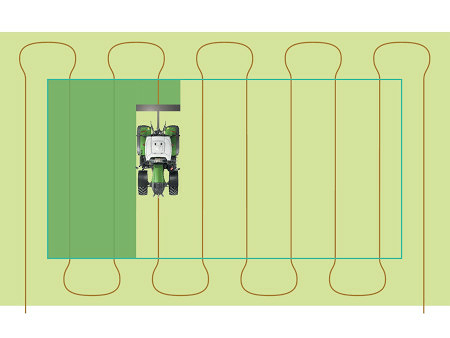

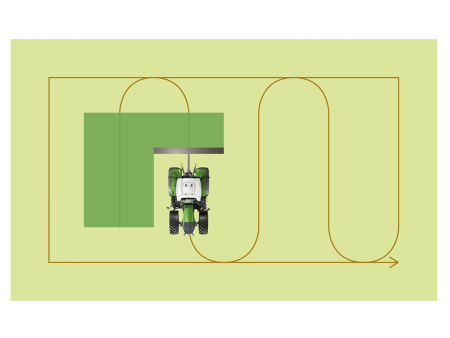

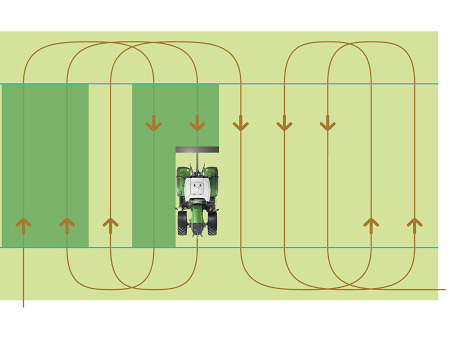

The VariotronicTI Turn Assistant adds the automatic turning sequence to the VariotronicTI automatic / Fendt TI Auto headland management system included Fendt TI Headland. This feature allows for fully automatic turning in the field. The driver can choose between four different types of turn: Part field mode, U-Turn, Y-Turn and K-Turn. The two modes Y-Turn and K-Turn allow automated steering movements at the headland. These types of turns are particularly suitable for small headlands and smaller machines on the tractor's rear linkage. Turn Assistant makes your work as easy as possible, with precision and efficiency. You also save resources and time spent on turning, while protecting the soil with the perfect turning actions.

Part Field Mode

U-Turn

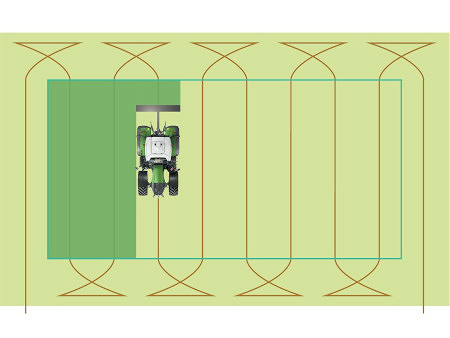

Y-Turn

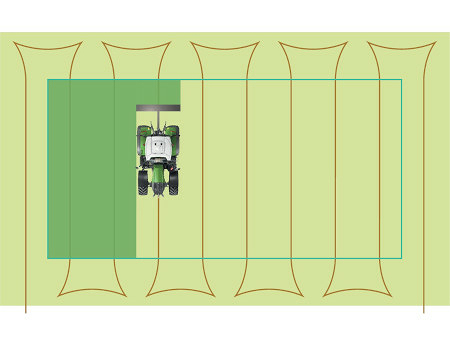

K-Turn
