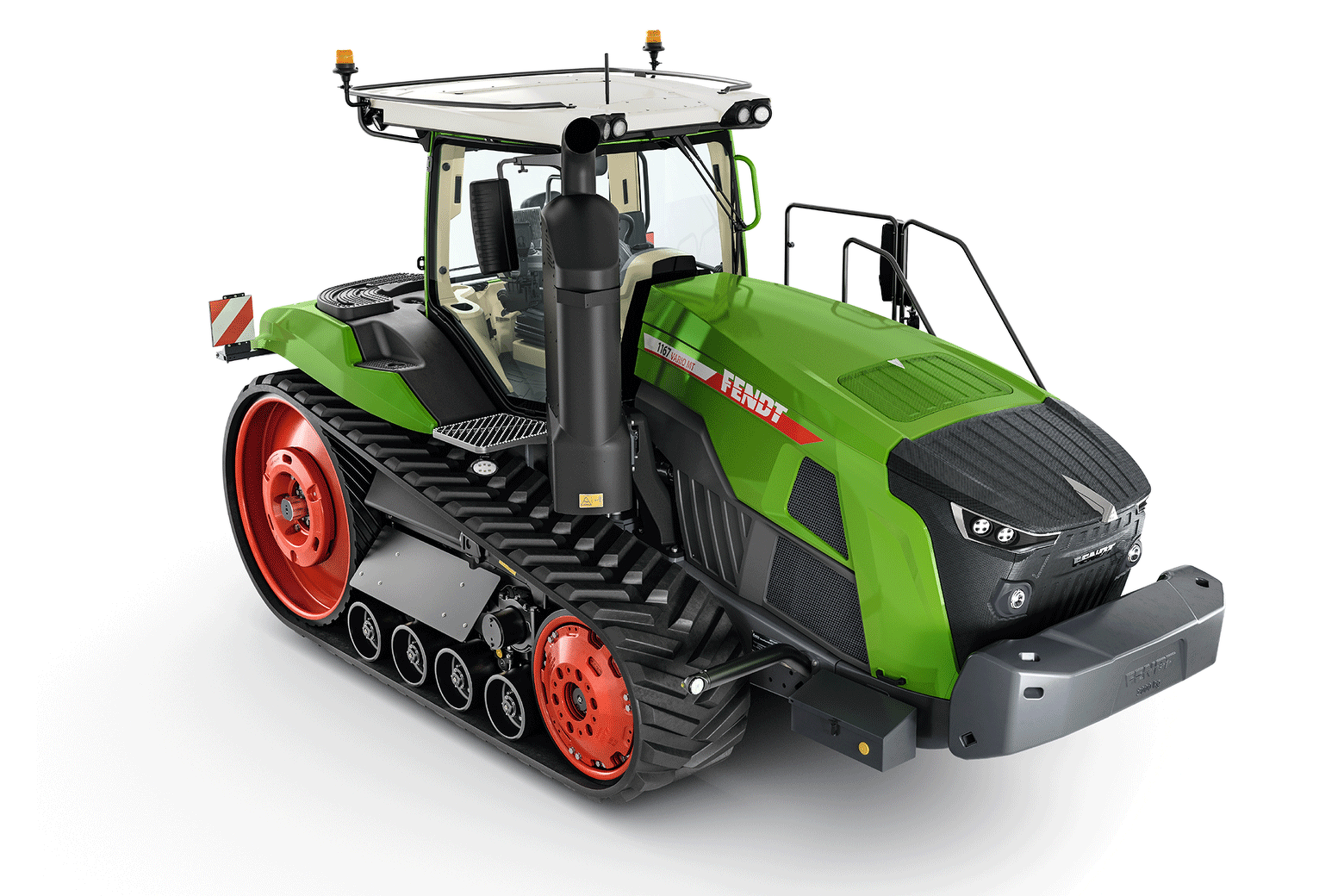

The best features for your success - Fendt 1100 Vario MT Spotlights
The system on the new Fendt 1100 Vario MT is the result of more than 30 years' experience with tracked tractors.
This overview highlights the unique Fendt solutions that make all the difference.
Show more details
High performance hydraulics
- 2-circuit hydraulics with up to 440 l/min - No throttle losses for more power - Separate transmission and hydraulic oil supply - Low maintenance costs due to long maintenance intervals (2,000 hours or two years)
VarioGuide lane guidance system
- Basic lane guidance package as standard: Tractor equipped for lane guidance and the VarioGuide app - Choice of two high-performance receivers: NovAtel or Trimble - Various correction signals with an accuracy of up to 2 cm - VarioGuide Contour Assistant optional
Spacious cab including suspension
- Fendt driver's workstation with proven operating logic - First tracked tractor with a 2-point cabin suspension offers outstanding comfort - Excellent visibility in all directions
Fendt iD low engine speed concept
- All vehicle components are perfectly aligned to the right speeds, including the engine, gearbox, fans, hydraulics and all auxiliary units - Reach the highest torque at low revs - Low fuel consumption, all the time - Extended service life
VarioDrive drive train
- Gear ratio regardless of engine speed: two independent, pivoting hydromotors for maximum efficiency in any driving situation - Specially adapted to the requirements of tracked tractors - No travel range selector required - Optimum engine/transmission tuning together with the Fendt iD low-speed concept
SmartRide+ chassis suspension
- Top-level driving comfort on the field and on the road - 100% maintenance-free - Self-levelling system: Chassis is kept horizontal even for heavy attachments - Optimised suspension in both directions
Flexible ballast options

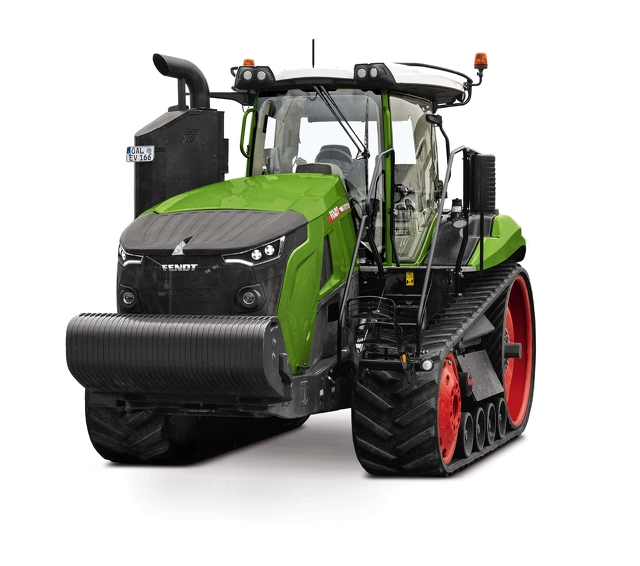

- Flexible ballast options at the front, on the idler and drive wheels as well as on the chassis frame - Perfect ballasting depending on the intended use and soil conditions - Adjust the machine's centre of gravity with SmartRide+ - Easy to attach and detach the front weight with the help of SmartRide+
Swivel drawbar
- Choice between a hydraulically pivoting or free-pivoting drawbar, which can be swivelled 28° in both directions - For three-point attachment: Drawbar with rear power lift available
Our experience for your success
All advantages in one vehicle

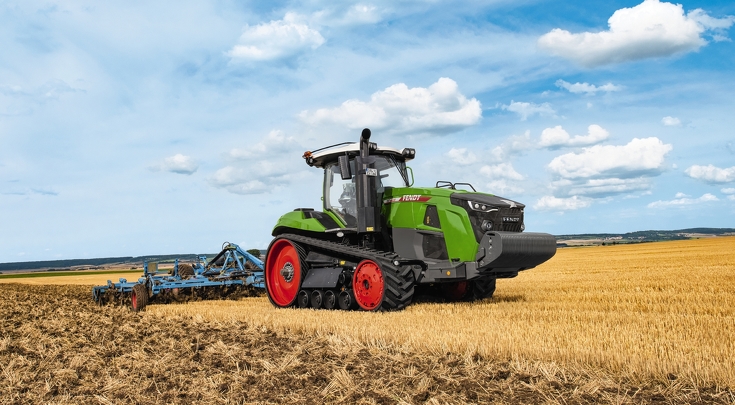

The tracked drive system of the new Fendt 1100 Vario MT is the result of more than 30 years' experience with tracked tractors. Our drive has a suspension chassis for 100% comfort. The 3,000 mm wheelbase promises an extremely large contact surface. This means more traction, less soil pressure and an optimal weight distribution across the entire contact area even in the case of a heavy load. And, of course, optimised driving comfort.
Cooling

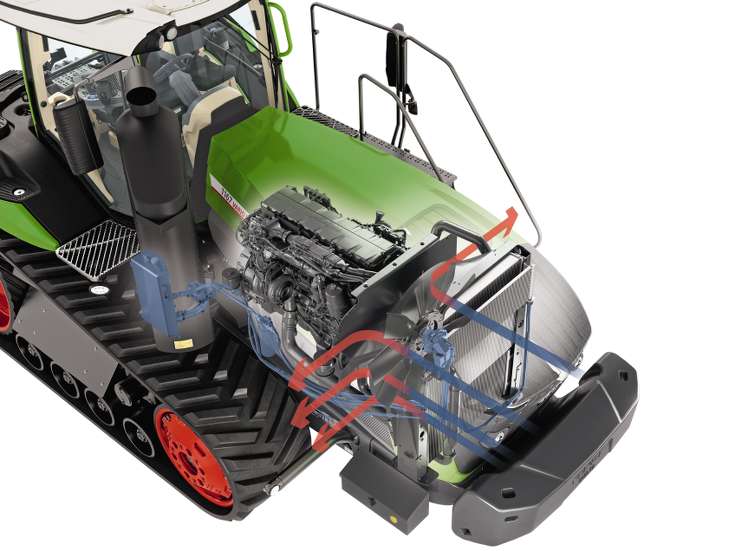

The hydraulically driven cooling fan has its own hydraulic circuit. The fan pushes the air towards the heat deflector. This directs the hot air to the air vents in the bonnet. The heat from the cooler gets nowhere near the engine compartment. This guarantees the engine components stay at suitable low operating temperatures.
A power sensation

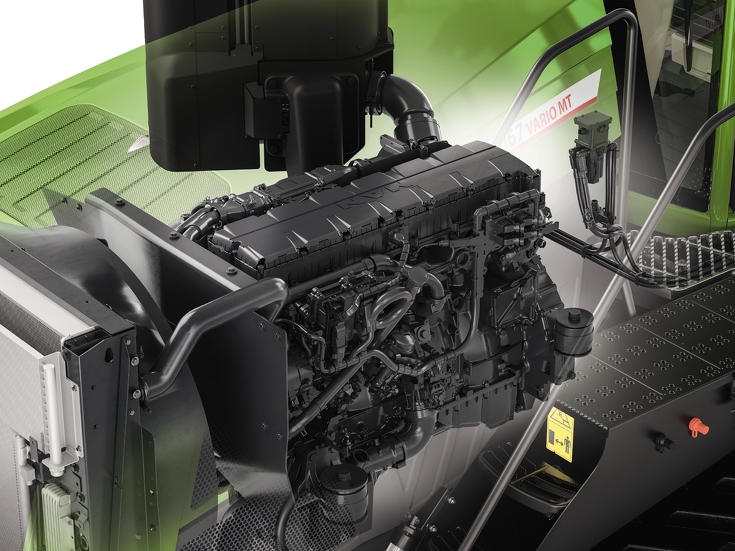

An engine that is unparalleled: the MAN 6-cylinder in-line engine offers an enormous cubic capacity of 15.2 litres on the Fendt 1151 Vario MT, 1156 Vario MT and 1162 Vario MT models. With the high-end model Fendt 1167 Vario MT boasting 16.2 litres, providing an unbeatable 673 hp to the auxiliary consumers under extremely high power requirements. A Common Rail system with an injection pressure of up to 2,500 bar and a turbo-supercharger with variable turbine-geometry (VTG), deliver the power evenly and dynamically even at low engine speeds.
All advantages in one vehicle
The tracked drive system of the new Fendt 1100 Vario MT is the result of more than 30 years' experience with tracked tractors. Our drive has a suspension chassis for 100% comfort. The 3,000 mm wheelbase promises an extremely large contact surface. This means more traction, less soil pressure and an optimal weight distribution across the entire contact area even in the case of a heavy load. And, of course, optimised driving comfort.

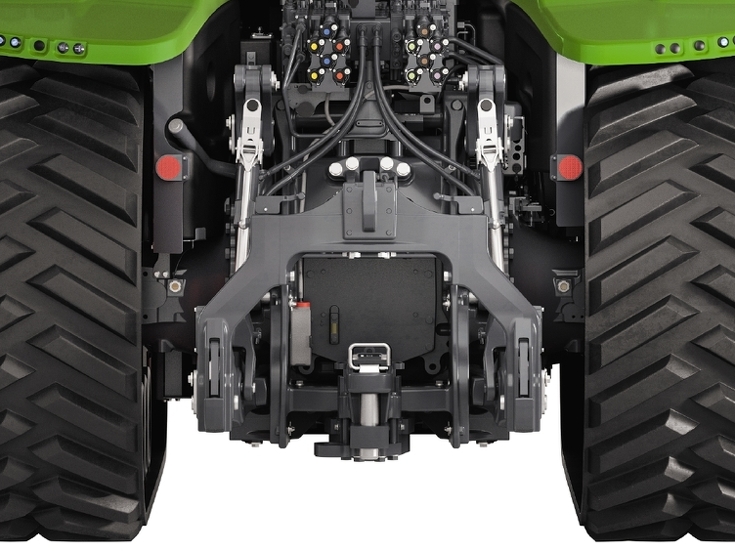

The right attachment for each hookup
In the performance segment of the Fendt 1100 Vario MT, most attachments are driven with a drawbar. The Fendt 1100 Vario MT comes with a Cat. 5 drawbar. But you can easily reduce the bolt size to Cat. 4 with the help of an adapter – a simple, toolless process. To ensure that your Fendt 1100 Vario MT fits perfectly with your business and its requirements, there are different drawbars to choose from:
- Free-pivoting drawbar
- Hydraulically pivoting drawbar
- Drawbar for use with a rear power lift for a three-point hitch
Why use a pivoting drawbar?

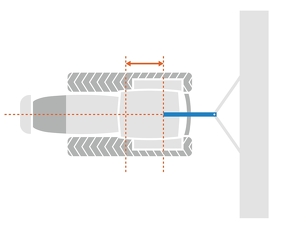

Straight-ahead driving with drawbar
The forces are balanced.
Steering with a rigid drawbar
The actual pivot point of the tractor is far from its natural pivot point -> more traction required.

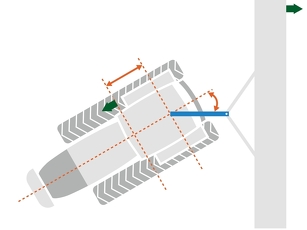

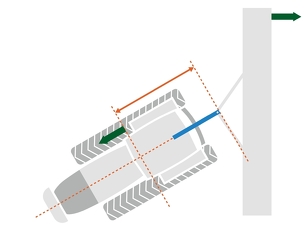

Steering with a pivoting drawbar
The actual pivot point of the tractor is closer to its natural pivot point -> less traction required for fuel savings and less wear.
Fendt Smart Farming - For everyone who wants to work more efficiently
Lane Guidance
With high-precision satellite technology, you can control your tractor even at night or in poor visibility to an accuracy of just +/- 2 cm.
