The workplace, you’ve always wanted.

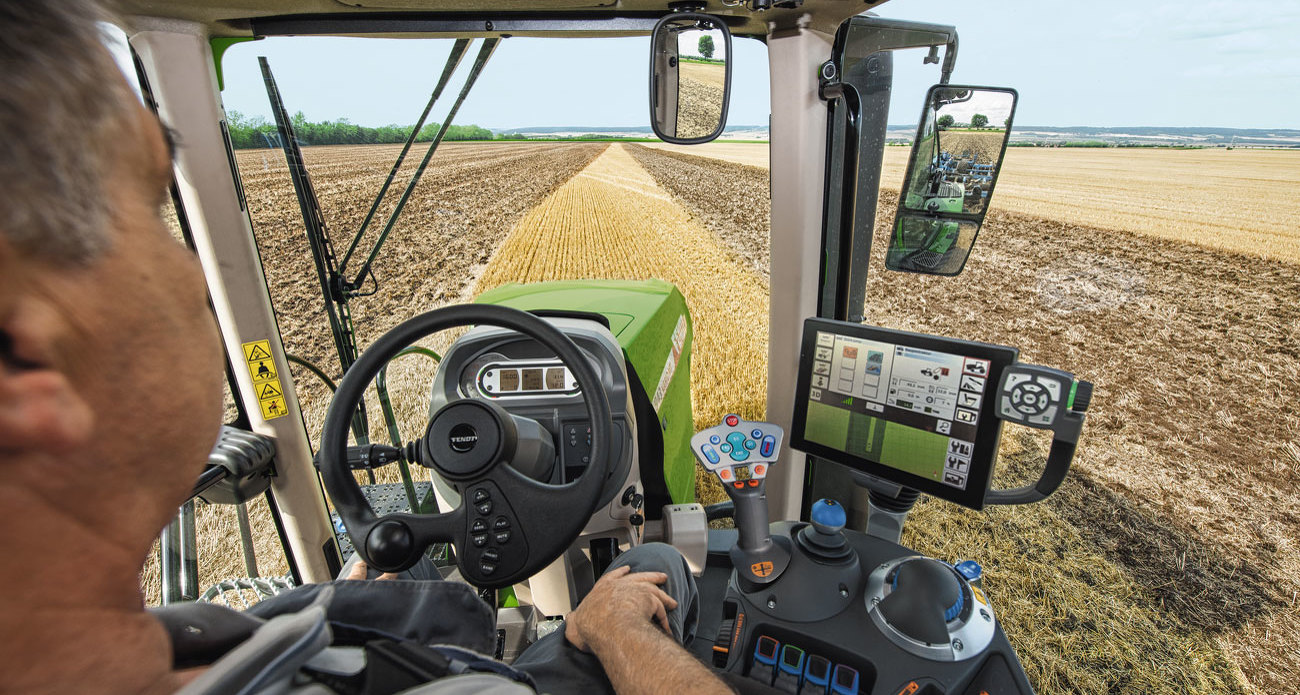

Anyone taking a seat in the cab of the Fendt 900 Vario MT will feel right at home! The operation concept is a feature of all the self-propelled Fendt machines. This helps the drivers to find their way quickly. All settings are implemented easily and quickly and the attachments are safely operated.

New driving comfort

With its 2-point cab suspension, Fendt 900 Vario MT offers spring stroke between the driver and the ground like no other tracked tractor. Robust coil springs with integrated shock absorbers at the rear and two silent spring blocks at the front absorb the vibrations in the field and on the road. The spring stroke at the rear is 98 mm. The damping elements operate precisely and sensitively in order to make your work as pleasant as possible even on long working days. Three different seats are available to match your individual requirements.

Creates a feel-good atmosphere:
The Fendt cab offers an excellent view in all directions thanks to the low side lines, narrow bars and handilyplaced exhaust pipe with DOC, DPF and SCR catalytic converter. With 6.27 m² of window, you have the best seat in the house, converting the 3.06 m³ cab and its equipment into a bright, friendly workplace. Moreover, it is ROPS-certified.

Sophisticated interior:
For long working days, the cab offers numerous storage compartments and 12 V USB connector for charging mobile phones and tablets. The operator's seat is available in three versions and can be easily cleaned thanks to the leather cover. Even the instructor seat is made of leather and offers first-rate comfort. If required, it can be folded down and used as a beverage holder. If the sunlight is too bright, sun blinds on all four sides protect the driver from disruptive glare.

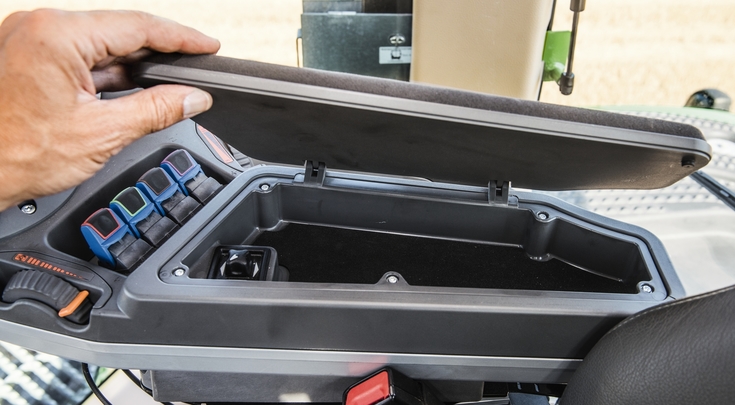

Here’s everything you need to know: The storage compartment in the armrest offers sufficient space.

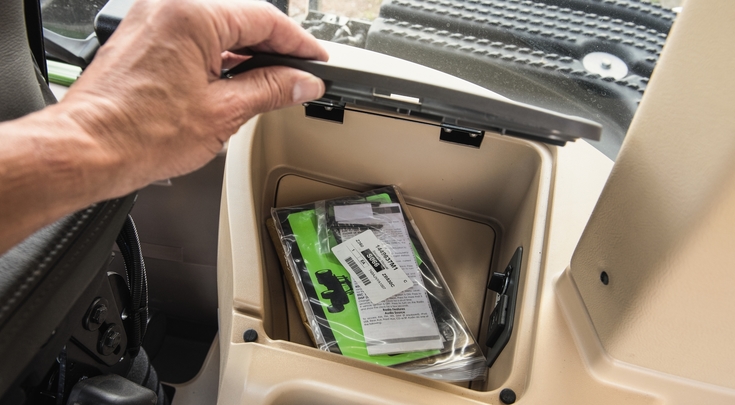

The numerous storage options are important on long working days. They also keep the cab tidy.

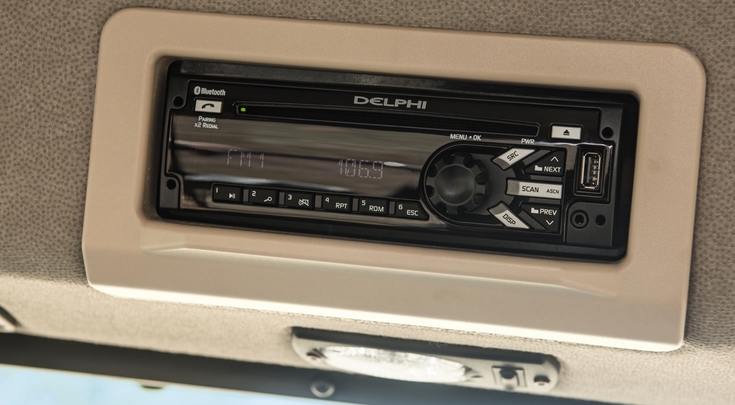

The high-quality sound system caters for entertainment.

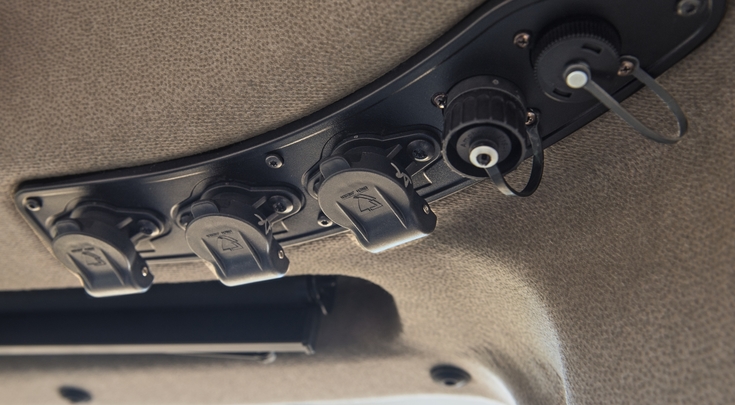

Power connections for external consumers are tidily arranged and can be easily accessed in the roof area.

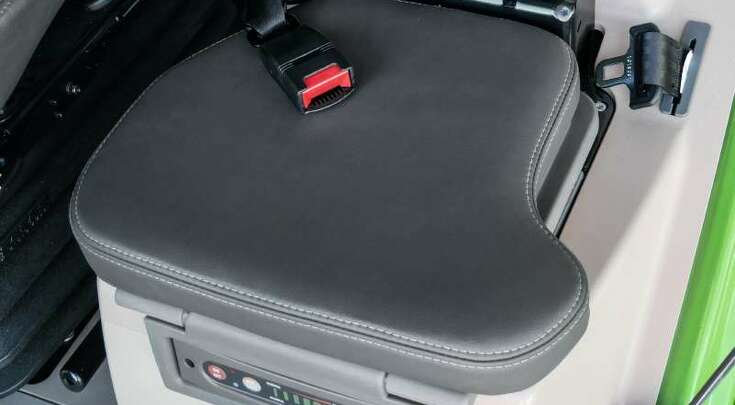

The leather instructor seat offers high comfort.

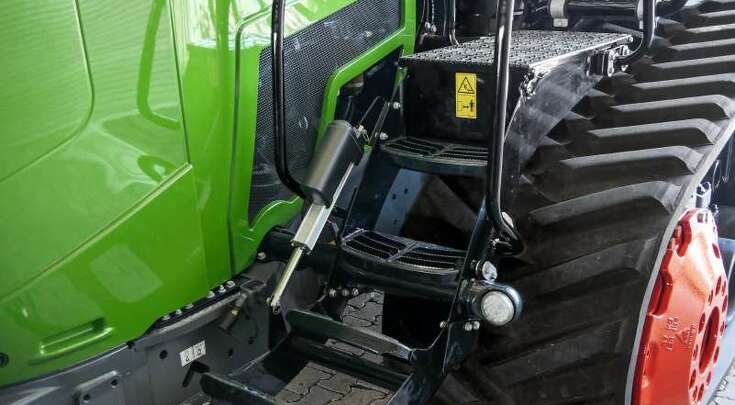

You can climb into the spacious cab via a ladder that can be folded up and down automatically.

The leather instructor seat offers high comfort.

You can climb into the spacious cab via a ladder that can be folded up and down automatically.

Driving comfort can be so easy.

Standard operating philosophy

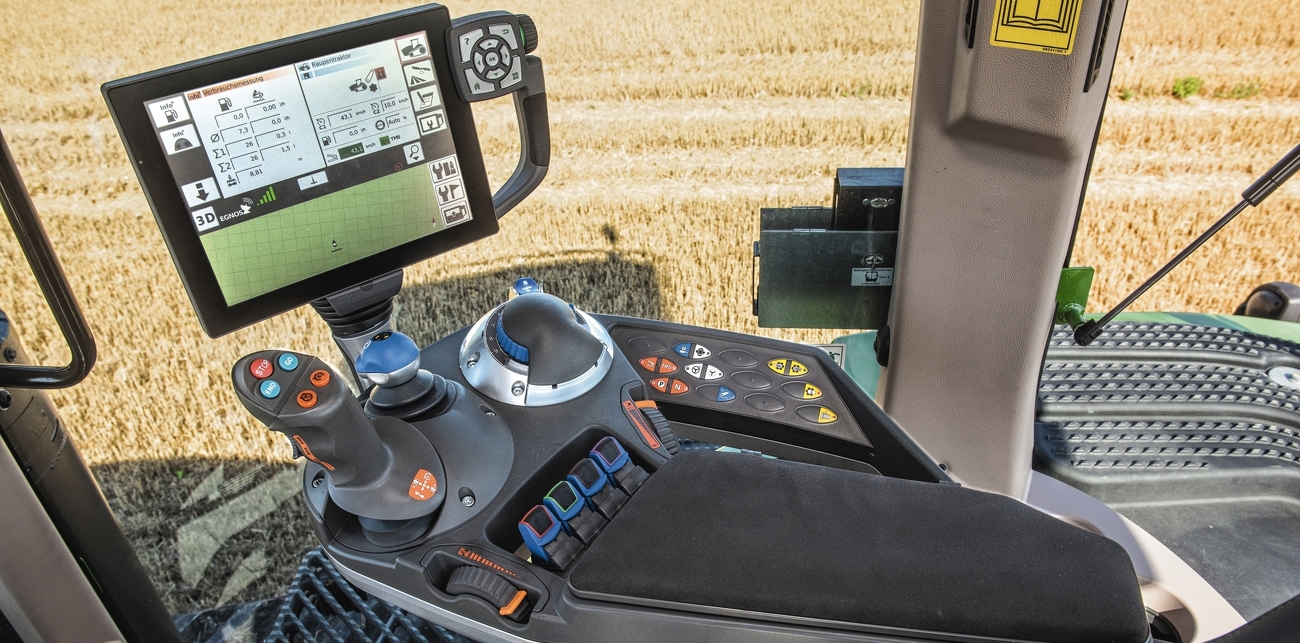

A modern and comfortable workplace awaits you in the Fendt 900 Vario MT. The trusty Fendt multi-functional armrest offers you fast and comfortable access to all tractor functions required during your work. Its height and position can be adjusted. The Varioterminal 10.4" permanently displays all the important settings, the steering system or the attachments so that you can continuously keep an eye on all the machine data.

Everything in one place

Using just one multi-functional joystick, you can control all the important tractor functions. In addition to the driving speed and direction, you can also control the acceleration in four stages. With the help of two buttons, directly select two different cruise controls or activate a saved engine speed. Activate the VariotronicTI headland management using the Go and End buttons. This way you have complex attachments under control and get to experience reduced workload on headlands. A particular benefit is how easy it is to program headland sequences at a standstill or even on the move.

Complete rear linkage

The Fendt 900 Vario MT comes with full rear linkage. And it's so easy to control from the armrest. The rear linkage operation module is located directly next to the multi-functional joystick and the crossgate lever for hydraulic valves.

Hydraulic system & buttons

You can operate the powerful hydraulic valves using a toggle switch in the armrest, which is easily accessible and clearly structured. The response behaviour of the toggle switches can be adapted to your requirements. Moreover, a joystick is also available for hydraulic operation directly next to the joystick with which you can operate two valves. The valves can be freely assigned. Easily assign them on the Varioterminal at the touch of a button. Here you can also adjust the flow times and quantities easily and control your attachments to get the best results.

Adjust the gearbox, hydraulic and PTO settings using the membrane keys in the armrest.

Use the multi-functional joystick (fitted as standard) to control the speed, cruise controls, engine speed memory and headland management.

Mosaic

Adjust the position of the steering wheel with the foot pedal.

  • Mosaic

    Adjust the position of the steering wheel with the foot pedal.

  • Mosaic

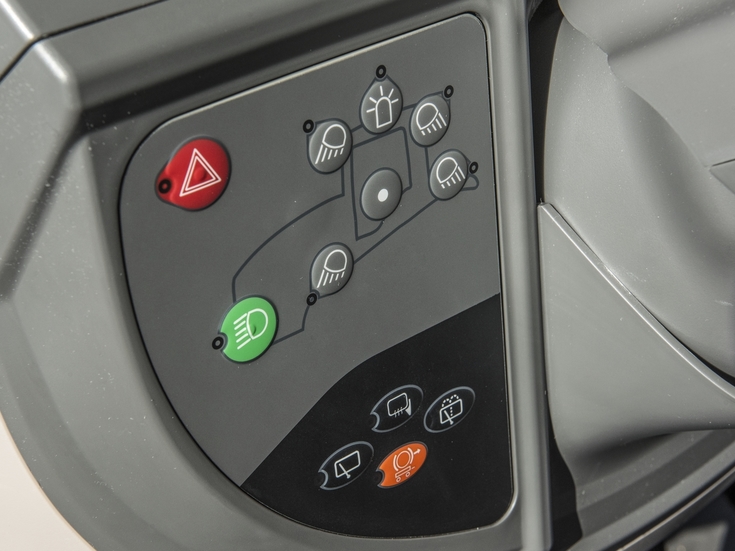

    Activate the headlights and working lights on the left side of the instrument panel.

  • Mosaic

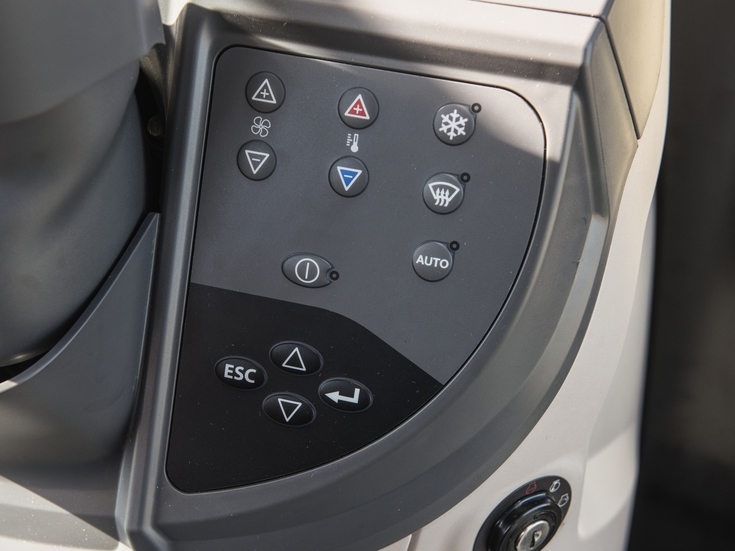

    Control the extremely powerful air-conditioning system directly from the dashboard.

  • Mosaic

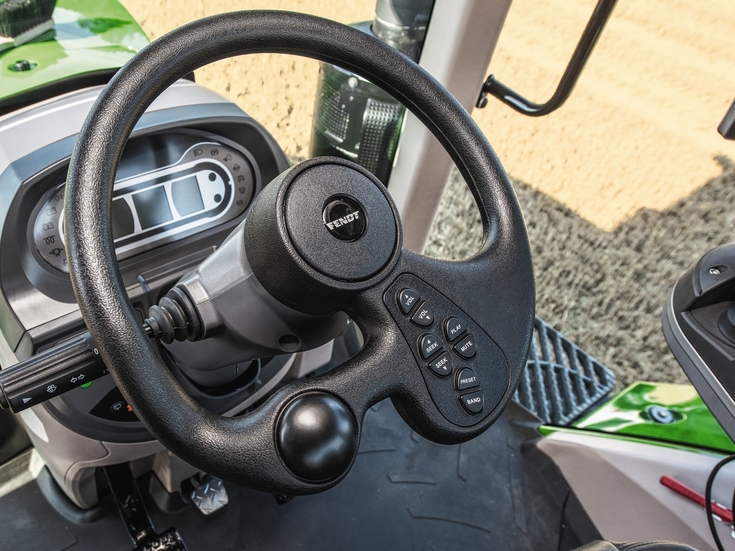

    The exclusive spoke steering wheel oprovide controls for the audio system.

  • Mosaic

    Der optionale Profi-Joystick verfügt zusätzlich noch über Tasten zur Bedienung zweier Hydraulikventile.
