Why Fendt operators have a far better view.

Perfect overview with the Fendt VisioPlus cab


During loader work, it is essential that you have a good view of everything. The Fendt Vario tractors in the 300, 500, and 700 series stand out from the crowd thanks to

an outstanding, all-round clear view with a 77° viewing angle from top to bottom – a miracle of vision and space. The windscreen on the cab curves up into the roof for an unobstructed view over the raised front loader. The integrated curvature means any material just slides off and offers the ultimate in visibility.

Smart design for the best view


Through the optimised arm width and the crossbeam, which is positioned very far forward, the entire structure of the front loader has been designed for an unobstructed view. The pipelines lie protected in the arm and ensure a better view. If you like to have the front window open, the mounting points of the front loader arm and the Z-bar linkage mean the front window can be swung out fully at any time during front loader work (not available on the 3X/65 and 4X/75 compact).

Optimal visibility thanks to the low, streamlined bonnet design

The area between and in front of the wheel arches has also been optimised. Fendt tractor bonnets are always streamlined and well-designed – especially useful for shunting grain for example. Fendt offers a fully integrated roof window for the compact 200 Vario series to guarantee an excellent view of the raised front loader.

Exceptional, unbroken views with a 77° viewing angle.

The roof window, which is standard on the 200 Vario, provides a perfect view of the raised front loader.

A gentle ride thanks to the damping system

The damping system, which lies completely protected in the cross beam, provides exceptional comfort. Nitrogen accumulators on the front loader act as shock absorbers. Shock loads cause the hydraulic oil to press against a membrane in the accumulators. This compresses the gas volume, which reliably reduces peak loads. If precise implement control is required, the system can be switched off electrically, with a quick push of a button in the cab (mechanical for 3X arm).

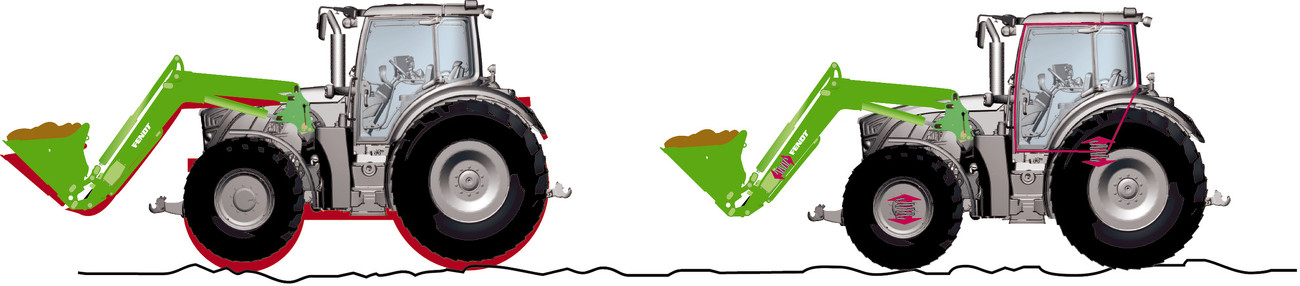

Front loader without damping system:

Shock loads are transmitted to the tractor.

Front loader with damping system:

Gas pressure reservoirs act as shock absorbers and prevent vibrations from being transmitted to the tractor body. The built-in cushioning system, together with front axle suspension and cab suspension, ensures superior ride comfort (optional).

Maximum comfort for better results.

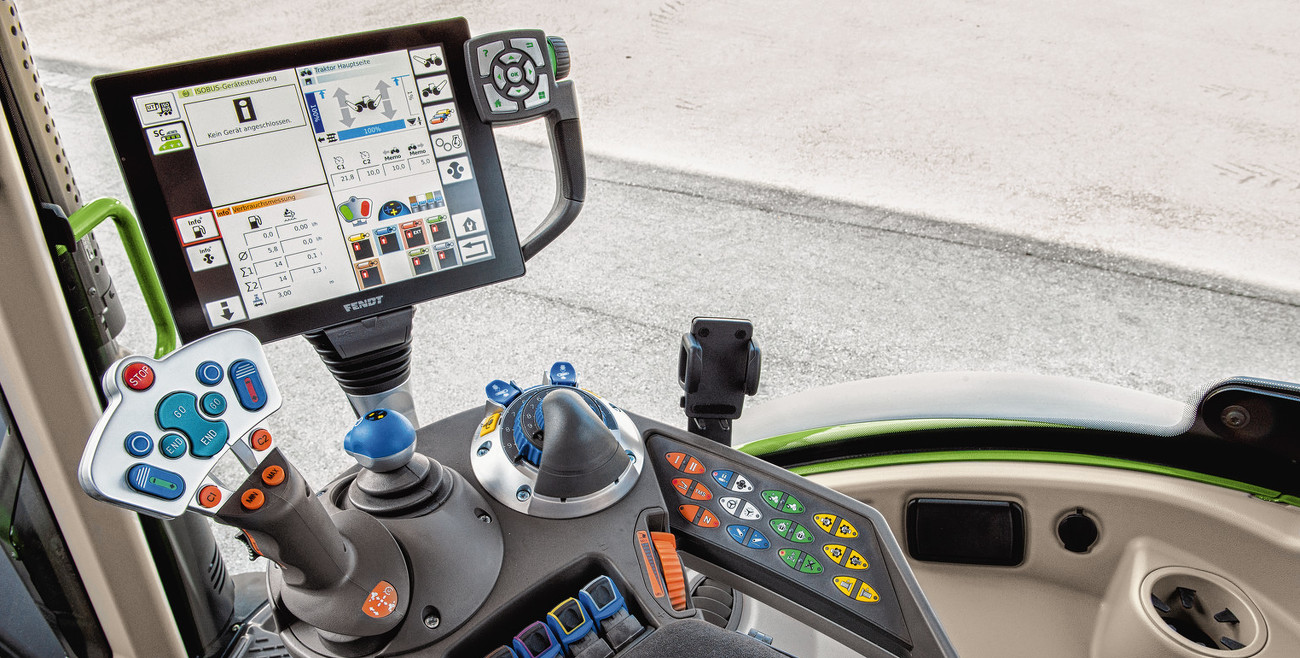

The arrangement of the controls ensures the best ergonomics. The Varioterminal gives you a clear overview of all control displays.

Mosaic

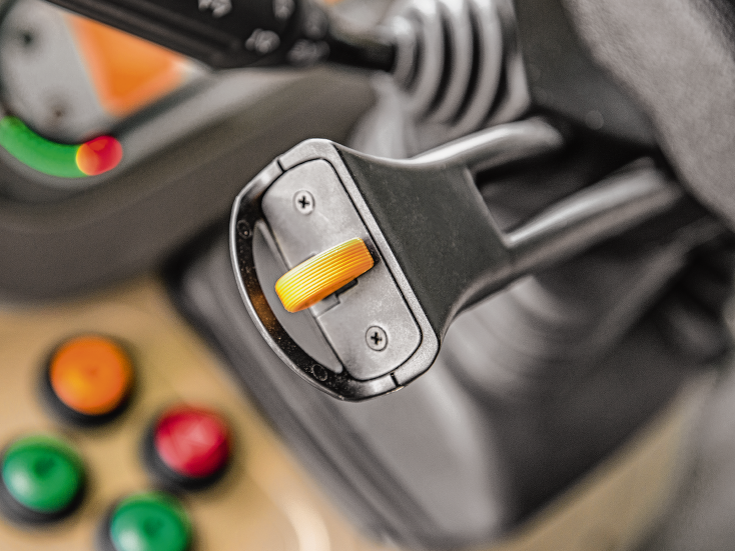

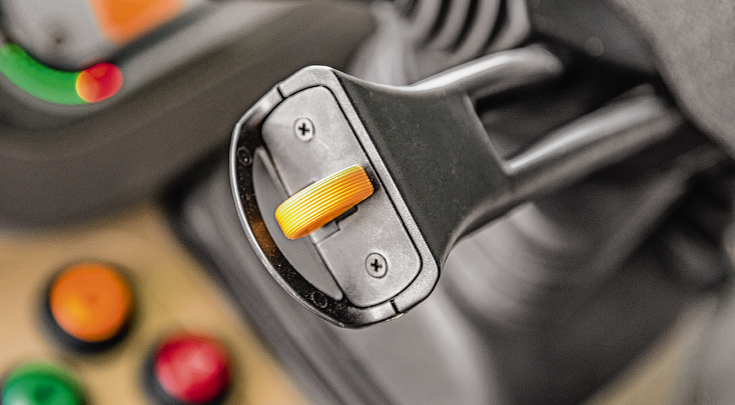

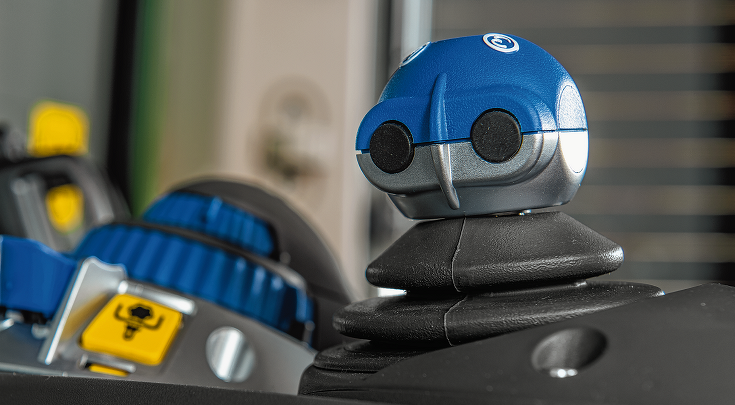

Sensitive and precise: Control via the standard crossgate lever

You will be thrilled by how easy the front loader is to operate, because it is perfectly integrated in the Fendt Vario. Two control valves can be controlled very precisely with the standard crossgate lever without having to reposition your hand. When working with the silo or ball pliers, use the push-buttons on the crossgate lever to control the third and fourth hydraulic circuits (optional on request).

  • Mosaic

    Sensitive and precise: Control via the standard crossgate lever

    You will be thrilled by how easy the front loader is to operate, because it is perfectly integrated in the Fendt Vario. Two control valves can be controlled very precisely with the standard crossgate lever without having to reposition your hand. When working with the silo or ball pliers, use the push-buttons on the crossgate lever to control the third and fourth hydraulic circuits (optional on request).

  • Mosaic

    Cargo - comfort handling for the 3rd and 4th circuit

    Complex implement functions can be controlled with the optional third and fourth hydraulic circuits. These are controlled by pushbuttons on the crossgate lever. The optional hydraulic attachment lock and the vibration damping system (optional) can also be conveniently operated from the operator's seat using the Cargo comfort controls.

  • Mosaic

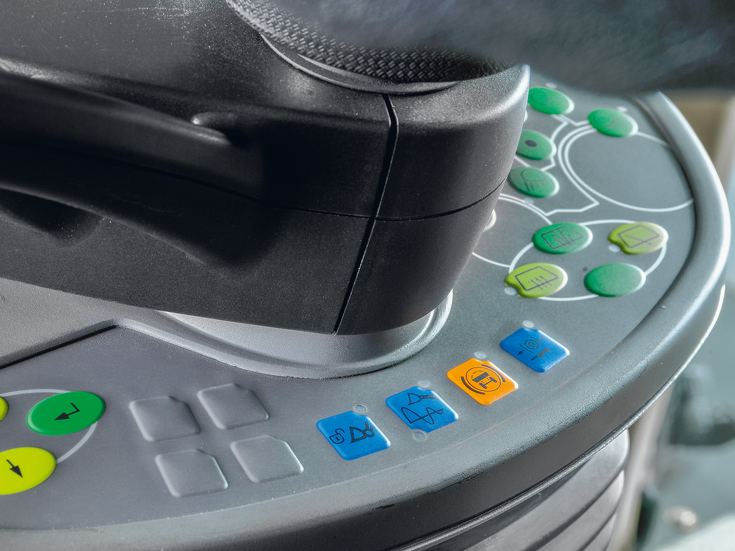

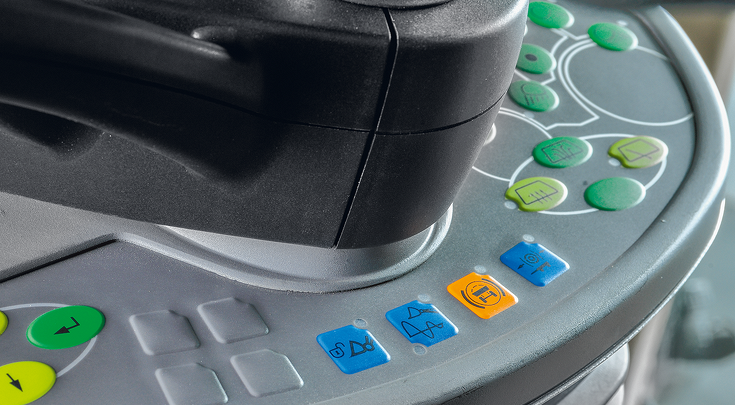

    Perfection: Turn and steer on the left, and load on the right

    The rapid reverse function on your Vario allows you to change driving direction quickly and easily, without wear. When driving in pedal mode with TMS, both of your hands are free, allowing you to change travel direction with your left hand and control the Cargo with your right. No more need to change hands. The integrated Stop-and-Go function is an additional benefit. This allows you to steer and stop the vehicle precisely when turning.

  • Mosaic

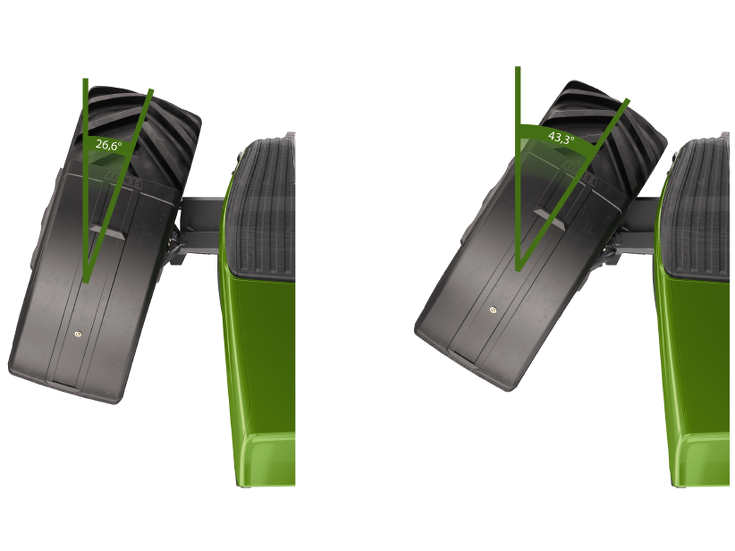

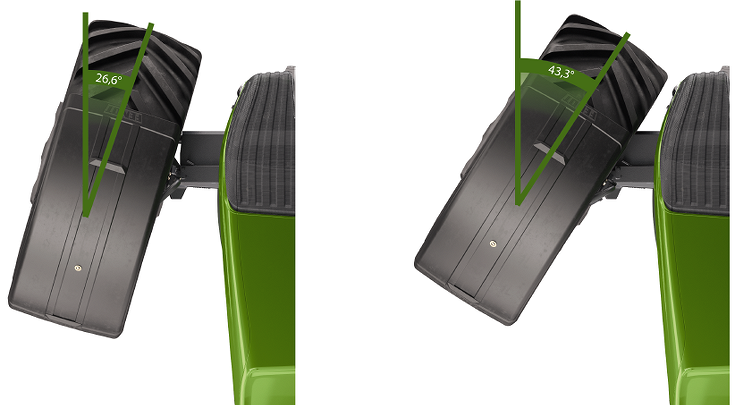

    VarioActive steering – reverse in just one action

    Steer quicker with the VarioActive steering system. With activated VarioActive steering, the number of steering wheel turns from full lock to full lock is halved. Using the superimposed VarioActive steering system, a greater steering ratio can be activated by the touch of a button. Up to 8 km/h the superimposed steering system is unrestricted, from 8 to 18km/h the superimposition effect is linear.It adapts to the steering movement and road speed, resulting in enhanced operating comfort, especially for front loader work in small farmyards or on headlands.
