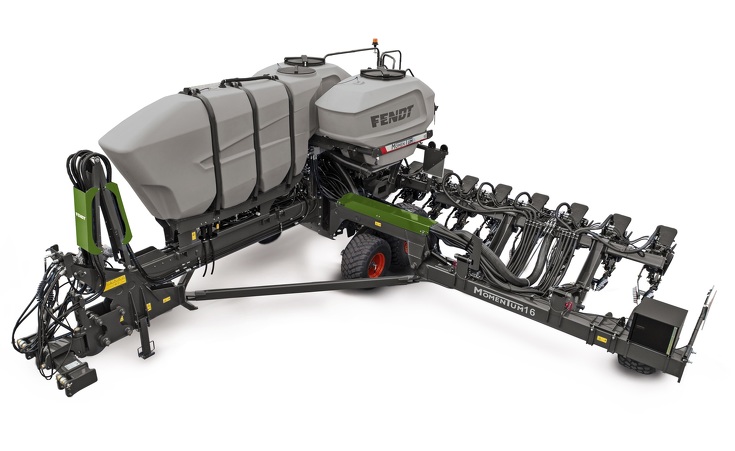

The Fendt Momentum Planter

Welcome the newest member to your family farm.

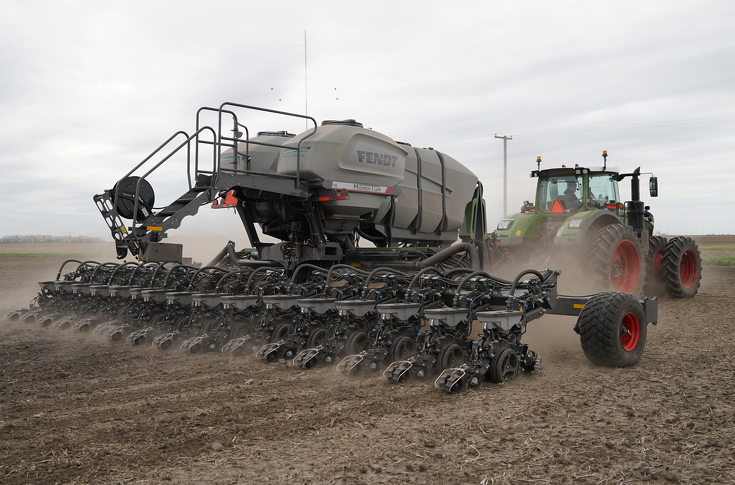

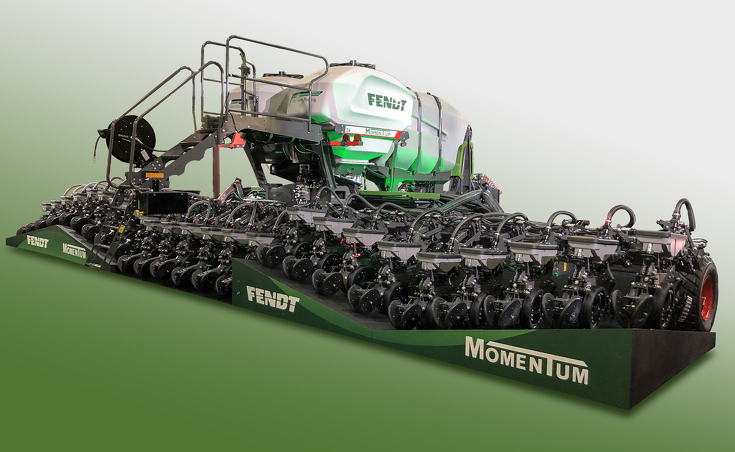

The Fendt Momentum 30-Foot Planter

Designed for smaller fields, with a groundbreaking 52" vertical range to tackle challenging terrain, making every single acre count, the Fendt Momentum 30' is a testament to human innovation and a boost to your bottom line.

With the highest capacity tanks in the 30' segment, 100 bushels of seed and 800 gallons of liquid fertilizer, you'll do more planting and less refilling.

No matter the size of your farm, Fendt's got you covered. The technology you want in the size you need, with the all-new Momentum 30' planter.

Details make all the difference.

New era

The potential for maximizing yield all starts with putting the seed in the ground and the details make all the difference, like ensuring accuracy no matter the field condition, or minimizing compaction, or simply covering more acres when they need to be covered.

Momentum Models

	16	24	31	32	36	48
# of Rows	16	24	31	32	36	48
Row Spacing	30"	20", 22", 30"	15"	15"	20", 22"	15"

PRODUCT BROCHURE

BROCHURE EN FRANÇAIS

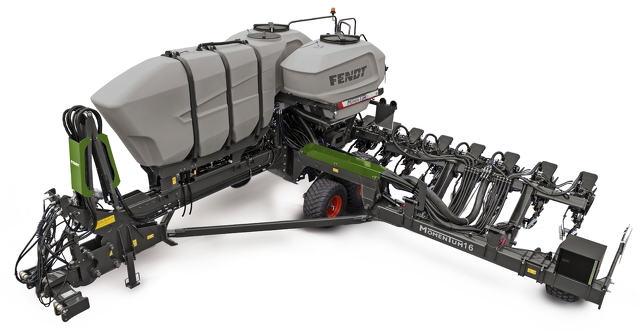

Developed to help you take on even more

Twin, 65 bu. seed tanks
Optional 1,000 gallon liquid fertilizer
Load Logic weight management system
Automatic tire pressure regulation
In-line center tandem wheel design
Vertically Contouring Toolbar (VCT)
Power Beyond - delivers consistent and efficient hydraulic flow
All powered by the latest technology from Precision Planting™

Consistently accurate planting

Whether the terrain makes you lose ground engagement or bury your seed in the ground, you'll be losing yield and profits.

Find consistent seed placement and planting depth with Momentum and its unparalleled 52 inches of vertical planting range. The Vertical Contouring Toolbar offers three independent toolbars following the topography of the terrain and flexing through the field to make sure your row unit technology can do its work and give you consistent emergence and a healthy crop.

Load Logic weight management system

Weight distribution strategies

The Fendt Momentum planter equipped with Load Logic provides you with a solution to the compaction issues that are otherwise created in non-optimal conditions.

Fendt Momentum’s Load Logic system, automatically transfers weight off the row units of the planter by lifting and adjusting the planter frame to minimize row unit downforce.

The system has two automatic modes of operation, Load Balance, which distributes weight across the entire frame, or Controlled Traffic, which shifts compaction pressure to follow tractor path.

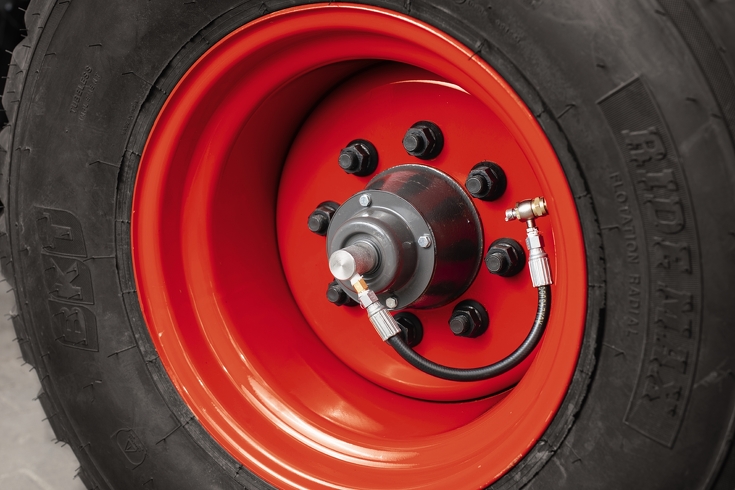

Tire inflation system

The tire inflation system is part of the LoadLogic weight management system. Various sensors help automatically adjust the tire pressure.

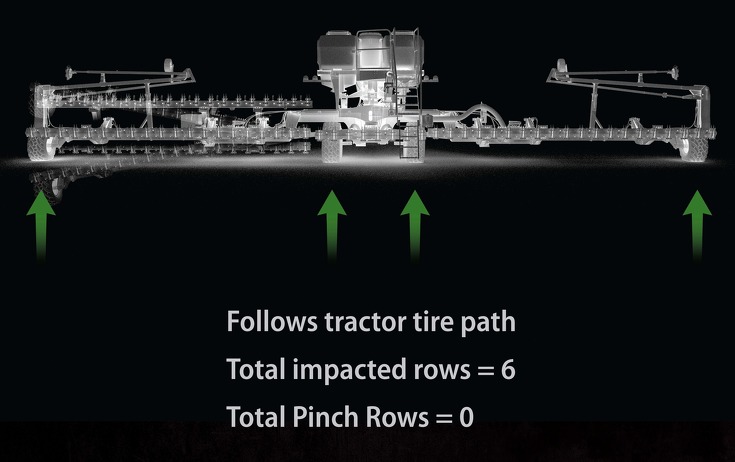

In-line center tandem wheels

In-line center tandem wheels eliminate pinch rows

Not only are these automatic weight distribution adjustments to the planter frame and tire pressures assisting in reducing compaction, but so too is the tire configuration. The planter features in line center tandem wheels, which follow the affected row path already created by the tractor tires, thereby controlling traffic through the field and limiting compaction. This design, along with its front of frame mounted tire configuration, completely eliminates pinch rows, whereas conventional row unit planters have upwards of 6 compaction affected pinch rows.

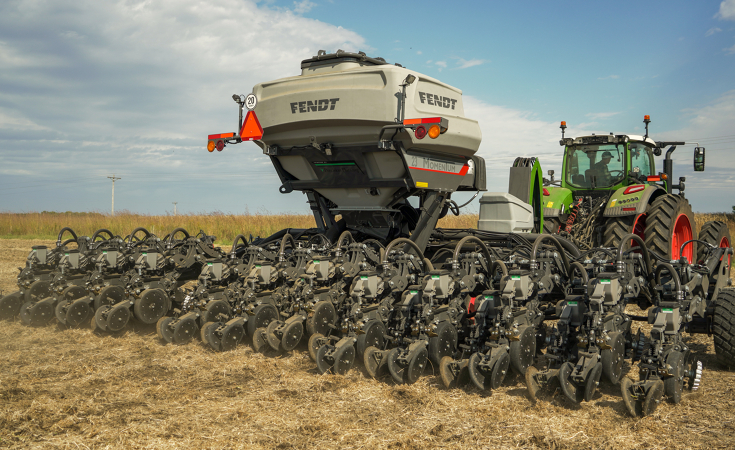

Increased Capacity

Less time filling, more time planting – 130 bu. seed tank capacity and 1,000 gallon liquid fertilizer.

More capacity means less stopping, but managing that extra weight is key. Momentum not only adds capacity but also limits its negative effects through its in-line center tandem wheel design and its Load Logic weight management system.

Accurate results with high-precision technology.

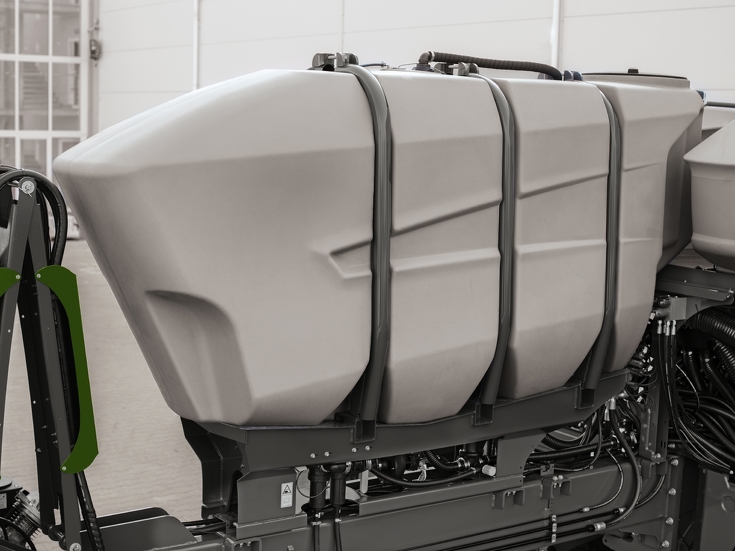

Seed

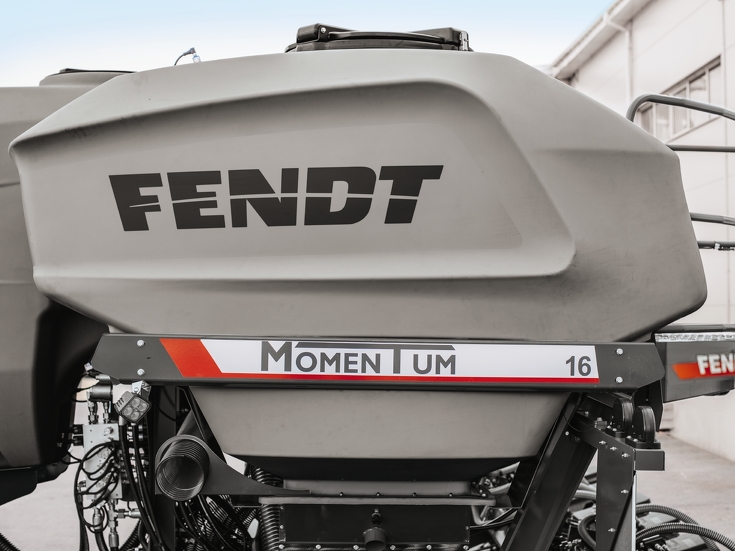

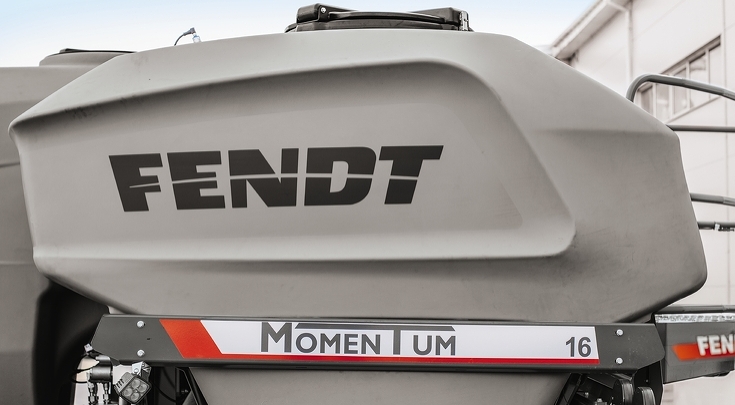

The Fendt MOMENTUM has two separate seed tanks. The tanks can be easily reached via a platform and come with the option of an active level sensor for monitoring.

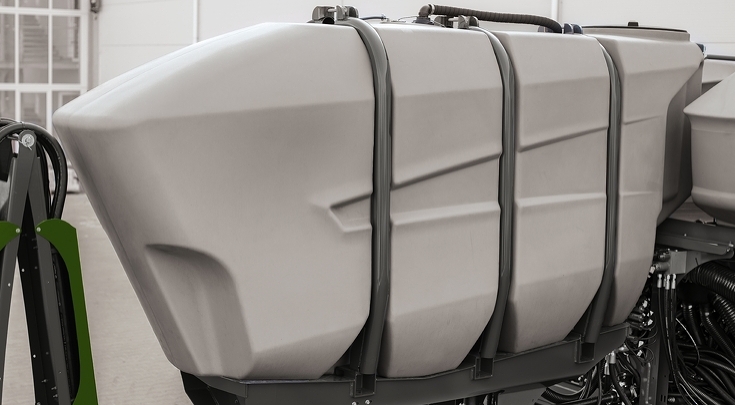

Liquid fertiliser

This option includes a 3785-litre liquid-fertiliser tank, pumping system, control system to the row units and a vApply module on each row unit. The vApply module controls the output quantity and monitors the flow rate.

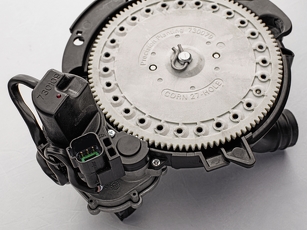

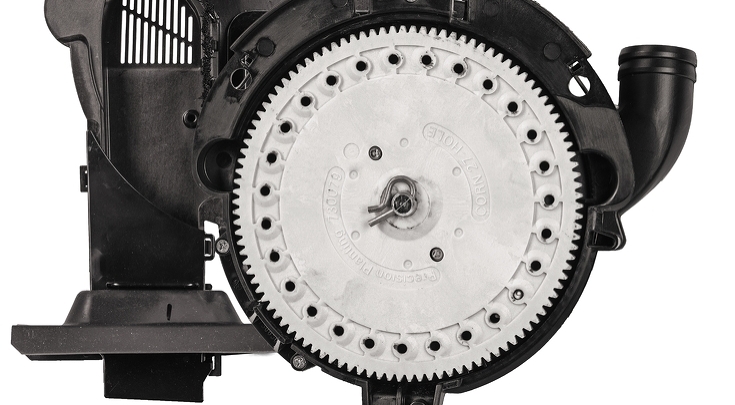

Mechanical component of an agricultural device with a large, circular gear wheel featuring evenly spaced openings.

vSet metering unit

The vSet is easy to use, incredibly accurate and easy to maintain. It has an extremely high singulation accuracy.

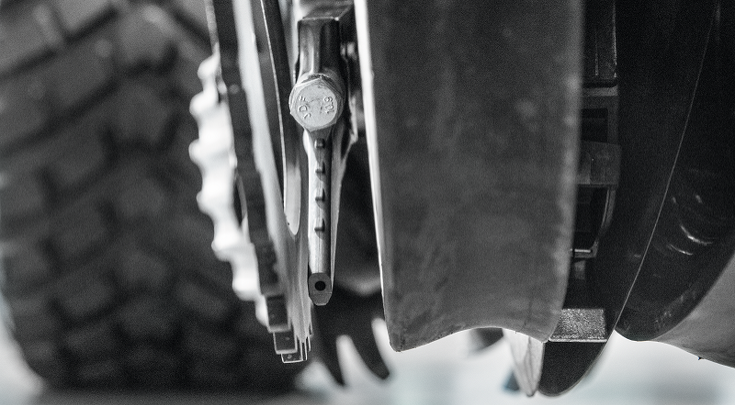

Close-up of the Conceal fertiliser system with a single-sided application blade between the depth guide wheel and the double disc coulter.

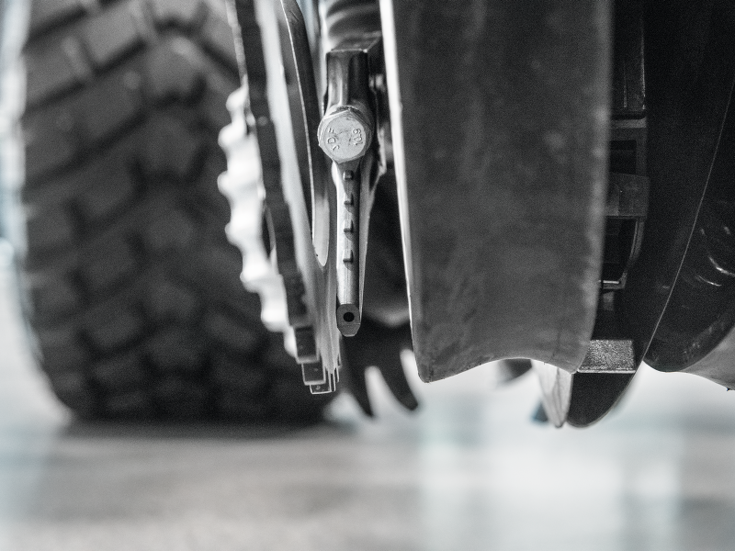

Application knife

The Conceal fertiliser application system is equipped with a single-sided application knife. The application knife is located between the depth control wheel and the double disc coulter. The application point is 7.5 cm beside the furrow at a depth of 2 to 4 cm. As Conceal works directly next to the seed furrow, the application is perfectly placed next to the seed furrow, regardless of the terrain and cornering. A maximum of 270 l/ha can be applied.

Details that make all the difference.

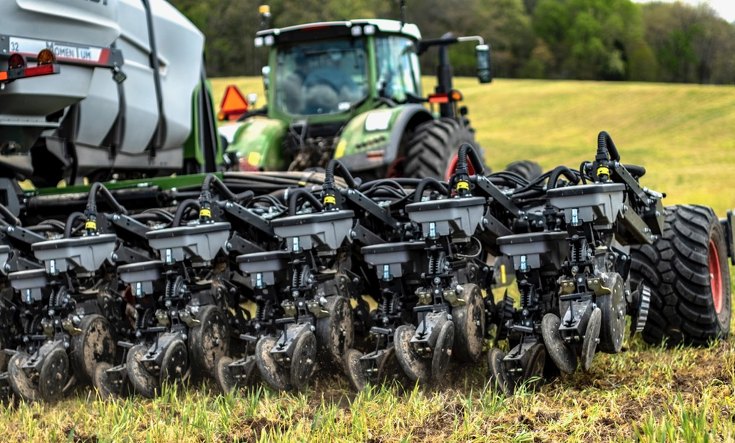

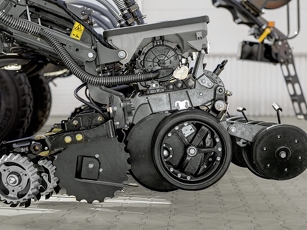

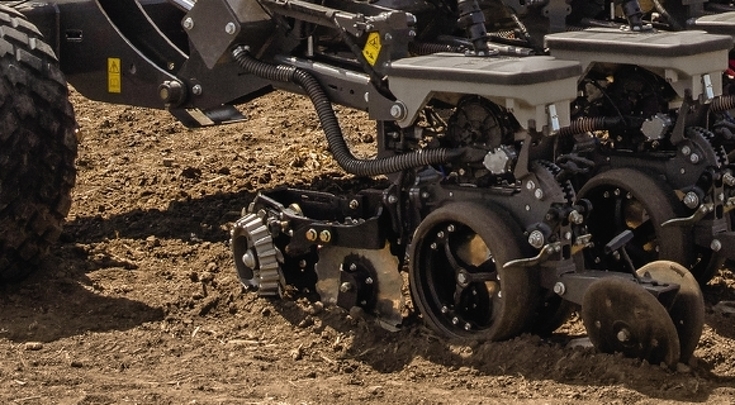

Row unit

The row unit consists of the metering unit, seed tube, gauge wheels, residue manager, tillage disc and other components. With this modular system, you can select the parts to give you the right solution whatever the conditions.

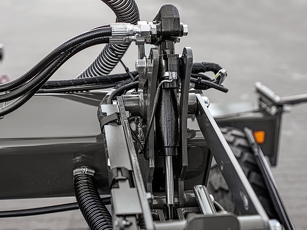

Hydraulic DeltaForce

Creates a specific downforce for each row for the right standing pressure for different soil types and planting conditions.

vDrive

The row units are electrically driven. The vDrive is marked by its outstanding reliability and precision.

Every Row Counts!

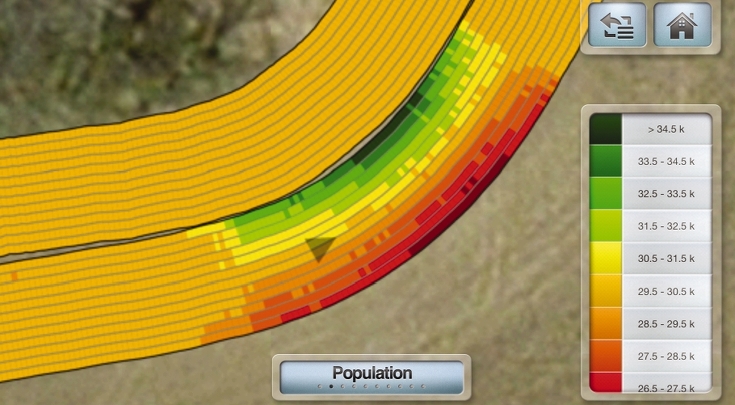

Curve compensation

Reduces yield losses due to emergence variations in undulating rows and headlands. Conventional technology below; Fendt MOMENTUM with curve compensation above.

Test results

The picture below shows the influence of contours on the ear size when maize planting. Without curve compensation, the inner and outer rows show losses.

Residue Management

A variety of row unit residue manager options are available to tailor Momentum to your field's needs.

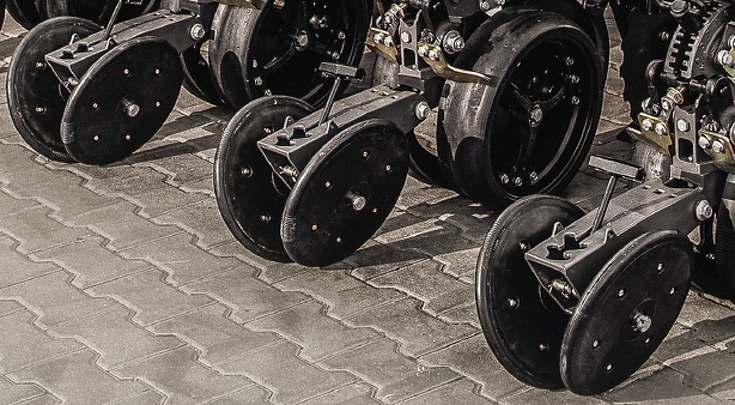

Closing Wheels

Choose from rubber or steel closing wheel options.

Monitor and manage every variable with ease.

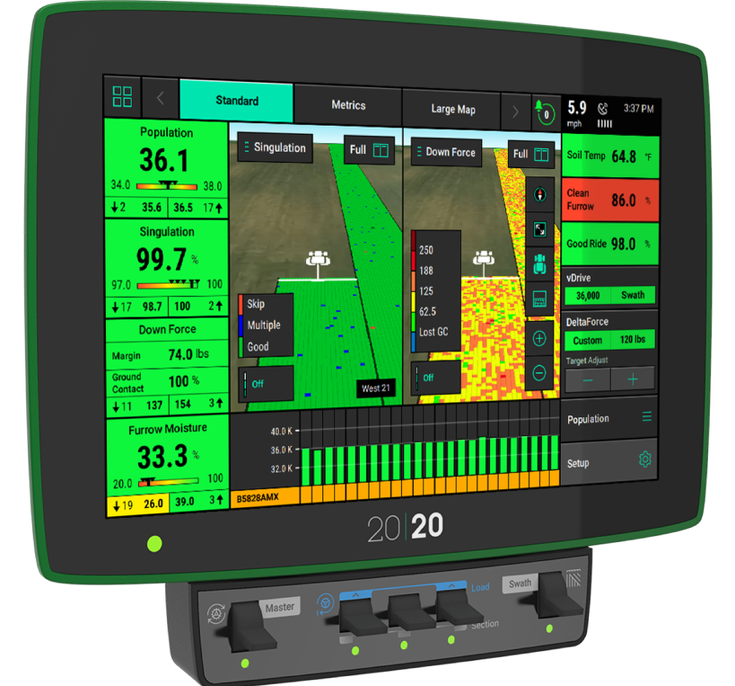

Monitor all planter functions and individual row unit performance in real time with the 20/20 Gen3 SeedSense® monitor system, which comes standard on all Fendt Momentum planters. , 20/20 SeedSense tells you what you need to know about population, skips, doubles, speed, row unit ride, down force and ground contact. It enables you to seed precisely, maintain depth, avoid compaction and troubleshoot mechanical problems.

The Risk Manager

Fendt’s Gold Star Customer Care program helps you manage your variable expenses and your risk. You’ve invested in the best technology in the industry with Fendt, and we’re invested in ensuring your productivity, profitability, and overall experience is the best it can be as well.

3-Year Full Machine Warranty*
Annual Planter Inspection
$0 Deductible
Parts Assurance –your ability to run must be uncompromised. That’s why all Fendt Momentum dealers are part of our parts assurance program, ensuring they have the right parts inventory on hand to keep you up and running.
