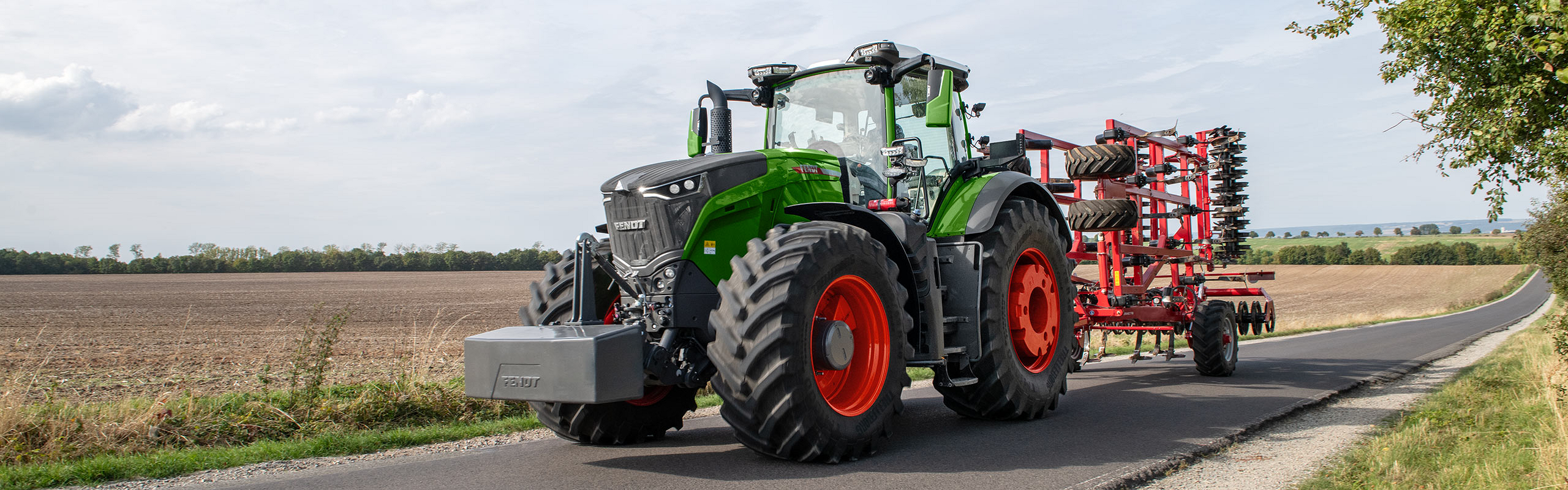

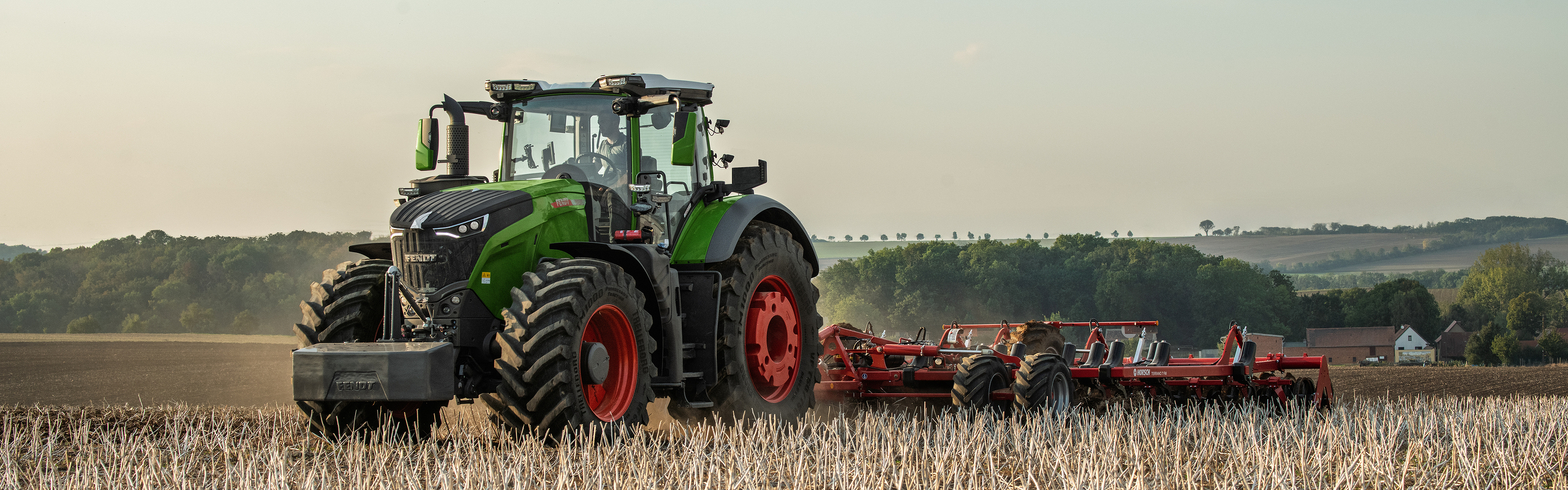

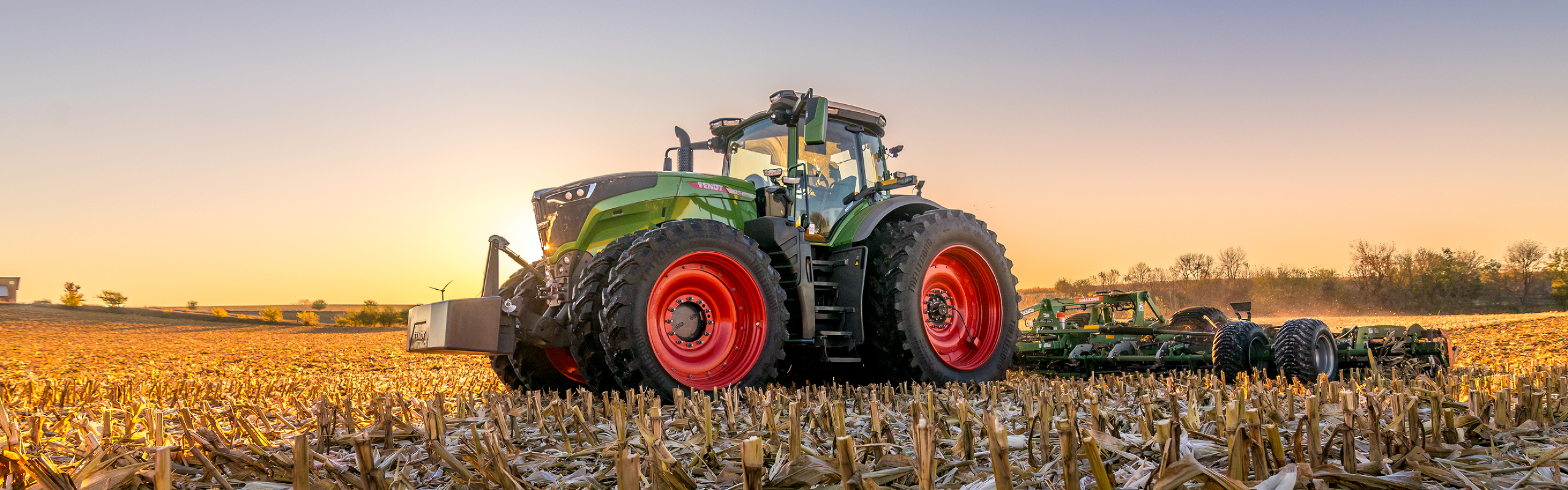

Fendt 1000 tractor pulling tillage down a small country road

Fendt 1000 Vario Gen4

Always by your side

Strength, agility, endurance – excellent performance in every discipline! This is exactly what distinguishes the Fendt 1000 Vario Gen4 and makes it unique. In the fourth generation of this series, 550 hp is pure performance power, which makes it the largest and most powerful standard tractor, while at the same time providing remarkable fuel efficiency. Thanks to flexible ballast and innovative technologies such as VarioDrive, it is agile and ready for any use. Topped by the new cab, which ensures first-class driving comfort, and with the new lighting concept for 360 degrees of all-around vision at night. The Fendt 1000 Vario Gen4 is a tractor that can do more – and do it effortlessly. A tractor that will get it done.

The new Fendt 1000 Vario Gen4 – always by your side.

We know that strong partners are by your side to get the job done, even when things get tough. That's why the Fendt 1000 Vario Gen4 was developed with no compromises from the start, designed specifically for the 500 hp power range – down to the smallest detail. The result is a tractor that can handle even the toughest demands. Despite its enormous power, it is flexibly ballasted, maneuverable, and efficient thanks to its intelligent design. Along with performance, true strength is also reflected in its versatility and excellent handling..

The highlights of the new Fendt 1000 Vario Gen4

120,500 lumens

When it's never too dark.

With 120,500 lumens, the new Fendt 1000 Vario has the right light in every situation.

The new UltraVision LED spotlights deliver an impressive 120,500 lumens, ensuring bright daylight-like illumination even on the darkest nights. With its innovative 360-degree lighting concept, you can maintain a clear view of all work areas around your tractor. The powerful spotlights are mounted on the cab roof of the Fendt 1000 Vario Gen4. Additional headlights can be easily attached to the integrated Tech Rails on the cab. A standout feature is the optional GroundVision drawbar lighting in the fenders, which perfectly illuminates the rear implement. This ensures you have the best visibility for mounting, dismounting, and working in the field. Overall, this new cab offers a 76% improvement in light output compared to its predecessor.

550 hp

When you know it'll pull it.

The new Fendt 1000 Vario Gen4 - 550 hp with maximum traction.

The MAN engine in the Fendt 1000 Vario Gen4, with 6 cylinders and a 12.4-liter cubic capacity, combined with the intelligent Fendt DynamicPerformance extra power concept, delivers an impressive 550 horsepower. This power must be delivered to the ground with flexible ballast and suitable tires. With the 480 Row Crop dual tires in conjunction with the 2,866-pound wheel weight, the maximum power of the tractor can be converted into pure tractive power. The best part: with the new concept of the Row Crop dual tires, the outer width of the vehicle stays below 11.5 feet.

Low fuel consumption

When it performs better and consumes less.

The new Fendt 1000 Vario Gen4 boasts even lower diesel and DEF (Diesel Exhaust Fluid) consumption.

Does an increase in performance mean higher fuel consumption? The new Fendt 1000 Vario Gen4 proves otherwise. Compared to the previous generation, the new Fendt 1000 Vario Gen4 boasts lower fuel consumption despite an average torque increase of 7.5% and an average performance boost of 6.8%. Thanks to the Fendt iD low-speed concept, the MAN engine operates in the fuel-saving speed range of 650 to 1,700 RPM. Overall, the engine has been optimized to provide even greater fuel efficiency. Combined with the generous 195-gallon diesel tank (21-gallon DEF tank) and optional heated fuel pre-filter, the Fendt 1000 Vario's performance remains powerful, persistent, and reliably strong. Additionally, with Adaptive Power, you can reduce the power level of the Fendt 1000 Vario Gen4 when working with implements that require less power – protecting your tools and saving fuel.

The new 1000 Vario Gen4

Traction without compromise

360° lighting concept

Versatile and efficient

Comfortable cab

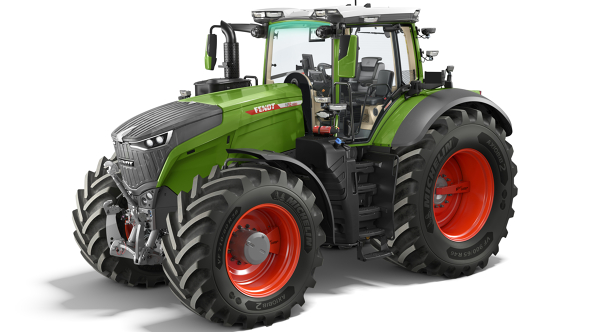

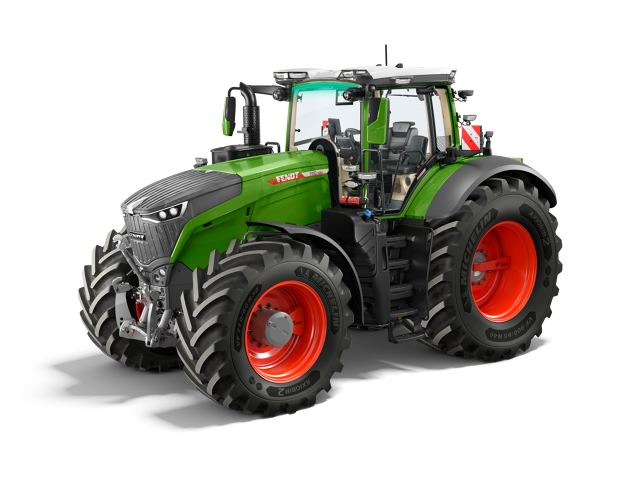

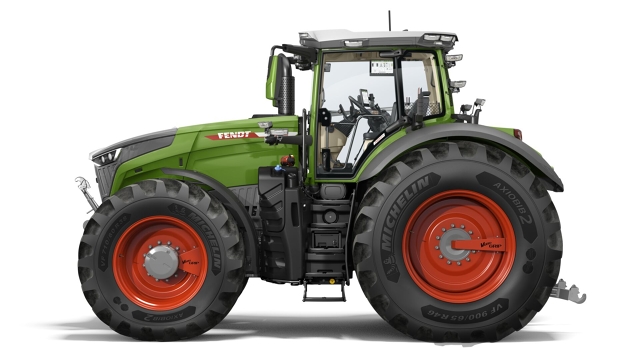

Fendt 1000 Vario Gen4 Tractor with White Background

Model overview

Rated power with DP ECE R 120

Maximum power

Maximum power with DP ECE R 120

1040 Vario

313/426 kW/hp

294/400 kW/hp

313/426 kW/hp

1044 Vario

343/466 kW/hp

324/440 kW/hp

343/466 kW/hp

1048 Vario

373/507 kW/hp

353/480 kW/hp

373/507 kW/hp

1052 Vario

405/550 kW/hp

383/520 kW/hp

405/550 kW/hp

technical specifications

Find a dealer

Engine and transmission

Strong in any situation and more efficient than ever, the Fendt 1000 Vario Gen4 is truly impressive. With a 12.4-liter MAN engine, it delivers substantial performance while maintaining low fuel consumption. The proven intelligent VarioDrive drivetrain and the Fendt iD low-speed concept ensure that all vehicle components are perfectly synchronized. This allows you to achieve maximum engine performance: power that is not only impressive but also gets the job done!

View under the bonnet of the Fendt 1000 Vario Gen4 tractor with MAN D26 engine

CGI image of the MAN D26 engine in the Fendt 1000 Vario Gen4

Superior performance with the MAN D26 engine

The optimized MAN D26 engine is found under the hood of the Fendt 1000 Vario Gen4, which excels with uncompromising performance, increased efficiency, and a future-oriented design. Developed for the toughest jobs, it embodies the spirit of the largest standard tractor on the market. The 6-cylinder engine has a 12.4-liter capacity and 26,107 psi injection pressure. This allows it to deliver up to 550 horsepower in its most powerful configuration, making it perfect for the most demanding applications. This includes heavy soil cultivation with a rotary plow, wide cultivators, or use with large chaser bins.

Features of the MAN D26:

Fendt iD Low-Speed Concept: 650 RPM (idle) up to 1,700 RPM for maximum fuel efficiency and protection of engine components. The VTG turbocharger with engine brake function provides increased safety, additional control, and durable brakes. The larger torsion damper offers more comfort while simultaneously protecting the engine. Adaptive Power: The adjustable power levels enable gentle use of implements with low power requirements, allowing for higher utilization of the tractor and reducing fuel consumption. The hydro tappet for automatic valve play adjustment ensures maintenance-free operation and smooth engine performance. Achieve up to 31 mph top speed at 1,450 RPM – unique in the 550 horsepower class. Thanks to the tractor management system and the automatic load limiting 2.0, the engine and transmission are perfectly synchronized, ensuring the Fendt 1000 Vario Gen4 always operates in the optimal range – delivering maximum work results with optimal fuel consumption.

1,955 lb-ft

from 1,500 rpm

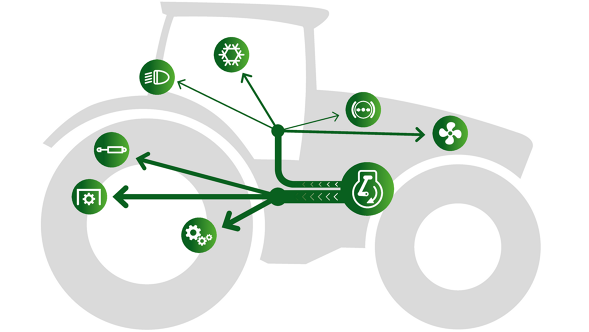

The Fendt DynamicPerformance extra power concept, which releases extra power when it is needed, regardless of the driving speed and operating conditions.

Added performance concept: Fendt DynamicPerformance

The increase in performance whenever you need it – and that for all models: With the Fendt DynamicPerformance (DP) extra power concept, the Fendt 1000 Vario Gen4 offers up to 30 hp* more power for increased productivity and efficiency while at the same time reducing fuel consumption.

Unlike classic boost concepts, Fendt DynamicPerformance provides power automatically and without limitation when secondary consumers such as fans, compressed air supply, air conditioning or the hydraulic pump need additional power. Fendt DP delivers these in a targeted and situational manner, thus ensuring consistent work performance and productivity – regardless of the application: at low speeds in soil cultivation, in transport or for PTO work when standing with a wood chipper. This allows you to efficiently use more performance – in a targeted and reliable manner.

*depending on model

up to 30 hp*

Added power

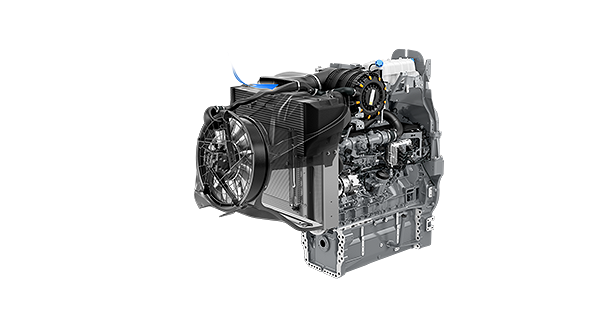

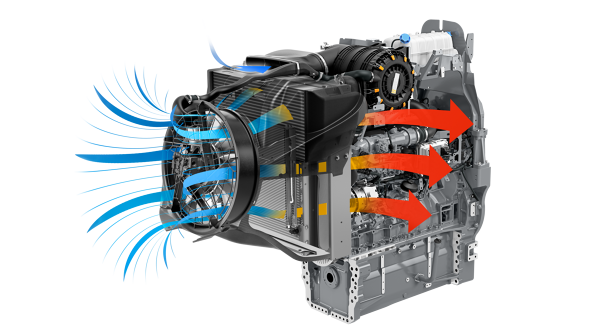

Illustration of the Concentric Air System

Cooling concept: Concentric Air System (CAS) with pressurized fan

Just like its predecessor, the fourth generation of the Fendt 1000 Vario Gen4 features the proven Concentric Air System (CAS) cooling concept. The concentric, forced-air fan has an independent hydrostatic drive and is designed for higher outdoor temperatures. Thanks to its extremely narrow and compact design, it allows for a high steering angle, making it a key factor in the exceptional maneuverability of the Fendt 1000 Vario Gen4.

Each component of the cooling package can control the cooling system individually as needed, enhancing overall efficiency. Compared to other cooling systems, the CAS requires up to 40% less drive power, making it particularly efficient and significantly reducing fuel consumption.

40%

less drive power required

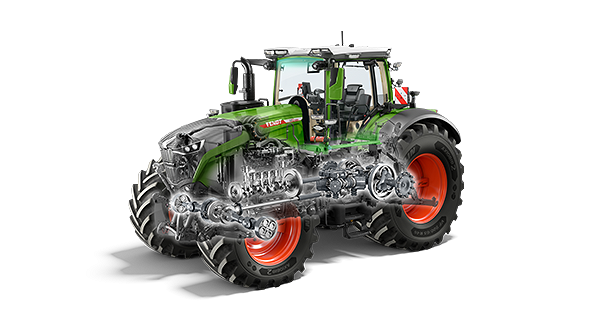

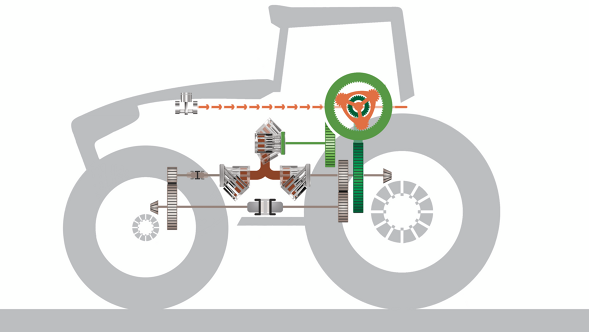

Drawing for interior view of the intelligent VarioDrive drivetrain

Already tried and tested: the intelligent VarioDrive drivetrain

The VarioDrive drivetrain has been impressive since the first generation of the Fendt 1000 Vario Series. It stands for continuous, dynamic driving at any speed from 0.01 to 31 mph, with an independent, variable all-wheel drive up to 15 mph and the smallest possible turning circle thanks to the pull-in turn effect. The result: maximum soil protection, higher efficiency, and less wear on the machine.

The pull-in turn effect reduces the turning circle by up to 10% compared to conventional four-wheel drive without the pull-in turn effect. This allows for easier and more precise maneuvering. Additionally, with VarioDrive, power transmission remains tension-free even when cornering, ensuring maximum soil protection and the best traction.

Fendt Torque Distribution provides permanent tractive power by intelligently distributing the torque to the axle with the best grip. This minimizes slippage, ensuring the tractor has maximum traction and optimal power transmission.

Less maintenance and clean air thanks to self-cleaning air filter for the engine and cab

Clean air for full performance – even under extremely dusty conditions such as soil cultivation, sowing or when using on construction sites. The automatic self-cleaning of the engine and cab air filter is done, passively by the negative pressure of the engine fan. In addition, there are short, situational air bursts that actively blow out the engine air filter. This prolongs the service life of the air filter many times over, the maintenance effort is reduced and you benefit from maximum efficiency, less downtime and permanently high performance.

The reversible fan ensures a constant supply of fresh air. By changing the direction of rotation, the current direction of the air can change and thus frees the hood of dirt and particles such as dust or straw – nothing stands in the way of intensive applications.

Pure tractive power

Thanks to the 550 hp and the powerful VarioDrive drivetrain, the Fendt 1000 Vario Gen4 effortlessly masters heavy towing work. With the well thought-out and innovative ballasting and tIre concept, you benefit from the maximum power development of the tractor in the field.

Schematic interior view into the fully integrated tyre pressure regulation system Fendt VarioGrip

VarioGrip protects the soil, your foundation

The fully integrated Fendt VarioGrip tire pressure regulation system boosts the overall productivity of the machine. You can easily adjust the tire air pressure via the terminal to match your needs. With a capacity of 28.25 cubic feet per minute at 181 psi, the XL compressor provides the necessary power for quick pressure changes – without any external devices or operation. Properly adjusted tire pressure reduces slippage and ground pressure, maintaining soil fertility and increasing tractive power by up to 10%. At the same time, fuel consumption is reduced by up to 8%. VarioGrip is available for both flange and stub axles, and can also be used with the new 480 Row Crop dual tires.

_{*South Westphalia University of Applied Sciences; Agricultural Economics Soest}

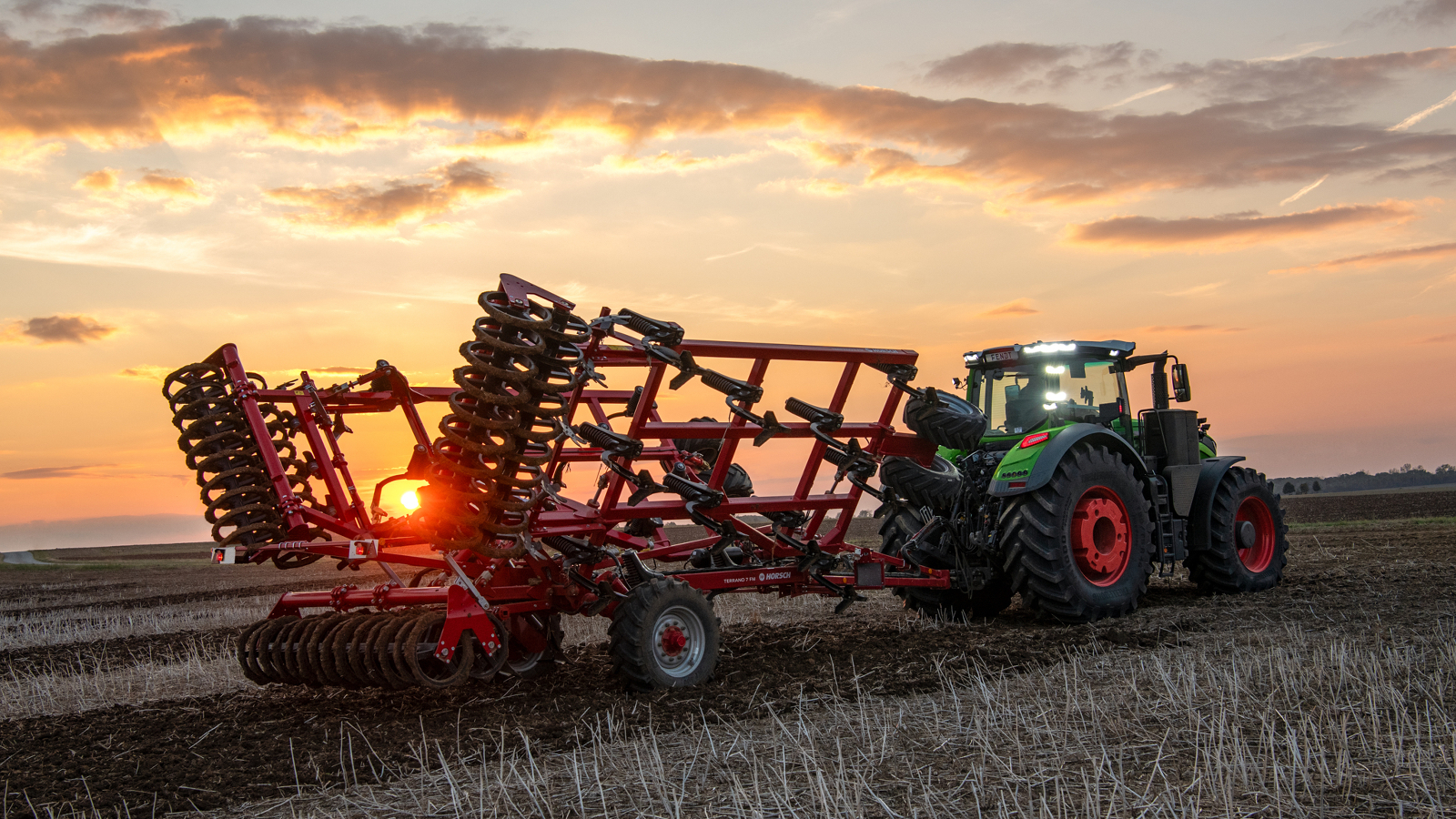

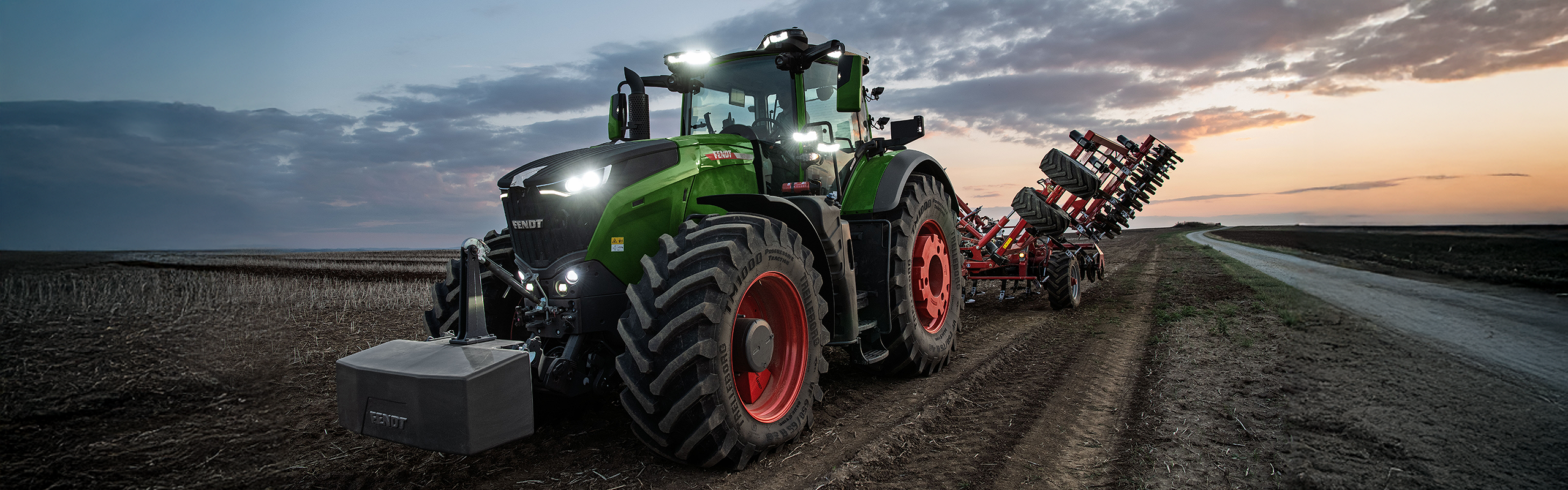

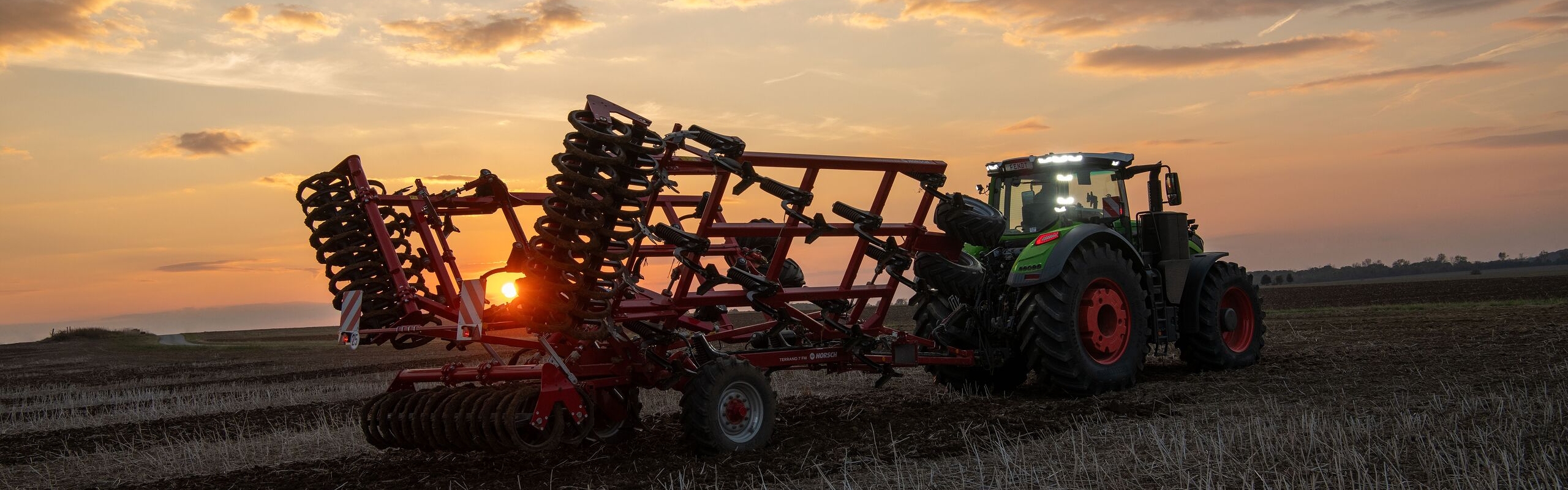

At sunset, a Fendt 1000 Vario Gen4 with implement driving over a field

Versatile hydraulics

The hydraulic system of the Fendt 1000 Vario Gen4 makes the largest standard tractor on the market into what it is: versatile for a wide range of applications. The implements are efficiently driven and precisely controlled via the powerful hydraulic system and the PTO. Thanks to its high and targeted flow capacity, the Fendt 1000 Vario Gen4 offers reliable supply and high operational reliability, even for implements with large oil requirements, such as wide precision seed drills. This makes pure power of productive performance that is convincing.

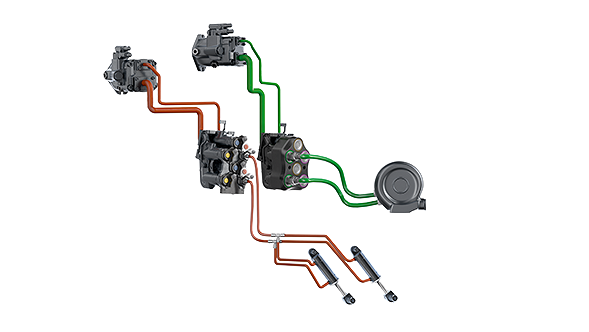

Two pumps for maximum hydraulic power

The Fendt 1000 Vario Gen4 offers two hydraulic options: a load-sensing pump (LS) with a flow rate of 58 gallons per minute (GPM) or two load-sensing pumps that together deliver an impressive total flow rate of 114 GPM. For the second option, in addition to the first LS pump, a second pump with a flow rate of 55 GPM is installed. This setup allows multiple functions to be operated simultaneously with different demands on pressure and volume, such as with a precision seed drill. This reduces throttle losses, saves energy, and can be conveniently controlled from the driver's seat.

Two hydraulic options are available on the Fendt 1000 Vario Gen4: a load-sensing pump (LS) with a flow rate of 220 l/min or two load-sensing pumps that together deliver an impressive total flow rate of 430 l/min. For the second, in addition to the first LS pump, a second pump with a flow rate of 210 l/min is installed. In this way, several functions can be operated simultaneously with different demands on pressure and volume, for example with a precision seed drill. This reduces throttle losses, saves energy and is controlled conveniently from the driver's seat.

114 GPM or 430 l/min

Hydraulic oil flow

New generation of cab comforts

As the central hub of your daily work, the cab needs to meet the highest standards. With its newly developed cab and innovative technologies, like the 360-degree lighting concept with UltraVision lighting package, the Fendt 1000 Vario Gen4 sets new benchmarks for comfort, visibility, and functionality. The 3.2-gallon compressor cooling box, premium massage seat, ergonomically mounted footrests, and front and rear cameras are all designed to make your daily tasks easier and more enjoyable. Combined with the intuitive FendtONE operating system, the new cab leaves no detail overlooked.

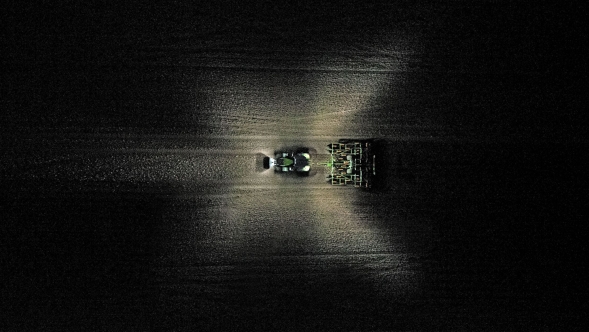

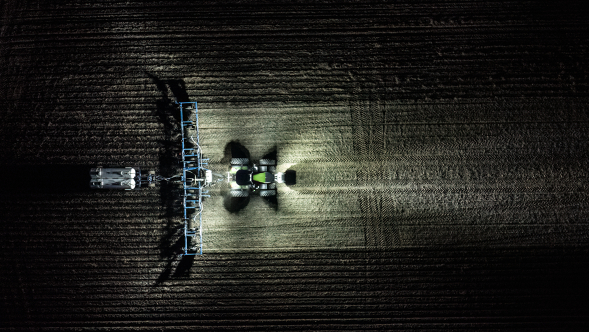

A bird's eye view at night with UltraVision 360 degree illumination of a Fendt 1000 Vario tractor

360° all-round vision at night with UltraVision

Having it all lit up has never been so easy: the Fendt 1000 Vario Gen4 offers you sensational 120,500 lumens with its new lighting concept including the UltraVision LED lights, which completely illuminate the area around your work area. This allows you to achieve 360 degrees of lighting that perfectly illuminates your work environment, turning the night into day. This innovation not only increases visibility, but also brings work safety and work quality to a new level. Compared to the previous lighting concept, this latest generation features 67% more max lighting output.

Overview of central components:

Four LED work lights up in the hood with integrated daytime running lights
Maximum twelve LED work lights in the roof for optimum all-round vision, dimmable with UltraVision
Up to six powerful LED work lights on the A-pillar and fenders, dimmable with UltraVision
Tech Rail integrated in the C/B pillars of the cab: two lights each with adjustable beam angle, dimmable in five stages
GroundVision: Targeted illumination in the rear implement area
Additionally, the new 3-pin device socket in the rear, you can also conveniently operate the work lights and the cameras of the implements via the FendtONE terminal and switch them on and off as required.

360°

Illumination

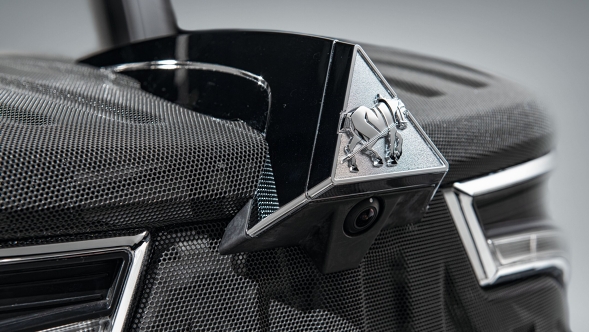

Close-up of the bonnet of the Fendt 900 Vario with integrated bonnet camera in the Dieselross emblem, in shades of grey, anthracite and black.

Digital hood and rear camera

To get a better view of your implement areas, the Fendt 1000 Vario Gen4 can be outfitted with front and rear cameras. The front camera is seamlessly integrated into the design logo, while the rear camera is discreetly placed under the license plate holder. These cameras give you a full overview at all times with super-sharp, high-resolution image quality. Whether you're coupling, switching, or using the equipment, you'll always have full control. This means you can work safely, precisely, and without wasting any time.

Inside the comfortable cab of a Fendt tractor

Comfortable interior: Work has never been so comfortable

Premium comfort in the Fendt 1000 Vario Gen4 starts with a seat that automatically adapts to you. Memory function, air suspension, massage and air conditioning ensure individual relief – easily controllable via the terminal. In addition to the premium driver's seat, there are three other comfort seats to choose from. Ergonomic details noticeably support the back, while three thoughtfully placed footrests ensure a relaxed leg position and additional comfort. Thanks to the additional front window heating for the front window made of laminated glass and electrically adjustable and telescopic rear-view mirrors, you have the best all-round vision in the cab. The tinted rear window protects you from strong sunlight and reduces the heat input into the cab. Combining these details makes your long working day more pleasant and safer.

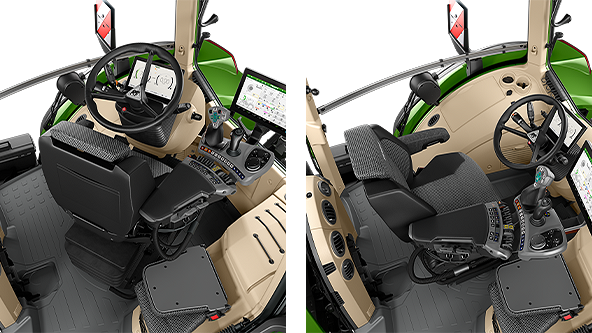

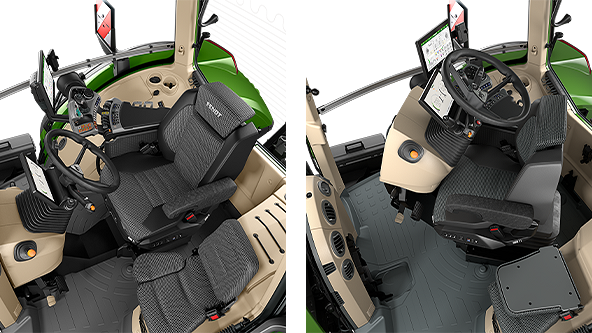

First and second position of the reverse drive control in the Fendt 1000 Vario

Third and fourth position of the reverse drive control in the Fendt 1000 Vario

A better rearview thanks to a reverse driver station

With the optional reverse drive control of the Fendt 1000 Vario Gen4, the entire driver's cab can be rotated by 180 degrees aided by the pneumatic support. Particularly practical: The operating logic automatically adapts to the new direction – so you don't have to rethink it all. The rotated driver's cab is particularly advantageous for special applications such as forestry, snowblowing, silage packing, or municipal work. And you don't have to make any compromises in terms of comfort either: both available coolers and the comfort passenger seat can also be used in combination with the reverse driver station.

180°

Rotation of the driver's cab

Fendt Gold Star Customer Care

Operational success takes more than just superior machine performance. Farmers need to manage risk, downtime and variable expenses. That's why every Fendt product comes standard with our industry-leading Gold Star Customer Care program, offering total peace of mind.

Our Fendt dealers are there to help and advise you with their expertise. Using the dealer search, you will find the right Fendt dealer in your area.

Search dealers

Smart Farming Solutions from Fendt

For those who want to work even more efficiently

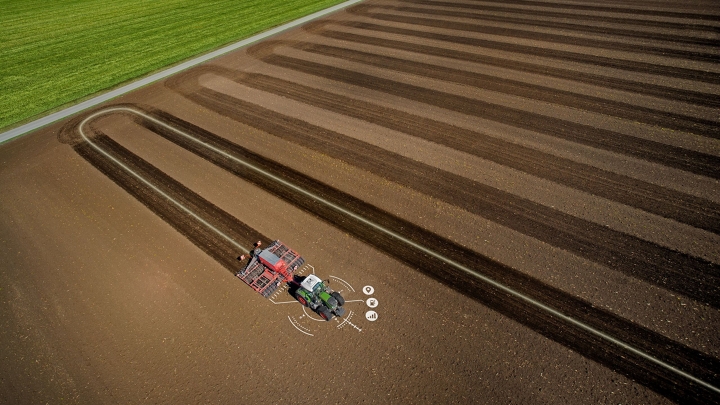

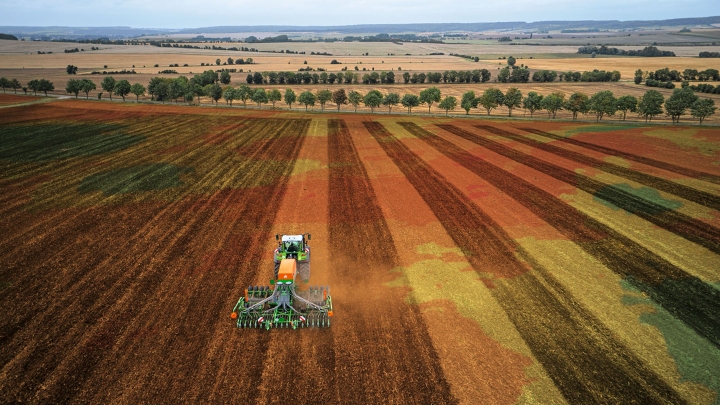

A tractor driving across a field, with the precise track visible.

Guidance with FendtONE.

Precise use of machinery for sustainable soil protection and optimised use of resources - that's guidance with Fendt. Turning modes, guidance types and automatic headland management take the strain off the driver. This leaves more concentration for the essentials, making precise work easy even on long working days.

Learn more

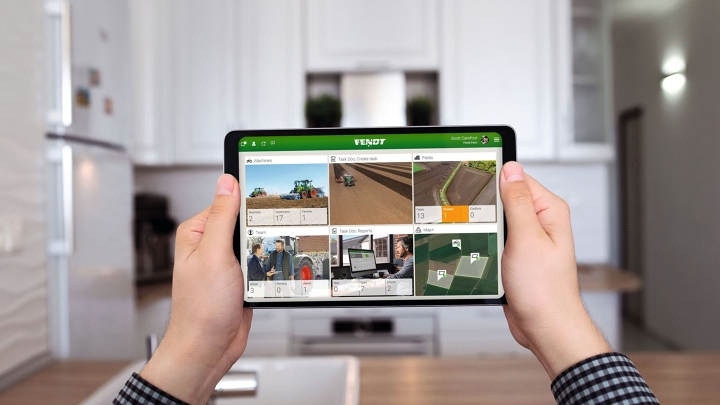

Screen shot of machine control with FendtONE offboard
