Fendt 800 Vario Gen5

Smart Power. Serious Capabilities.

Newly thought out and newly developed – innovative strength and passion are in every single component of the fifth generation of Fendt 800 Vario Gen5. With its enormous operational strength combined with maximum efficiency, its incredible payload and the new 360 degree lighting, it delivers the performance you need 24/7. Add to this, unparalleled comfort of the new cab. This combination of excellent performance and first-class comfort makes the Fendt 800 Vario Gen5 much more than just a tractor, making it the best colleague in the world.

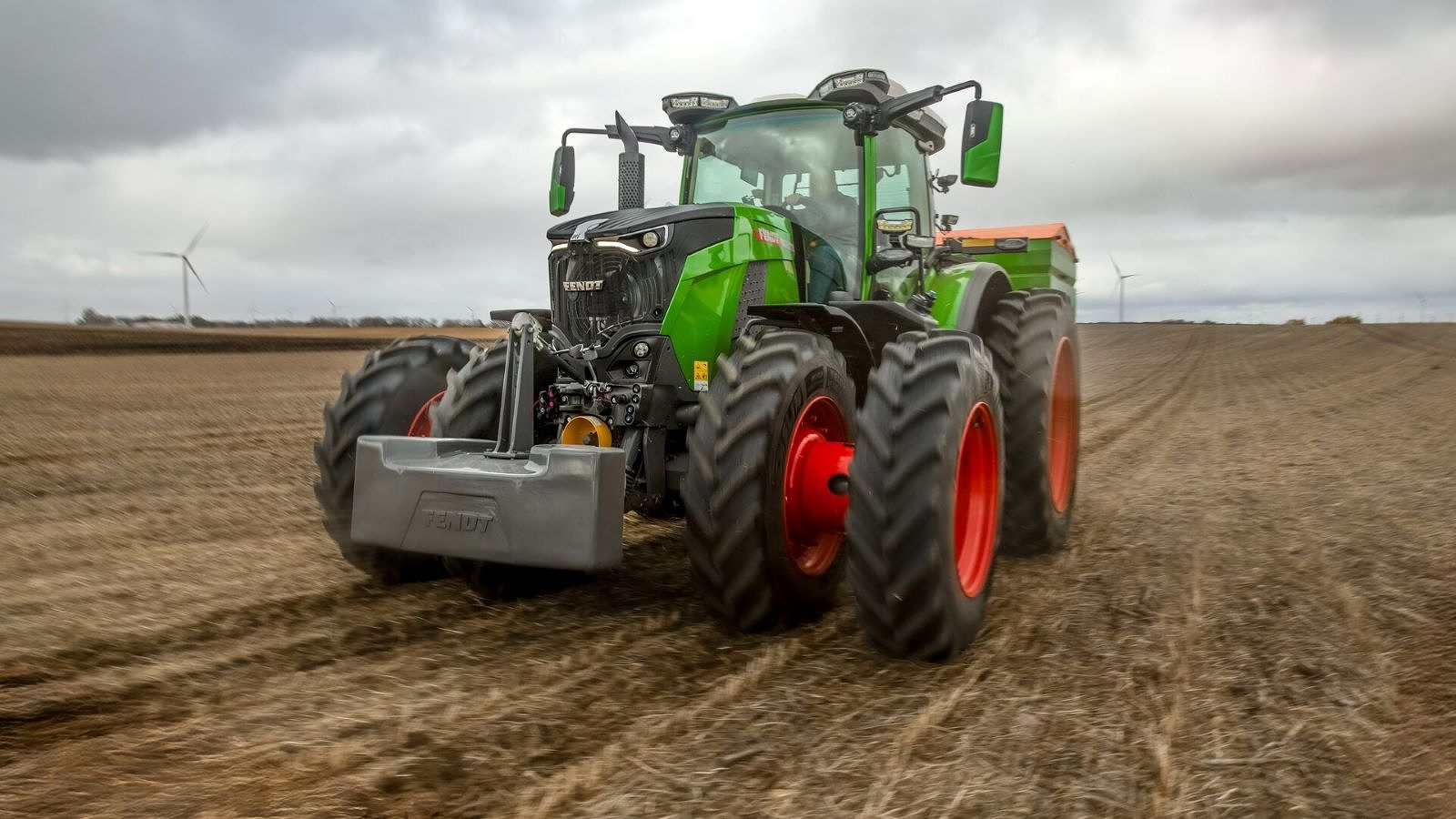

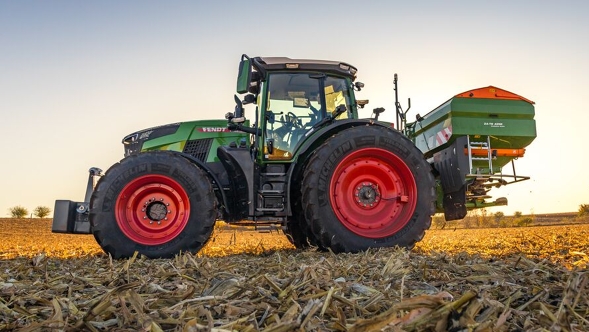

Fendt 800 Vario in the field with a spreader

The new Fendt 800 Vario Gen5 makes the working day a pleasure.

The Fendt 800 Vario Gen5 is equipped with more than just power. The new cab concept sets unprecedented standards for comfort and ease of use and ensures a relaxed working experience, even in the most adverse working conditions.

The new Fendt 800 Vario Gen5.

24/7

When you don't want to get out at all.

The new Fendt 800 Vario Gen5 with a 12-liter in‑cab refrigerator and premium massage seat.

Built for comfort, the Fendt 800 Vario Gen5 sets the standard for long days in the field.
The redesigned cab focuses on operator comfort, visibility, and ease of use, helping you stay productive hour after hour. Features like a 12‑liter in‑cab refrigerator, premium massage seat, ergonomic footrest, and automatic cab air‑filter cleaning make long workdays noticeably more comfortable.

Visibility is equally impressive, with heated laminated safety glass, power‑adjustable telescoping mirrors, and front and rear cameras providing a clear view of your implements and your work at all times. The cab is completed by the FendtONE operator workstation, delivering the familiar, proven control layout used across the Fendt lineup.

16,800 lbs

When you shoulder everything that comes your way.

The new Fendt 800 Vario Gen5 with a payload of up to an incredible 16,800 lbs.

Simple, smart, and built strong, the optimized frame of the Fendt 800 Vario Gen5 delivers excellent stability with a low empty weight. As a result, it offers an impressive payload of approximately 16,800 lbs.. This allows you to run heavier implements and combinations while staying within the maximum gross vehicle weight of about 38,600 lb (for the 25/31‑mph version).

More usable payload also means carrying more per trip, reducing the number of transport runs and saving valuable time. Flexible ballast options, including front weight blocks and wheel weights, ensure the Fendt 800 Vario Gen5 is always set up with the right operating weight for every application.

37 mph

When you can manage more.

The new Fendt 800 Vario Gen5 is efficient, fast and safe to transport – at 37 mph with low engine speed of 1,450 rpm.

Fast, efficient, and built for transport, the Fendt 800 Vario Gen5 delivers outstanding performance with its combination of 37‑mph top speed, the Fendt iD low‑engine‑speed concept, and the advanced VarioDrive drivetrain—making it one of the fastest and most efficient tractors in the chopping lineup.

It reaches top speed quickly while the engine runs at just 1,450 rpm, helping reduce fuel consumption and keep cab noise to a minimum without sacrificing transport times. At higher speeds, operator confidence comes standard thanks to Fendt Stability Control (FSC), trailer brake assist, engine braking, and a hydraulic auxiliary brake, ensuring safe, controlled handling during fast road transport.

8.01

When you never run out of power.

The new Fendt 800 Vario Gen5 delivers 24/7 with 8.0 liter capacity in the powerful AGCO Power CORE80.

Ready for any job, the Fendt 800 Vario Gen5 is powered by the newly developed AGCO Power CORE80 six‑cylinder engine, delivering up to 343 horsepower (252 kW). With a minimum operating weight of approximately 21,800 lb, it achieves an impressive power‑to‑weight ratio of about 64 lb per horsepower, translating into strong performance and excellent efficiency in the field.

Thanks to the Fendt iD low‑engine‑speed concept, the CORE80 operates in a fuel‑efficient speed range from 700 to 1,700 rpm, helping reduce fuel consumption without sacrificing output. A large 143‑gallon diesel tank, paired with a 17‑gallon DEF tank, optional heated fuel pre‑filter, and the new 360‑degree lighting system, keeps the Fendt 800 Vario Gen5 working around the clock. Whether day or night, you can cover more acres in comfort and confidence.

114,700

lumens

When you have everything in view.

The new Fendt 800 Vario Gen5 with 114,700 lumens, where you need them.

Always have the essentials in view – the 114,700 lumens of the all-new 360 degree lighting concept bring visibility exactly where you need it. The new UltraVision LED spotlights, installed all around the cab roof as well as on the A-pillar, and on the fenders of the Fendt 800 Vario Gen5 to make working at night as easy as during the day. The GroundVision LED spotlights installed in the fenders also illuminate the rear mounting area perfectly, so you have the best view of the implement when attaching and detaching as well as while working in the field. Additional lighting can also be attached to the cab via the new Tech Rails, factory-integrated mounting rails.

Performance without compromise

Comfortable cab

360° lighting concept

Quick and efficient

Incredible payload

Model overview

Rated power with DP ECE R 120

Maximum power

Maximum power with DP ECE R 120

826 Vario

208/283 kW/hp

191/260 kW/hp

208/283 kW/hp

829 Vario

230/313 kW/hp

213/290 kW/hp

230/313 kW/hp

832 Vario

252/343 kW/hp

235/320 kW/hp

252/343 kW/hp

Product sheet

Find a dealer

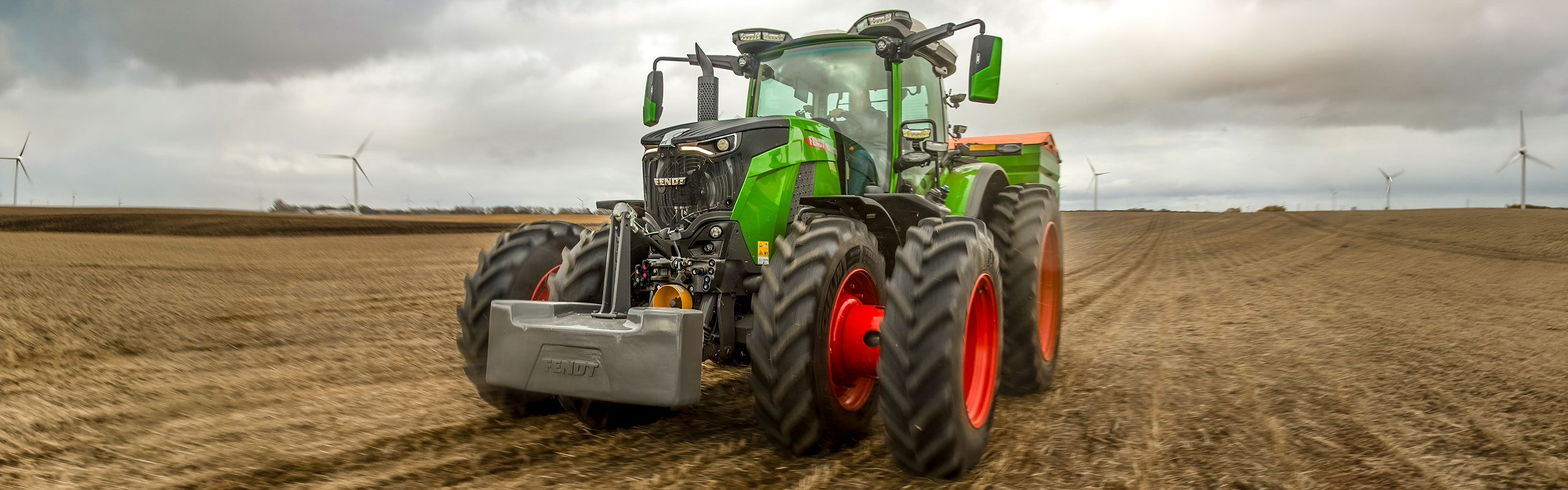

Fendt 800 Vario Gen5 with dual wheels in a field with windmills in the background

Engine and transmission

The latest generation AGCO Power 8.0‑liter engine delivers strong performance with impressive fuel efficiency. With Fendt DynamicPerformance, extra horsepower is available when the job demands it—without sacrificing efficiency. Thanks to the proven Fendt iD low‑engine‑speed concept, the tractor runs smooth, quiet, and economical, even under load. Together, these technologies make the Fendt 800 Vario a powerful, efficient machine built to perform all day in the field.

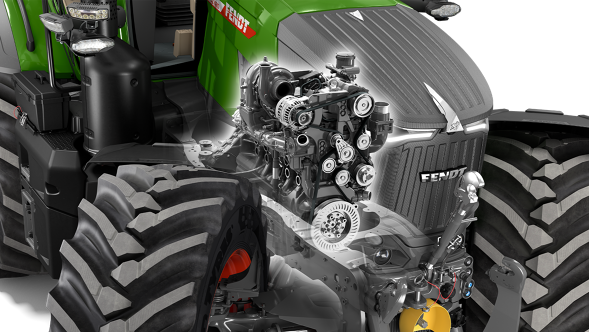

AGCO Power CORE80

The fifth generation of the Fendt 800 Vario Gen5 is the first tractor to be equipped with the new AGCO Power CORE80 engine. This new generation of diesel engines sets high standards in terms of performance, efficiency and sustainability and has been developed with the future in mind for the use of alternative fuels. The CORE80 engine delivers outstanding power and torque reserves that meet even the most demanding tasks. Characteristics of the CORE80:

Fendt iD Low speed concept: 700 rpm (idle) up to 1,700 rpm for maximum fuel efficiency and protection of engine components
VTG turbocharger with engine braking function for additional safety and control
Common rail fuel supply system with 2,500 bar injection pressure
Superior power and torque reserves: Ideal for high tractive power, hydraulics and PTO power
Maintenance-free valve drive: reduces maintenance costs and ensures optimum engine operation over the entire service life
37 mph at 1,450 rpm

Thanks to the tractor management system and the automatic limiting load 2.0, the engine and transmission are perfectly matched to each other, so that the Fendt 800 Vario Gen5 is always optimally operated – optimum fuel consumption with maximum work results.

37 m

at 1,450 rpm

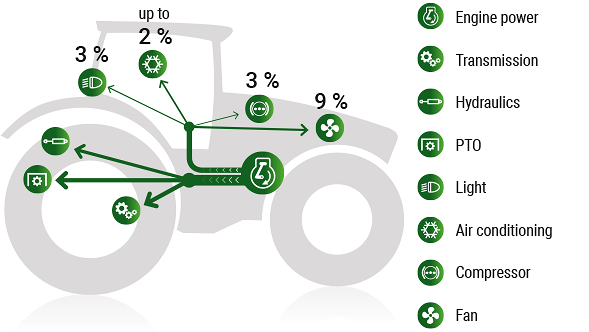

The Fendt DynamicPerformance extra power concept, which releases extra power when it is needed, regardless of the driving speed and operating conditions.

Added performance concept: Fendt DynamicPerformance

The increase in performance whenever you need it – and that for all models: With the Fendt DynamicPerformance (DP) multi-performance concept, the Fendt 800 Vario Gen5 has up to 23 hp added performance for increased productivity and efficiency while at the same time reducing fuel consumption.

Unlike classic boost concepts, Fendt DynamicPerformance provides performance automatically and without limitation, when secondary consumers such as fans, compressed air supply, air-conditioning or the hydraulic pump need additional power. Fendt DP delivers these in a targeted and situational manner, thus ensuring consistent work performance and productivity.

Even at low speeds in soil cultivation, in transport or for PTO work when stationary with a slurry mixer, feed mixer or wood chipper. This allows you to efficiently use more performance – in a targeted and reliable manner.

Up to 23 hp

Added power

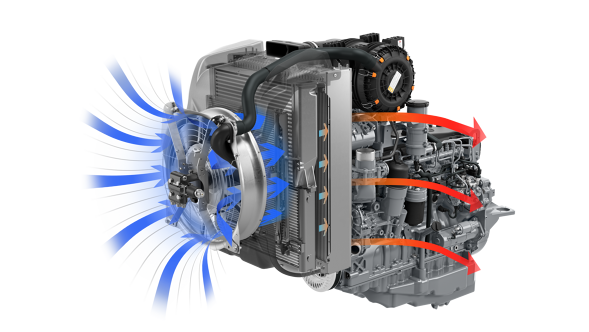

Detailed view of the Fendt CAS cooling concept

Efficient cooling with the Concentric Air System (CAS)

The proven Fendt CAS cooling concept is now also being introduced into the Fendt 800 Vario series. The concentric, forced-air fan has an independent, hydrostatic drive and is designed for outdoor temperatures up to 113°F. Thanks to its extremely narrow and compact design, it allows for a high turning angle, making it a decisive factor for the extraordinary manoeuvrability of the Fendt 800 Vario Gen5.

Each component of the cooling package can control the cooling system individually as required, thus gaining additional efficiency. Compared to other cooling systems, the CAS requires up to 40% less drive power – which makes it particularly efficient and noticeably reduces fuel consumption.

40%

less drive power required

Intelligence combined with performance: The VarioDrive drivetrain

VarioDrive is already known from both the large-scale series and the medium performance segment of Fendt. The drive train stands for stepless, dynamic driving at any speed from 0.02 to 37 mph, an independent, variable four-wheel drive up to 15.5 mph and a smallest possible turning circle thanks to the pull-in turn effect. The result: maximum soil protection, higher efficiency and less wear on the machine.

The pull-in turn effect reduces the turning circle by up to 10%. This allows for easier and more precise maneuvering. In addition, with VarioDrive, power transmission remains tension-free even when cornering, which ensures maximum protection of the soil – in particular the topsoil and the grass sward in the grassland.

Fendt Torque Distribution provides permanent tractive power by intelligently distributing the torque to the axle with the best grip. This minimises the slippage, the tractor has maximum traction and optimum power transmission.

Added to this is the extended replacement interval of the transmission oil. Only after 4,000 operating hours or every 4 years must the transmission oil of the Fendt 800 Vario Gen5 be changed – this reduces maintenance costs.

10%

smaller turning circle

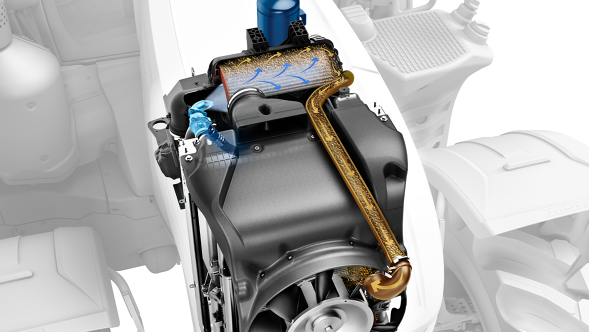

Display of the engine and cab air filter in the Fendt 800 Vario

Self-cleaning engine and cab air filters – a clean solution

The automatic self-cleaning of the engine and cab air filter is done permanently, passively by the vacuum of the engine fan. This is complemented by short, situational blasts of air that actively blow out the engine air filter. This keeps maintenance effort low, operational safety high and at the same time you and the engine always have a clean and good air supply.

The reversible fan ensures a constant supply of fresh air. By changing the direction of rotation, the current direction of the air can change and thus frees the bonnet of dirt and particles such as dust or straw – nothing stands in the way of intensive applications.

PTO & Hydraulics

Thanks to the four-speed PTO and impressive hydraulic power, the Fendt 800 Vario Gen5 is powerful, flexible and reliable even for intensive applications. Wide precision seed drills, large mower combinations or voluminous slurry tankers – implements with high hydraulic performance requirements or demanding PTO power are no problem for the tractor, which means that it can be utilised optimally.

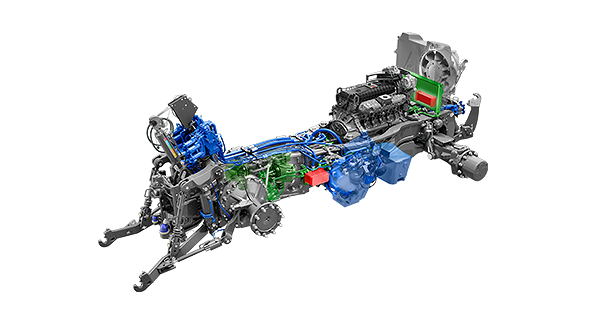

CGI view of hydraulic lines in the Fendt 800 Vario

Reliable hydraulic performance

The Fendt 800 Vario Gen5 does not lack hydraulic options: two hydraulic oil pumps with 165 m/l or 220 l/min flow rates are available. You can also choose the two hydraulic oil pumps together to equip the tractor according to your requirements. Together, they provide a volume flow rate of up to 385 l/min – ideal for demanding implements. The demand-oriented conveying capacity (pressure and volume) ensures maximum efficiency, even when several consumers are used in parallel. The additional hydraulic oil cooler ensures maximum performance even at high ambient temperatures.

In order to relieve the hydraulics and further increase efficiency, the system can be extended with Power-Beyond, for a direct oil supply of the implements with the full volume flow of the hydraulic pump. With the easy-to-clean Power-Beyond variant with flat-face coupling (FFC), the hydraulic system is additionally protected against dirt ingress and you benefit from even lower power loss.

385 l/min

Hydraulic oil powered

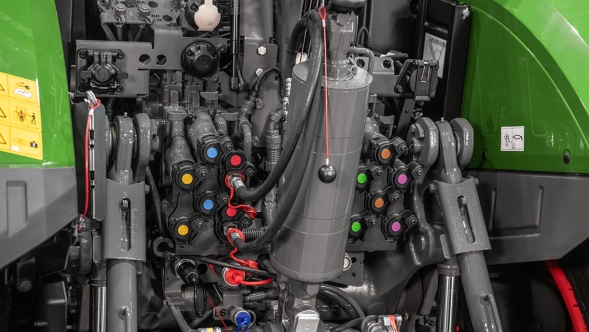

View of the tractor rear with the multiple connection options

Flexibility on front and rear valves

The Fendt 800 Vario Gen5 can be equipped with the required number of valves in the front and rear. The maximum equipment includes up to eight double-acting valves – two in the front, six in the rear. This makes the Fendt 800 Vario Gen5 flexible for a wide variety of implements and applications in agriculture, grassland and on the road, which allows you to maximise the tractor’s utilisation. Valve variants:

UDK couplings: can be coupled under pressure with 140 m/l flow rate
DCUP couplings: double-sided, can be coupled under pressure, with 140 m/l or 170 l/min flow rate
FFC couplings: flat-sealing couplings with 140 m/l or 170 l/min flow rate

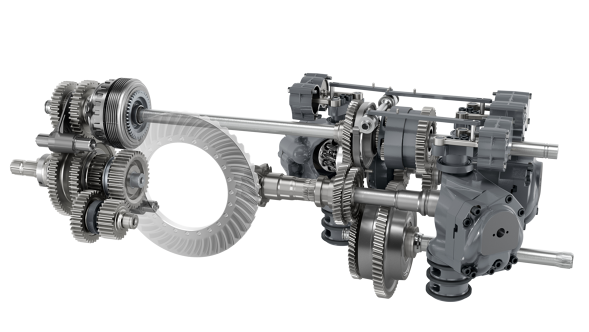

Schematic CGI representation of the PTO at the rear of the Fendt 800 Vario Gen5 tractor

Four-speed and three-speed rear PTO

The rear PTO offers either four speeds 540/540E/1000/1000E or three speeds 540/900/1000. This allows you to equip the Fendt 800 Vario Gen5 individually for your requirements. The connection of the crankshaft and the PTO stub is carried out via only one gear stage and thus achieves a very high efficiency. With the four-speed PTO, the machine always works at the optimum operating point and can deliver more area performance or work in a fuel-saving manner, depending on the requirements. The main application areas of the three-speed PTO are implements that are operated with a slightly reduced maximum PTO speed of 900 rpm and have very high, continuous torque requirements, such as wood chippers. A special transmission stage ensures that the motor of the Fendt 800 Vario Gen5 runs as close as possible to the nominal engine speed of 1,700 rpm – for maximum power and torque values.

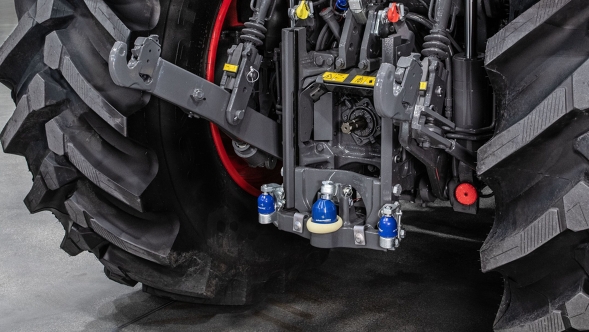

Detailed view of the Fendt 800 Vario rear

Automatic function and stationary mode

The automatic function of the Fendt 800 Vario Gen5 enables simplified operation and efficiency. Switching the rear PTO on and off can be assigned to a button on the control lever and occurs automatically at predefined positions of the power lift. The switch-off point of the PTO is controlled via the position of the rear power lift. In normal mode, the PTO is automatically switched off as soon as the driver leaves the seat. In stationary mode, on the other hand, the rear PTO remains active, even if the driver is not on the seat.

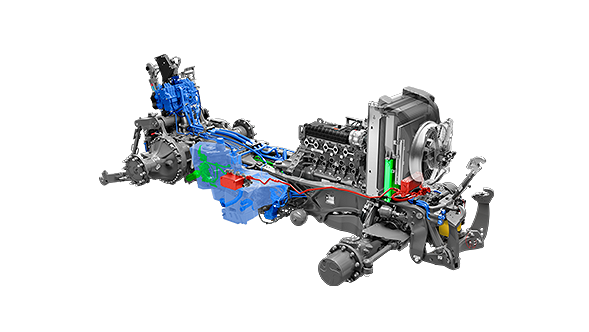

CGI Detailed image of the hydraulic oil pumps in the Fendt 800 Vario tractor

Full performance in the front: Fully-integrated front PTO

The fully integrated front PTO of the Fendt 800 Vario Gen5 offers you a PTO speed of 1000 rpm at 1,647 rpm engine speed. This gives you flexibility and allows you to use a wide variety of front implements, such as mowers, mulchers or snow blowers. Thanks to the optional cooling, interruptions can also be avoided, as this ensures optimum oil operating temperature for continuous use.

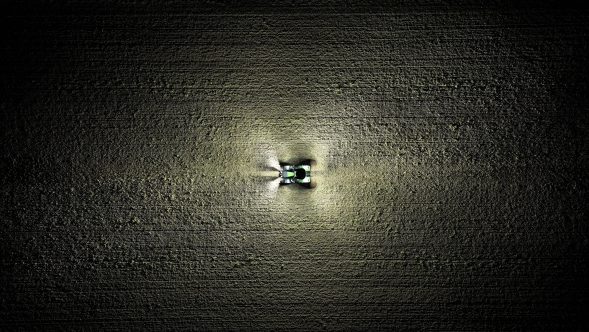

A bird's eye view at night with UltraVision 360 degree illumination of a Fendt 800 Vario tractor

UltraVision with 360° lighting

The absolute highlight of the Fendt 800 Vario Gen5: With a huge luminous flux of 114,700 lumens, the entire lighting concept including the new UltraVision LED spotlights ensures perfect illumination of the work environment – day and night. The LED spotlights thus create a 360 degree illumination of the entire team. This innovation not only increases visibility around the tractor, but also takes work safety and work quality to a new level.

The components at a glance:

Work lights up in the bonnet with integrated daytime running light
Up to six powerful work lights on the A-pillar and fenders, dimmable with UltraVision
Maximum twelve work lights in the roof for optimum all-round vision, dimmable with UltraVision
Tech Rail on the cab: two spotlights with adjustable beam angle, dimmable in five stages
GroundVision: Targeted lighting in the rear implement area

By the way: Thanks to the new 3-pin socket in the rear, you can also easily operate the work lights and the cameras of the implements via the FendtONE terminal and switch them on and off as required.

360°

Illumination

Detail view of a digital Fendt bonnet and rear camera

Digital bonnet and rear camera

The digital bonnet and rear cameras provide a perfect view of the front implement area and the entire rear area of the Fendt 800 Vario Gen5 with high-resolution image quality. On the bonnet, the camera is stylishly integrated in the Dieselross emblem, while the rear camera is placed discreetly under the tractor's vehicle number plate. Maximum safety and comfort ensure more efficient work processes.

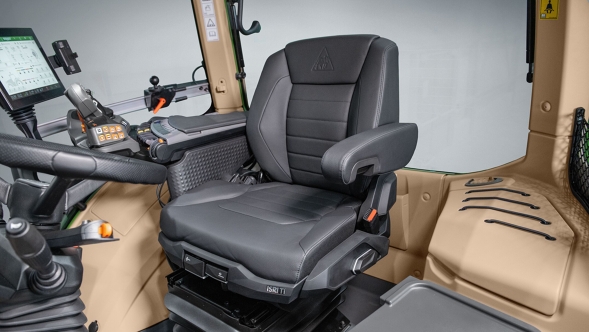

Interior view of a Fendt driver's cab with focus on the premium driver's seat

Premium driver seat

Our premium driver's seat – a seat from which you don't want to get up again, because comfort does not end with the upholstery, it starts with well thought-out technology. The air-sprung, air-conditioned premium seat in the Fendt 800 Vario Gen5 stands out with its comprehensive adjustment options, massage and memory function, as well as automatic weight detection and stepless height adjustment. A seat that adapts to your needs. In addition to the premium driver's seat, there are three other comfort seats to choose from. The tractor can also be equipped with the pneumatically supported reverse drive control, optional.

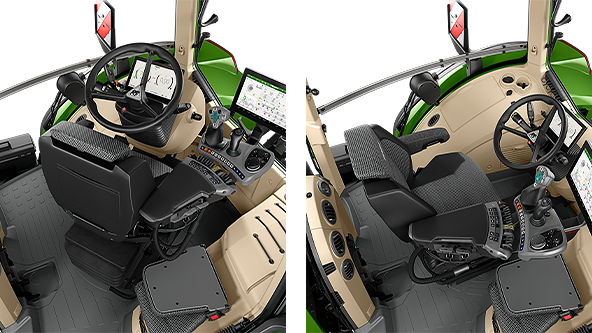

Reverse drive control

Thanks to the optional reverse drive control of the Fendt 800 Vario Gen5, the entire driver's cab can be rotated by 180 degrees, supported pneumatically. The best of all, the operating logic adapts automatically – so you don't have to rethink it, the system thinks for you. The pivoted driver's cab on the tractor is particularly useful for special tasks such as forestry operations or municipal work. Nevertheless, you do not have to do without comfort in the cab: Both available cool boxes and the comfort passenger seat are also possible with the reverse drive control.

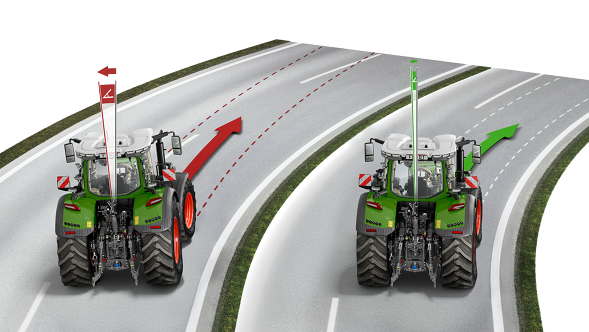

Depiction of two Fendt tractors while cornering with and without assistance system Fendt Stability Control

Increased safety thanks to Fendt Stability Control & Trailer Brake Assist

Smart assistance systems such as Fendt Stability Control (FSC) and the trailer brake assistant (TBA) increase comfort and safety is guaranteed. FSC automatically reduces the lateral inclination at driving speeds above 12.4 mph and actively suppresses vacillation when cornering. The TBA stabilises the team with a pneumatically braked trailer in critical situations. The system continuously monitors the degree to which the trailer is pushed onto the tractor and automatically adjusts the brake pressure in critical situations without you having to press the brake pedal.

First-class soil protection

Healthy soil is the foundation of any harvest. Our innovative technologies such as the fully integrated VarioGrip tire pressure regulation system and the variety of tyre options, the Fendt 800 Vario Gen5 is ideally equipped to cultivate areas with maximum soil protection.

CGI image of the fully integrated tyre pressure regulation system Fendt VarioGrip in the Fendt tractor 800 Vario

Optimum traction and maximum soil protection with VarioGrip

The fully integrated Fendt VarioGrip tire pressure control system is already in use in over 8,000 Fendt large tractors and increases the overall productivity of the machine. With VarioGrip you can adjust the air pressure of the tires for your application comfortably via the terminal. An optimally adjusted tire pressure reduces slippage and ground pressure, thus maintaining soil fertility and increasing the tractive power by up to 10%*. At the same time, fuel consumption is reduced by up to 8%*. VarioGrip is available for both flange and stub axes. In combination with dual tires, both the power transmission and the soil protection can be increased even further.

_{*South Westphalia University of Applied Sciences; Agricultural Economics Soest}

Up to 8%

less fuel consumption
_{*College of Applied Sciences South Westphalia; Agricultural economics Soest}

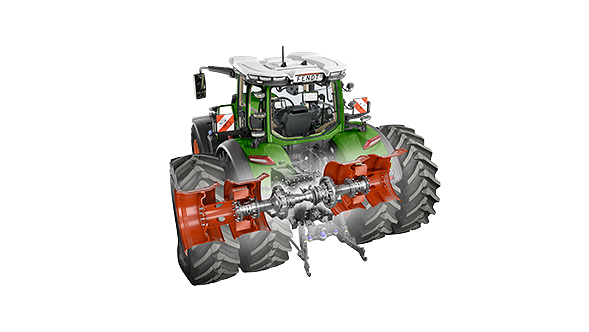

Cropped image of a Fendt 800 Vario with a view of the dual tyres of the rear stub axle

Dual tires with stub rear axis & dual wheel hub

The available 8.2‑foot or 9.8‑foot rear axle with single wheels—or optional duals—lets you dial in the exact tread width you need for your operation. This flexibility helps deliver strong traction while protecting your soil. With the dual‑wheel option, duals mount directly to the axle, providing a solid, efficient setup.

Direct power transfer to the dual wheels improves efficiency, cuts down on wheel slip, and lowers ground pressure. The result is better performance in the field and less compaction. With these axle and wheel options, you can set up the Fendt 800 Vario Gen5 to match a wide range of jobs and get the most out of every pass.

Close-up of the Fendt tyres with red rims in a field

Flexible tire options

The Fendt 800 Vario Gen5 performs at its best when equipped with the proper tires for the task. This tractor can be equipped with rear tires up to about 7 feet tall (86 inches) and front tires up to about 5½ feet tall (66 inches), giving it a strong footprint in the field. The 800 Vario Gen5 is also available with hybrid tires, built for farmers who split their time between the field and the road. These tires combine traditional ag lugs with block-style tread, so they hold up well on pavement while still delivering solid traction in the dirt. With the right tire setup, you can match the tractor to your operation—whether that means reducing tire wear and fuel use during road travel or maximizing traction in the field while protecting your soil. The right tires help ensure the tractor performs efficiently wherever the work takes you.

Fendt Gold Star Customer Care

Operational success takes more than just superior machine performance. Farmers need to manage risk, downtime and variable expenses. That's why every Fendt product comes standard with our industry-leading Gold Star Customer Care program, offering total peace of mind.

Our Fendt dealers are there to help and advise you with their expertise. Using the dealer search, you will find the right Fendt dealer in your area.

Search dealers

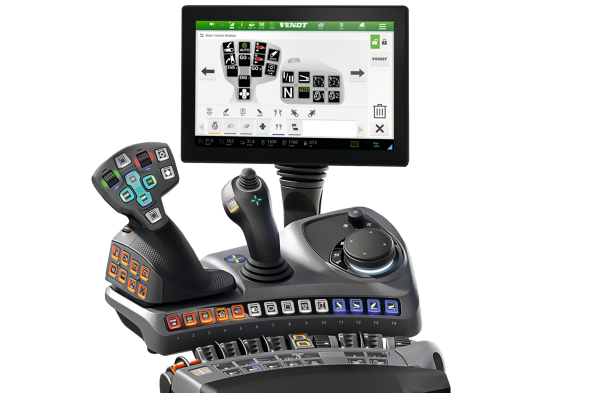

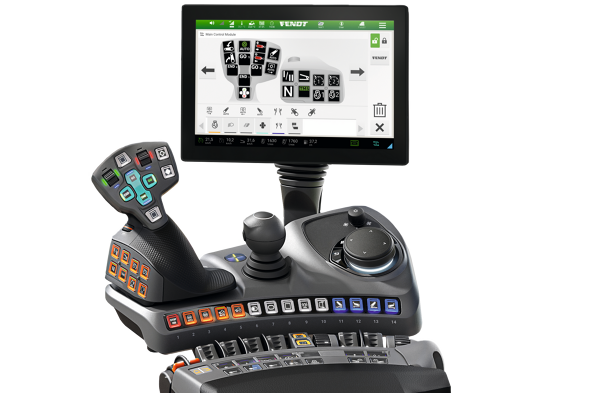

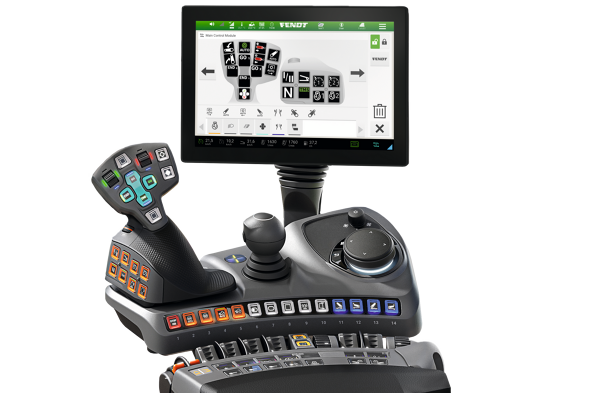

Equipment variants

Technical data – Fendt 800 Vario Gen5

Empty	826 Vario 829 Vario 832 Vario
Rated power (kW/hp)	191/260 213/290 235/320
Rated power with DP ECE R 120 (kW/hp)	208/283 230/313 252/343
Maximum power (kW/hp)	191/260 213/290 235/320
Max. Torque (Nm)	1450 1550 1680
Speed range forward (km/h)	0,02 - 60 km/h 0,02 - 60 km/h 0,02 - 60 km/h
Rear PTO	540/540E/1000/1000E 540/540E/1000/1000E 540/540E/1000/1000E
Front PTO option	1000 1000 1000
Variable flow pump (l/min)	165 165 165
Variable flow pump option 1 (l/min)	220 220 220
Max. Lifting force rear power lift (at the coupling point) (kg)	11600 11600 11600
Max. Lifting force front power lift (at the coupling point) (kg)	5300 5300 5300
Operating weight (incl. common accessories - +/- 5%) (kg)	9900 9900 9900
Max. permissible overall weight up to 60km/h (kg)	16000.0 16000.0 16000.0
