Fendt CargoProfi. The new generation of front loaders.

Fendt offers the intelligent Cargo and CargoProfi front loaders for the 300, 500 and 700 Vario series. For the first time, crop can be weighed cleanly and operating ranges defined with lifting height and tilt angle. An intelligent sensor system is also integrated into the swing arm; this is adjustable and accessible from the comfort of the Varioterminal. The Fendt CargoProfi therefore provides the optimal settings for safe and precise loading.

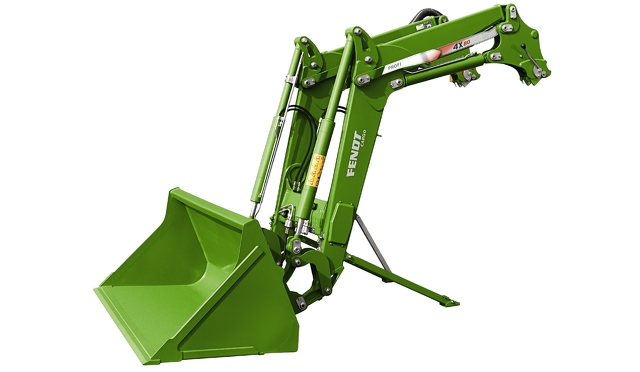

Fendt Cargo. Unbeatable in combination.

The Fendt Cargo front loader offers advanced technology for maximum productivity. As a universal, perfectly tailored implement, it’s the ideal partner for Vario tractors. All models are equipped with the unique Cargo Lock coupling system and parallel guidance with Z-kinematics.

Semi-automatic attachment lock:
The attachment is conveniently unlocked using a lever on the quick-attach frame; it just takes a flick of the hand. When mounting an attachment, lock it automatically by tipping it back completely.

Hydraulic implement lock:
Using a push button in the cab, the operator can lock and unlock the tool hydraulically so that the frequent tool changes can be performed quickly and from the convenience of the cab. The two lock indicators enable the operator to check whether the tool is locked on both sides (not for 3X swing arm).

Fendt through and through.

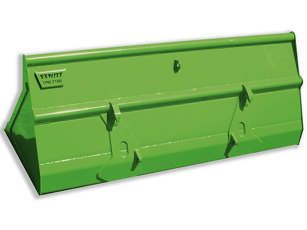

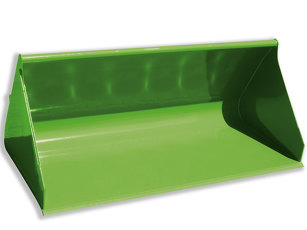

The light material bucket is available in

widths of 2100 mm (1.27 m³ flush volume)
and 2400 mm (1.45 m³ flush volume). The
bucket is powder-coated instead of lacquered and the blade is made from durable, low-wear Hardox 500.

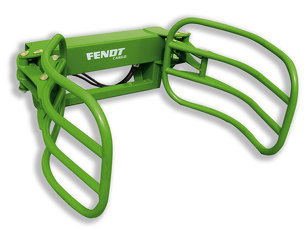

The bale grab is designed for bales with an outer diameter ranging from 900 mm to 1900 mm.

The universal bucket is available in four sizes: 1600 mm wide (0.538m³ flush volume), 1850 mm wide (0.622 m³ flush volume), 2100 mm wide (0.706m³ flush volume) and 2400 mm wide (0.807m³ flush volume).

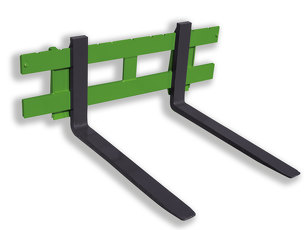

The pallet fork is suitable for loads up to

2000 kg, while the tine length is 1100 mm.

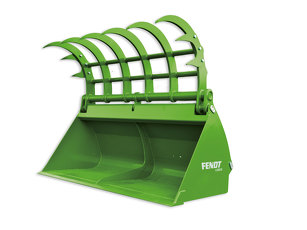

The silage grabber comes in two sizes: 1800 mm wide (1.00 m³ flush volume) and 2200 mm (1.25 m³ flush volume).

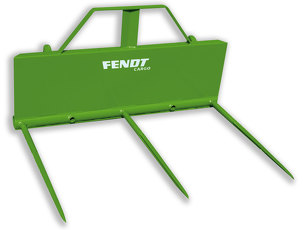

The big bale fork has three tines and is 1500 mm wide.

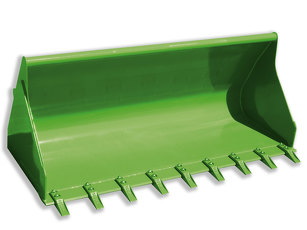

The heavy material bucket is available in widths of 1600 mm (0.53 m³ flush volume) and 2000 mm (0.67 m³ flush volume). The bucket trough is rounded and smooth to prevent crop from sticking. The blades are made from hardened, low-wear high carbon steel and are 150 x 20 mm. They also include industrial loader tines which are bolted flush onto the underside of the blades, therefore preventing grooves during levelling.
