Fendt 200 V/F/P Vario

Your perfect partner in the narrow gauge range.

The Fendt 200 V/ F/P Vario is the perfect companion for vineyards, fruit plantations and special crops. With its compact size and the most modern technology, it offers the highest degrees of efficiency and flexibility. Perfect for tight rows and challenging terrain, it impresses with intuitive operation and a high degree of driving comfort.

The specialist for challenging tasks

The Fendt 200 V/F/P Vario is the perfect companion for vineyards, fruit plantations and special crops. It offers maximum power of up to 124 HP and is equipped with a continuous Vario transmission providing optimal efficiency and driving comfort. The spacious comfort cab with extended windscreen and the FendtONE operating concept enable intuitive control and an outstanding broad view.
Icons_Web_Fendt_700 Gen7_Hohe Leistungsfaehigkeit_128x128.svg

Higher performance

Icons_Web_Fendt_700 Gen7_Dein Lieblingsplatz_128x128.svg

Comfortable cab

Icons_Web_Fendt_700 Gen7_Nachhaltige Technik_128x128.svg

Sustainable technology

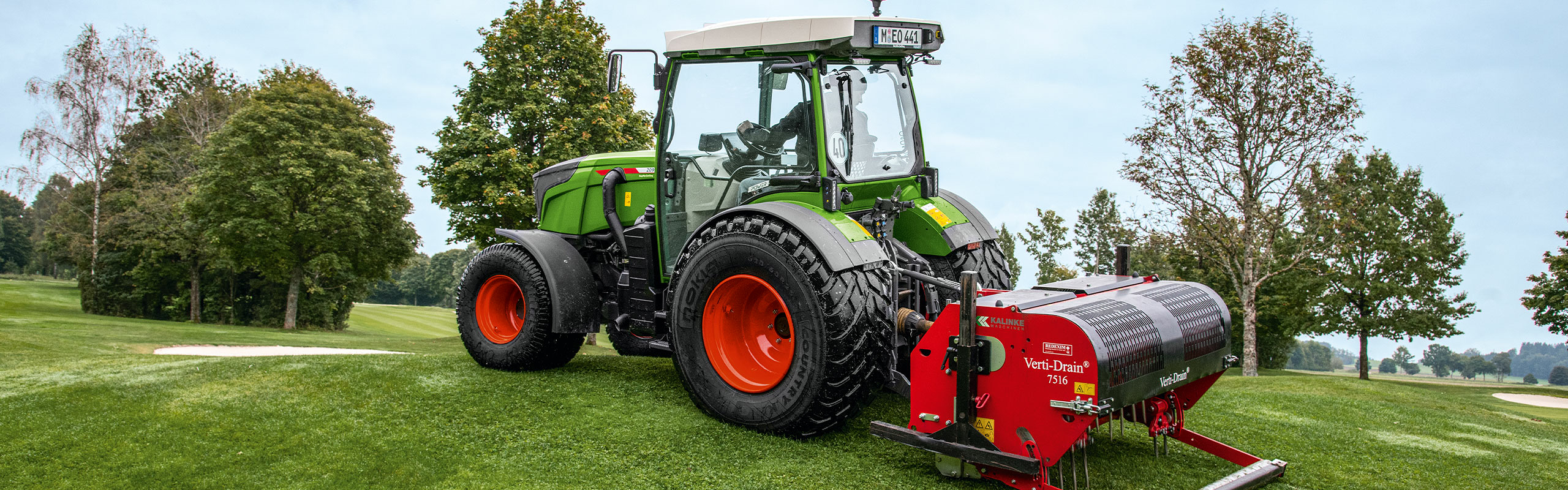

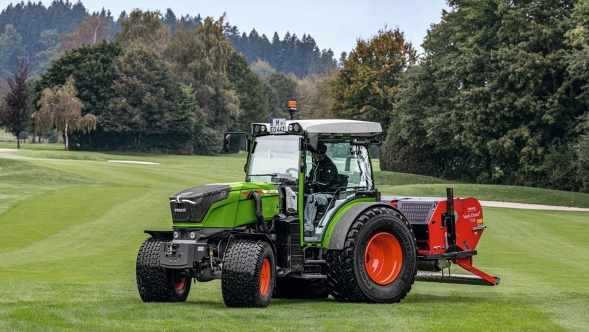

The green tractor with red rims driving with a red attachment over a golf course.

Model overview

207 V/F Vario58 kW 79 hp
208 V/F Vario62 kW84 hp
209 V/F/P Vario69 kW94 hp
210 V/F/P Vario77 kW104 hp
211 V/F/P Vario84 kW
91 kW
114 hp
124 hp


The Fendt 200 V/F/P Vario.

Innovative

Ready for tomorrow – Fendt 200 V/F/P Vario

Solving the challenges of tomorrow today– the new Fendt 200 V/F/P Vario is your partner for those special tasks. Familiarize yourself with its well thought out design and the various options for attaching devices.

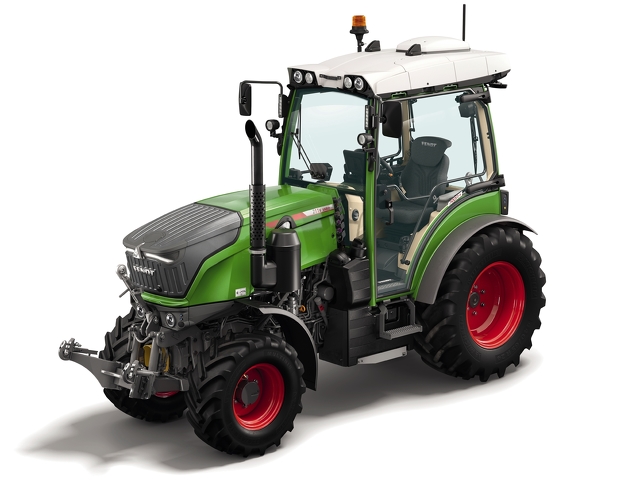

The green Fendt 200 V/F/P Vario with the red rims is equipped with various spotlights to get to know Fendt better.

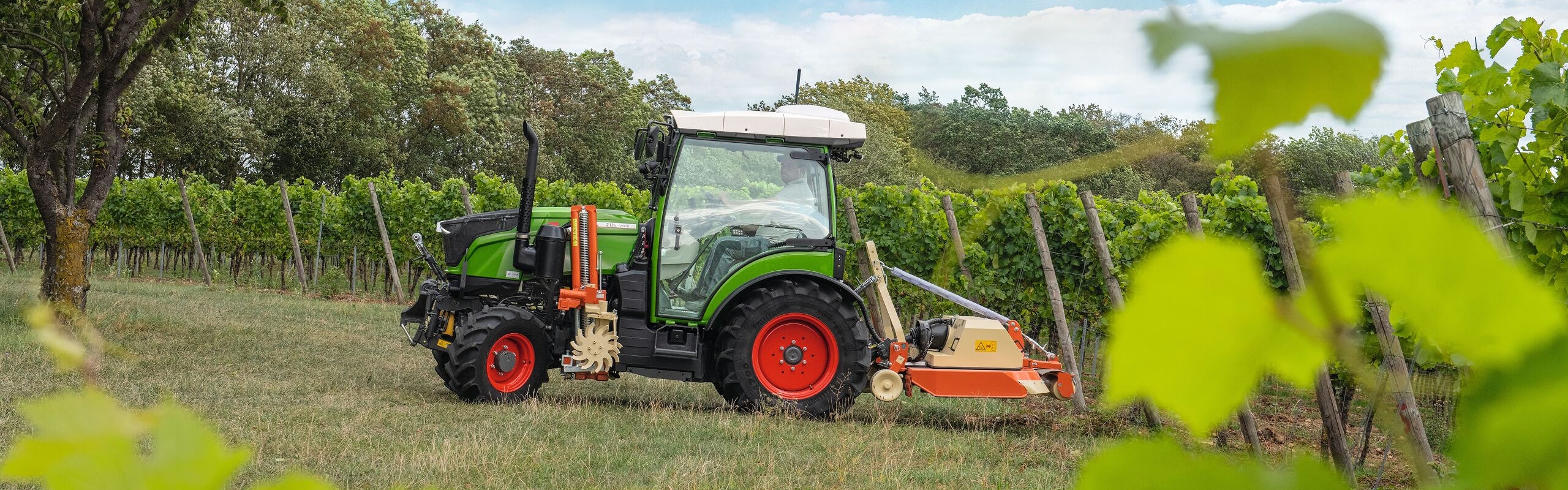

The green Fendt 200 V/F/P Vario with the red rims with a red implement mounted parked on a hill. Green trees can be seen in the background.

Engine and transmission

Light, strong, intelligent and fuel-efficient - that's the Fendt 200 V/F/P Vario. Be impressed by its extremely productive engine and its Vario transmission, which provides for seamless speed adjustment without changing gears. The tractor is ideal for use in vineyards, fruit plantations and other special crops where manoeuvrability and precision are key.

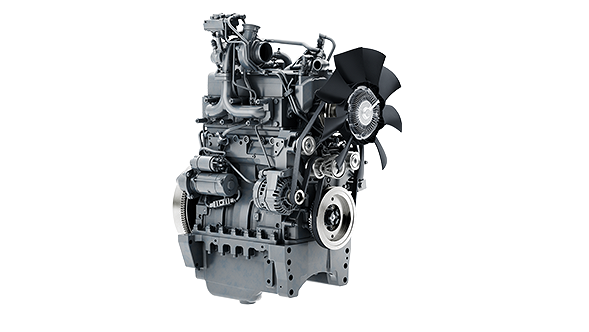

The picture shows the grey-black engine of the Fendt 200 V/F/P Vario.

Engine

The engine of the Fendt 211 V/F/P Vario is equipped with the DynamicPerformance (DP) system that provides an additional 10 HP when needed. The system intelligently distributes the engine power to various components such as the PTO, hydraulics, engine fan and air-con, and when you need more power it then provides that added power.

The engine also has various exhaust treatment systems that effectively reduce emissions and fulfil the newest exhaust standards (Stage 5/ Tier 4f). The diesel particle filter requires not diesel injection for regeneration, and AdBlue reduces nitric oxide, which lends the tractor excellent fuel economy.
+10 hp
through DynamicPerformance

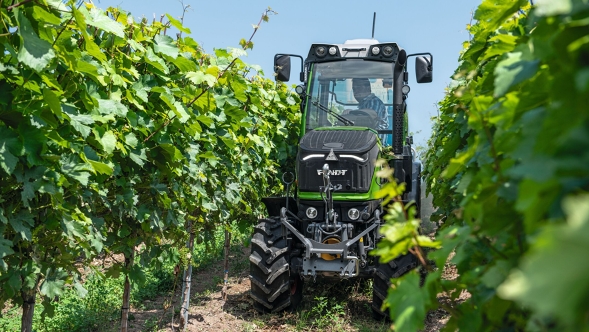

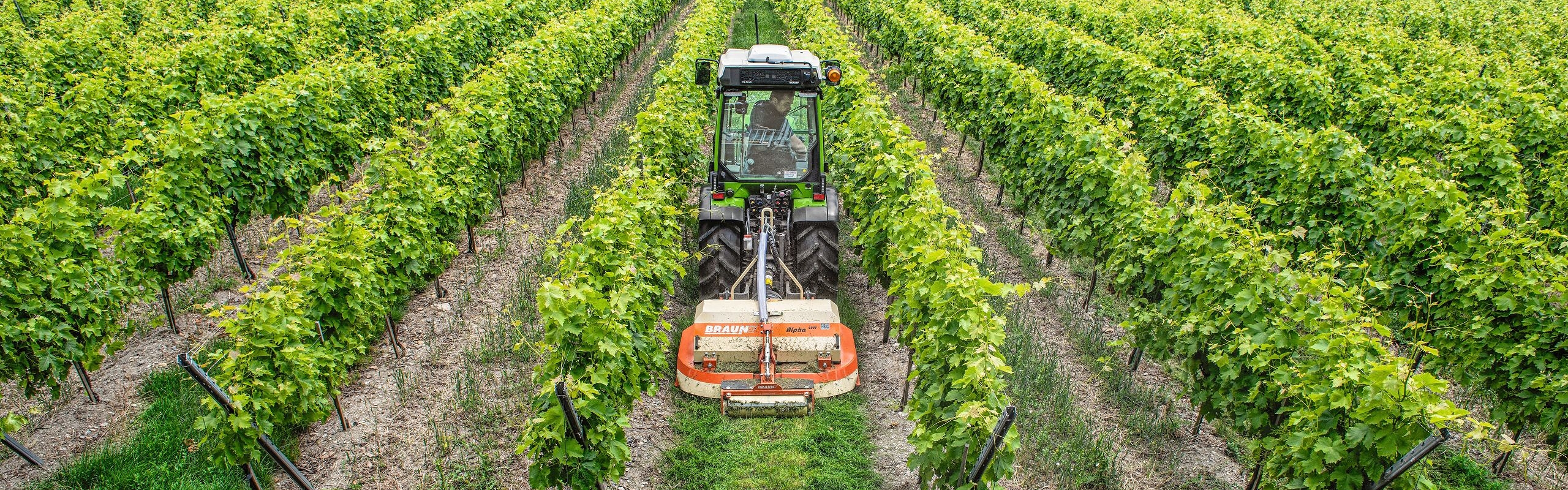

The green Fendt 200 V/F/P Vario with the red rims is driving with a mulcher through the rows of the vineyard.

Transmission

The continuous Vario transmission of the Fendt 200 V/F/P Vario offers the highest driving comfort and optimal ground coverage at speeds from 20 km/h to 40 km/h. It saves up to 7% of your work time and 9% diesel compared to power shift transmissions. The tractor management system (TMS) ensures efficient performance and optimal speed adjustment, which guarantees an ideal proportion of performance, fuel consumption and protection of the components. Even on extremely steep slopes, it enables continuous delay, secure hold and smooth acceleration, which spares the soil and provides security.
7%
Work time savings
9%
Diesel savings

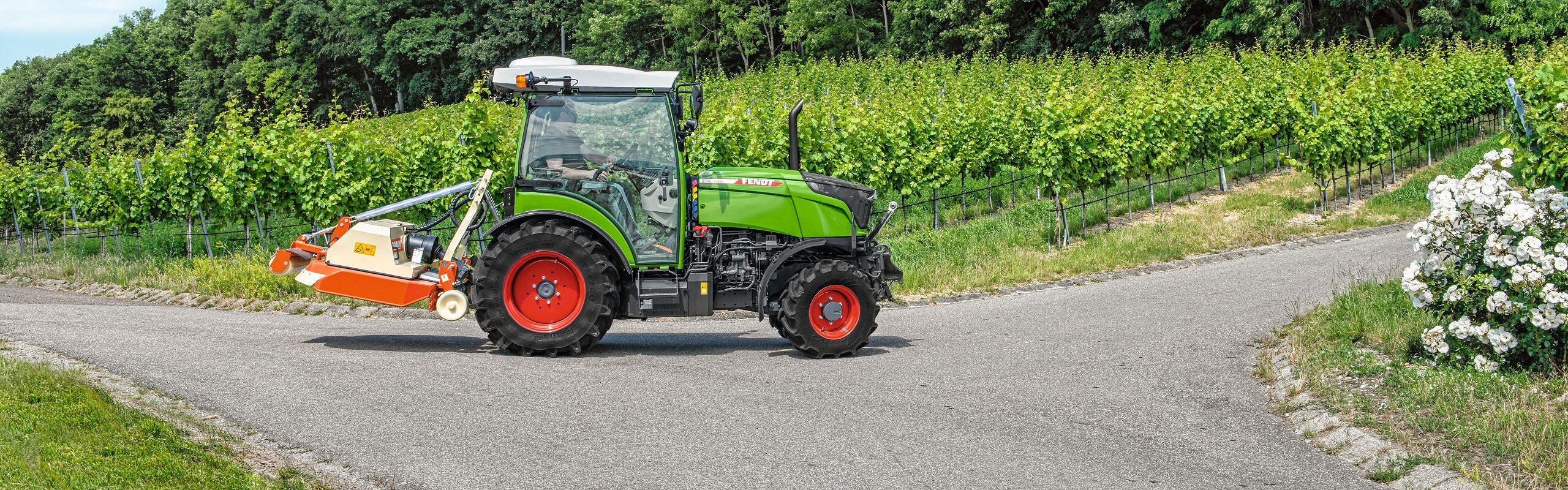

The green Fendt 200 V/F/P Vario with the red rims driving on the road. It has an orange mulcher attached and one can see vineyards in the background.

Comfort cab

The cab is ideal for narrow vineyards and fruit plantations. It is characterised by its compact size, but is still comfortable and clearly laid out. Optimal view of the straddle devices through the raised front front window.

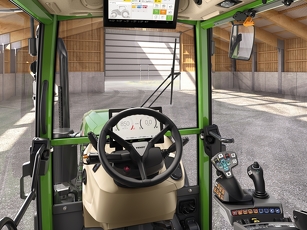

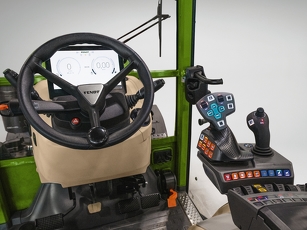

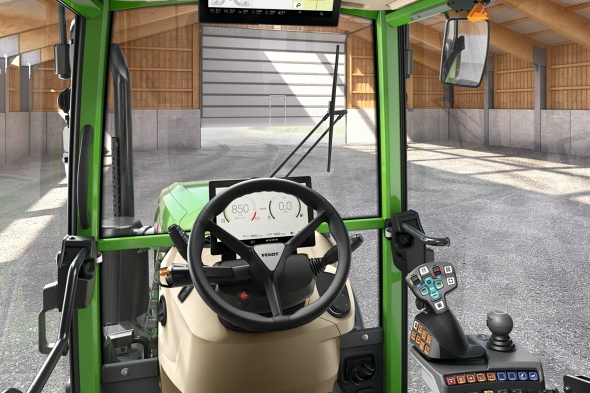

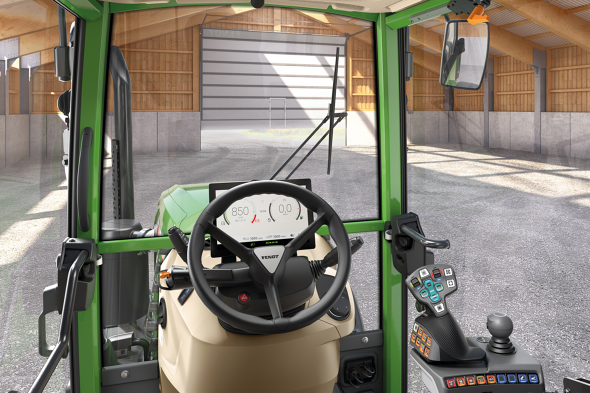

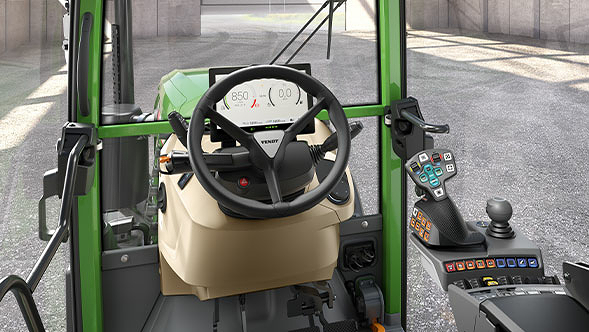

The cab of  the Fendt 200 V/F/P Vario is visible. In the middle there is a steering wheel and on the right side is the FendtONE armrest with the 3L joystick.

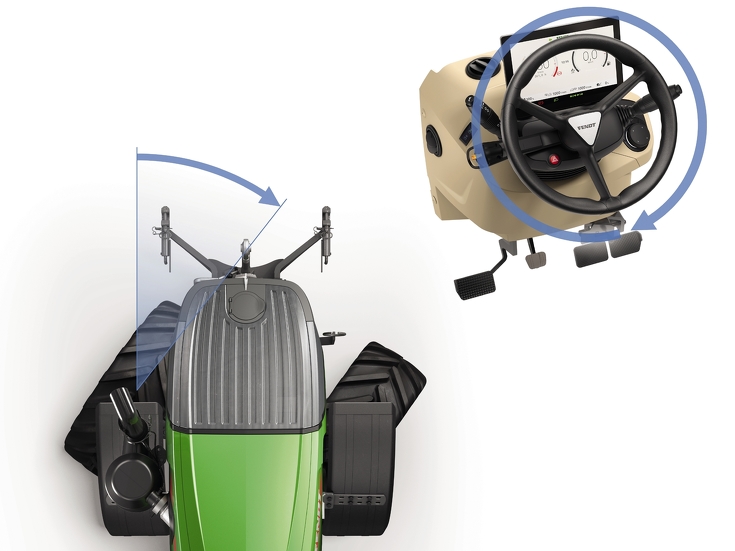

Perfectly adjustable workplace

For the best sitting position, the steering wheel and cockpit must be at the right height and tilt angle. Both are quick and easy to finely adjust by foot pedal. Benefits: excellent visibility and no glare in the cockpit; quickly folds away for easy entry and exit.

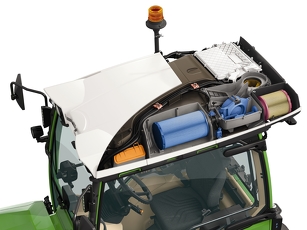

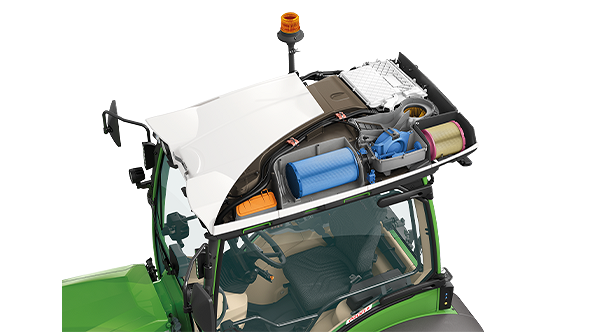

The cab of the Fendt 200 V/F/P Vario has a white roof and is partially cut away to display the interior of the cab roof. Inside, the various components of the category 4 filter protection system are displayed.

Cab with optional Cat. 4 filter protection system

The new cab means the cab air filter system can be converted to protection category 4 ex works. In its basic setting, it fulfils all of the standards of a cab with protection category 2. If required the filter system can be set to protection category 4 according to the EU standard EN15695, with protection against dust, liquid fertilisers and their vapours. The Fendt 200 V/F/P Vario meets all requirements for plant protection use and keeps the driver safe.

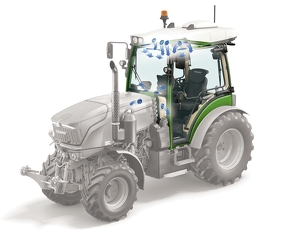

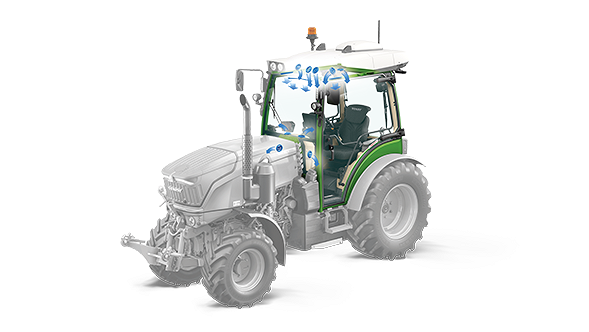

A CGI of the Fendt 200 V/F/P shows the airflow in the cab with the air conditioning on.

Climate control

The sophisticated ventilation and air conditioning concept provides excellent air flow via the steering tower and the cab roof. There are eight air nozzles to distribute the air just where you want it in the cab. For winter service work, choose the optional additional heating system with two extra outlets in the footwell.

The green Fendt with the red rims is driving with an orange mulcher through the rows of the vineyard. It is seen from behind.

Hydraulics

Far ahead in everything that matters - even for tomorrow. That’s the hydraulic system of the Fendt 200 V/F/P Vario. It is exceptionally powerful and versatile, ideal for use on special crops where versatile and powerful hydraulics systems are required.

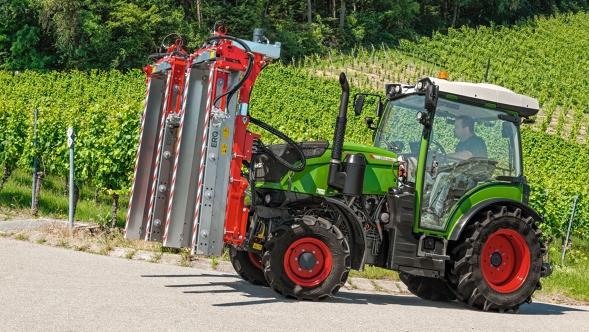

The green Fendt 200 V/F/P with the red rims with a red cutter for viticulture on a road through the vineyards.

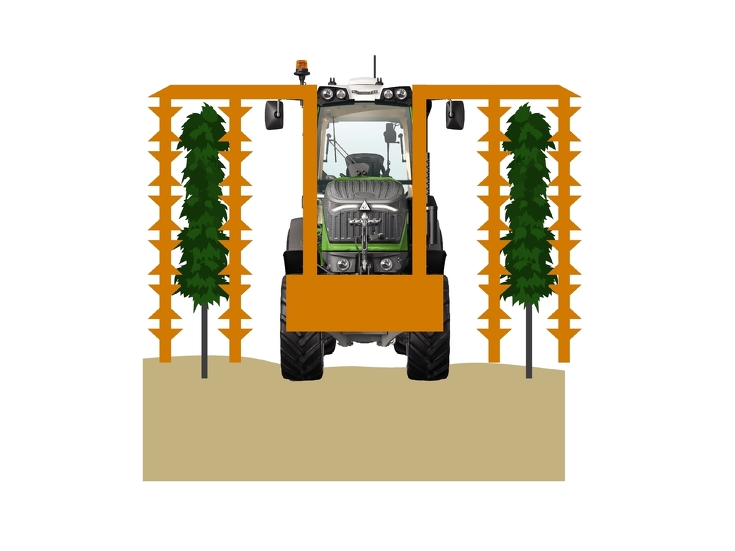

Optimal control of device combinations

Thanks to the generous clearance of up to 45 cm wide, implements are optimally controlled in mid-mounting cultivation. Seven double-action valves and the Power Beyond connection enable precise control and provision of challenging device combinations. This means you can use three attachments in time and cost­ saving work combinations. Benefit: the highest impact and soil protection as well as high economic efficiency.

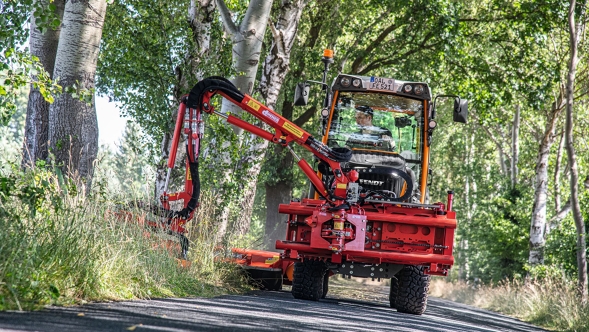

The green Fendt with the red rims is driving with a red mulcher on the road and mulches the edges.

Powerful hydraulic system with separate oil supplies

Fendt 200 V/F/P Vario models are fitted with a load-sensing hydraulic system and up to 8 valves. Two fixed-flow pumps deliver the exact quantity of hydraulic oil required – up to 76 l/min, 119 l/min on the LS version. A maximum of 25 litres of hydraulic oil is available to mounted and trailed implements. Having separate oil tanks for the gearbox and the hydraulics enables unproblematic use of bio oils.
119
l/min flow capacity

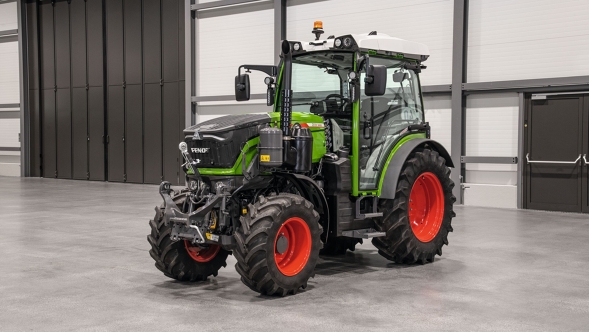

The green Fendt 200 V/F/P Vario with the red rims is parked in a hall with a grey floor.

Benefits at a glance

  • Avoids reactive power by making full use of the two hydraulic circuits
  • Long oil change intervals and use of bio-hydraulic oil possible
  • Excellent hydraulic power
  • Countless setting options for every valve

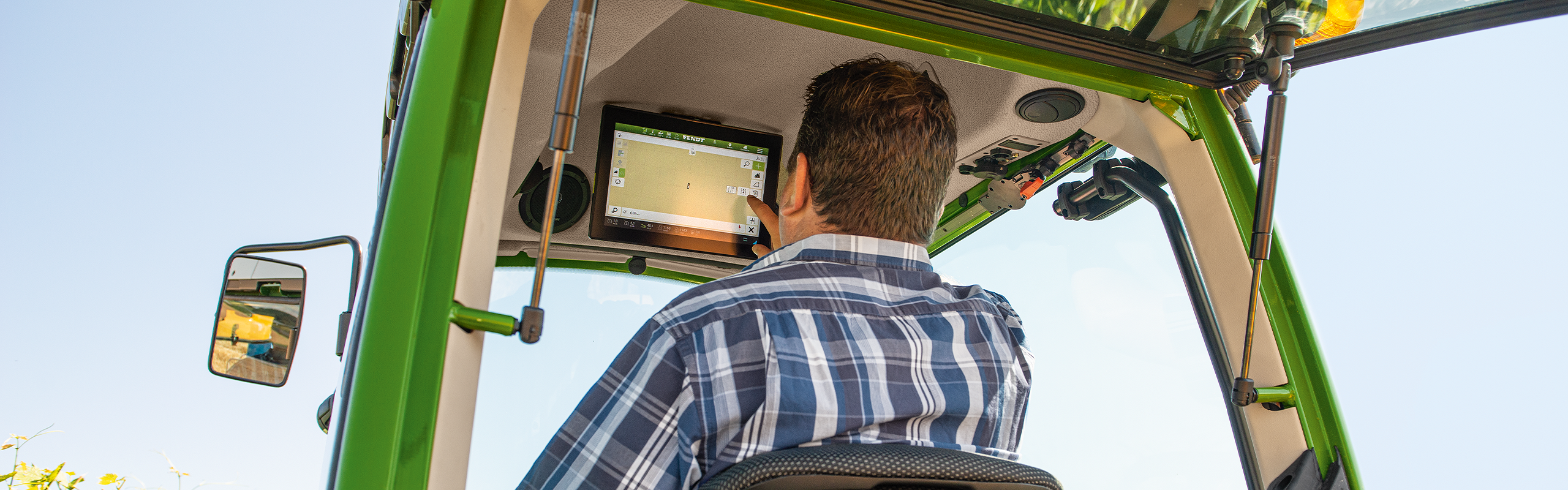

A man sits in the Fendt 200 V/ F7P Vario cab and types with his finger on the terminal above the front window.

Smart Farming

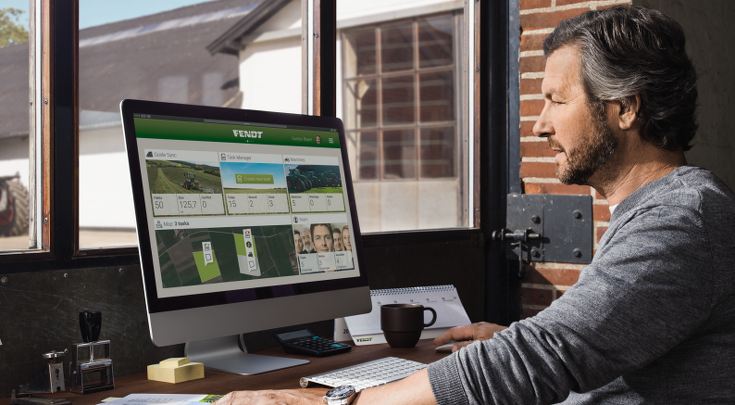

With FendtONE, your machines and your office merge into one operating unit. FendtONE combines the familiar operation of the tractor with the terminal for planning or control tasks that classically would take place in the office. You can schedule field data and orders on your computer or smart device wherever you are, and send them to your machine.

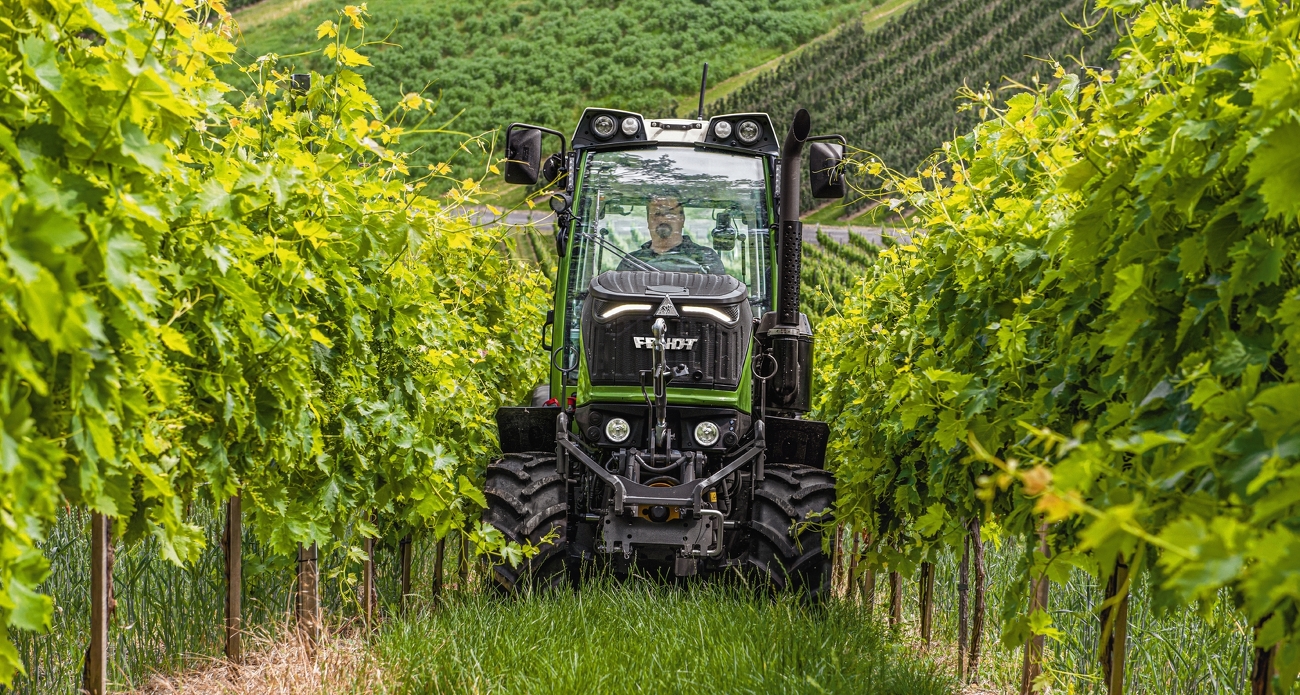

The green Fendt 200 V/F/P Vario drives among the green vines through the vineyard.

Increased efficiency through the Fendt Guide guidance technology

The Fendt Guide guidance technology provides for a precise and position-related guidance over the ground or along the rows. This is particularly important with special crops that require up to 20 passes per year. Through the exact guidance, the optimal distance from the plants is maintained and undesired double treatments are avoided. This leads to greater efficiency and improved work results, because human and machine are under less strain.

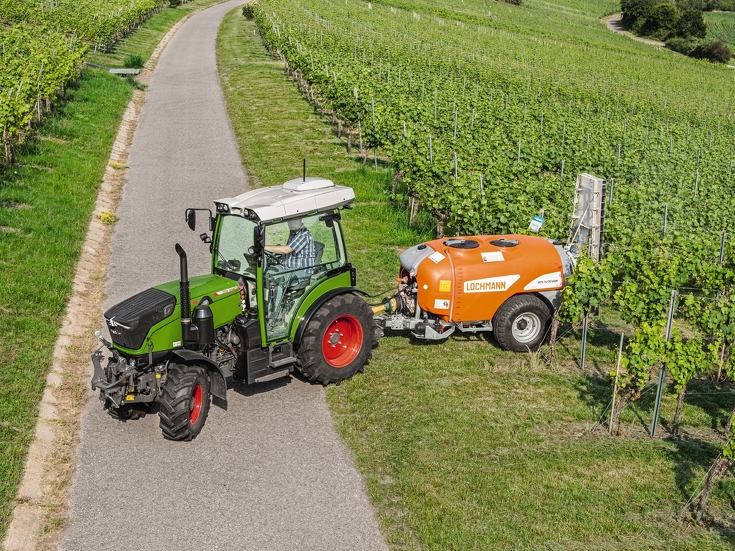

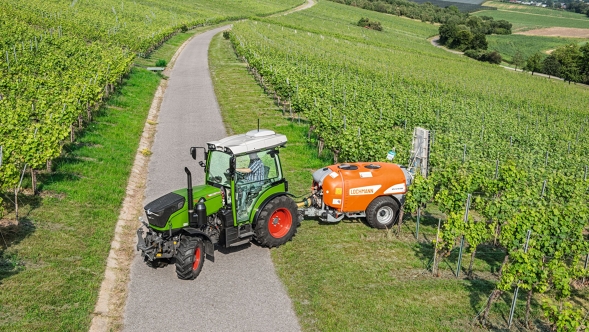

A green Fendt 200 V/F/P with the red rims with an orange plant protection sprayer drives out of the vineyard onto a road.

Headland management made easy with Fendt TI

This smart assist is a real benefit for repeat processes, especially headlands. Our Fendt TI headland management system saves you up to 1,920 daily hand movements in 160 turns. Both manually at a standstill and while driving, you can record all the functions as a sequence and save them in the terminal. Later, all it takes is a touch of a button to activate the automated sequences when entering and coming out of the headland. Work without having to reposition.

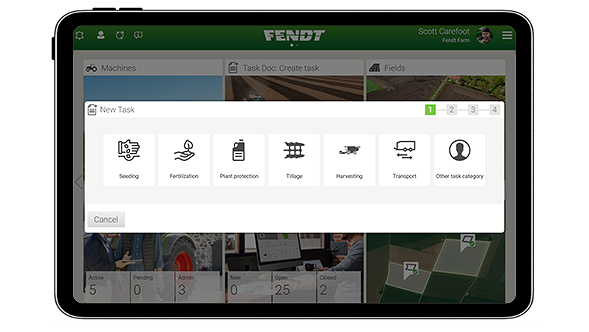

A tablet with various selection options for creating a new task is seen.

Digital capture and documentation for specialist crop cultivation

In specialist crops, key location data is recorded digitally and imported into a field mapping or viticulture file. The Fendt Task Doc system enables efficient management of tasks and documentation, particularly important for spray insecticide treatment to prevent double treatments. With integrated documentation in the Agronomy basic package, you can seamlessly record your field work and flexibly transfer the data via USB or mobile telecommunication.

Equipment variants

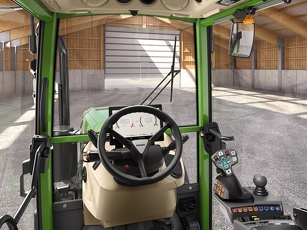

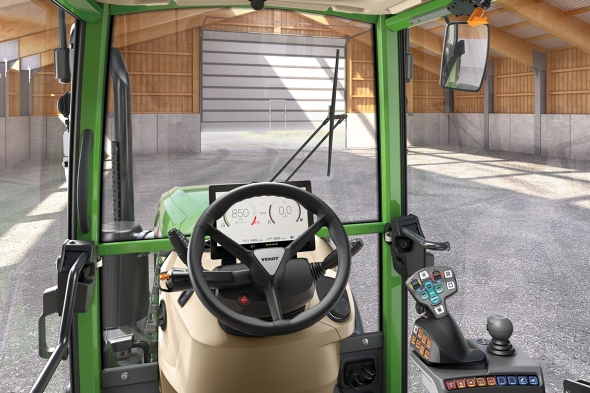

The cabin of the Fendt 200 V/F/P Vario is seen with steering wheel and FendtONE joystick. The crossgate lever is located next to the joystick, but there is no linear module.

Power Setting 2

  • Cross-gate lever
  • No linear module (rocker pair)

The cab of the Fendt 200 V/F/P Vario is seen with steering wheel and FendtONE joystick. The crossgate lever is located next to the joystick, and two linear modules are present.

Profi Setting 1

  • Cross-gate lever
  • Two linear modules (rocker pairs) to control hydraulic valves

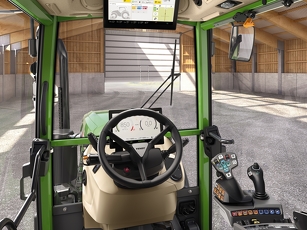

The cabin of the Fendt 200 V/F/P Vario is seen with steering wheel and FendtONE joystick. The the 3L joystick is located next to the joystick, and two linear modules are present. There is also the 12" terminal in the roof.

Profi Setting 2

  • 3L-Joystick
  • Two linear modules (rocker pairs) to control hydraulic valves
  • 12" terminal in the roof
The cabin of the Fendt 200 V/F/P Vario is seen with steering wheel and FendtONE joystick. The crossgate lever is located next to the joystick, and two linear modules are present. There is also the 12" terminal in the roof.

Profi+ Setting 1

  • Cross-gate lever
  • Two fingertip spools (rocker pair) to control hydraulic valves
  • 12" terminal in the roof
The cabin of the Fendt 200 V/F/P Vario is seen with steering wheel and FendtONE joystick. The the 3L joystick is located next to the joystick, and two linear modules are present. There is also the 12" terminal in the roof.

Profi+ Setting 2

  • 3L-Joystick
  • Two linear modules (rocker pairs) to control hydraulic valves
  • 12" terminal in the roof

Technical specifications

207 Vario V
207 Vario F
208 Vario V
208 Vario F
209 Vario V
209 Vario F
209 Vario P
210 Vario V
210 Vario F
210 Vario P
211 Vario V
211 Vario F
211 Vario P
Rated power ECE R 120 (kW/hp)
53/72
53/72
60/82
60/82
67/91
67/91
67/91
73/99
73/99
73/99
77/105
77/105
77/105
Max. torque at 1600 rpm (Nm)
328
328
348
348
389
389
389
428
428
428
Rear PTO
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
540/540E/1000
Front PTO option
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Dual hydraulic pump (l/min)
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
33+42
Max. lift capacity of rear power lift (daN)
2775
2417
2775
2417
2775
2417
3134
2775
2417
3134
2775
2417
3134
Max. lift capacity of front power lift (daN)
2380
2380
2380
2380
2380
2380
2540
2380
2380
2540
2380
2380
2540
Unladen weight (base tractor with cab - full tanks, without driver) (kg)
3060.0
3140.0
3080.0
3140.0
3080.0
3140.0
3360.0
3080.0
3140.0
3360.0
3090.0
3140.0
3380.0
Max. permissible overall weight (kg)
4800.0
4800.0
4800.0
4800.0
4800.0
4800.0
5600.0
4800.0
4800.0
5600.0
4800.0
4800.0
5600.0

Smart Farming solutions.

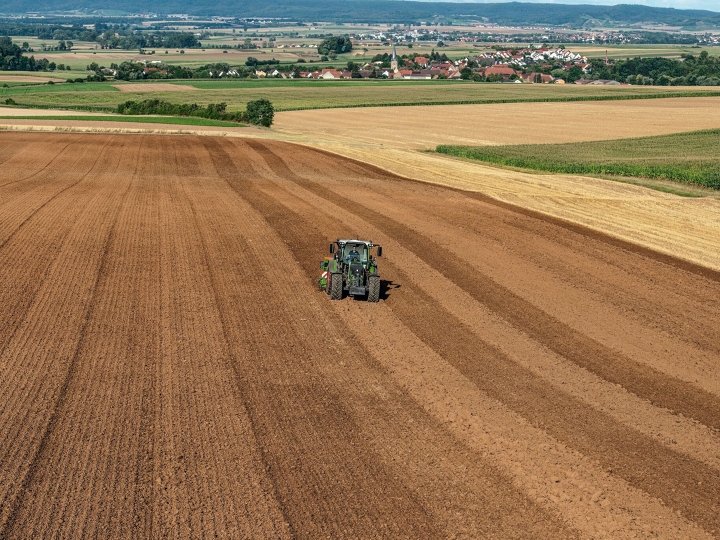

A tractor driving across a field.

Guidance system

With high-precision satellite technology, you can control your tractor even at night or in poor visibility to an accuracy of just +/- cm.

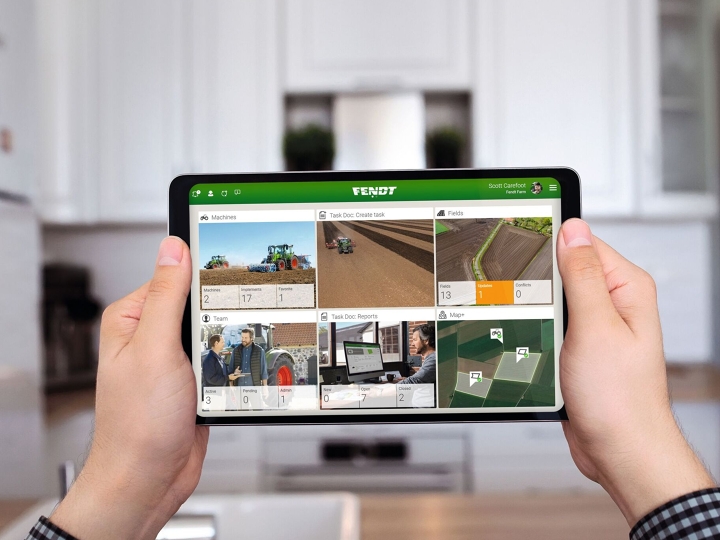

A tablet with FendtONE tiles is held in two hands.

Agronomy

Overcome bureaucratic hurdles easily with the task-related documentation system VarioDoc Pro.

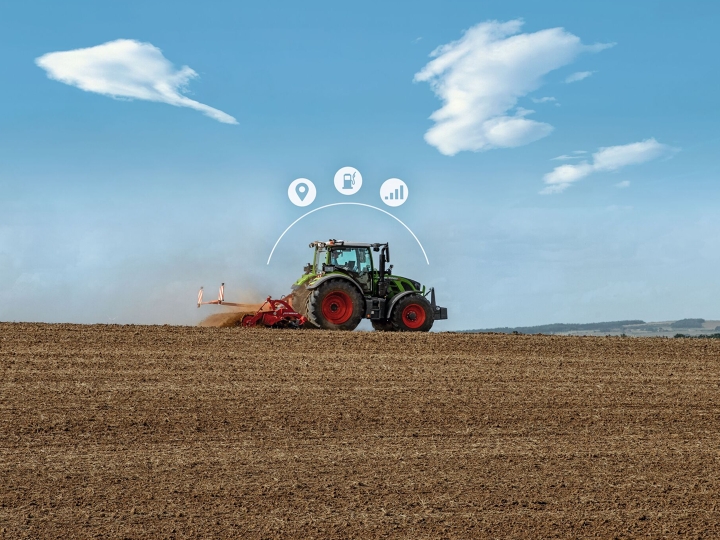

A green tractor with red rims driving with a red attachment over the field. There is a location symbol, a tank symbol and a connection symbol seen above the tractor.

Telemetry

Mobile data transmission means you can check your real-time machine data anywhere - from a PC, tablet or smartphone.

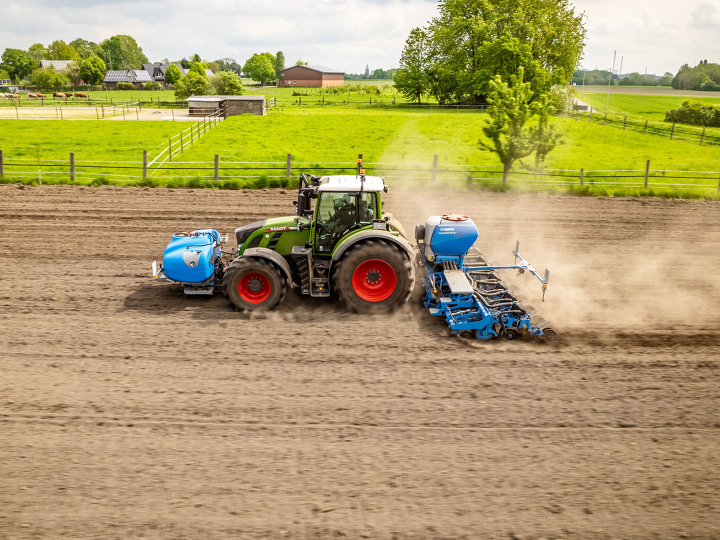

A green tractor with red rims driving with a blue planter over the field

Machine control

Only when the tractor and implement can communicate with each other can the full potential of the combination be utilised.

The path to your new Fendt 200 V/F/P Vario

Next steps

Want to find out more about the Fendt 200 V/F/P Vario? Find a dealer near you and get advice.

Services

Would you like to test the machine beforehand or are interested in financing? Fendt offers you a comprehensive range of services.

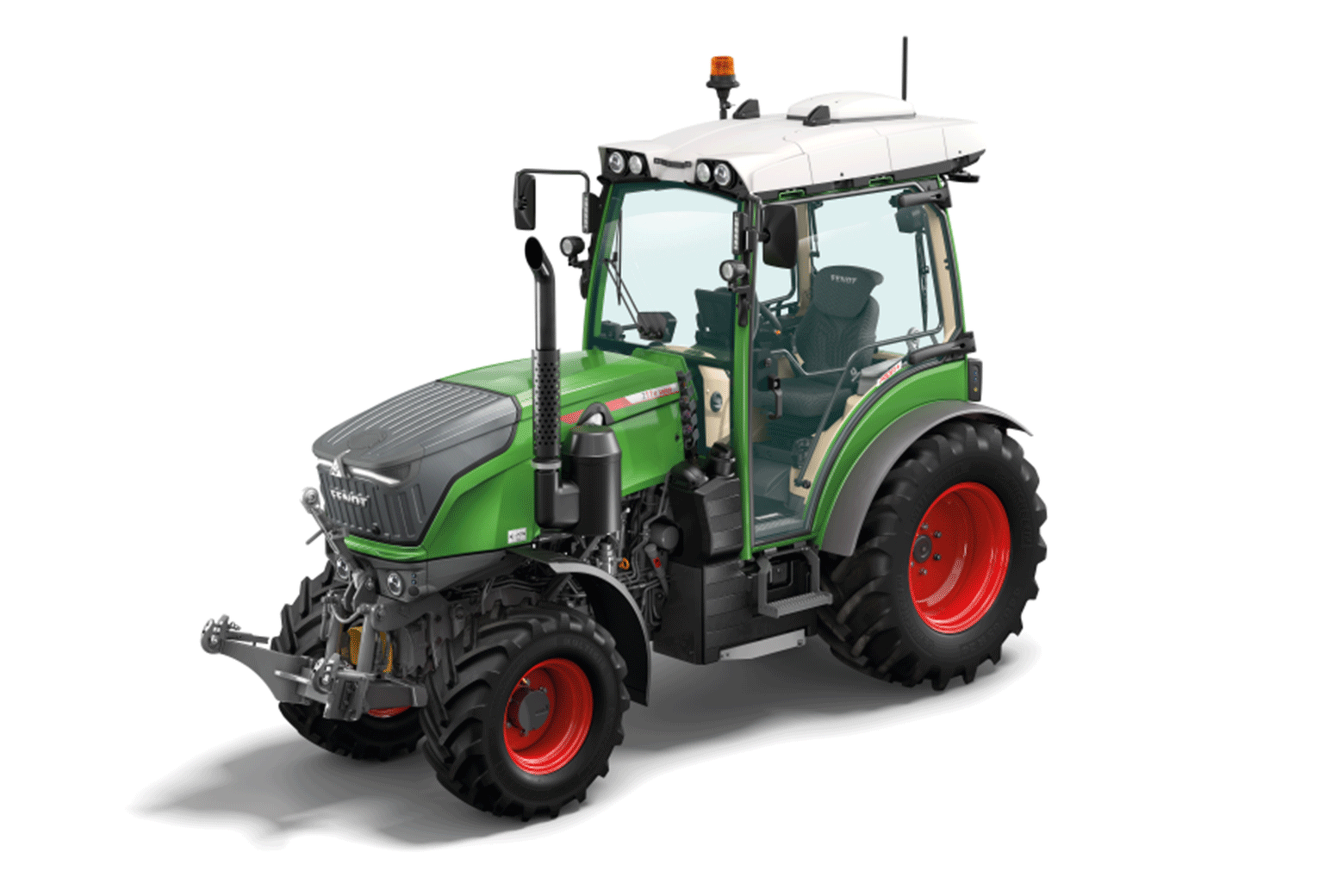

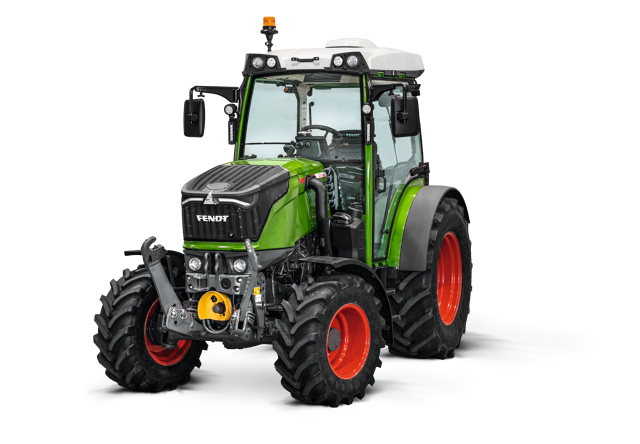

Side view of a green Fendt 200 V/F/P Vario against a white background
