Fendt Katana

The forage harvester from Fendt: is versatile and powerful

Chopping is always about performance. Performing especially well. With results which are qualitatively and quantitatively convincing. We are also about versatility. We want optimum performance and maximum efficiency – no matter what the application. Are you wondering how you can achieve this goal? The answer is the Fendt Katana.

Performance is its strength

The Fendt Katana has everything you need to give it your all when chopping. With a performance-consistent crop flow trimmed for chopping quality and throughput, as well as an innovative all-wheel drive concept, it is ready for the most challenging operations. The more varied the conditions, the more the Fendt Katana plays to its strengths.

Configure now

Perfected crop flow

Innovative technology

Versatile attachments

Smart Farming

Comfortable cab

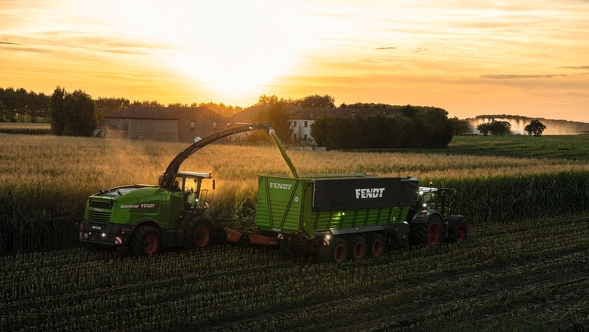

Fendt Katana next to the Fendt Tigo at sunset

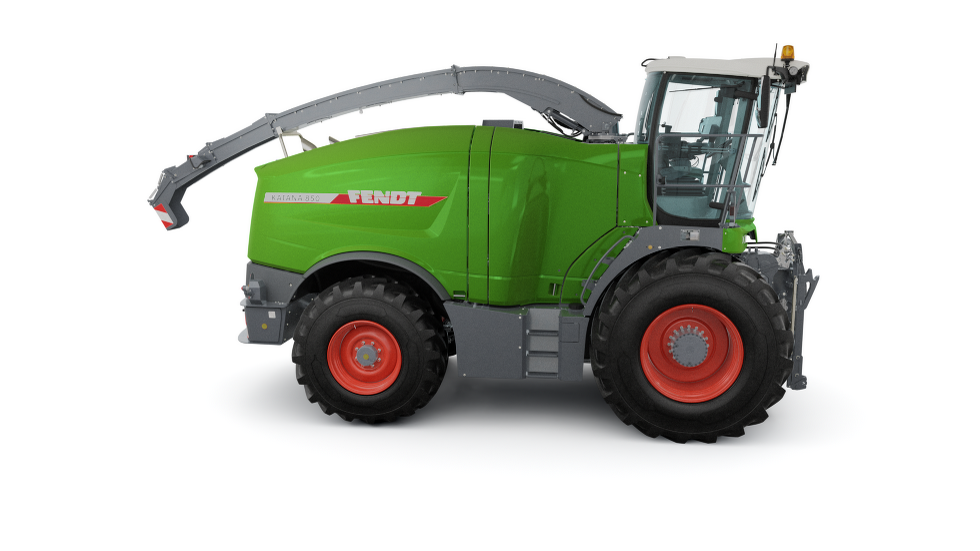

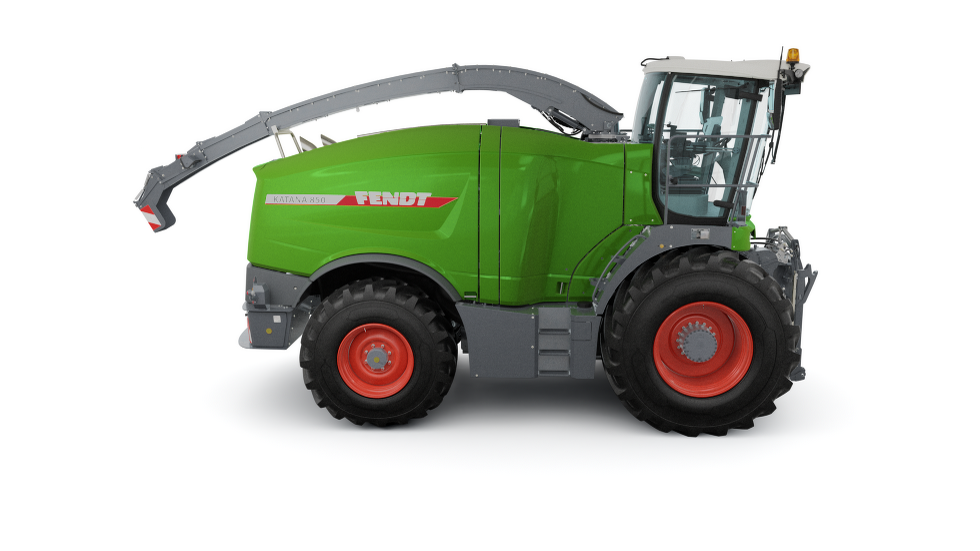

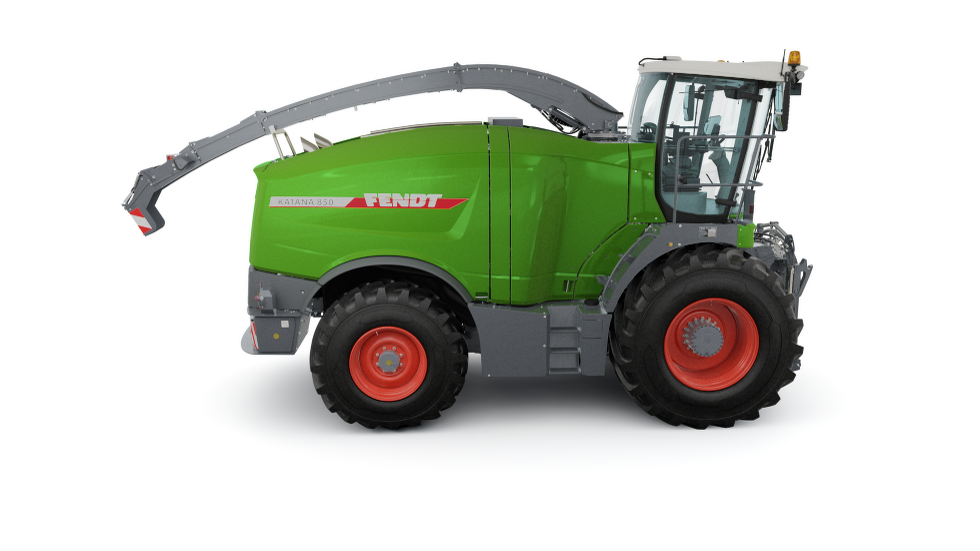

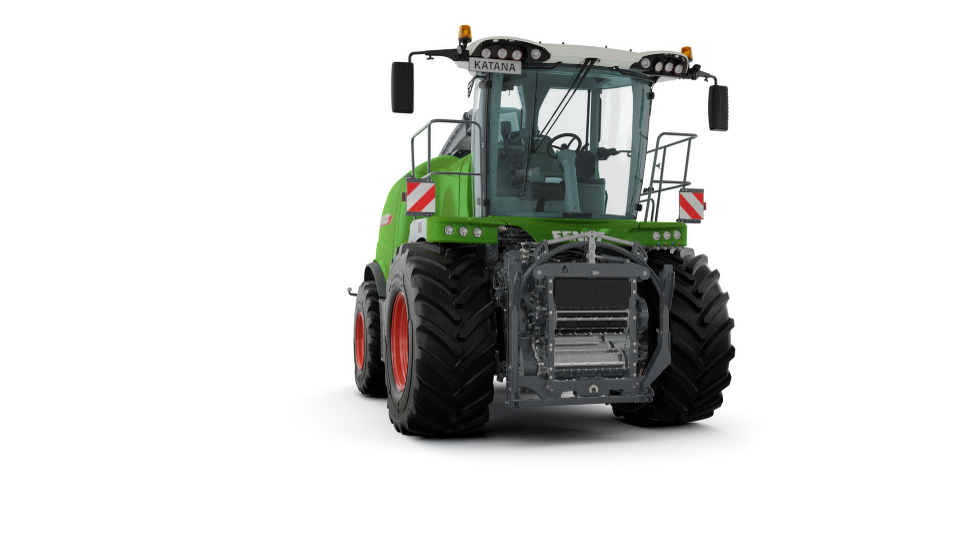

Model overview

Katana 650	478 kW	650 hp
Katana 850	632 kW	850 hp

Product BrochurePDF, 13,42 MB

#Movingforward

We look back on 10 years of the Fendt Katana. To 10 years of passion and perseverance. The Katana drives us to think differently, to be better, to go further. Because one thing is clear: it keeps going. A new milestone on this path of passion and perseverance is now being launched – the new Fendt Katana 850.

Green banner with a stopwatch symbol and the text "Being fast does pay off!"

Fendt Early Bird 2025 – it pays to be quicker!

Think about the coming season today! With the Fendt Early Bird 2025, you benefit from exclusive and attractive conditions when purchasing one or more Fendt forage harvesting technology products. Get up to 10 % off the list price!

Learn More

The Fendt Katana

Thinking ahead

Fendt Katana – Here, nothing is left to be desired!

Regardless of whether it is a farm or a bio-gas plant – success and profitability begin in the field. This is where the Fendt Katana comes into play. It stands out for its versatility in maize, grass and whole crop silage and always delivers the best quality at the highest throughput.

Motors Eco/Power Concept Reversible Fan Fendt Balance Grip All-wheel rear axle Load limit control

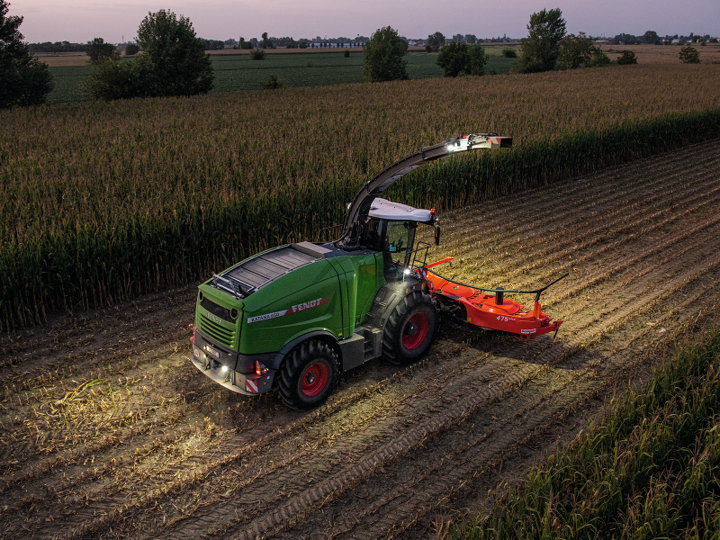

Bird's eye view of the Fendt Katana next to a Fendt tractor in a maize field

Crop flow

Designed for high throughputs and top quality – that is the Fendt CropFlow 2.0. With the largest Knife drum on the market and powerful roller crackers, the crop flow always ensures optimum results under a wide range of conditions.

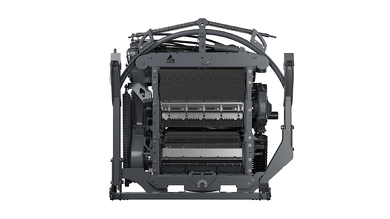

Fendt CropFlow 2.0

Highest chop quality from front to back

The Fendt CropFlow 2.0 stands for the highest possible cutting and conditioning quality with increased throughput, reduced wear and higher fuel efficiency. Thanks to completely new roller cracker, among other things, the shredded material is optimally conditioned.

Infeed with six pre-press rollers Largest knife drum on the market Innovative knife sharpening unit Powerful roller crackers Powerful discharge fan Discharge chute

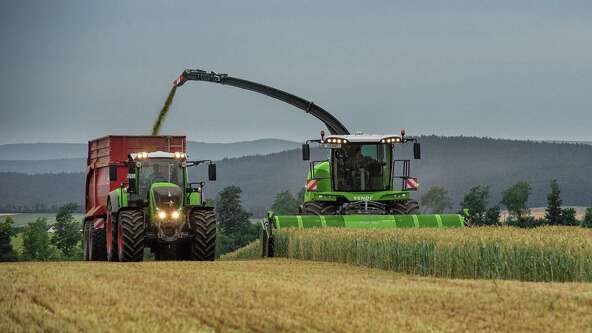

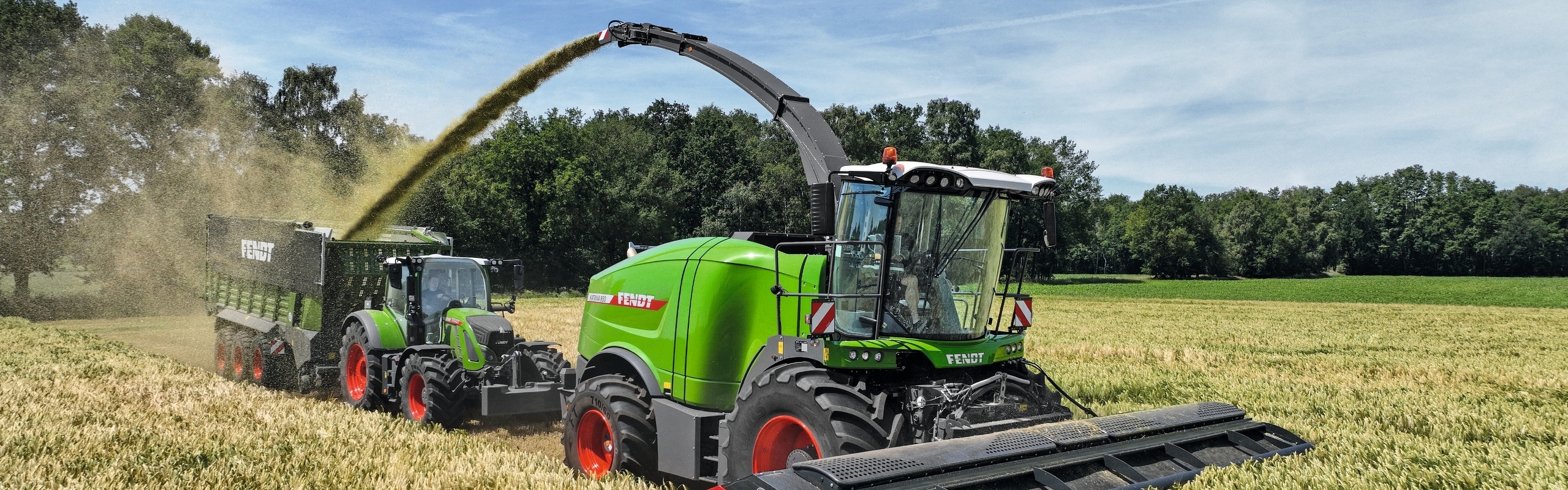

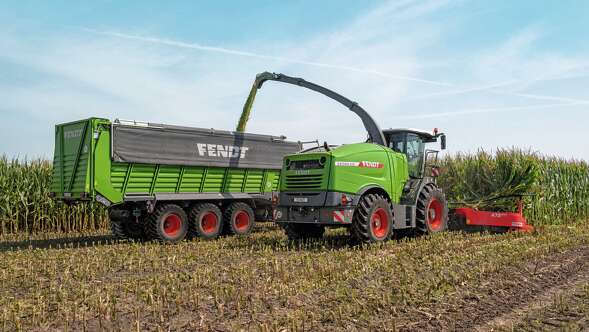

Fendt Katana 850 chops grain and transports it to the forage wagon

Technology

High throughput and gentle on any terrain. The Fendt Katana leaves nothing to be desired. Intelligently controlled all-wheel drive, rear axle suspension and high manoeuvrability are some of the features that make chopping child's play even in difficult conditions.

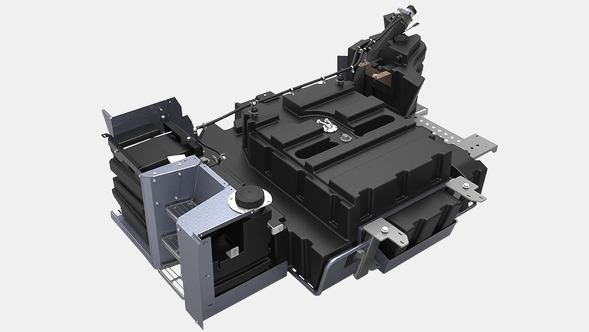

Modular & light: the tank concept of the Fendt Katana

The tanks of the Fendt Katana are not only impressive with their high capacity – the modular and robust plastic construction also saves quite a bit of weight. For each of the two models, there is a choice between diesel with AdBlue tank or diesel, AdBlue and water or additive tank. No matter which tank configuration is chosen: The filler caps for diesel and AdBlue are conveniently accessible.

Fully integrated silage additive system

The silage additive system, which can be controlled via the Varioterminal, allows additives to be applied to the crop. In the process, the Varioterminal provides information on the fill level of the tank and the current flow rates. The silage additive is located in the optional 215 litre tank on the right–hand side of the vehicle. By the way, you can also clean the crop flow channel via the dosing unit.

Powerful and gentle on any terrain.

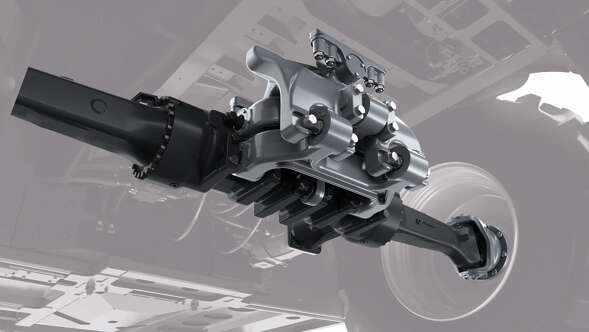

The Fendt Katana 850 has an all–wheel drive concept with increased torque. Due to the increased pull and traction, even hilly terrain and wet conditions are no problem. For the Katana 650, this all–wheel drive concept is available in conjunction with the Kemper 490 Plus. In addition, the Fendt Katana is equipped with a reinforced linkage and higher braking force. The intelligently controlled BalancedGrip all–wheel drive is available as an option.

Nothing is left to be desired.

The rear axle of the Fendt Katana has a very good steering angle. Combined with the compact design of the machines, this achieves very high manoeuvrability. This makes turning operations quick and easy in any situation. Here you benefit from the concept with a longitudinally mounted engine, which enables a particularly good steering angle.

To protect the driver and machine from bumps in the field, the Fendt Katana has height-adjustable rear axle suspension. In addition to the best comfort, this guarantees extra safety and stability even at 40 km/h. Together with the very large tyre selection, the Katana becomes a universal talent on any surface. Extra large tyres with diameters of up to 206 cm and widths of up to 900 mm reduce ground pressure and increase ground clearance.

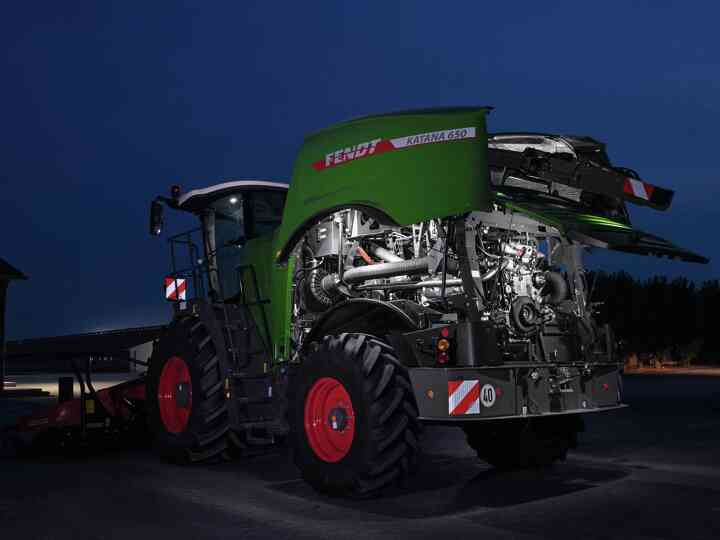

Man performing maintenance on Fendt Katana

Designed for comfort

The sophisticated design of the Fendt Katana forage harvester makes maintenance a pleasure – and is completed in no time. Every spot is easily accessible, many components can be reached comfortably from the ground at an ideal working height. No component blocks access to the most important inspection and cleaning points. Even the integrated access ladder can be folded down for this purpose, giving the best possible access to the internal components. There is even more unrestricted freedom for maintenance thanks to wide steps on both sides and the generously dimensioned maintenance platform between the chopping unit and the engine.

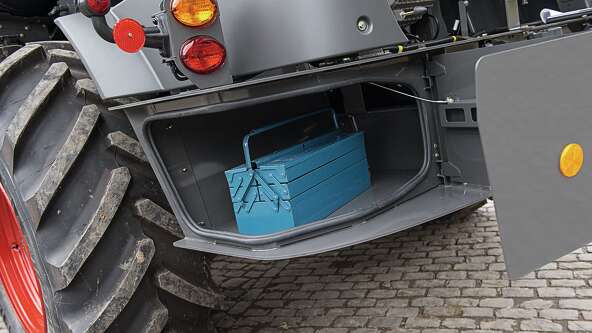

Close-up of the rear storage compartment of the Fendt Katana

Easily accessible storage and battery compartments at the rear of the vehicle offer sufficient space, for example for the optionally available toolbox.

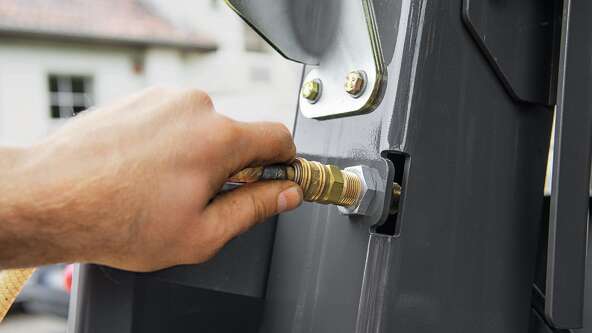

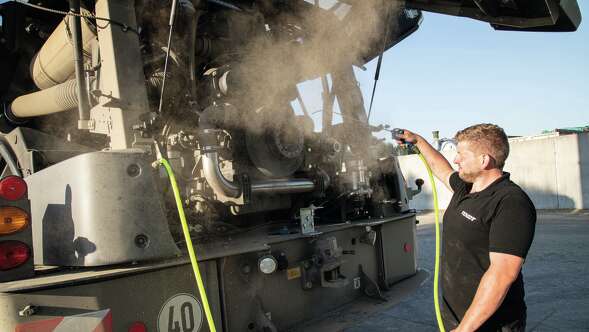

Close-up of the Fendt Katana compressed air connections

Three integrated compressed air connections enable dry cleaning of important vehicle parts directly in the field.

Open for time saving

The fewer manual operations, the faster the maintenance. So don't waste any time: open the large side flaps via a space–saving parallelogram system. Remove the rear mudguards in no time at all without tools. Simply set the intervals of the central lubrication system via the Varioterminal. And should it ever be necessary, despite the extremely robust and durable construction, you will also receive your desired spare parts in the shortest possible time.

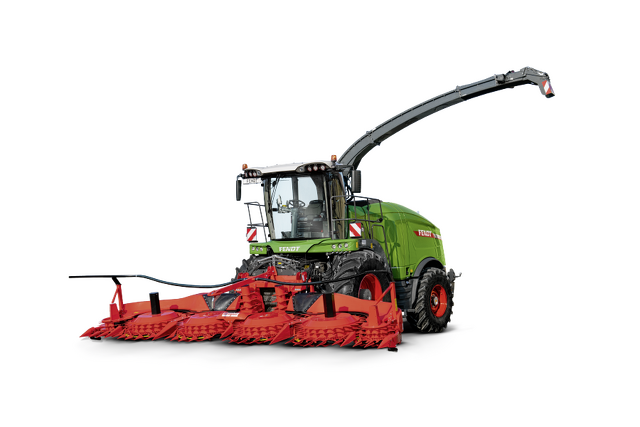

Fendt Katana with attachment is in the spotlight

Attachments

The right attachment for every application! Whether maize, grass or whole crop silage – there is an attachment for every requirement for the Fendt Katana that does a first-class job. This is important to us, because quality starts right at the beginning.

More attachments, more applications

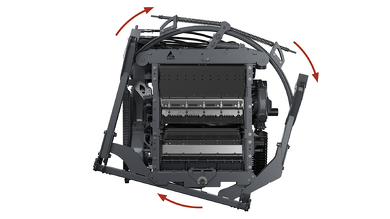

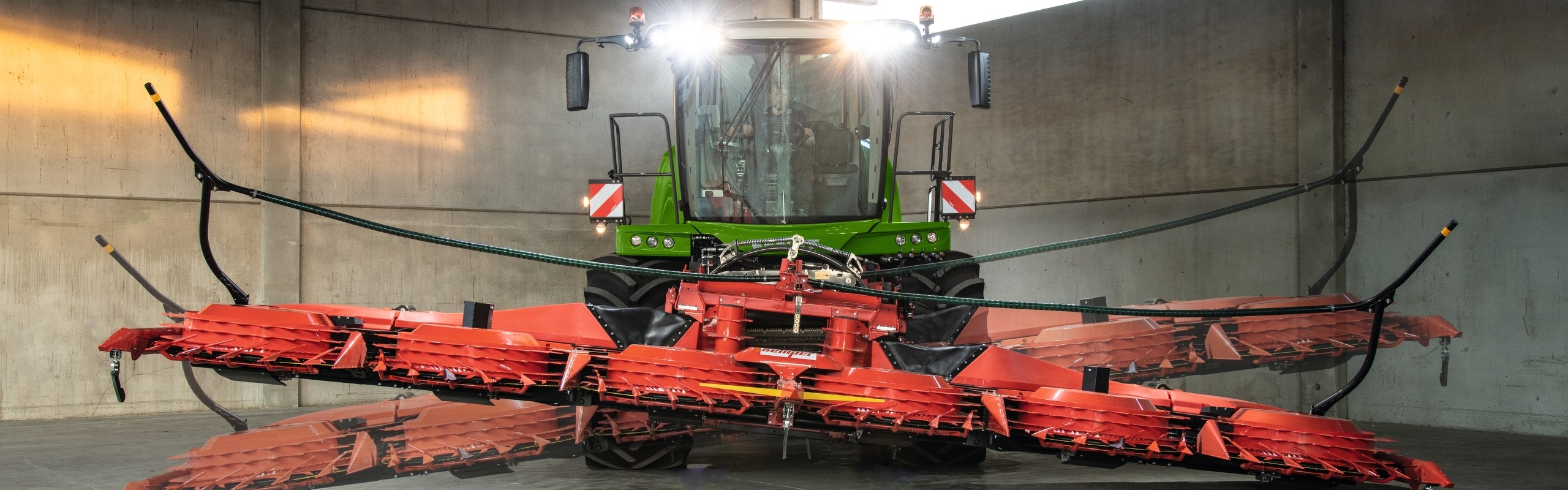

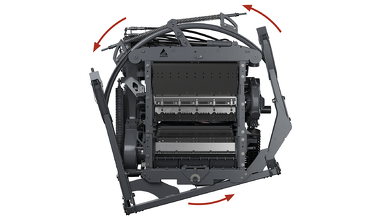

The pendulum frame of the Fendt Katana has an extended pendulum angle of up to 14° and ensures even better ground hugging of the attachments. The Katana pendulum frame as well as the touch sensors of the attachments automatically adapt to strongly changing ground contours. Because the pendulum frame has a central pivot point, the crop flow remains uniform even when the attachment is at an angle. All attachments are placed very close to the vehicle. This reduces the front axle load and protects the ground.

14°

Pendulum angle in Figs. 1 and 3

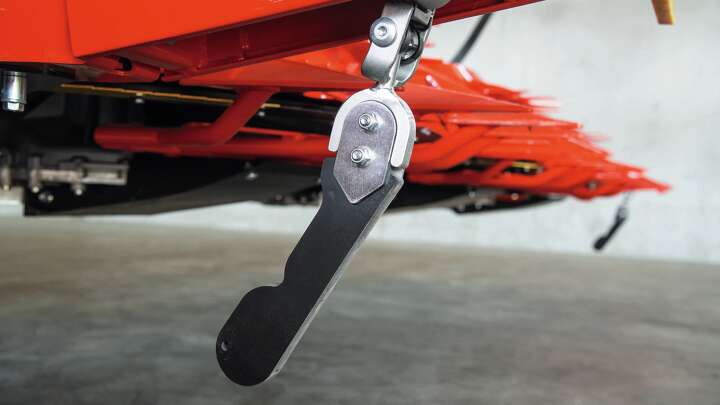

Close-up of the sensor band on the Fendt Katana

Active ground hugging

In conjunction with the innovative pendulum frame directly on the infeed, the touch bars actively adjust the attachment to the ground contour.

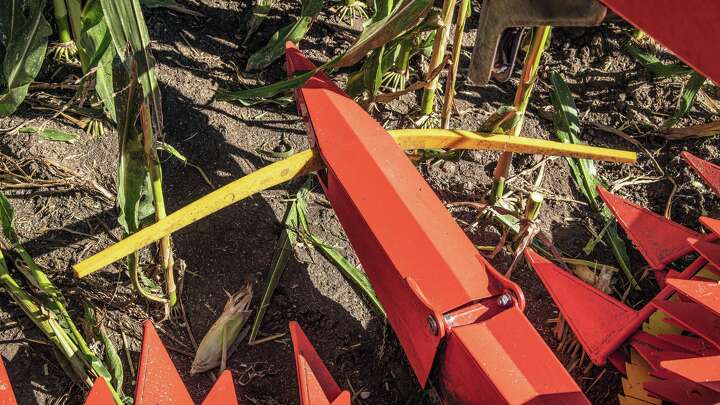

Close-up of the row sensor on the Fendt Katana

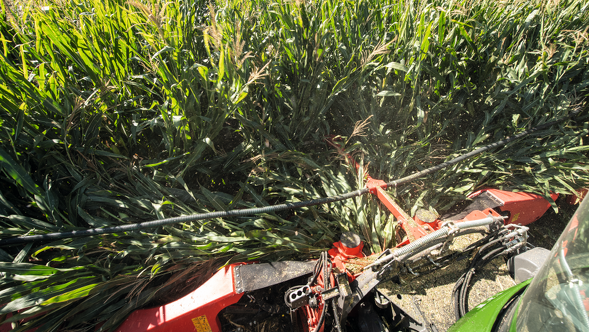

Precise row tracer

The row sensors on the tips of the maize header enable the Katana to work through the crop with centimetre precision and fully automatically.

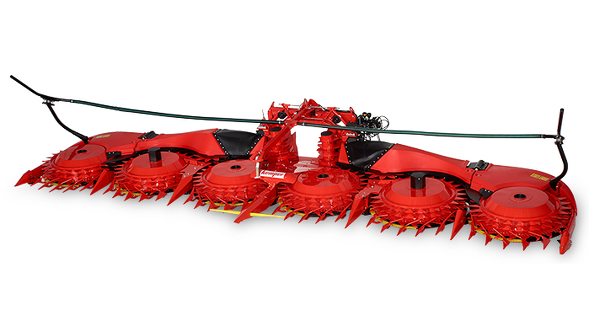

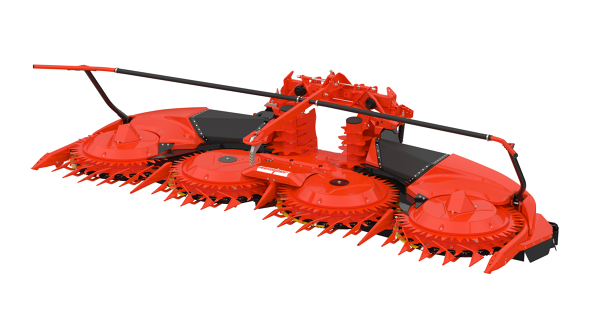

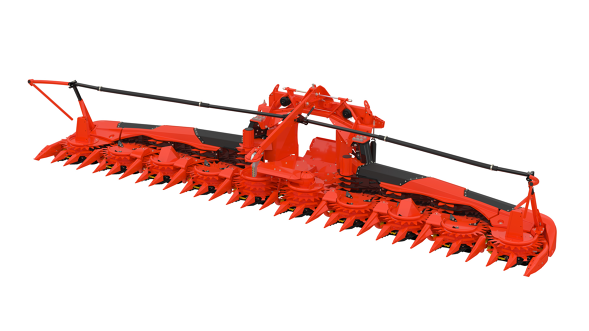

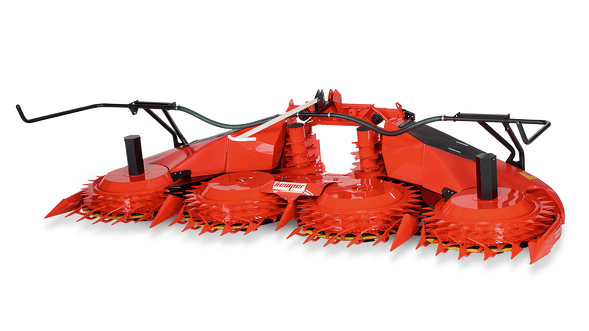

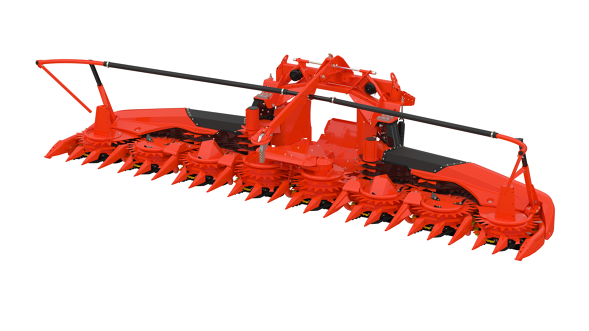

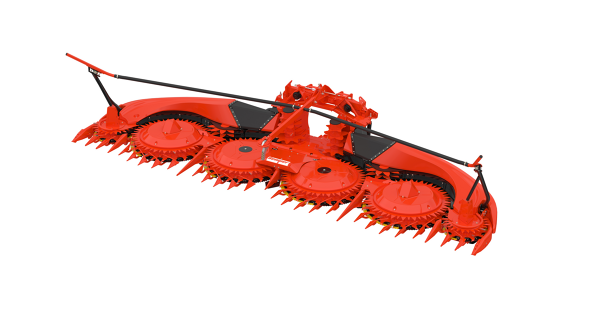

Our header attachments

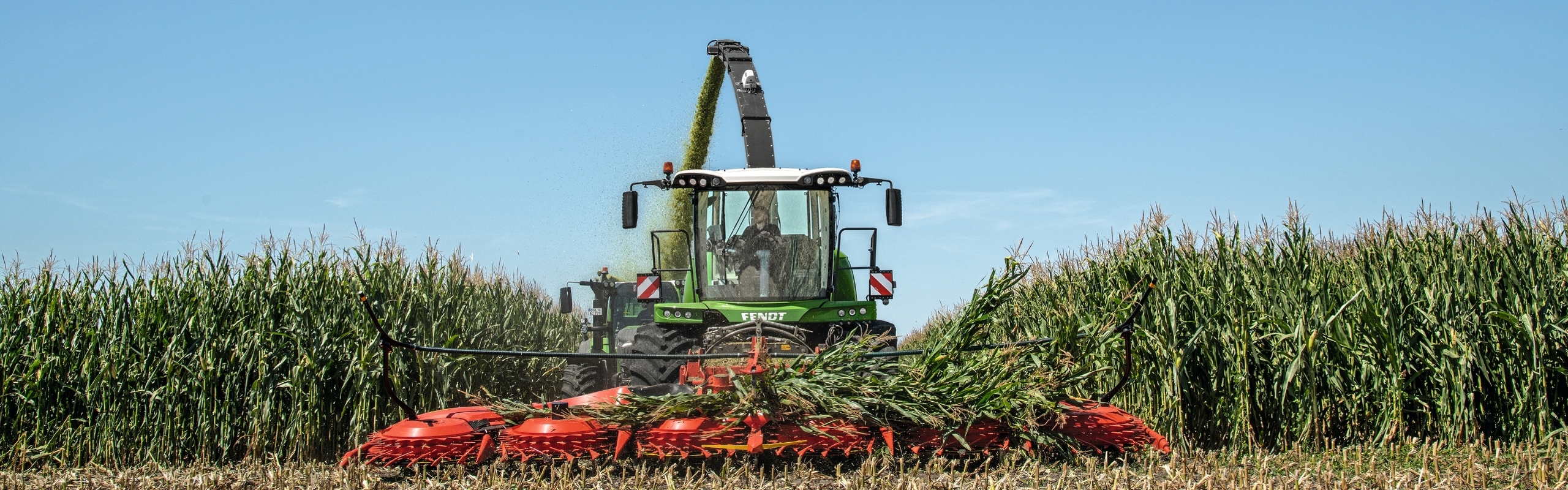

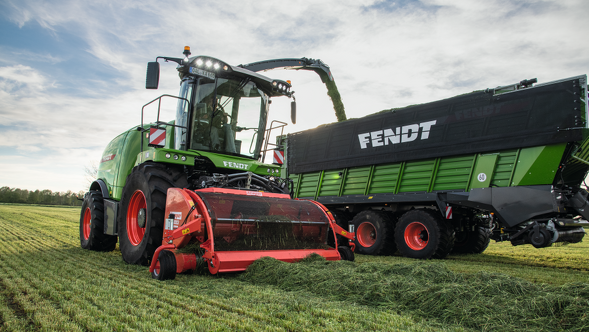

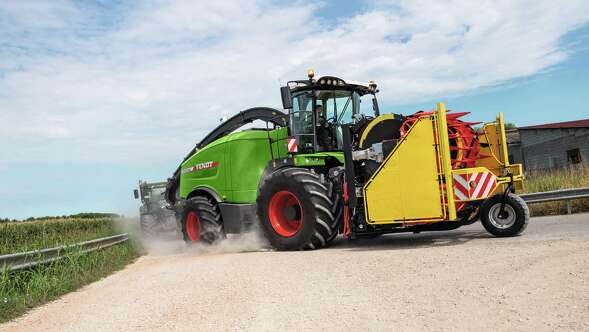

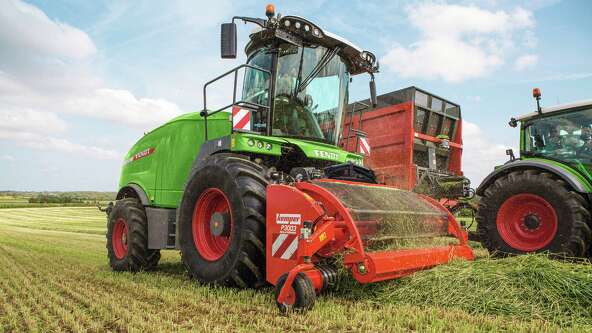

Fendt Katana with Kemper attachment in use

The PickUp P3003 Maximum with HD drive achieves high throughput even under extreme harvesting conditions. The centrally integrated feeler roller ensures even better ground hugging.

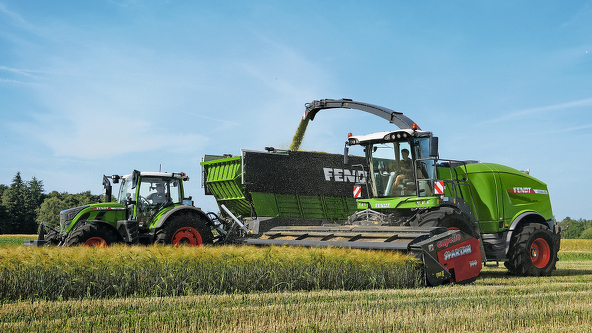

Fendt Katana with Fendt 700 Vario harvesting

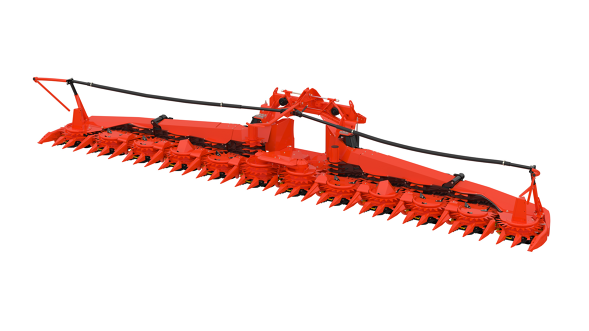

The robust direct cutting units are designed for low, loss-free cuts of a wide variety of crops. When harvesting biomass, they deliver the best silage with minimal dirt content.

Perfect cutting quality from the first to the last stalk.

Whatever the type of crop, the wide range of pick-up, direct cutting units and maize headers expands your application options to the maximum. Low-wear and easy to maintain, the quick-change headers perform first-class work. The material is evenly cut, picked up and conveyed to the pre-press rollers without turbulence. The stepless header drive enables perfect adjustment to suit harvesting conditions. With the 460Plus maize header in the StalkBuster version, the maize stubble can be broken up directly under the header during the harvesting process, i.e. before the wheels roll over it for the first time. This effectively prevents maize borer infestation.

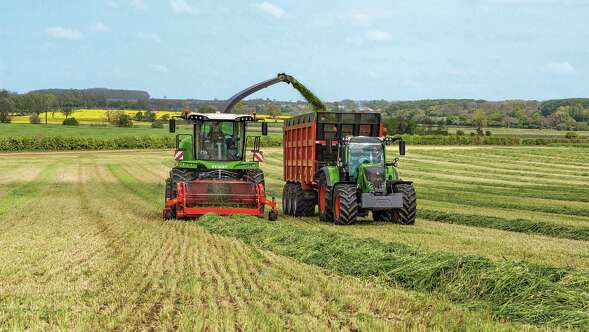

Fendt Katana 650 with Fendt 700 Vario harvesting green fodder

The Fendt katana is ready to deal with all crop conditions.

Grass is its element. With the Fendt Katana, forage harvesting becomes a purely secondary matter. Even difficult conditions such as hilly terrain, soft ground or crops with varying moisture content are no problem for the Fendt Katana. The large chopping drum and the six pre-press rollers process even the highest yields with optimum chopping quality.

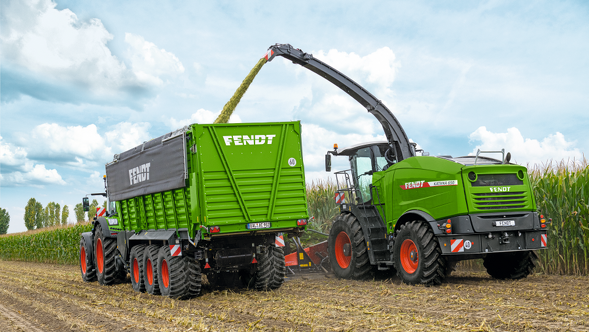

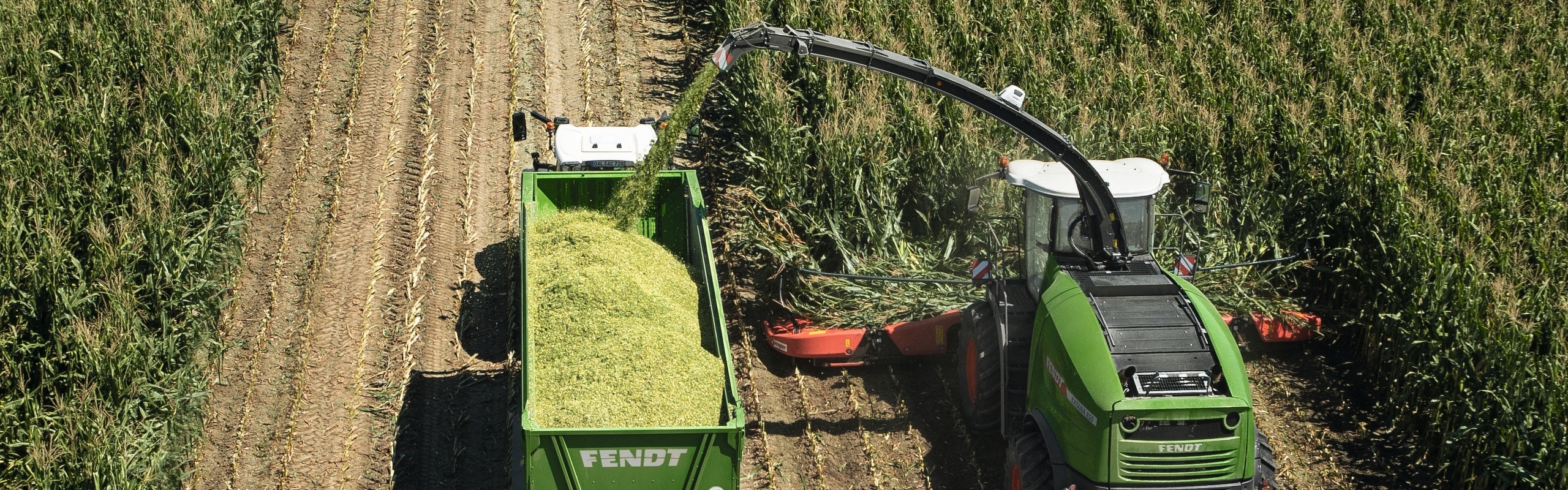

Bird's eye view of the Fendt Katana and Fendt Tigo harvesting maize

Smart Farming

The Fendt Katana is much more than just steel and iron. With intelligent technology solutions, your chopping operation becomes an experience and your work a success!

The Fendt documentation system VarioDoc Pro reliably records all relevant data during operation.

In addition to the area cultivated in ha, the yield measurement records the fresh mass harvested and the throughput.

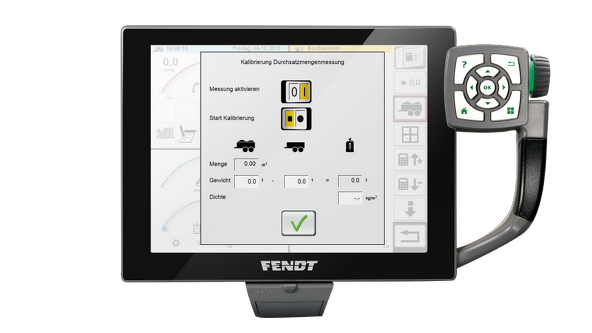

Calibration is done by simple counterweighting.

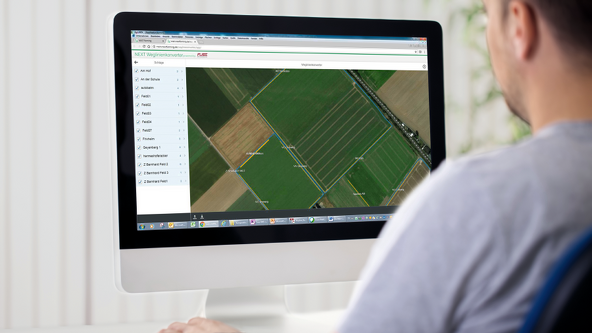

Farmer sitting in front of a computer with VarioDoc Pro application open

Evaluation and display of the recorded VarioDoc Pro data in a farm management system on the PC.

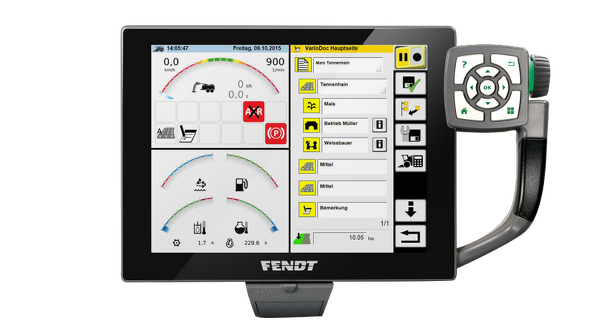

VarioDoc Pro – Documentation in perfection

VarioDoc Pro is already included in the VarioGuide preparation, which allows you to document all data, such as consumption and area output, in a highly convenient and secure way and to transfer it easily online to your field use register. This means that the Fendt Katana is ideally equipped for future requirements.

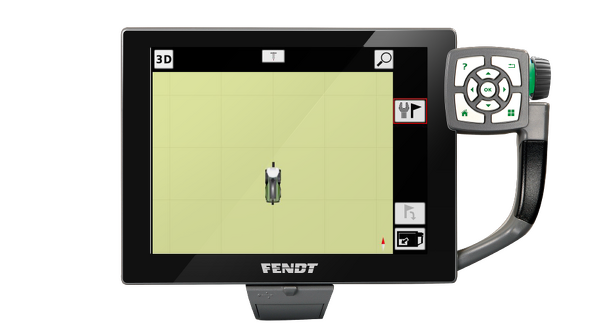

Fendt VarioGuide display free-form image

Fendt VarioGuide – Always on the ideal track

With Fendt VarioGuide, you can drive reliably and accurately, even in poor visibility conditions. Fendt VarioGuide enables the highest utilisation of the machines, as you can work precisely to the track without active steering even at night or with large working widths. With Fendt VarioGuide, the Katana automatically holds the ideal line so you can concentrate fully on the harvesting operation.

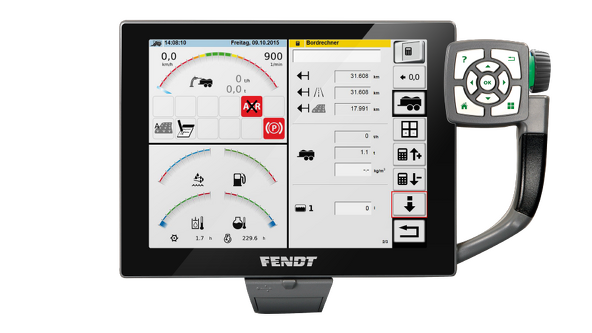

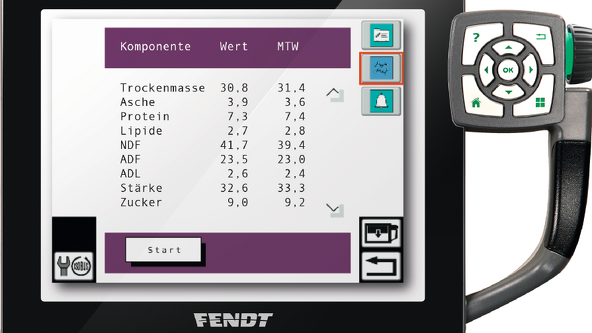

Fendt Katana ISOBUS Terminal free-form image

Example visualisation of an ISOBUS-compatible NIR sensor using Variotronic implement control.

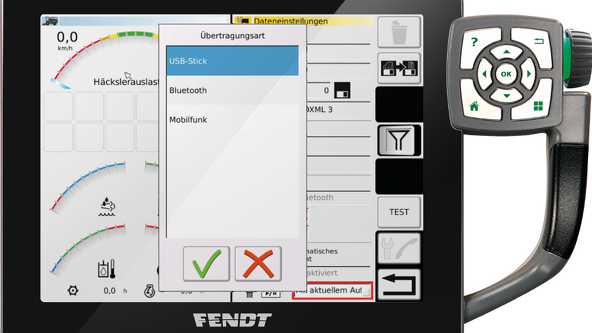

The recorded information can be transmitted wirelessly via Bluetooth or mobile radio.

Perfect integration into the operating concept

The standard Varioterminal 10.4" is available with the proven Variotronic implement control system on request. With this ISOBUS interface, you can use the full range of functions of the Universal Terminal (UT). This makes it possible, for example, to completely integrate ISOBUS-capable sensors into the operating concept. A commercially available NIR sensor that determines the ingredients in the crop can visualise the measured values directly in the Varioterminal and can also be fully operated there. This gives your machine maximum flexibility.

Fendt Katana next to the Fendt Tigo forage wagon harvesting green fodder

Up to date. And in future.

With the Fendt software updates, your Katana will always be state-of-the-art in the future. Simply have the latest additional features installed by your sales partner free of charge (working time will be charged) in the course of a maintenance interval. This means that your machine is always up to date and you are optimally equipped for the future.

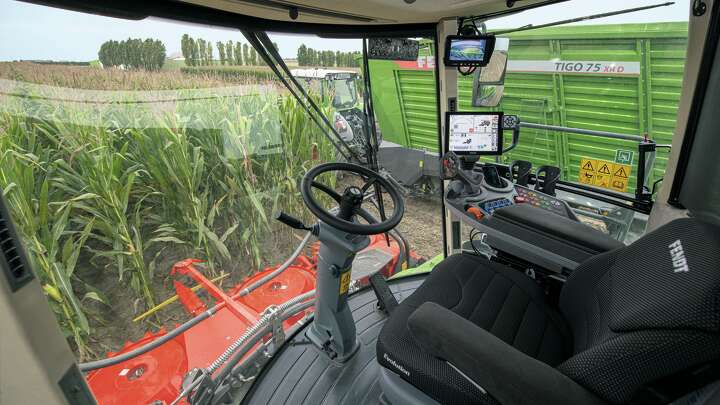

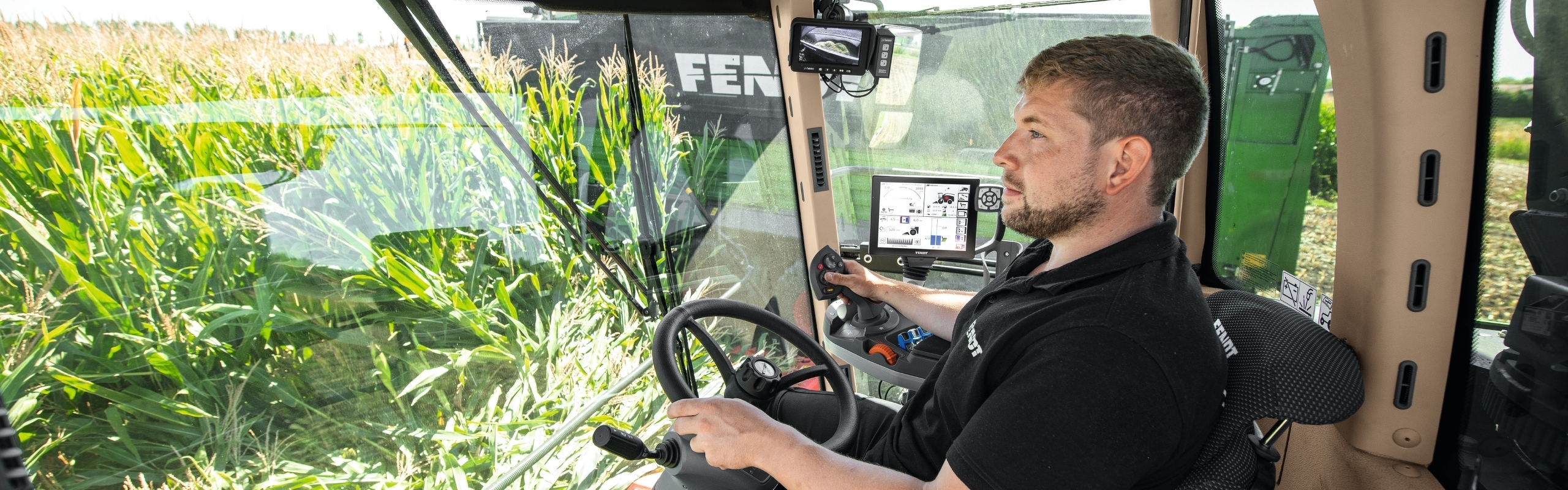

Farmer sits in the cab of the Fendt Katana in a maize field

Cab

The Fendt Katana has everything you need: a comfortable, air-suspended seat, optimum overview on all sides and ergonomically arranged controls. This makes the cabin your favourite place from which you have everything under control.

Visio5 Cab

The Visio5 cab offers an optimum overview and ergonomic and intuitive operation of the Fendt Katana. The all-round windows ensure the best sight lines. It is also extremely spacious. The ergonomic arrangement of the air-suspended seat and the controls in the armrest are outstanding in terms of comfort. Modern glazing keeps the noise level at a pleasant level, which significantly increases working comfort, especially on long working days.

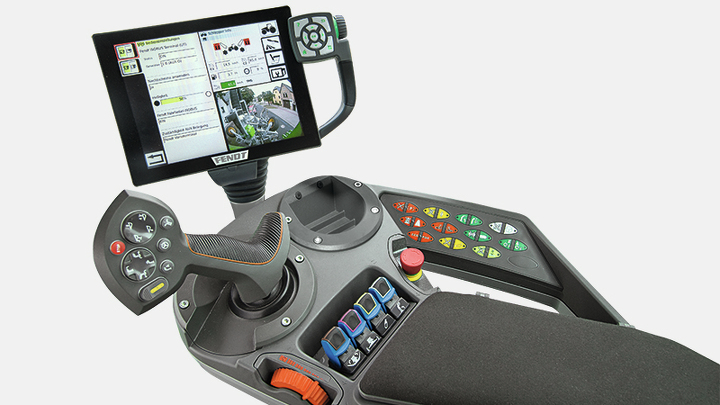

Ergonomic, comfortable, precise: Fendt's unrivalled multifunction armrest also makes operating the Fendt Katana a pleasure. From here, you have the most important functions safely under control at all times via toggle switches or membrane keyboards and also control your Katana precisely with just one hand thanks to the stringent Fendt operating logic of hardware and software.

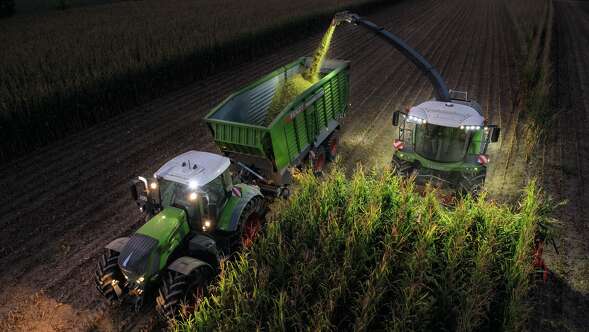

Fendt Katana and Fendt 700 Vario drive at night with working lights

Lighting

Particularly during the maize harvest, there is extreme time pressure. Thanks to the perfect illumination of the harvesting area and the machine, precise work can be carried out even late at night.

Best working conditions in the dark thanks to optional LED maintenance lighting.

Well thought-out positioning of the LED headlights around the machine makes it easier to work at dusk or in the dark and saves energy.

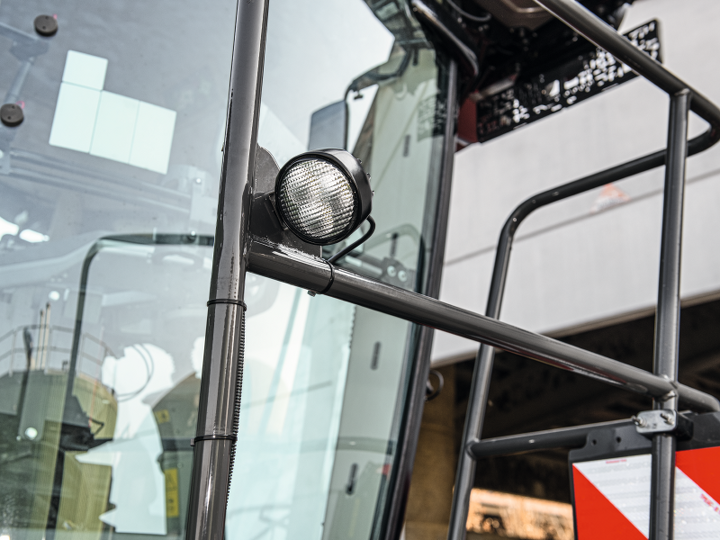

With the access lighting, you can reach the cab safely.

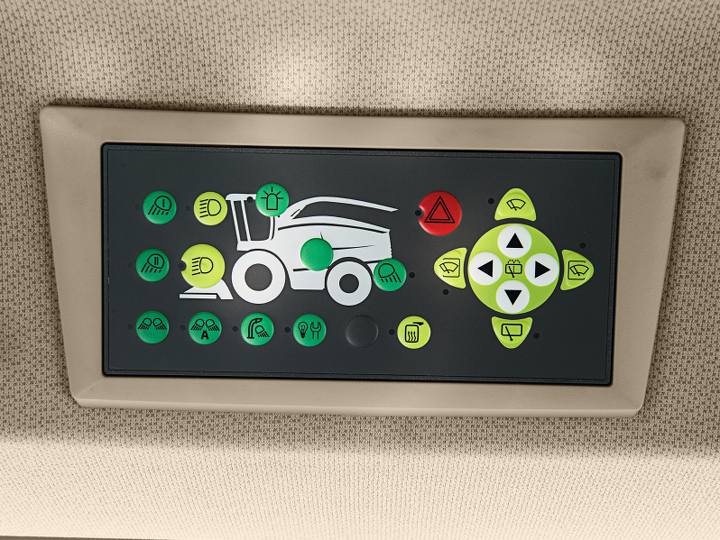

Fendt Katana control panel of the light package

Extensive lighting package very easy to operate.

Fendt Katana working lighting on the roof close-up

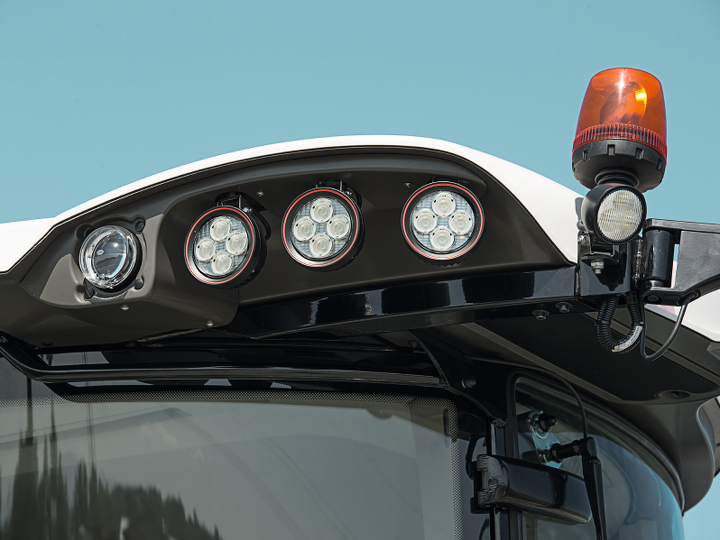

3 pairs of working lights in the roof, driving lights roof front, sidefinder and rotating beacon

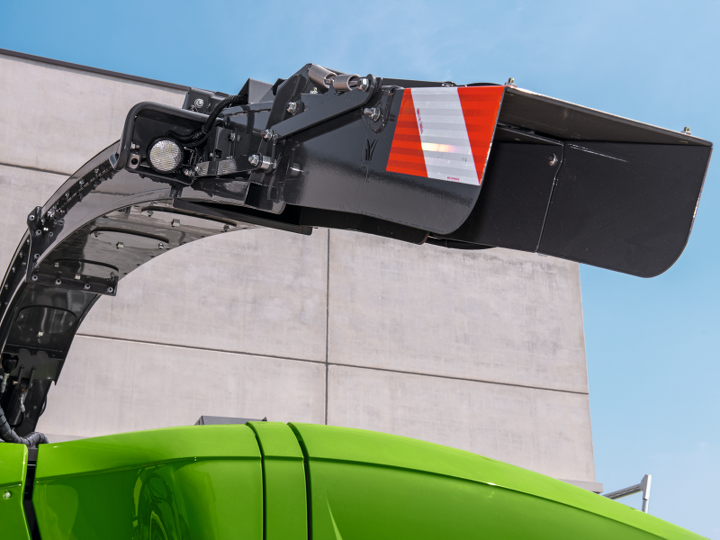

Fendt Katana working lighting on the discharge chute close-up

Powerful LED working lights on the discharge chute

Technical data of the Fendt Katana forage harvester

Katana 650

Katana 850

Manufacturer

MTU BR 1500

Liebherr D976

Emissions Stage 5

Standard

Engine horsepower (ECE R 120) (kW/hp)

478/650

623/847

Cylinder (Number)

Cubic capacity (litres)

15,6

18,0

Tank capacity configuration 1 – Diesel/AdBlue (litres)

1.225/205

1.430/190

Tank capacity configuration 2 – Diesel/AdBlue/Additive (litres)

1.010/205/215

1.215/190/215

Cutterhead universal knives /20

Optional

Cutterhead universal knives /28

Standard

Cutterhead universal knives /40

Optional

Technical Specifications

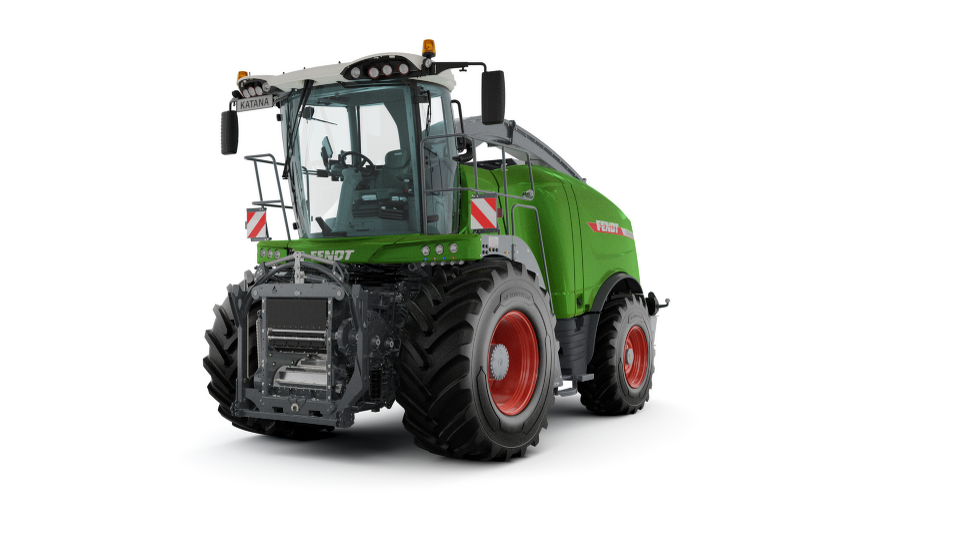

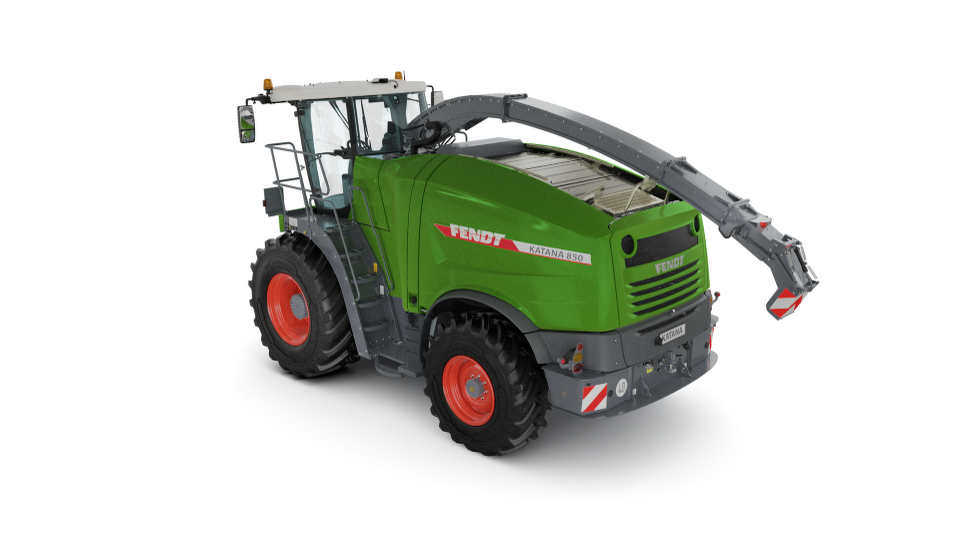

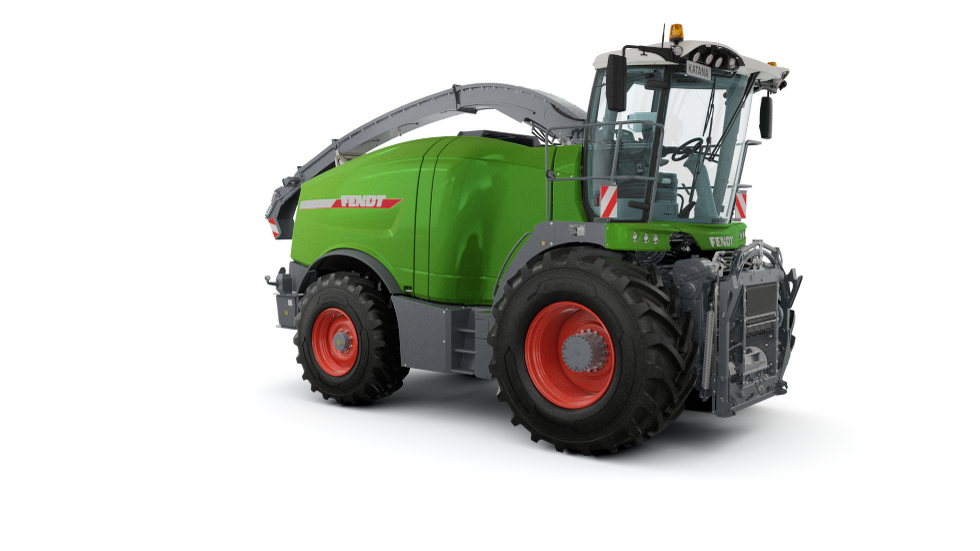

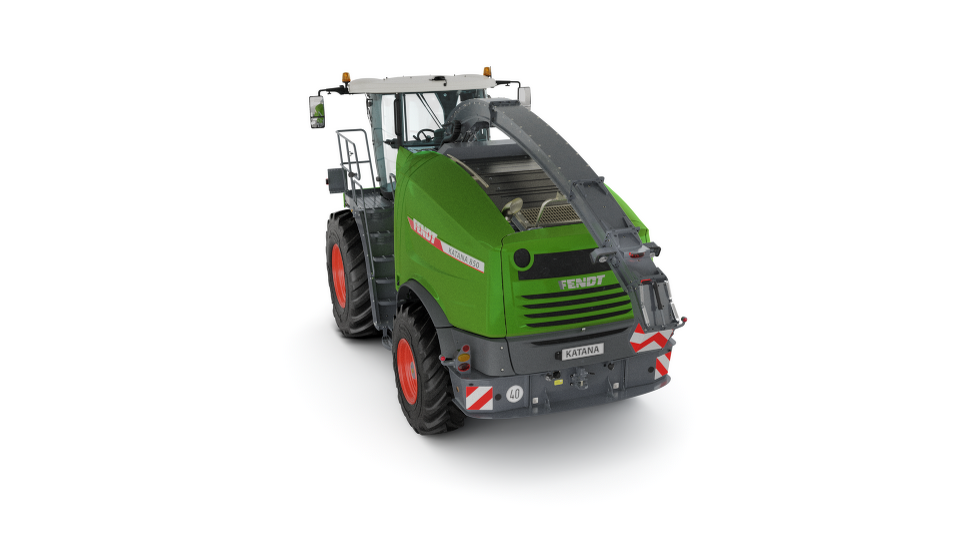

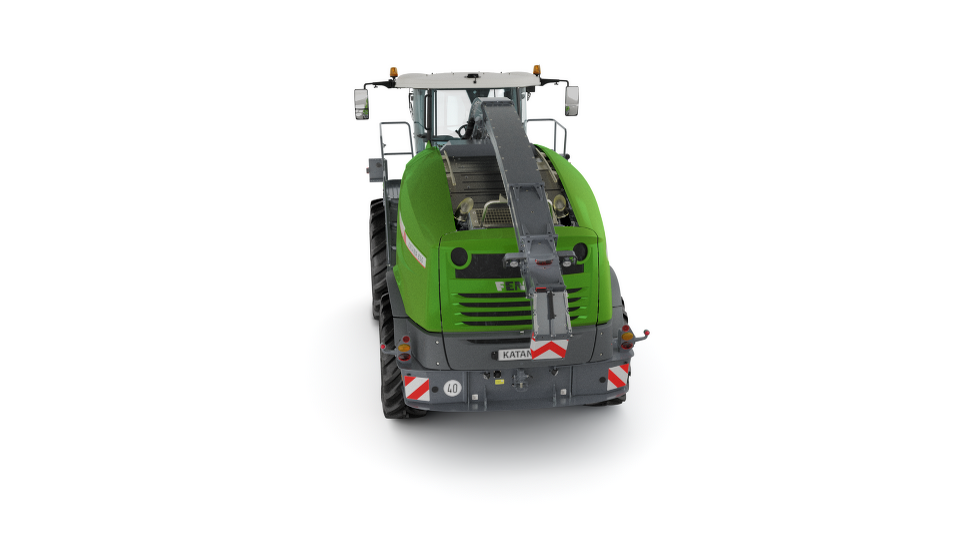

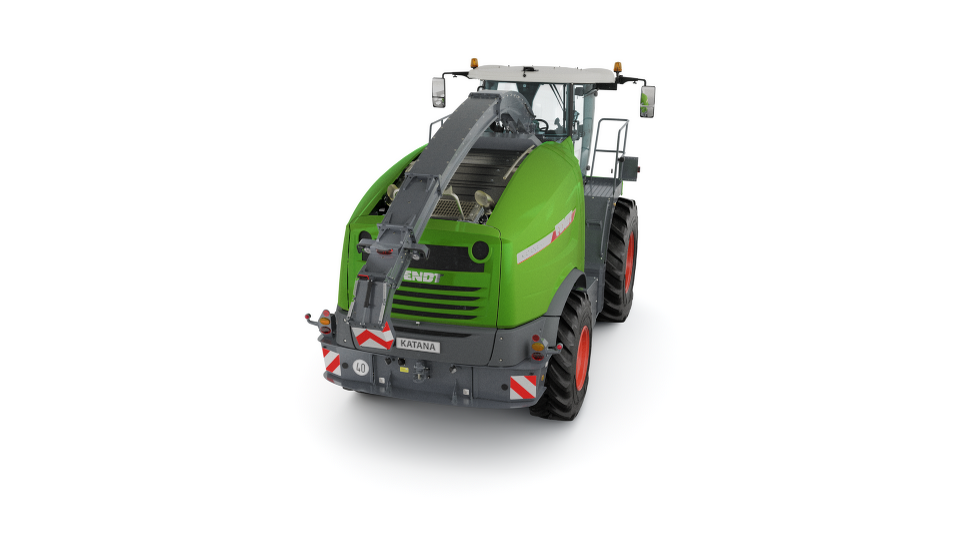

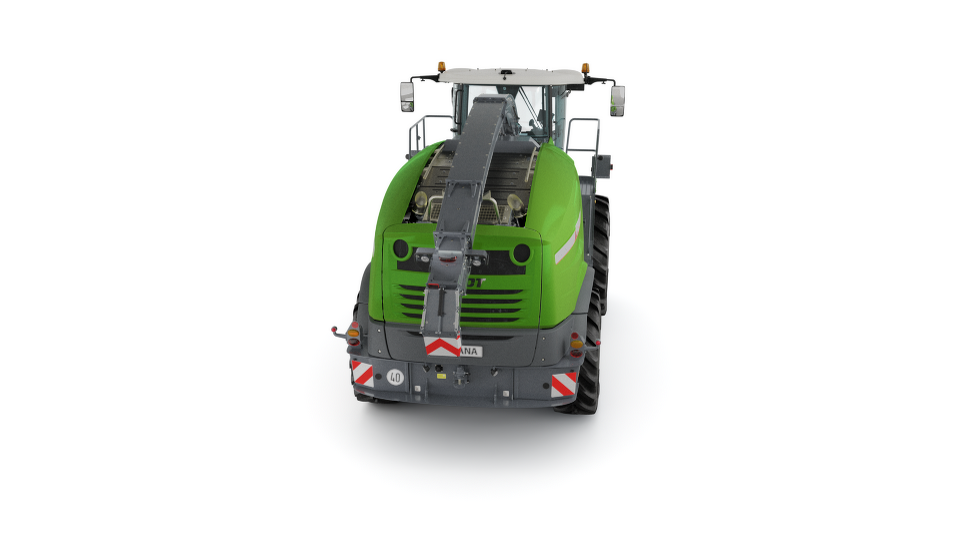

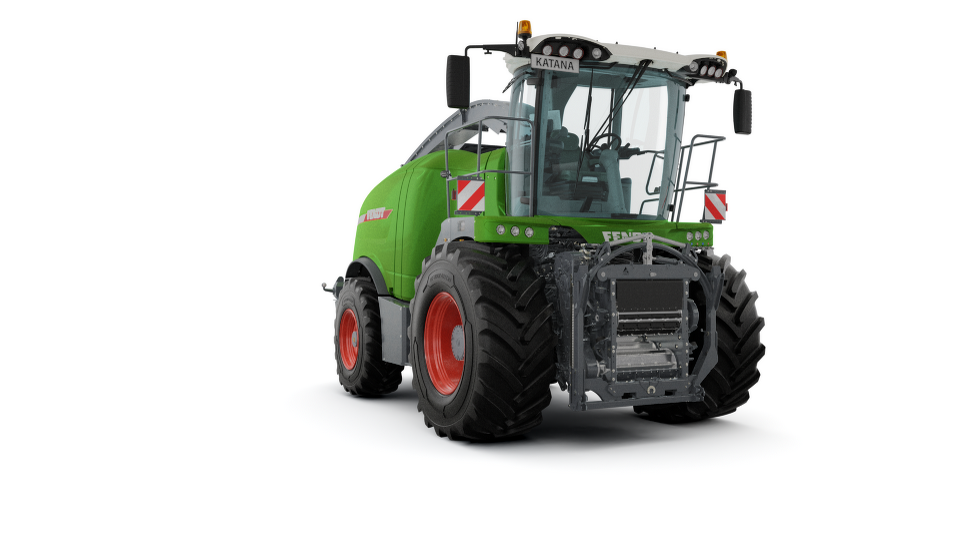

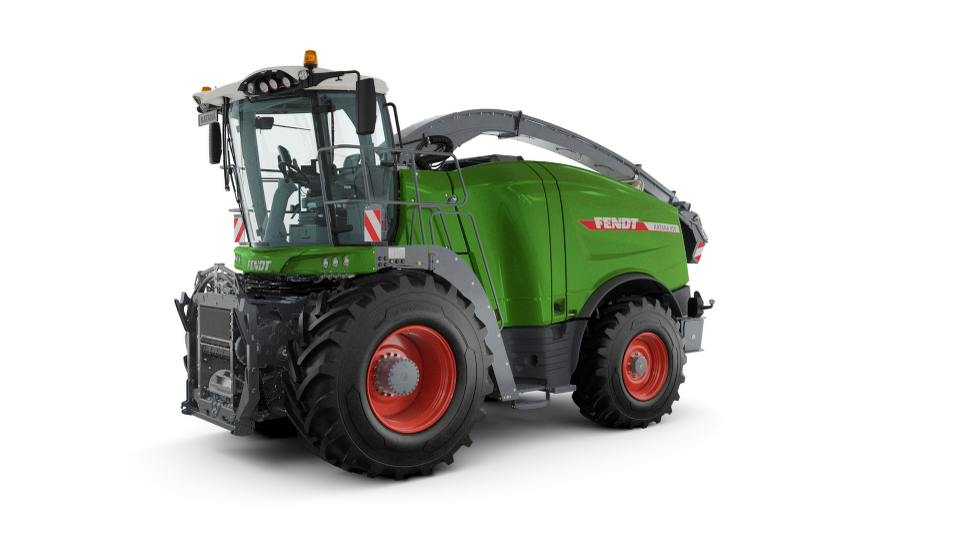

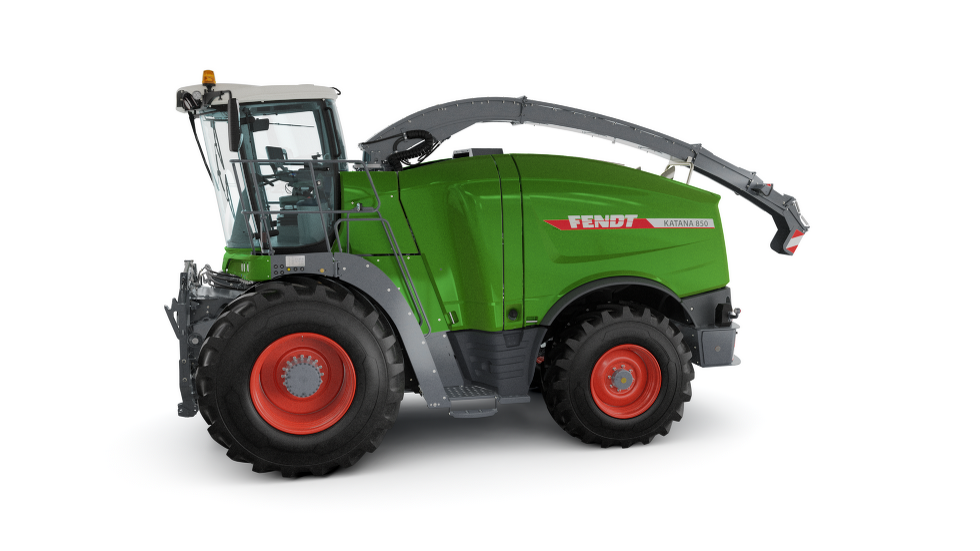

360° Experience

360°

Throughput calculator

Calculate the potential of your maize silage here based on average values.

To the throughput calculator

Top silages are no coincidence

Nobody knows better than you that high-quality feed is the basis for a healthy herd and high milk yields. However, the production of the best silage is an extensive, complex process that also offers a lot of potential for optimisation. We reveal what percentage is lurking where in our silage special.

Learn more
