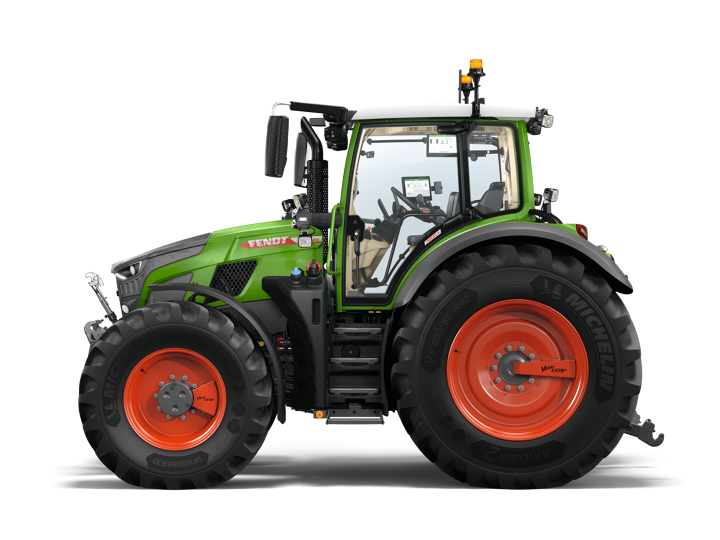

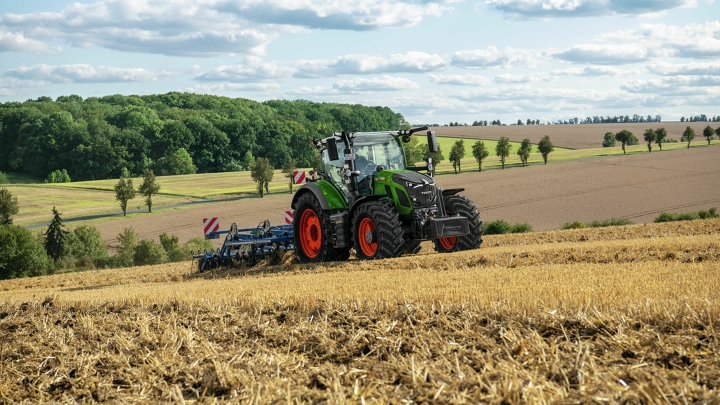

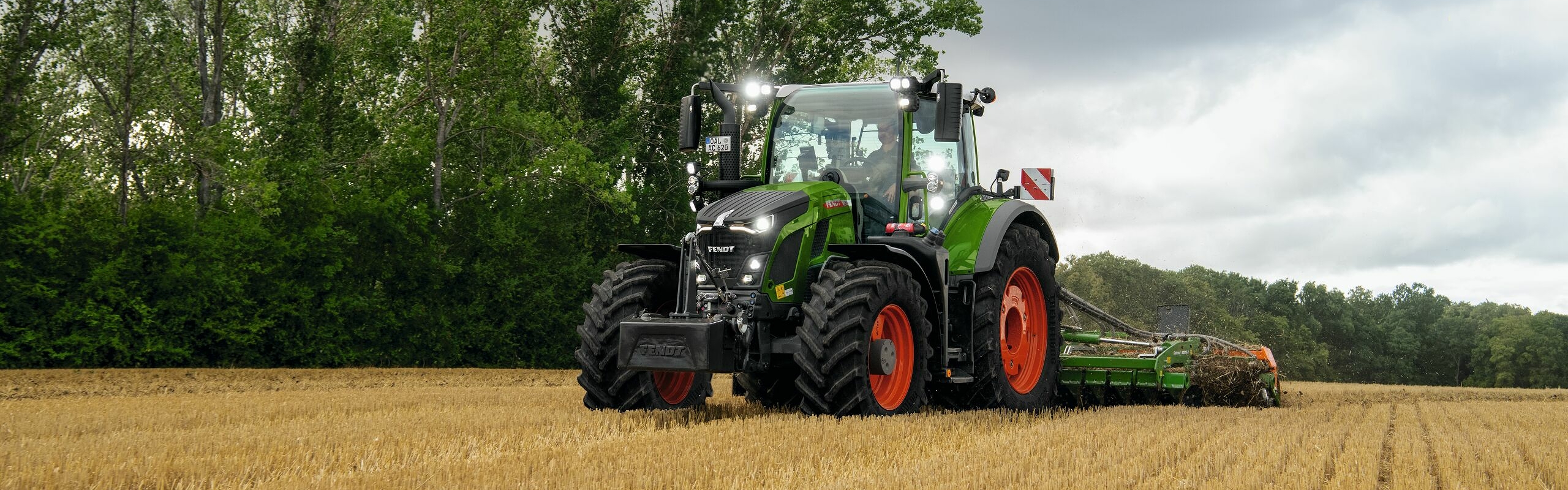

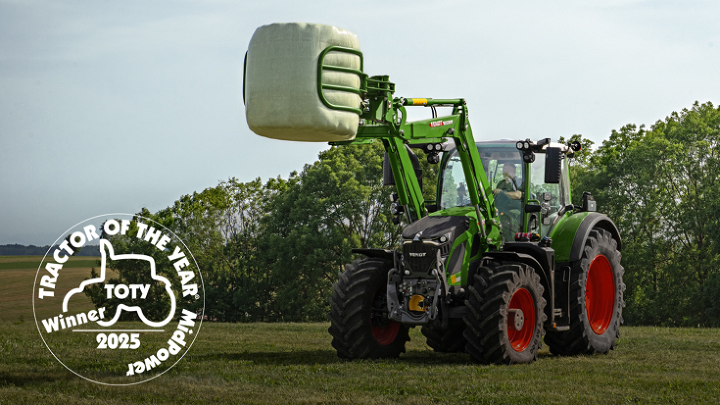

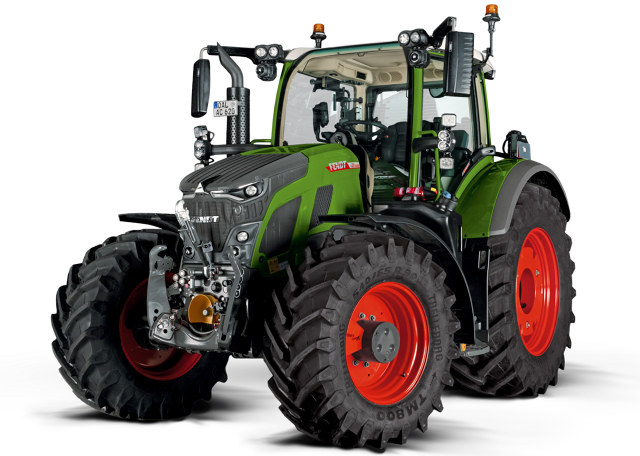

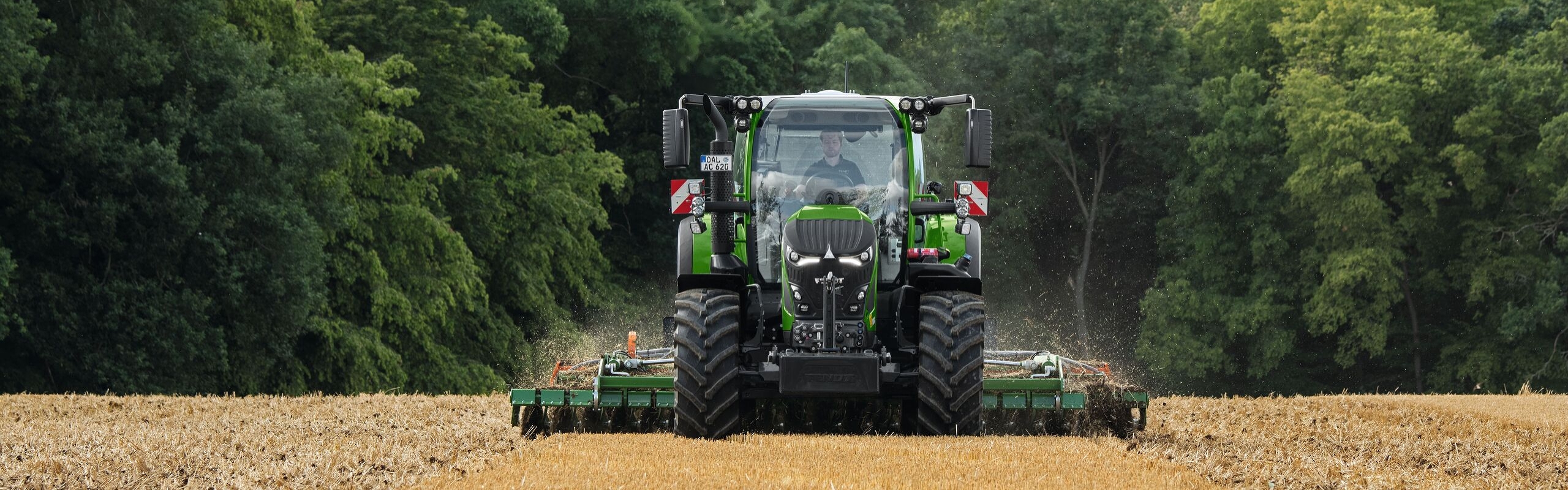

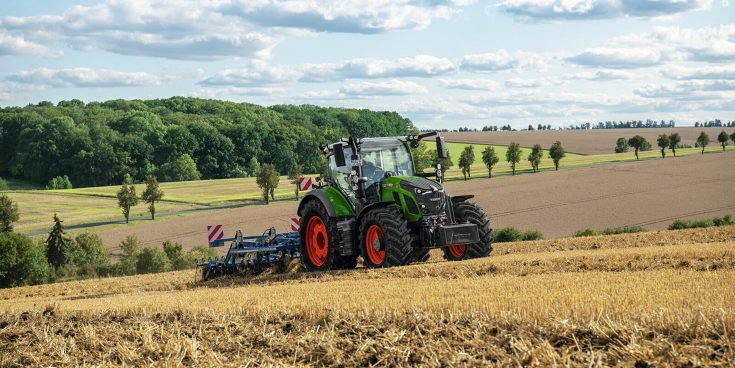

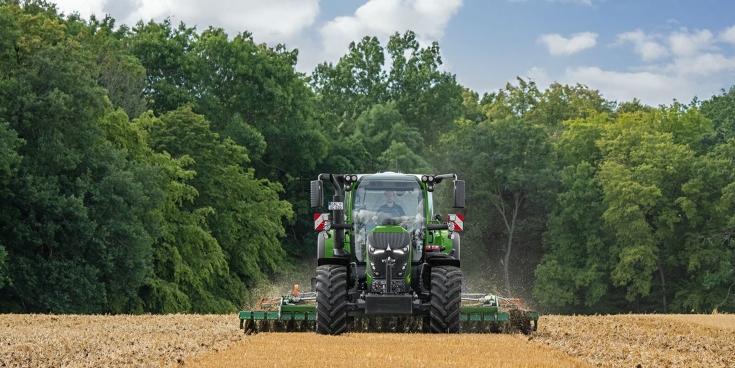

Meet a completely new series – the Fendt 600 Vario. With its compact size and impressive performance, it opens up new possibilities in arable farming, grassland, transport and front loader use. Discover the innovation and passion that has gone into every component of this tractor.
Inspired by nature
The newly developed Fendt 600 Vario series offers farmers a superior all-round tractor in the medium power segment from 164 hp to a maximum of 224 hp. The 600 Vario utilises innovative technologies inspired by impressive characteristics found in the natural world. Experience the 600 Vario live for the first time at Agritechnica – an inspirational world first!
Model overview
614 Vario
121 kW*
164 hp*
616 Vario
135 kW*
184 hp*
618 Vario
150 kW*
204 hp*
620 Vario
165 kW*
224 hp*
*Nominal power / Maximum power with DynamicPerformance ECE R 120
The Fendt 600 Vario: Innovation for a wide range of tasks

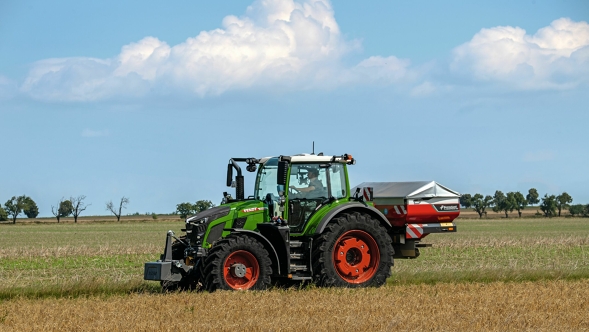

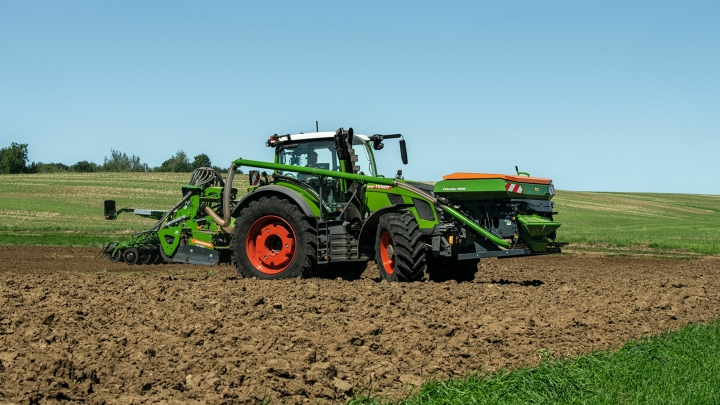

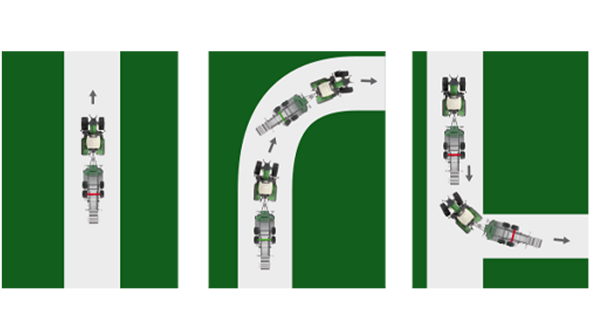

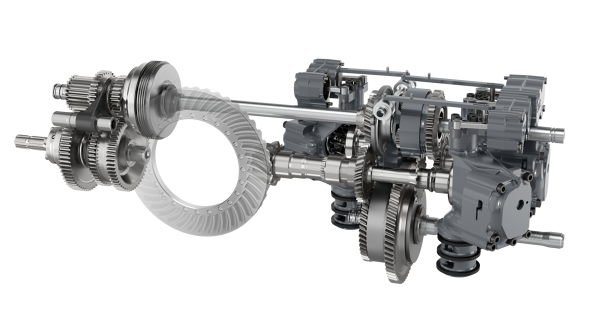

In addition to impressive features such as unsurpassed manoeuvrability and the completely new generation of VarioDrive continuously variable drive technology, the Fendt 600 Vario has a lot more to offer. Among other things, it impresses with maximum comfort, in transport applications and with its remarkable hydraulic performance. Versatile capabilities make it an indispensable partner - whether in the field or during transport. This tractor sets new standards and makes your work easier in every respect.
Incomparable comfort in the Fendt 600 Vario

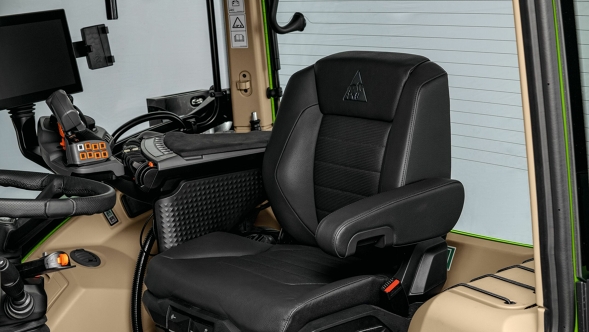

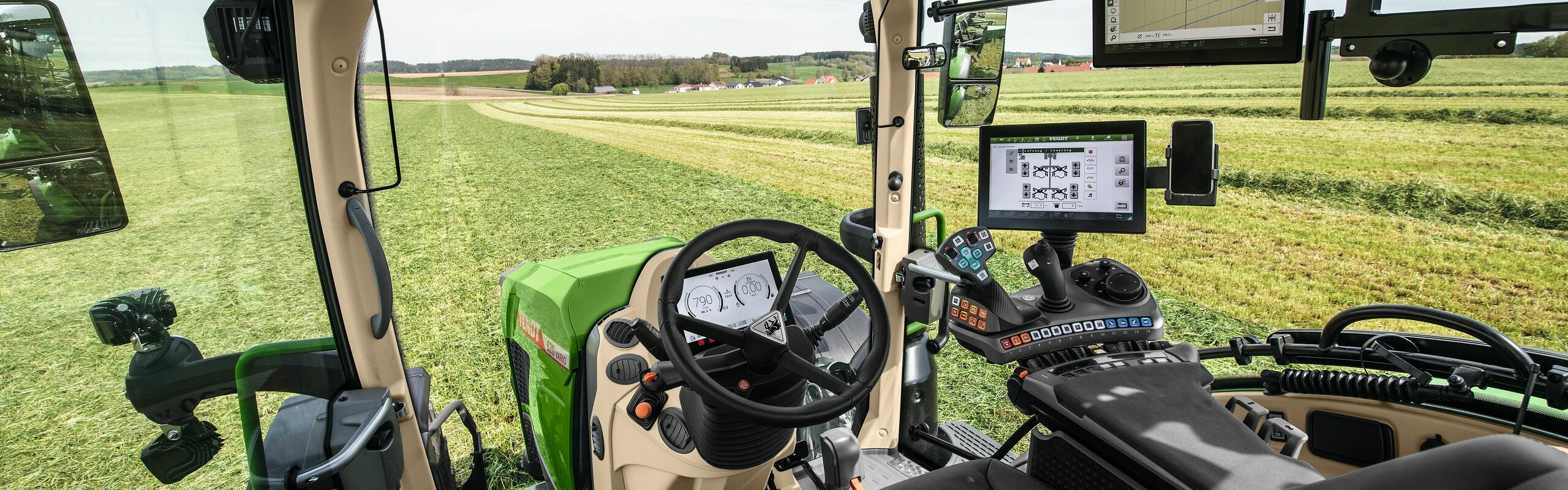

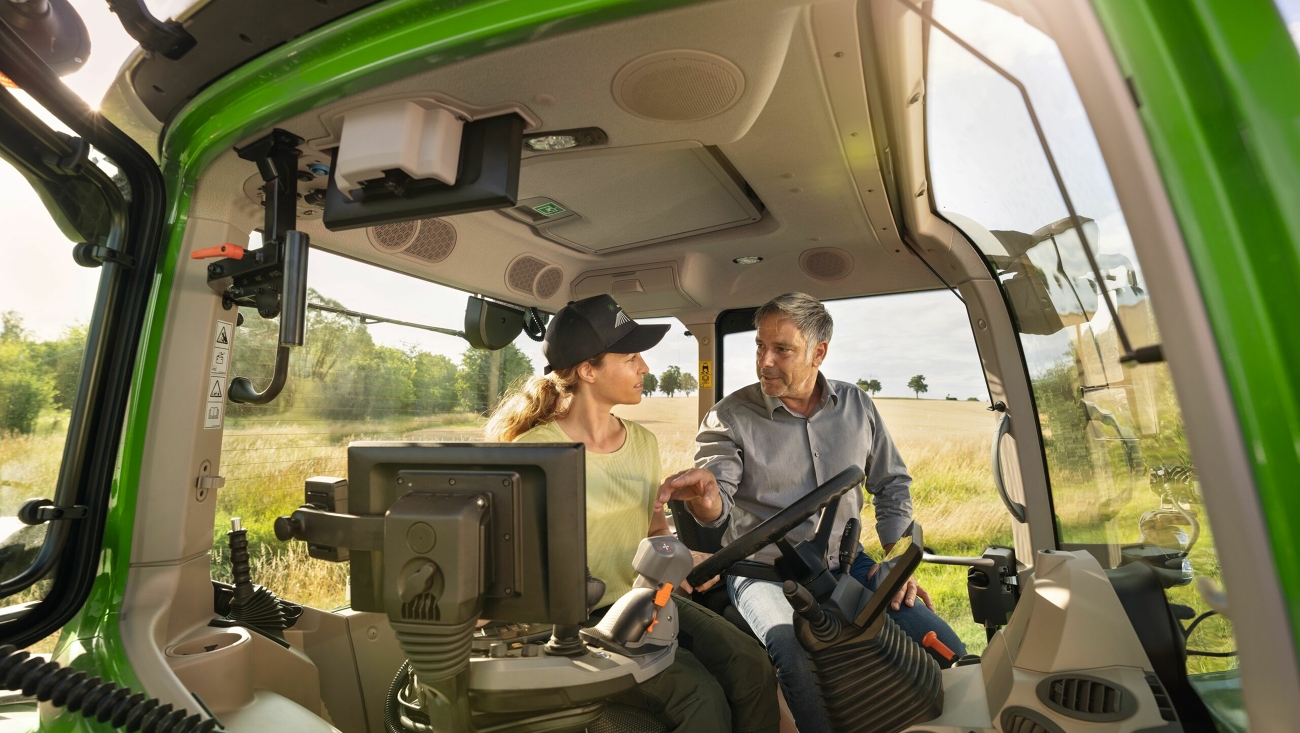

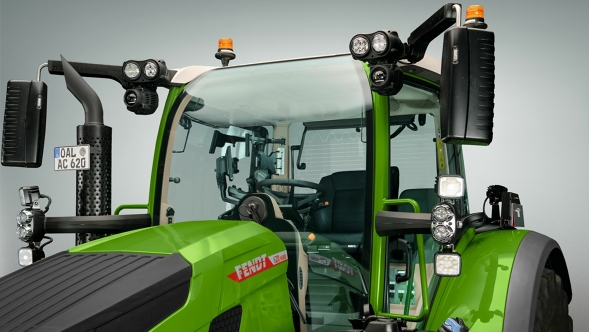

Our VisioPlus cabin is specially designed for long working days and offers you a distinctive and unique workplace. Experience the new premium driver's seat with memory and massage functions, offering you the ultimate in seating comfort. A large cooler and hot box is available for drinks and food. In addition, the cabin air filtration can be prepared for protection category 4 ex works. In this way, you are optimally protected from, for example, dust or vapours of liquid crop protection products.
Powerful hydraulics

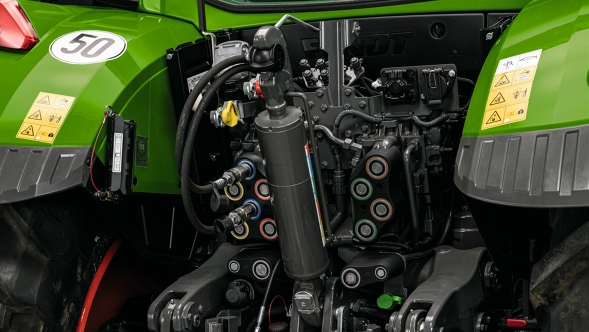

The hydraulic system of the Fendt 600 Vario offers an impressive delivery rate with a choice of 152 l/min or 205 l/min pumps. With a high removable oil quantity of 65 litres, you are well equipped. The use of flat face couplings (FFC) in the front, rear and for Power Beyond ensures leak-free use and lower pressure losses. Rely on hydraulics that meet your needs with the Fendt 600 Vario.

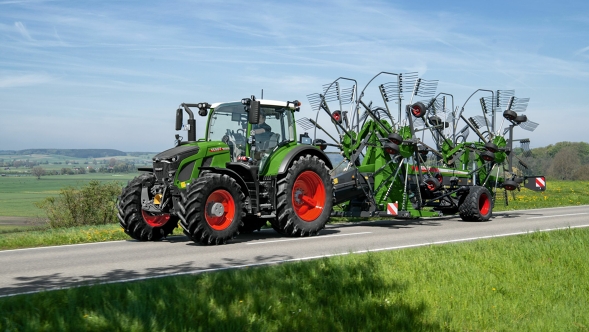

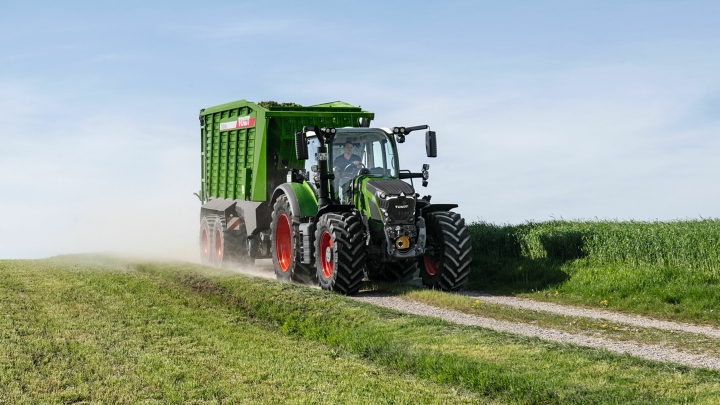

Assured and fuel efficient during transport thanks to its outstanding payload of 5.8 t and low rpm concept

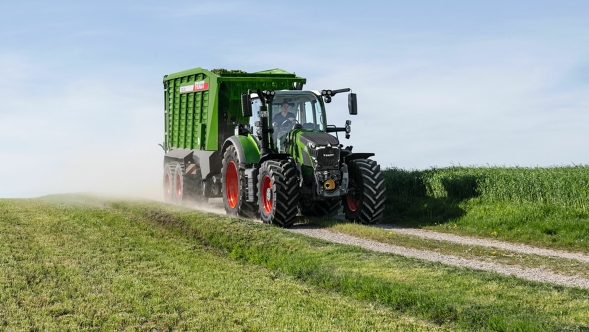

The Fendt 600 Vario redefines assured transport performance in its power class with an outstanding payload of 5.8 t. Its lightweight construction and high payload of up to 5.8 t make the 600 Vario an assured companion during heavy transport applications or when driving with the relevant equipment combinations. Added to this is the ingenious combination of the low rpm concept and brand new VarioDrive. This allows 40 km/h to be reached at a quiet and fuel-efficient 1,100 rpm, and 50 km/h at just 1,300 rpm. As a result, the Fendt 600 Vario combines assured transport with particularly high efficiency and outstanding driving comfort.
Fendt Care
Most extensive warranty extension for tractors on the market
With the Fendt Care warranty extension, we offer a comprehensive range of products to cover the repair risk on new machines... Rely fully on our customised maintenance and repair service. With long-term coverage of up to 8 years and 8,000 hours in tractors, we offer the most comprehensive coverage and runtime in the industry. Full cost control and planning security – focus fully on your work in the field.

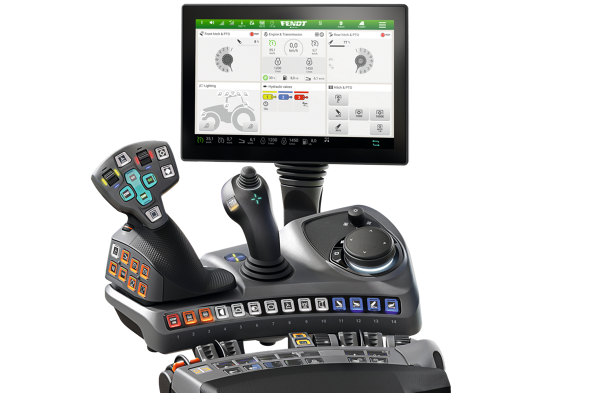

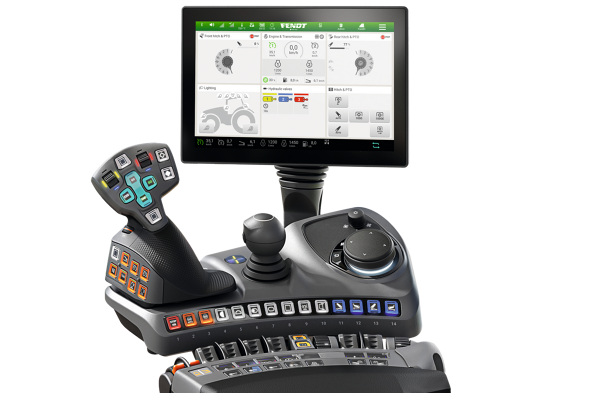

No cross-shift lever – One finger tip spools (linear module) for operating the hydraulic valves
One finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Power Setting 2*

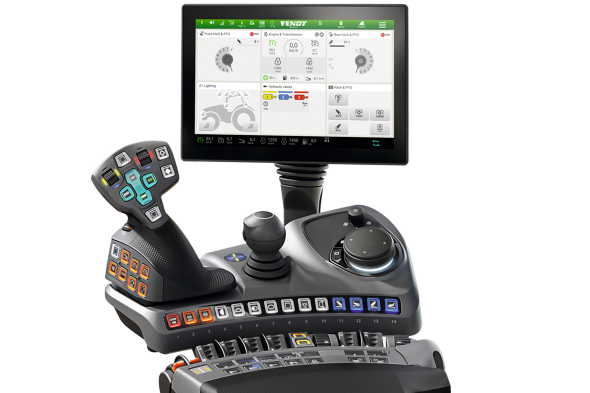

Cross-gate lever
No finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Power+ Setting 1*
Cross-gate lever
One pair of finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Power+ Setting 2*

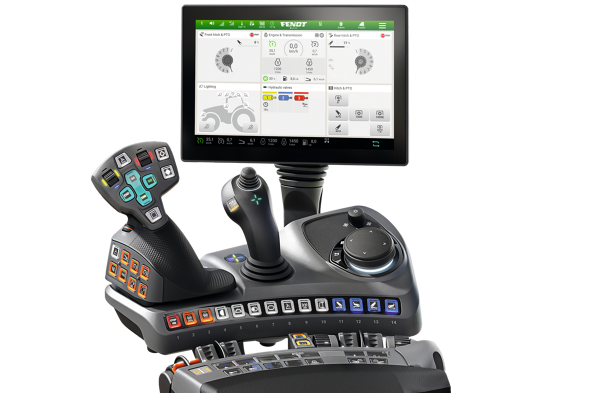

3L-Joystick
No finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Profi Setting 1*
Cross-gate lever
Two pairs of finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Profi Setting 2*
3L-Joystick
Two pairs of finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Profi+ Setting 1*
Cross-gate lever
Two pairs of finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Profi+ Setting 2
3L-Joystick
Two pairs of finger tip spools (linear module) for operating the hydraulic valves *All illustrations show standard equipment and optionally available front linkage.
Technical data – Fendt 600 Vario
Power ECE R 120
164 hp to 224 hp (with DynamicPerformance)
Max. torque
793 Nm up to 950 Nm
Speed range forward
0.02 to 50 km/h
Rear PTO
540 / 540E / 1000 / 1000E
Front PTO (optional)
1000
Hydraulic pump
152 l/min (optional 205 l/min)
Max. lift capacity of rear power lift
9,790 daN
Max. lift capacity of front power lift
4,418 daN
Operating weight (incl. common accessories; +/- 5%)
7,450 to 7,700 kg
Max. permissible total weight up to 50 km/h
13,500 kg
Power ECE R 120
164 hp (with DynamicPerformance)
Max. torque
793 Nm
Speed range forward
0.02 to 50 km/h
Rear PTO
540 / 540E / 1000 / 1000E
Front PTO (optional)
1000
Hydraulic pump
152 l/min (optional 205 l/min)
Max. lift capacity of rear power lift
9,790 daN
Max. lift capacity of front power lift
4,418 daN
Operating weight (incl. common accessories; +/- 5%)
7,450 kg
Max. permissible total weight up to 50 km/h
13,500 kg
Power ECE R 120
184 hp (with DynamicPerformance)
Max. torque
861 Nm
Speed range forward
0.02 to 50 km/h
Rear PTO
540 / 540E / 1000 / 1000E
Front PTO (optional)
1000
Hydraulic pump
152 l/min (optional 205 l/min)
Max. lift capacity of rear power lift
9,790 daN
Max. lift capacity of front power lift
4,418 daN
Operating weight (incl. common accessories; +/- 5%)
7,580 kg
Max. permissible total weight up to 50 km/h
13,500 kg
Power ECE R 120
204 hp (with DynamicPerformance)
Max. torque
904 Nm
Speed range forward
0.02 to 50 km/h
Rear PTO
540 / 540E / 1000 / 1000E
Front PTO (optional)
1000
Hydraulic pump
152 l/min (optional 205 l/min)
Max. lift capacity of rear power lift
9,790 daN
Max. lift capacity of front power lift
4,418 daN
Operating weight (incl. common accessories; +/- 5%)
7,570 kg
Max. permissible total weight up to 50 km/h
13,500 kg
Power ECE R 120
224 hp (with DynamicPerformance)
Max. torque
950 Nm
Speed range forward
0.02 to 50 km/h
Rear PTO
540 / 540E / 1000 / 1000E
Front PTO (optional)
1000
Hydraulic pump
152 l/min (optional 205 l/min)
Max. lift capacity of rear power lift
9,790 daN
Max. lift capacity of front power lift
4,418 daN
Operating weight (incl. common accessories; +/- 5%)
7,700 kg
Max. permissible total weight up to 50 km/h
13,500 kg
More Fendt highlights
Product innovation

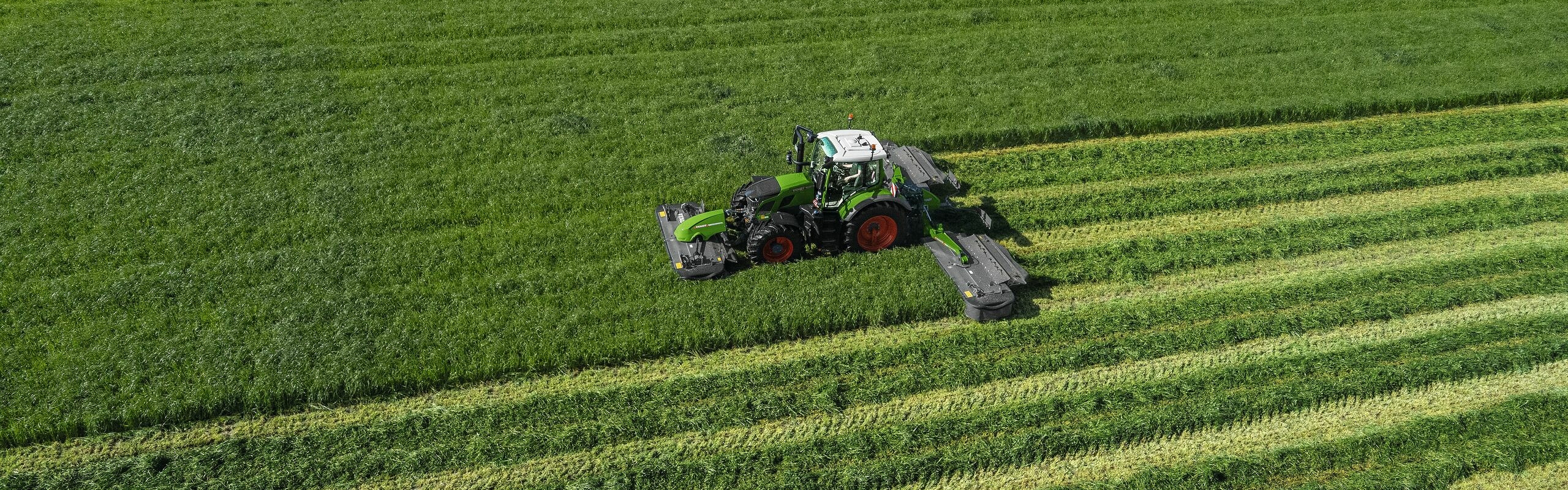

The Fendt Slicer 960/1010 mowers
