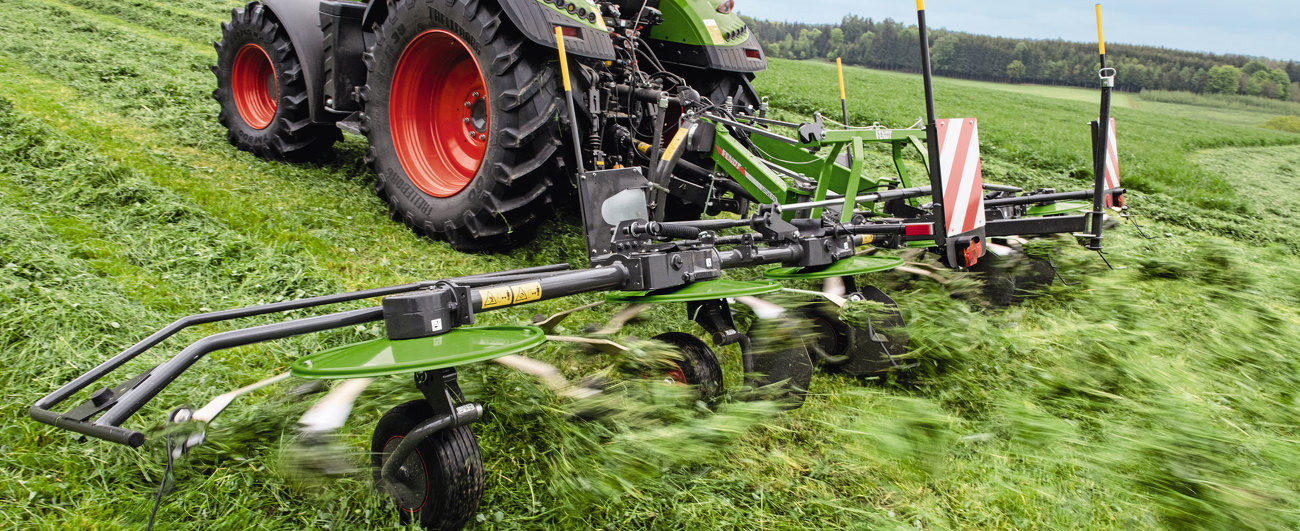

The attached Fendt Lotus model offers maximum stability even under difficult conditions. The Fendt Lotus 770 masterfully tackles tall crops, even at high speeds. The frame is marked for its long service life and maintenance-friendly design. With a stable 3-point fitting, the tedder is guided by a frame featuring 4 pivot points and 2 connecting bars.

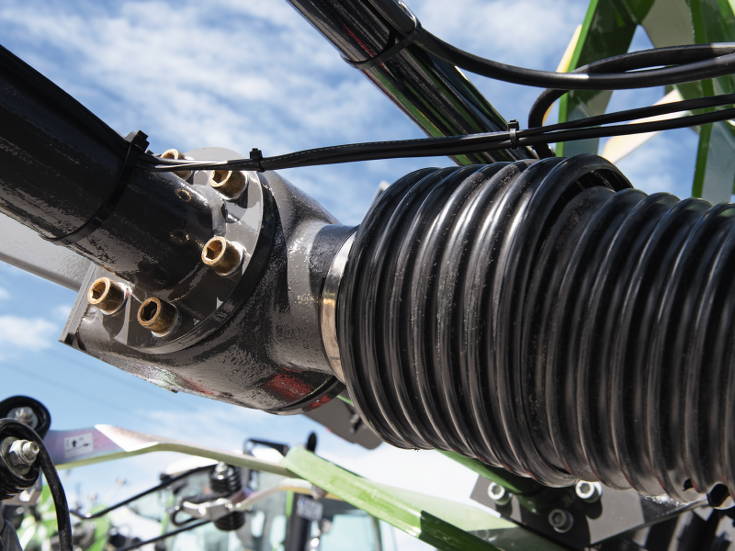

To fully protect the tedder from damage, the Fendt Lotus 770 is equipped with a particularly reliable drive line. The cam clutch ensures a torque transmission of 1,000 Nm. It easily processes taller crops even at faster speeds.
The innovative Stabilo tracking device always keeps the Fendt Lotus 770 on track. With the trapezoidal design of the attachment frame, there is an imaginary pivot point in the middle of the tractor; a large lever for stabilising tracking behaviour. It's a simple and purely mechanical solution to keep the tedder on track – without any additional shock absorbers or equipment. There is no rocking when working in unfavourable mowing or field conditions. The Stabilo tracking system also makes cornering easier. For maximum safety, the tracking device has an automatic locking system which prevents the extended machine from rocking on the headland.
The Lotus 770 is equipped with a hydraulic folding action for transport. This increases both ease of use and functional safety on slopes. To enter transport position, the outer rotors swivel up hydraulically and are mechanically secured. It has a great centre of gravity and the front axle relief is low. Most importantly for you – the transport width remains below 2.95 m.
For maximum road safety, the Lotus 770 follows the main lighting actions, as an optional extra.

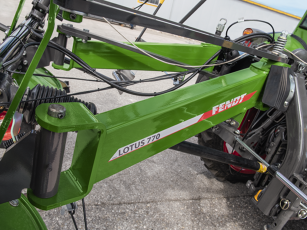

The three-point tower with three-material bearing bushings in the folding hinges is both durable and particularly maintenance-friendly.

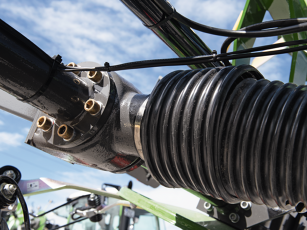

Ultra reliable: the drive line delivers a power transfer of 1,000 Nm so it can masterfully tackle tall crops at high working speeds.

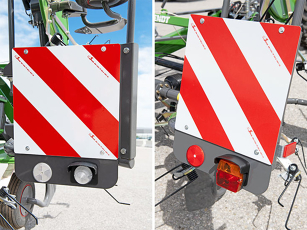

For maximum road safety, the Lotus 770 follows the main lighting actions, as an optional extra.
