Uniform threshing – clean separation.

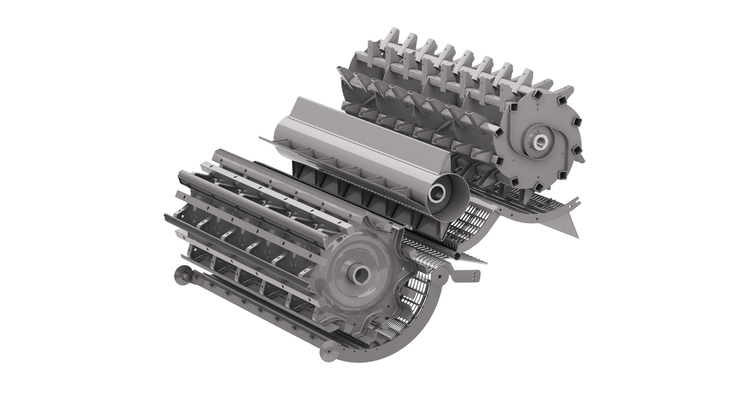

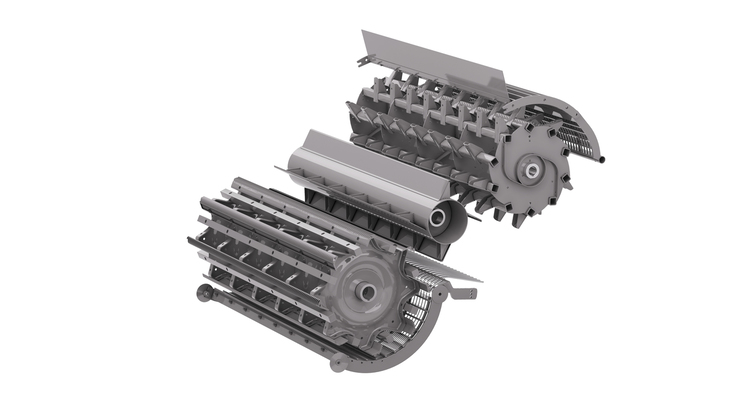

High-capacity threshing cylinder

The high capacity of the threshing cylinder on our L-series is a consequence of its large 600-mm diameter. The result is perfect threshing with a clean sample and less broken grain. The high inertia threshing drum runs very smoothly, even under difficult harvesting conditions. It is very gentle in handling both the grain and straw.

Smart concave:
The concave features different wire spacing. The clearance in the back section of the concave is twice as big as in the front area. This arrangement ensures the optimal ratio between good threshing capacity and high separation capacity. To optimise the threshing quality, you can adjust the concave independently at the front and back from the comfort of the cab.

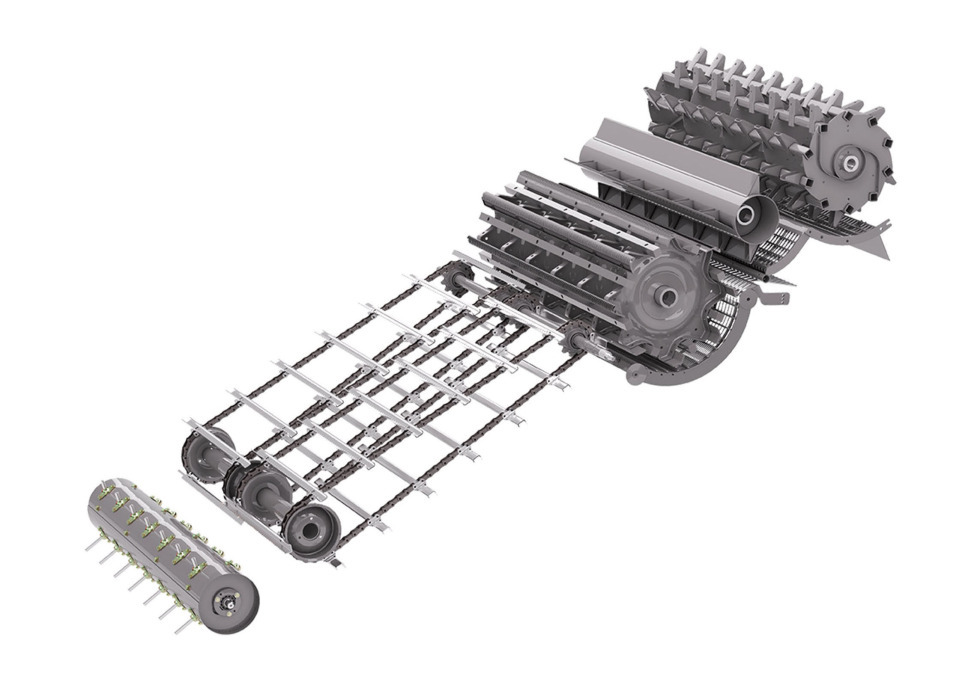

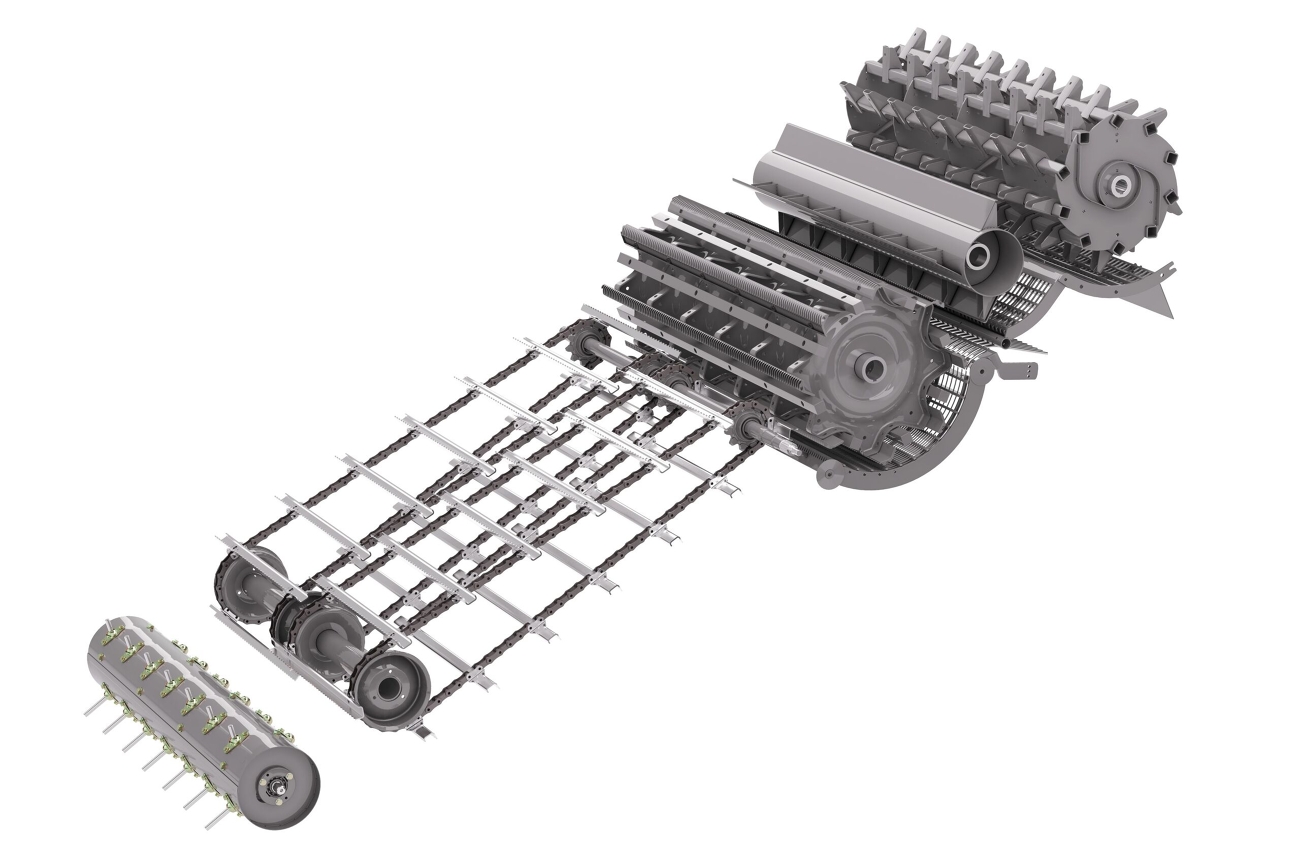

Multi Crop Separator Plus

ABC module

Concave

Intake chains

Power Feed Roller

In the standard version, the ABC (Active Beater Concave) module, which is an extension of the concave on the beater, really shows its advantages. The module enhances the separation performance and the straw is fed directly and very uniformly onto the straw walkers.

Extras in the MCS Plus version

In this variant, the L-Series combines are equipped with the Power Feed Roller (PFR) and Multi Crop Separator plus (MCS plus). The PFR ensures optimal crop flow from the cutter unit to the feed channel. It is attached directly to the crop elevator. Rotating at a speed of 267 rpm, it picks up any crop over the full width of the intake. The MCS Plus separating concave has a giant separating area. As much grain as possible is separated out before the crop even reaches the straw walkers. What is also special about our MCS Plus combines is that the separator concave can be swung up over the rotary separator. An electric motor brings the concave into the desired position according to need; tools are not required.

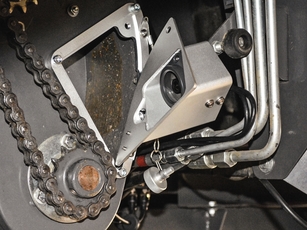

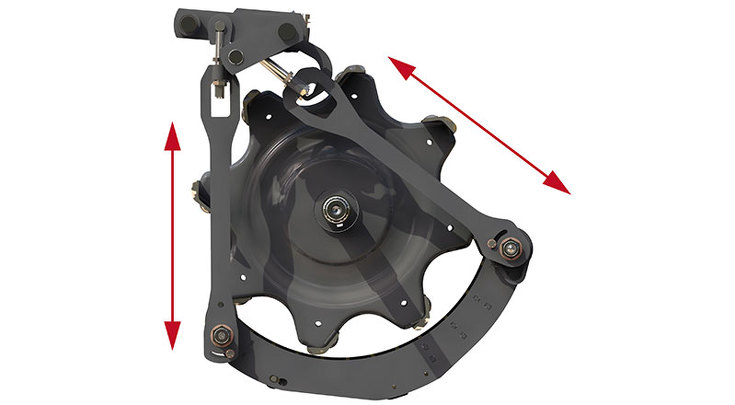

Electrical threshing unit

Perfect at the front, and at the rear too: the front and rear

concave openings can be adjusted independently and electrically.

You can adapt the threshing unit to any possible harvesting

conditions from the comfort of the cab.

MCS Plus - swung in

The separator concave is rotated under the Multi-Crop Separator. This setting improves the separation performance in long straw and wet conditions, enabling high output, even under difficult conditions.

MCS Plus - swung out

The separator concave is completely above the Multi Crop Separator. This setting is recommended primarily for crops that only require light threshing and in dry conditions.

Economical operations – different crops

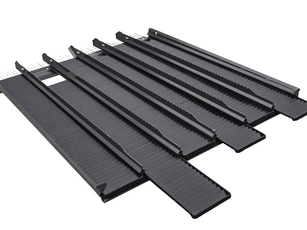

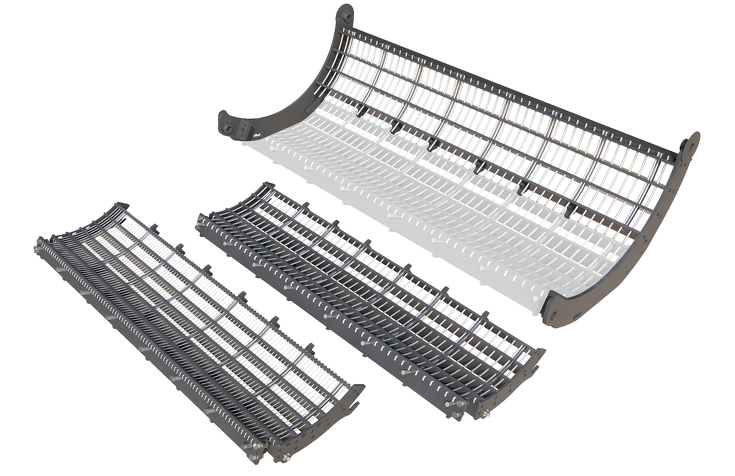

Exchangeable sectional concave

For arable farmers and contractors who need to harvest many different crops, the Fendt L-Series can be converted in a flash with the new sectional concave. The front concave segment can be easily removed and exchanged through the open stone trap. Two front concave segments are available: A segment with 14 mm wire spacing for intensive threshing when harvesting grain and a segment with 24 mm wire spacing for maize, soybean or sunflower harvesting. For enhanced grain separation, the universal segment has a wire spacing of 24 mm at the rear.

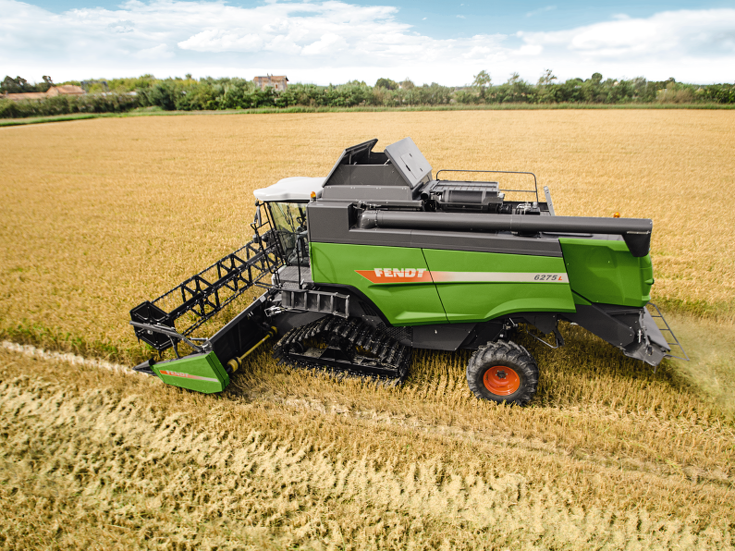

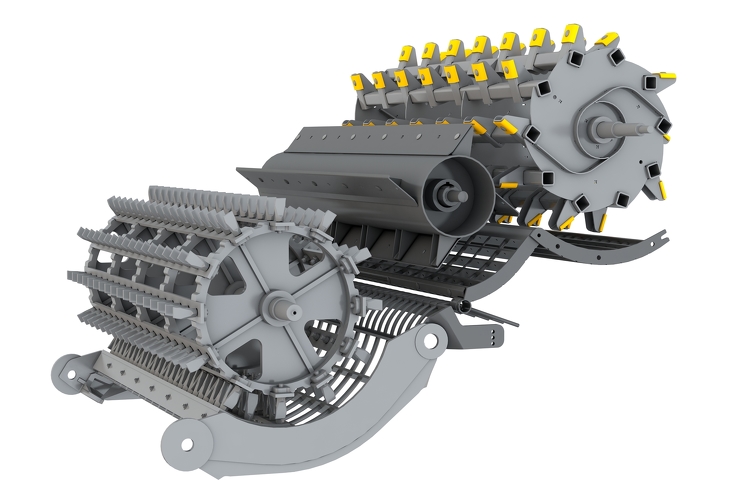

Rice – the special version

Since harvesting rice poses very special challenges for a combine, we offer you a dedicated model for this application. To minimise material wear, many components in this version have been strengthened and manufactured of very low-wearing material. We have replaced the bars on the threshing drum with pins to ensure gentle handling of the sensitive grains of rice. For harvesting on very moist ground, our rice model is equipped with crawler tracks.

Mosaic

Wheat

The 14-mm narrow wire spacing of the sectional concave produces perfect threshing results when harvesting grain.

  • Mosaic

    Wheat

    The 14-mm narrow wire spacing of the sectional concave produces perfect threshing results when harvesting grain.

  • Mosaic

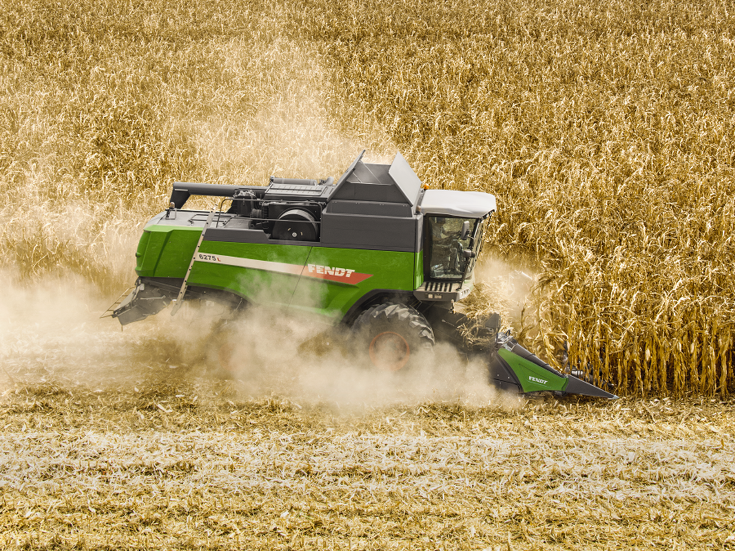

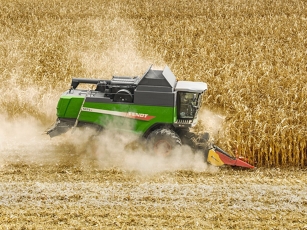

    Maize

    Besides the sectional concave, extensive maize equipment is also available for maize harvesting.

  • Mosaic

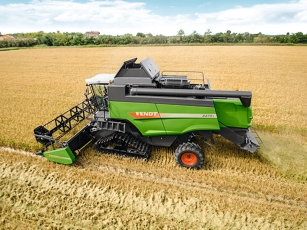

    Rice

    To minimise material wear caused by dirt entering the machine, we use very low-wearing materials in our rice combine version – especially for the machine components that come in direct contact with the crop.

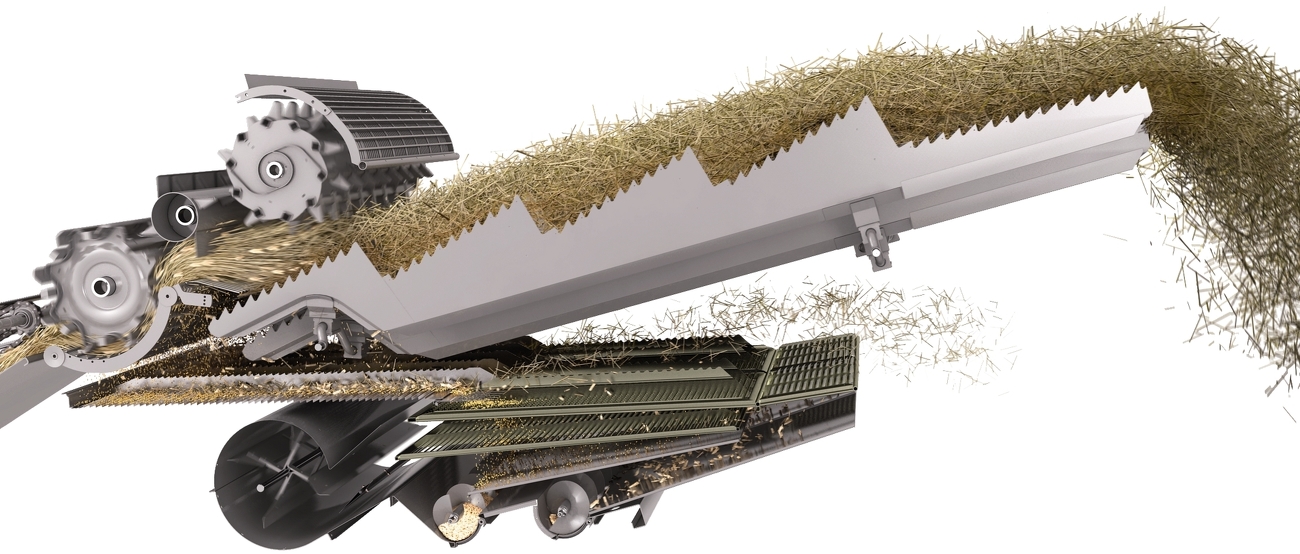

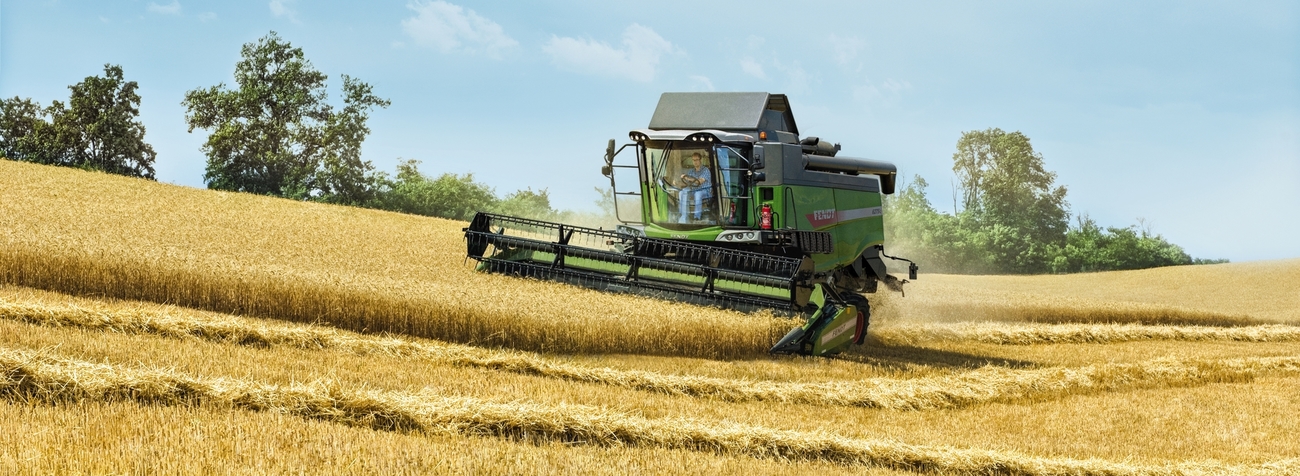

Efficient straw management.

Optimal residual grain separation

The 4256-mm high-capacity walkers, with four steps each, produce a thin straw mat. Combined with a high stroke and the active, open back walls, this further boosts separation. You can be sure that even the last grain is separated efficiently. Gentle handling of the crop maintains the structure of the straw optimally.

Fine chopped material

Our L-Series is standard-equipped with a straw chopper, which delivers clean chopping results. The double serrated knives ensure a clean cut and reduce power consumption. The infinitely adjustable counter knives, an additional pivoting dimple plate and electrically adjustable straw deflectors guarantee complete control over the quality and spreading of the chopped material.

Easy switchover

With just a single hand movement, you can control whether the straw is to be swathed or chopped. The straw is handled gently during the threshing process, so you produce the best quality straw for bales, fodder, bedding or energy production.

Mosaic

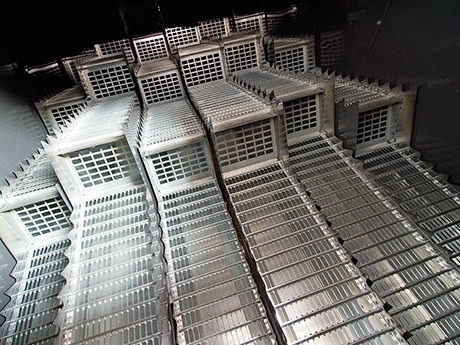

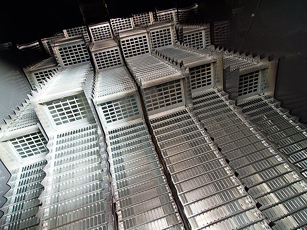

Straw walkers

The active back walls of the steps promote effective grain separation. We have strengthened the first step for grain maize harvesting.

  • Mosaic

    Straw walkers

    The active back walls of the steps promote effective grain separation. We have strengthened the first step for grain maize harvesting.

  • Mosaic

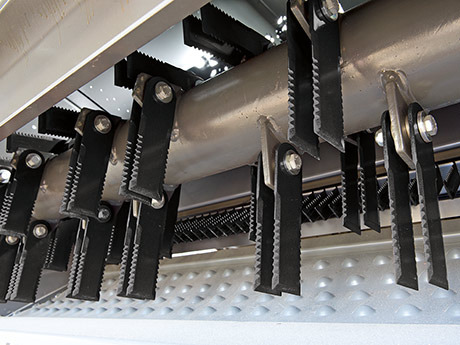

    Straw chopper

    An adjustable dimple plate is standard and ensures a uniform length of the chopped straw.

  • Mosaic

    Electrically adjustable deflector plates

    Electrically adjustable deflector plates are also available as an option. The distribution can always be best set from the cab.

  • Mosaic

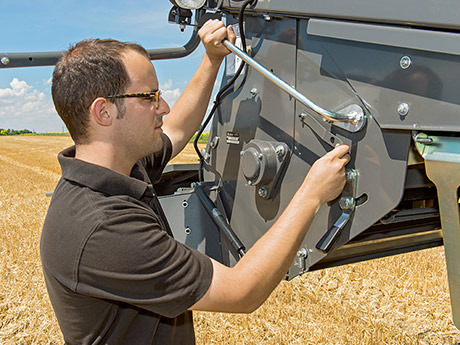

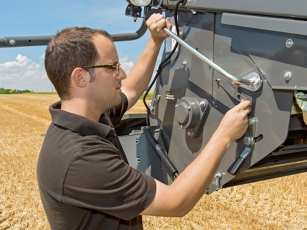

    Easy to switch over

    Operators can switch quickly and easily between the swathing and chopping modes, simply by moving a lever.

Harvest the best quality.

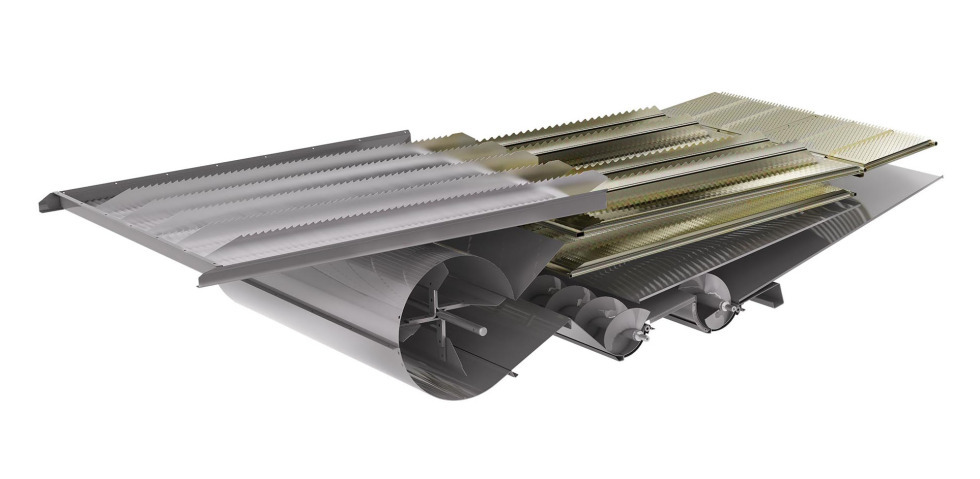

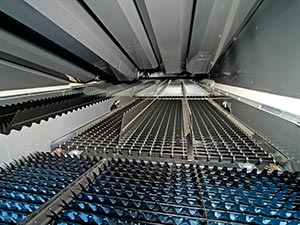

Best cleaning – the cleanest sample

The quality of the grain is decisive. When developing the shaker shoe, the focus was therefore on the use of high-capacity sieves to harvest the cleanest grain. The special surface of the high-capacity sieves (HC sieves)

enables optimised wind flow and the highest cleaning performance. To ensure that the crop remains uniformly distributed on the sieves, the L-Series is equipped with our sectional cleaning system with high dividers on the preparation floor as well as upper and lower sieves. The returns system transports the material that has not been optimally threshed back to the threshing cylinder and thus guarantees effective rethreshing. Since the preparation floor and the threshing cylinder have the same width, the maximum cleaning capacity is always being utilised.

Plenty of space for clean grain

Thanks to the large grain tank, you can utilise a tight harvesting time window to the utmost. With an 8,600-l capacity, it is designed for high productivity. A centrally positioned filling auger fills the tank very uniformly. Two sensors provide information about the filling level in the grain tank. Moreover, you always have a good view into the tank from the cab.

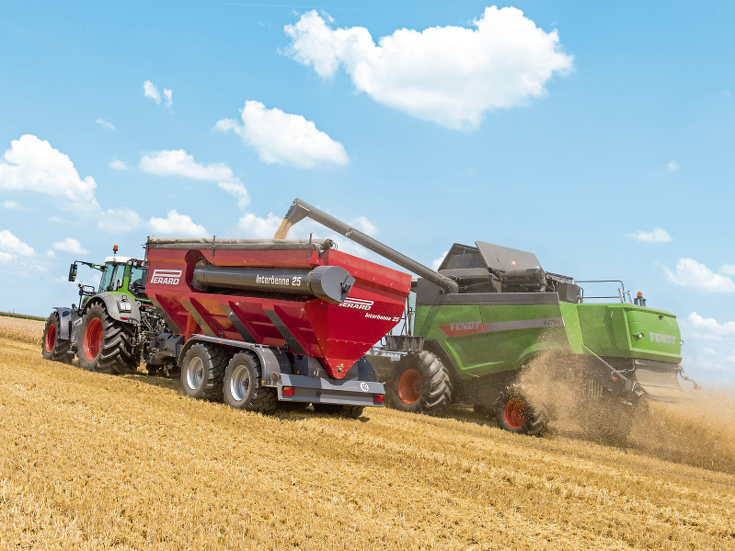

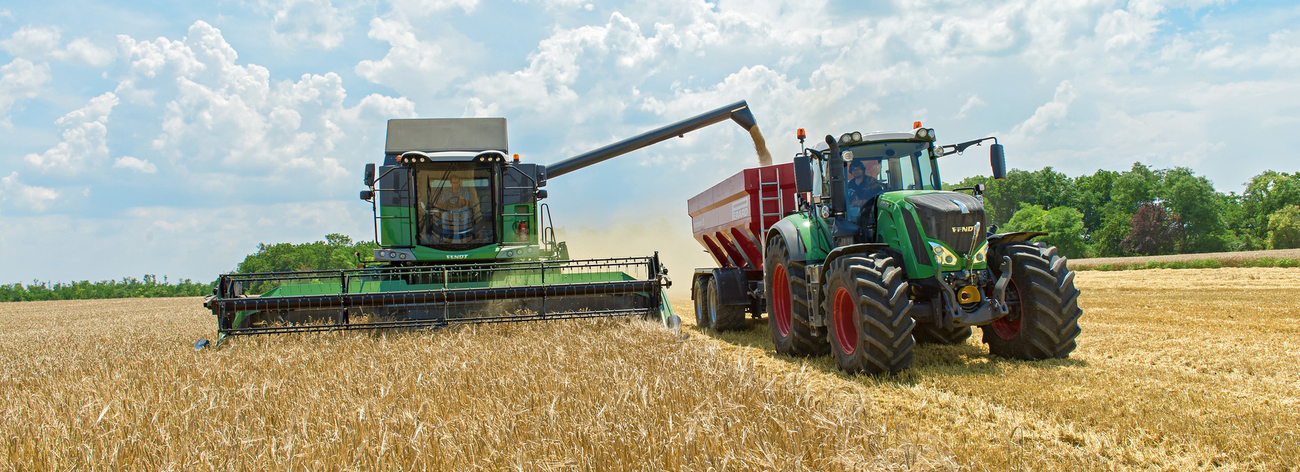

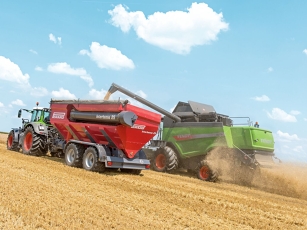

Swift unloading of the grain tank

The top unloading system on the L-Series permits an unloading height of 4.50 m. An unloading rate of 105 l/sec enables swift unloading. The grain tank covers can be opened and closed electrically from the cab with just a touch of a button.

Preparation floor

High-Capacity sieves (HC sieves)

Sieve extension

Blower

Grain auger

Rethresher auger

Lower sieve

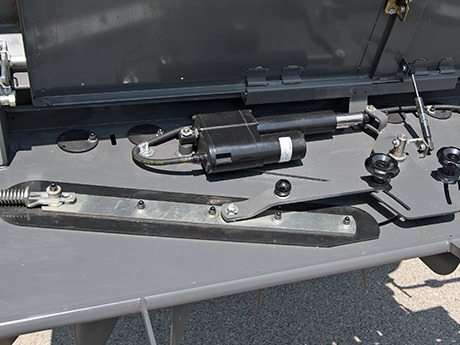

Electrically adjustable sieves

You can control the electrically adjustable sieves from the comfort of the cab.

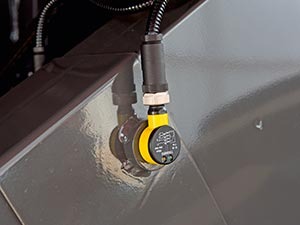

Returns sensor

A sensor records the returns volume and displays it in the Varioterminal 7”. The machine is quickly adjusted for best grain quality.

Chaff spreader

An adjustable chaff spreader with double rotor is available as an option.

Preparation floor

In very damp harvesting conditions, a clean preparation floor always ensures high throughput rate and optimal threshing quality. That’s why the preparation floor of the Fendt L-Series is easy and convenient to remove.

Returns camera

The returns camera can be used to track the threshing quality at all times, and to react quickly and easily to the changing harvest conditions.

Intelligent slope compensation.

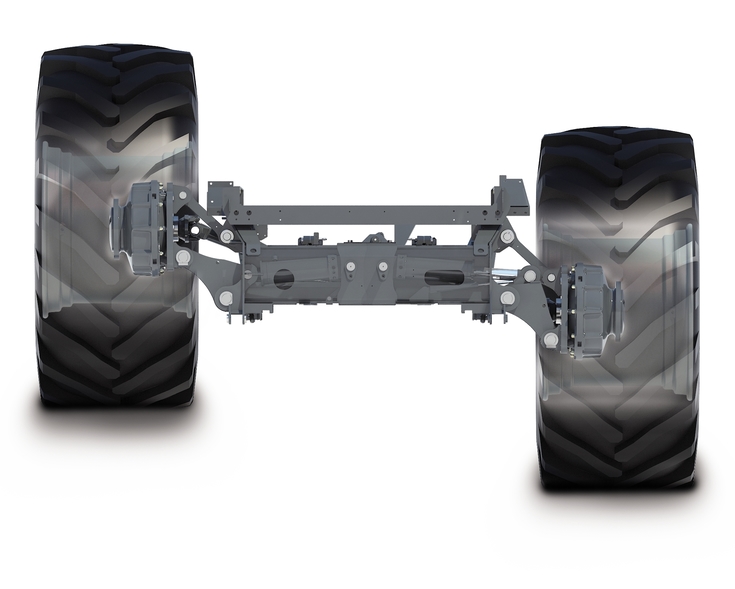

Highly efficient – even on slopes

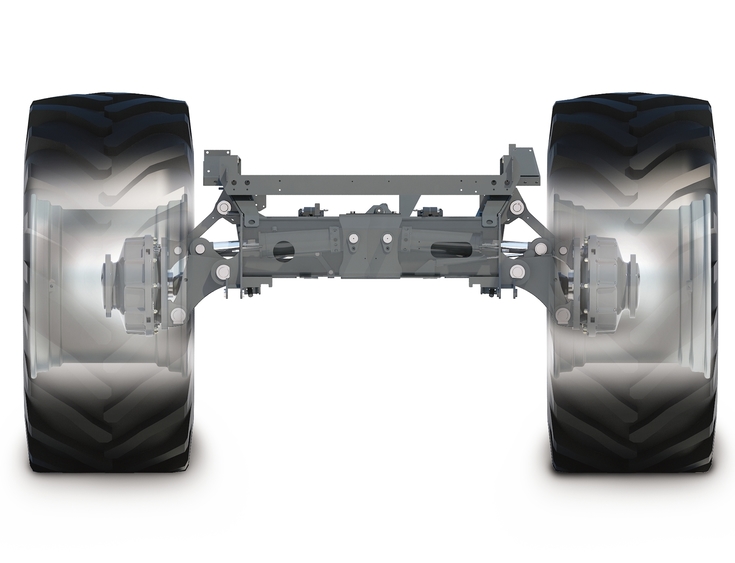

Our Fendt 5255 L PL and Fendt 6275 L PL combine models are available in a ParaLevel version. The system is based on a parallelogram and compensates for slopes up to 20 %.* The threshing unit and the entire separating and cleaning systems remain horizontal and the full power capacity is available for harvesting. ParaLevel machines can be equipped with 4WD and offer you more traction and greater safety – even on slopes.

Optimum in-field and on-road characteristics:
Besides the classic advantages of a chassis levelling system, the ParaLevel system offers additional beneficial features. For example, you can choose between a work and a transport mode. Work mode provides higher stability and safety on slopes, because the outer width is increased. In transport mode on the other hand, the front axle is lowered and the outer width is reduced. Both combine models – 5255 L PL** and Fendt 6275 L PL*** – with an outer width of 3.50 metres, comply with traffic regulations.

* Levelling performance might change according to the tire configuration. Contact your local dealer for more information.** 5 straw walkers with 800/65 R32. *** 6 straw walkers with 650/75 R32.

Easy switching between work and transport mode using the ParaLevel system, which compensates slopes up to 20%.*
