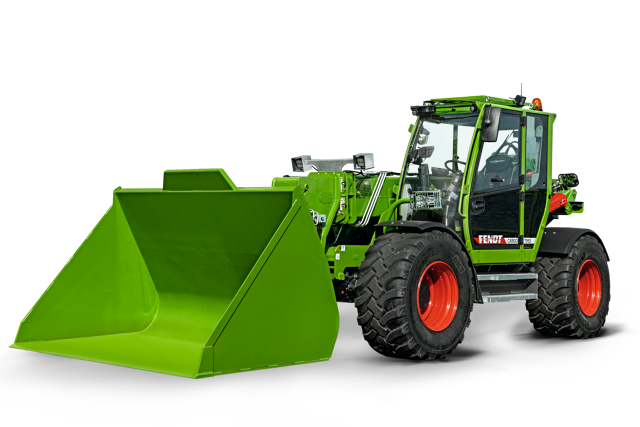

Fendt Cargo T955
The wheel loader among the telehandlers.

Maximum panorama = maximum safety. The cab, which you can raise to a sight level of 4.25 m, forms the cornerstone for the entire vehicle. The elevating cab and the ensuing machine concept means there are no holds barred when it comes to the stability of the telescopic arm, the attachment points of the lifting cylinder and the space in the engine compartment.

Unique details that make all the difference.

Telescopic loader with extended cab and telescopic arm
  • Unique, high-speed and vibration-dampened cab for perfect 360° all-round visibility and a unique view of the working tool
  • Solid and durable construction for maximum reliability
  • Strong telescopic arm with centring and lateral guidance
  • Enormous breakaway torque of wheel loader proportions

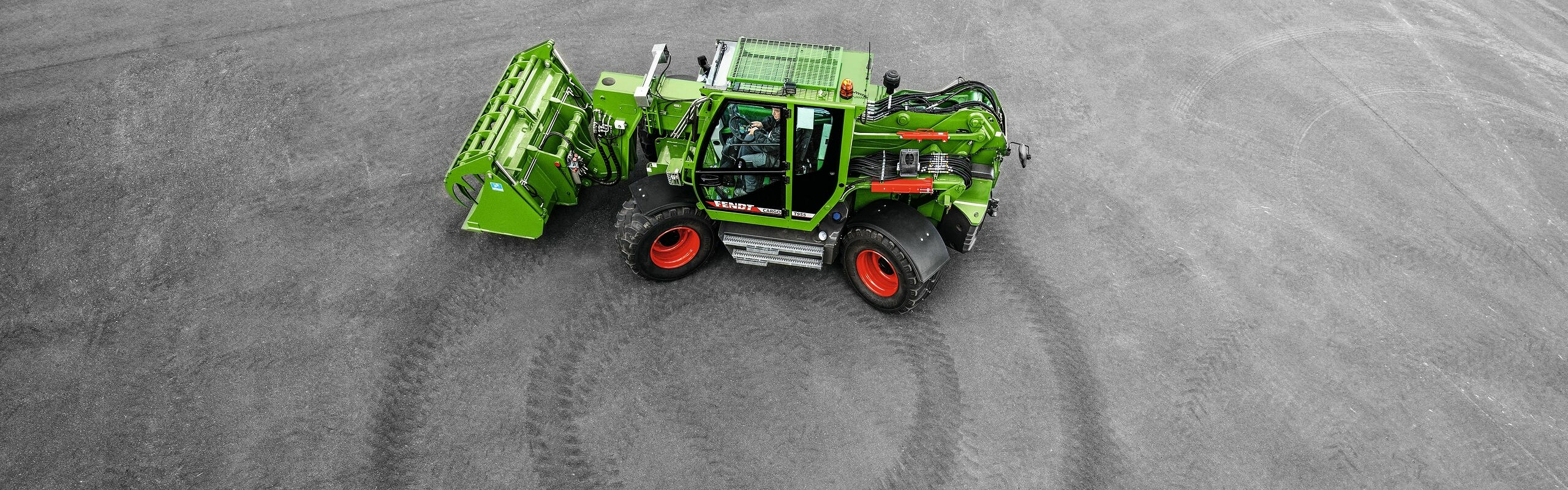

  • Small turning radius despite long wheelbase
  • Powerful, stepless transmission
  • Powerful hydraulics giving around 200 l/min
  • 100% differential lock and levelling
  • Large diesel tank

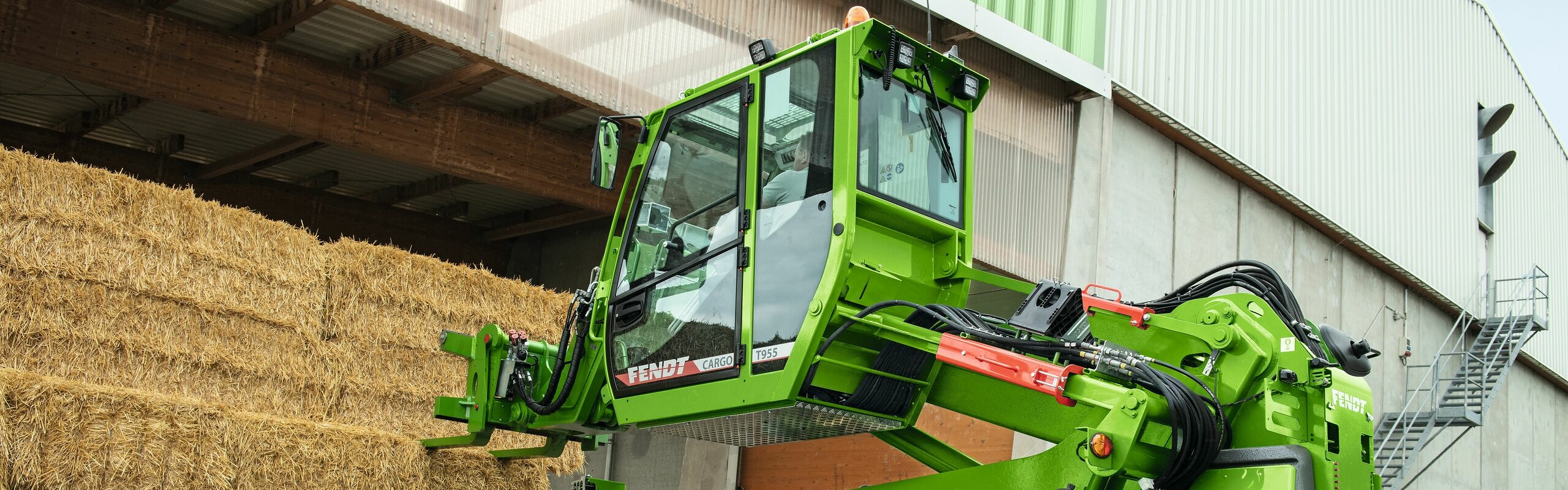

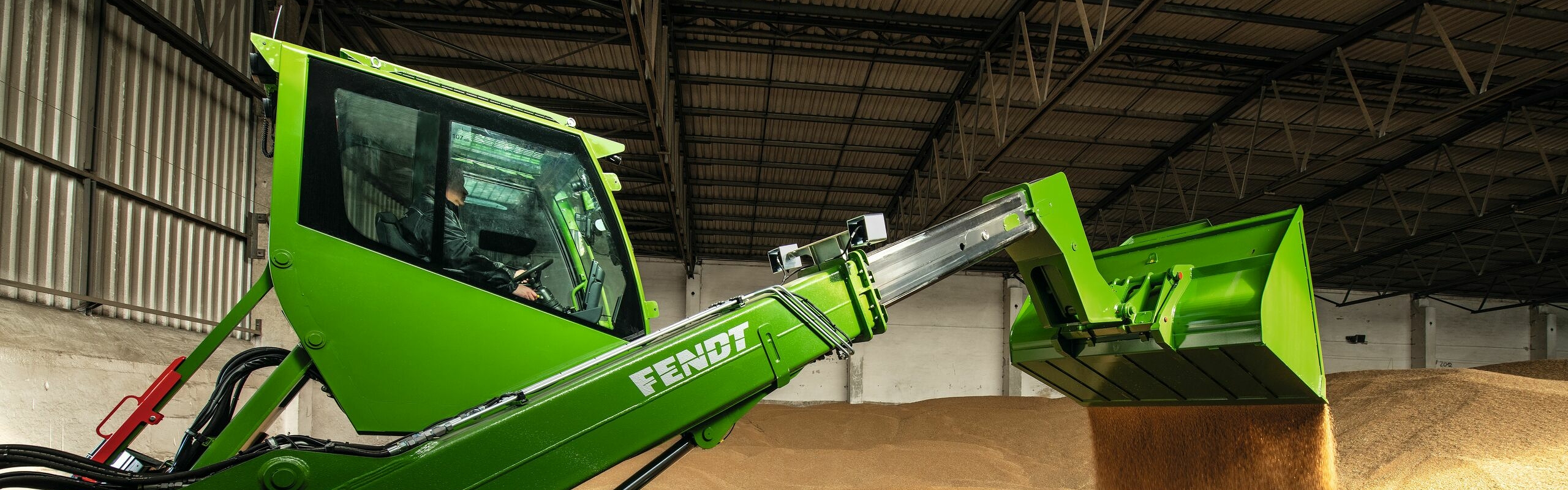

Elevating cab

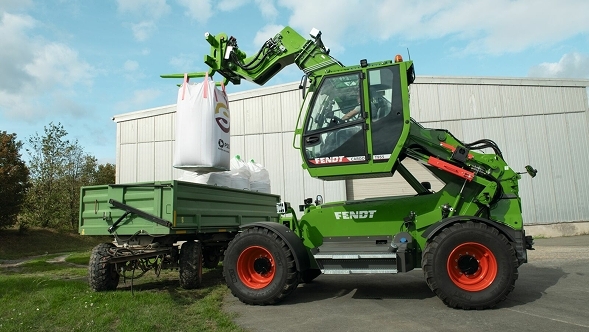

Use the foot pedal on the move to continuously raise the cab up to 4.25 m on the visual axis. This gives you a perfectly clear view to fill high-sided vehicles.
  • Mosaic

    Overload system

    The telescopic arm reaches from the front wheel to the centre of gravity of the pallet fork (max. 4350 mm). To prevent overload and the machine tipping forward, the Fendt Cargo T is equipped with an overload system.
  • Mosaic

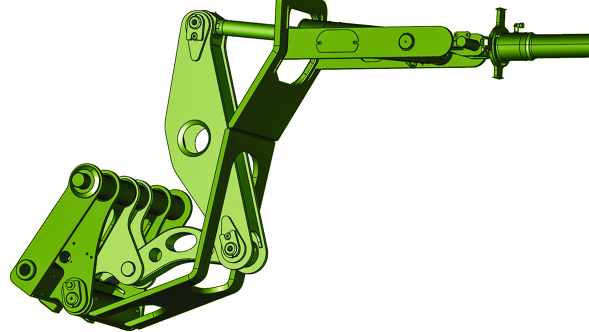

    The swing arm has Z-kinematics. This system uses the maximum force of the hydraulic cylinder. The pushing cylinder achieves a breakaway torque of up to 85 kN.
  • Mosaic

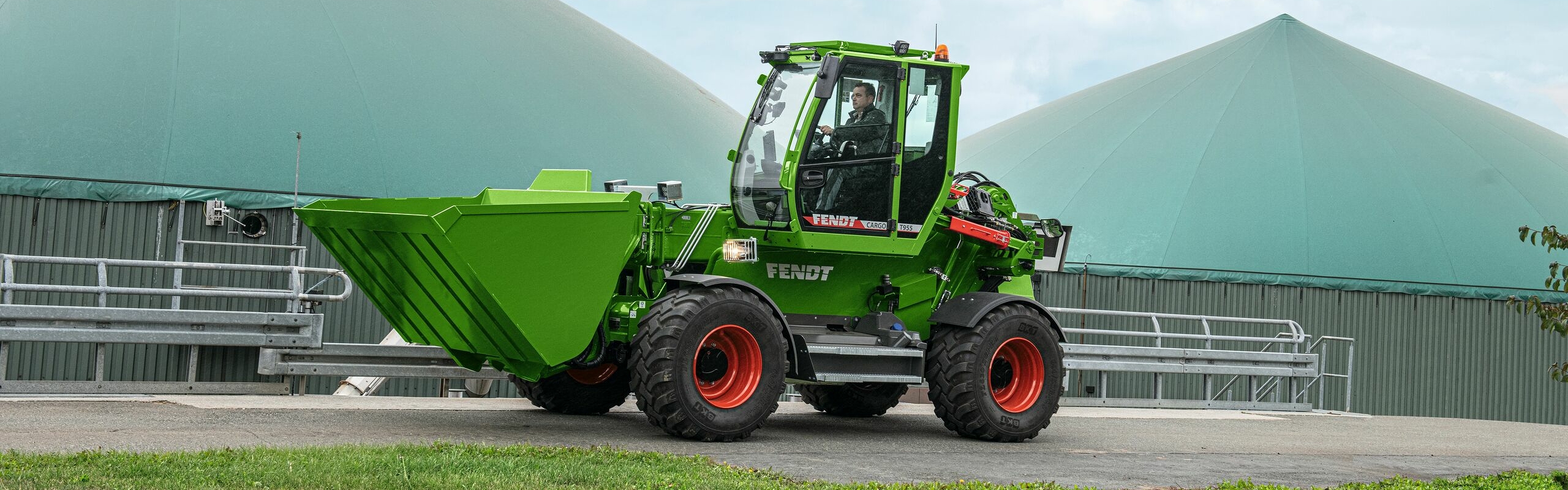

    Elevating cab

    Use the foot pedal on the move to continuously raise the cab up to 4.25 m on the visual axis. This gives you a perfectly clear view to fill high-sided vehicles.

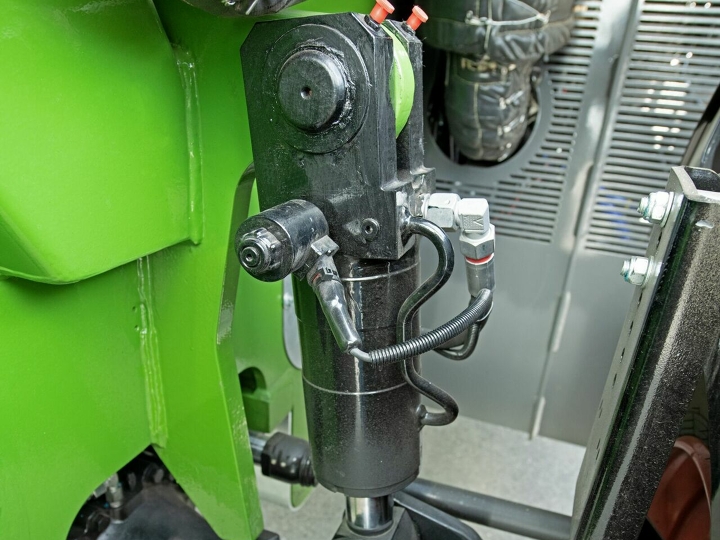

Close-up of the lifting cylinder

Machine concept: Frame.

The machine concept opens up new possibilities right down to the frame. You can use the added space to attach the lift cylinder to the very top of the frame. This ensures both optimum power delivery and a fully closed off area under the telescopic arm.

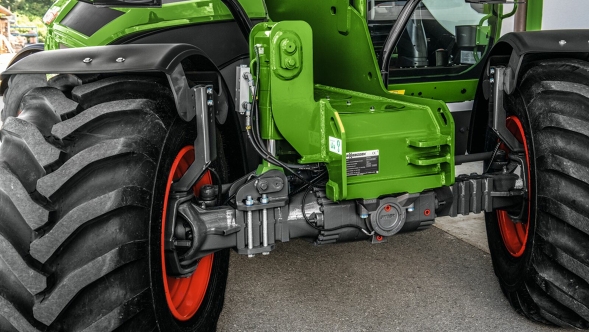

Close-up of the front axle

Levelling system for the front axle.

To meet special requirements, the Fendt Cargo T can be equipped with a levelling system for the front axle. With its 8° buffer, the vehicle can deliver maximum stability no matter how uneven the ground.
Close-up of the engine of the Fendt Cargo T955

State-of-the-art engine and exhaust technologies.

The Fendt Cargo T features state-of-the-art engine and exhaust technologies. These sophisticated components still leave plenty of room in the engine compartment. The air can flow through perfectly, always preventing the Fendt Cargo T from overheating. To stop the air grilles and radiators from collecting dust, the vehicle can be equipped with a reversible fan.
Close-up of the Brake-inch-pedal

Inch/brake pedal.

The vehicle has an inch/brake pedal. With this, the traction drive is disengaged from the engine speed. At low driving speeds, this provides more hydraulic power for the working hydraulics.

Stepless drive

The stepless drive of the Fendt Cargo T955 consists of an axial piston adjustment pump, driven directly by the diesel engine. It detects the accelerator pedal position and swivels out depending on the diesel engine speed. Going by the swing angle, it sends hydraulic oil to the travel motor in the CompactDrive transmission, which, depending on the load, uses it to generate either a high speed (fast driving speed) or a lot of torque (driving on a slope or into crops).
