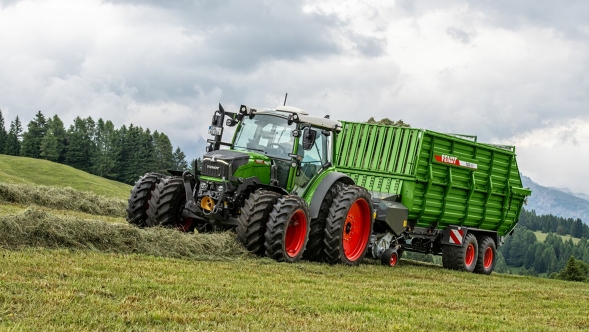

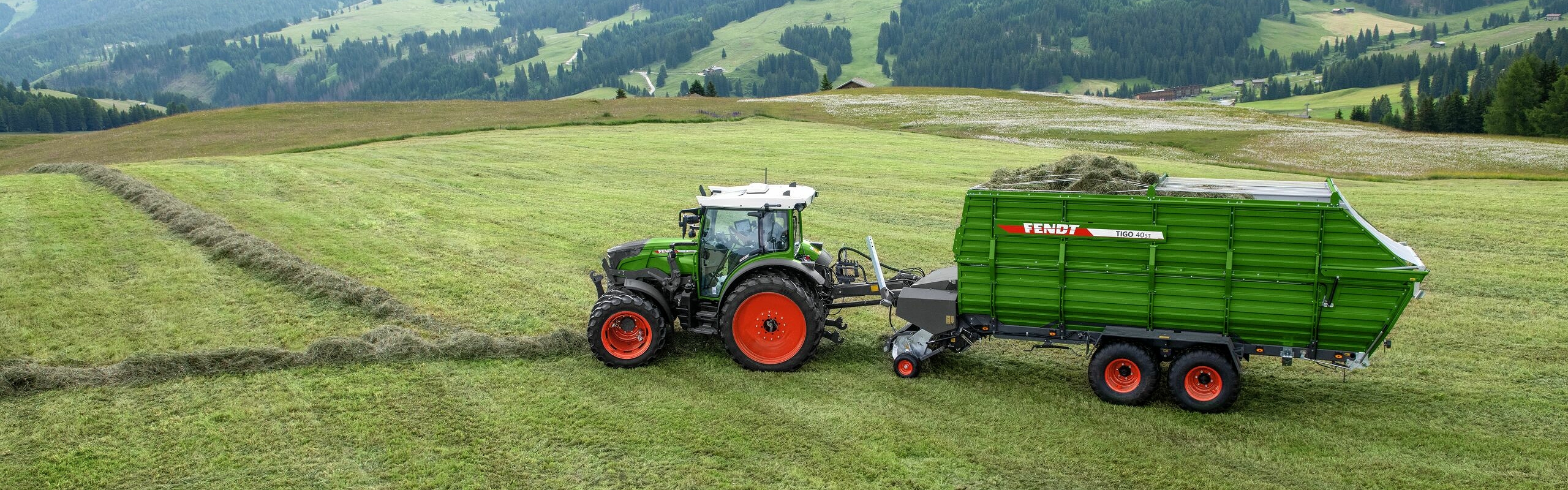

A green painted Fendt 200 Vario with attached Tigo forage wagon in alpine use

Fendt Tigo Alpine

Loading and unloading on slopes

The Tigo ST series was developed especially for high-altitude work. The low-gear loading wagons meet the highest requirements for mountainous conditions – steep cross-slopes and tough terrain. With a platform height around 25 cm lower than the Tigo S series, Tigo ST models have a particularly low centre of gravity. What's more, the extra wide track of 2.12 m means that the Tigo ST is incredibly stable. This ensures safe, stable and easy handling – even in extreme situations.

View of a combination of Fendt tractor and Fendt Tigo forage wagon in alpine forage harvesting operations

Model overview

Model	Loading volume
Fendt Tigo 35 ST	22 m³
Fendt Tigo 40 ST	24.5 m³
Fendt Tigo 50 ST	29 m³

Fendt Tigo Alpine low forage wagon

Pack it up high without losses.

A team consisting of the typical green painted Fendt tractor and Fendt Tigo forage wagon in alpine use

Fendt Tigo ST - The mountain is calling!

The Fendt Tigo low forage wagon is specially designed for use at height and on slopes. With a camless oscillating pick-up and an impressive working width of 1.8 metres, it ensures maximum efficiency. The super gentle swing arm unit with direct drive via a gear drive guarantees the highest feed quality. The lightweight but extremely stable frame construction provides the necessary robustness. The cutterbar frame can be optionally equipped with up to 33 knives, which enables a minimum cutting length of 38 mm. The standard electric convenience control rounds off the overall package and ensures easy and convenient handling.

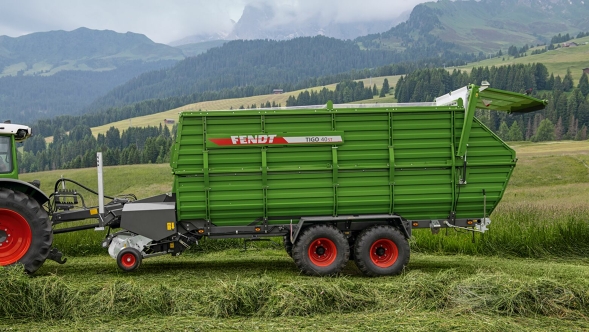

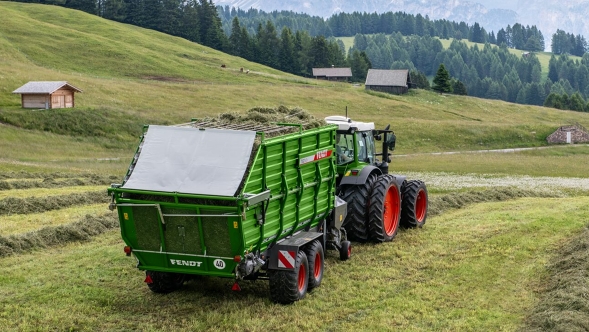

A green-painted Fendt Tigo forage wagon standing in a meadow during green forage harvesting at high altitude in the Alps

Equipped for altitudes

The Fendt Tigo ST models are perfectly equipped for use at high altitudes. They have a robust chassis that offers high stability and durability. The compact and lightweight design ensures high manoeuvrability and efficiency. With an extra-wide track of 2.12 m and large-volume tyres, they offer enormous stability. The torsion-resistant welded construction is torsionally rigid in both the longitudinal and transverse directions. The Tigo 35 ST is equipped with a single-axle chassis, while the Tigo 40/50 ST models have a tandem compound chassis with leaf-spring suspension. They are equipped as standard with a foldable dry forage assembly, which can be folded hydraulically as an option. Other options include a hay loading package, an all-steel design for silage applications, various hitching systems and a hydraulic articulated drawbar.

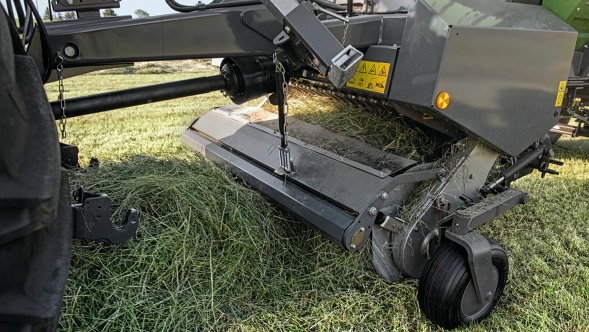

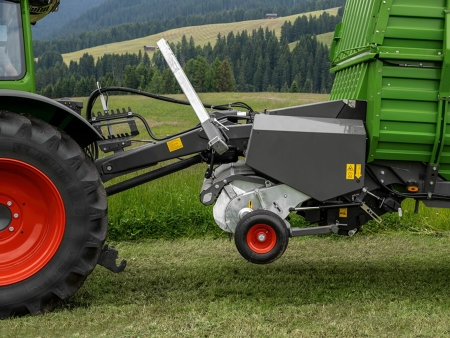

Detailed view of the pick-up feed intake by a Fendt Tigo ST model

Camless pick-up

The Fendt Tigo ST models offer efficient forage collection thanks to their camless pick-up, which does not require a cam track and is therefore particularly economical and easy to maintain. With a working width of 1.80 m and five rows of tines with a tine spacing of just 54 mm, it guarantees high efficiency. The tines with a diameter of 6.0 mm and 4-fold winding are protected by a tine loss protection system that encloses all windings and prevents the loss of the tines. The hot-dip galvanised components offer protection against the effects of weather and corrosive fermentation juices, while the coordinated peripheral speed of the pick-up and the swing arm unit guarantees even and reliable feed transfer. The oscillating pick-up adapts perfectly to the ground conditions and ensures clean feed intake, even on uneven terrain. With its unique torsion principle to adapt to the ground, it offers more tine contact than conventional pendulum pick-up designs. The standard roller crop press also supports clean feed intake.

Detailed view of Fendt Tigo conveyor swing arms, which stand for particularly gentle pick-up and transport of the forage.

Maximum feed protection

The Fendt Tigo ST models optimise forage protection thanks to their special cam track and conveyor swing arms. These ensure that the food is picked up and transported gently. The feed arms are undivided and have trailing control rollers, which enables precise cutting and an even feed flow. The loading unit is driven directly by spur gears, which makes it particularly low-maintenance and quiet. High-quality bearings and a stable design ensure a long service life and low power requirements.

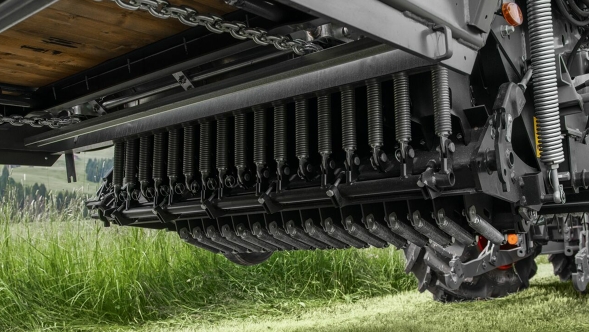

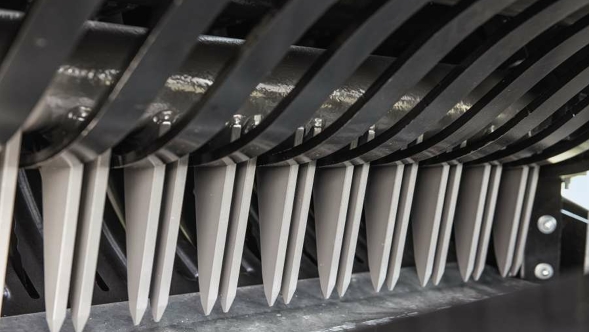

Detailed view of the cutterbar options mounted underneath the forage wagon on the Fendt Tigo forage wagon, which are available for flexible cutting lengths.

Flexible cutting lengths

The Fendt Tigo ST models offer flexible cutterbar options that can be adapted to different harvesting conditions. All models have a main cutting frame as standard, which can be equipped with up to 17 knives. An optional silage cutting unit with 16 knives is available as a second knife level. The knife group switching enables flexible use with the settings 0/5/17/21/33 (with silage cutterbar). The central switching points ensure easy operation, while the durable construction guarantees reliability.

Technologies for perfect forage recovery on slopes.

Alpine harvest technology with the Fendt factor

The Fendt factor is not only evident in the development of innovative technologies or the use of high-quality materials, but can be found in every area of our machines. From the initial idea for solving customer requirements to the meticulous production and passion of our employees to the perfect forage and satisfied customers. The Fendt Factor stands for innovation, technology, Fendt quality and customer satisfaction – ingredients you need to be a truly successful harvester. Even in mountainous regions.

More about the Fendt factor

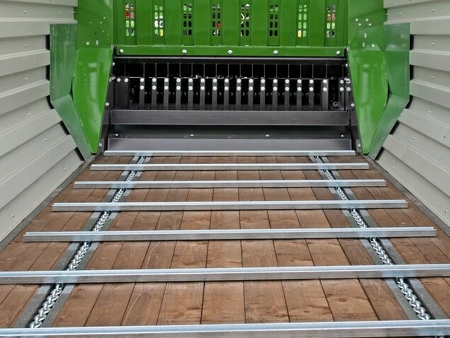

Interior view of a Fendt Tigo forage wagon with standard scraper floor drive for steplessly variable speed control

All Fendt Tigo ST models are equipped with a hydraulic scraper floor drive as standard. This enables steplessly variable speed control. Thanks to the standard external control, the scraper floor can also be controlled from the rear of the vehicle.

Continuously variable speed

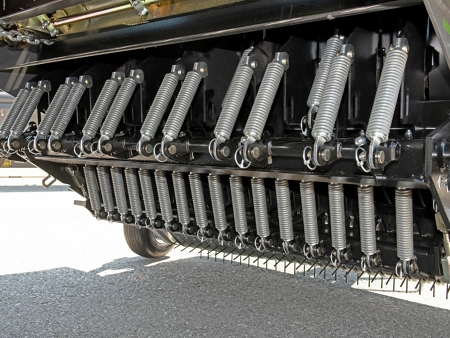

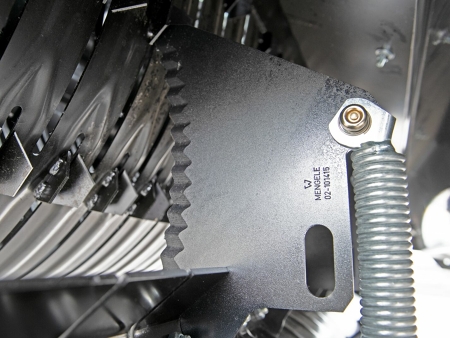

Close-up of a Fendt Tigo forage wagon with Trimatic single blade guard, which protects each blade individually against damage from foreign objects.

The Trimatic individual blade guard on the Fendt Tigo ST models protects each blade individually from damage caused by foreign objects. This ensures a high level of operational reliability and significantly reduces repair costs.

High operational reliability & reduced repair costs

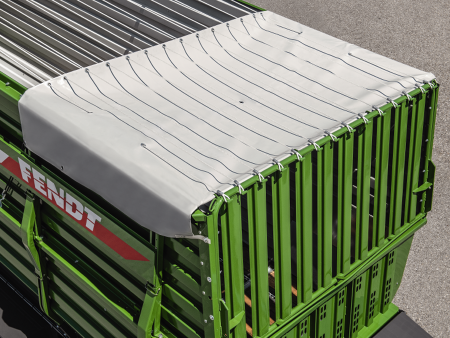

Close-up of the tarpaulin curtain of the Fendt Tigo

The optional tarpaulin curtain at the front keeps the feed securely in the loading space.

Forage safely in the loading space

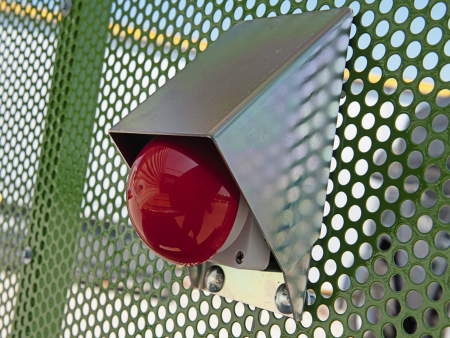

The optional acoustic fill level indicator is triggered by a fill level sensor on the rear panel.

Optional acoustic fill level indicator

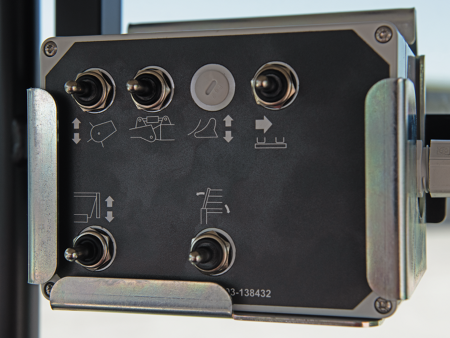

Electromagnetic comfort control, black panel

With the electromagnetic comfort control, you have all functions under control from the driver’s seat.

All functions at your fingertips from the driver’s seat

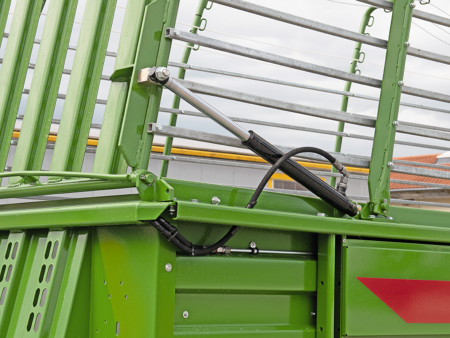

Close-up of the hydraulics of the dry forage assembly

Another option is to have the collapsible dry forage assembly folded in and out hydraulically.

Hydraulically foldable dry forage assembly

Close-up of the hydraulically swivelling cutterbar on the Fendt Tigo forage wagon

The cutterbar can be swivelled out hydraulically directly from the tractor cab.

Hydraulically swivelling cutting unit

View of a Fendt Tigo forage wagon articulated drawbar for ground clearance when driving in and out of field and meadow paths.

The hydraulically folding articulated drawbar enables an enormous ground clearance of up to 70 cm. This guarantees problem-free entry and exit at field and meadow entrances.

Ground clearance of up to 70 cm

The way to your Fendt Tigo ST

Next steps

Do you want to know more about the product? Our Fendt dealers will be happy to advise you. Find a dealer near you now.

Find a dealer Go to Fendt Tigo product page

Service

You would like to test the machine beforehand or are interested in financing? Fendt offers you a comprehensive range of services.

FinancingProduct demonstrationMore Fendt Services

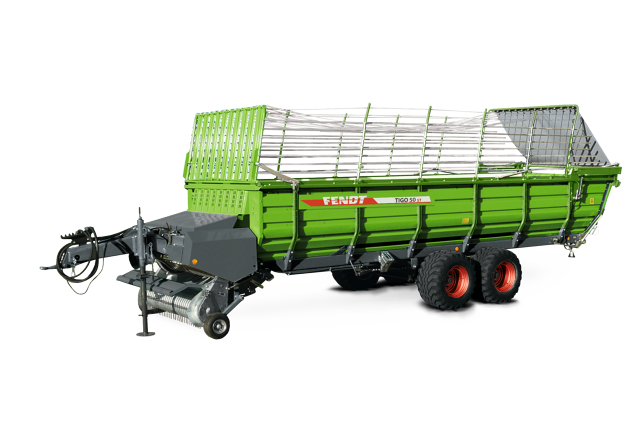

Cropped image of a Fendt Tigo ST forage wagon

Informational material

Product brochure

Technical data

Other products in the Fendt Alpine range

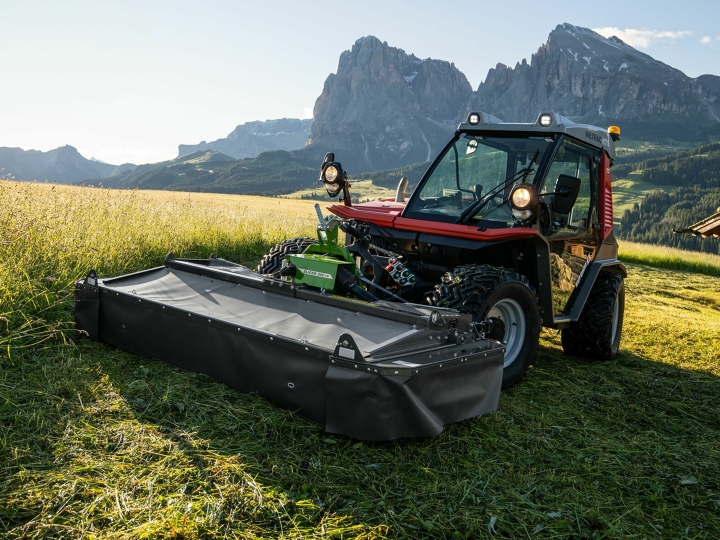

Fendt Slicer

With their compact design and flexible transmission, our various Fendt Slicer Alpine mowers have been specifically designed for the demanding conditions of mountain farming. They guarantee optimum efficiency and stability on steep terrain and at the same time offer a high degree of adaptability to the special requirements of alpine regions.

Learn more

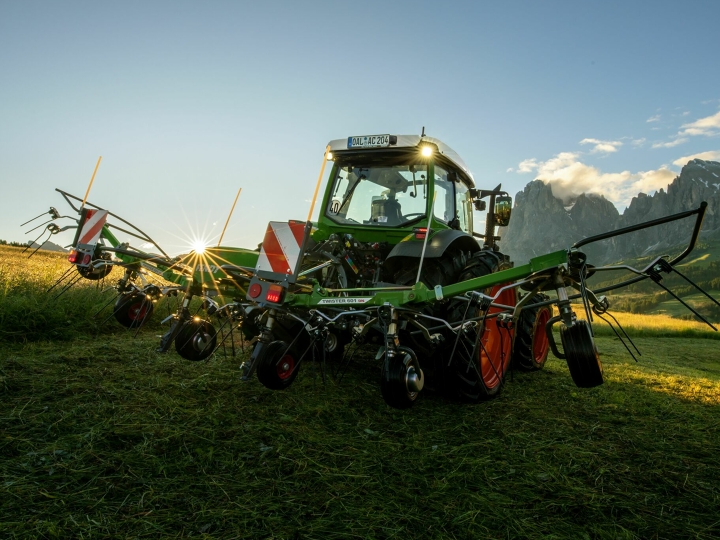

Fendt Twister

Our versatile alpine Fendt Twister tedders are designed for use in mountainous regions. Thanks to their lightweight, compact design and robust technology, the four and six-wheelers are ideally equipped to tackle even challenging terrain with ease.

Learn more

Fendt Former

Our Fend Former Alpine makes it possible to tackle any terrain with ease. This rake interacts perfectly with manoeuvrable mountain tractors in front operation and also ensures efficient forage harvesting at the highest level on slopes. Ideal for steep slopes and narrow areas - robust, manoeuvrable and clearly laid out.

Learn more

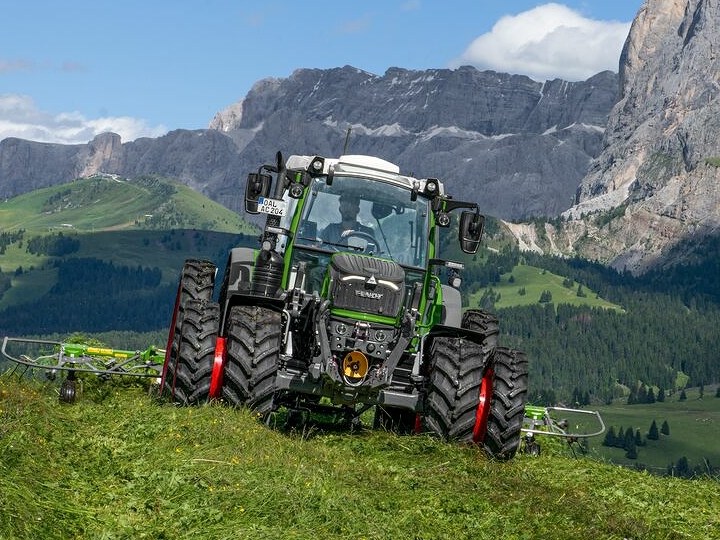

Fendt 200 Vario
