up to
5+2
independent hydraulic valves
When one masters everything.
The new Fendt 300 Vario Gen5 for more versatility and greater Productivity.

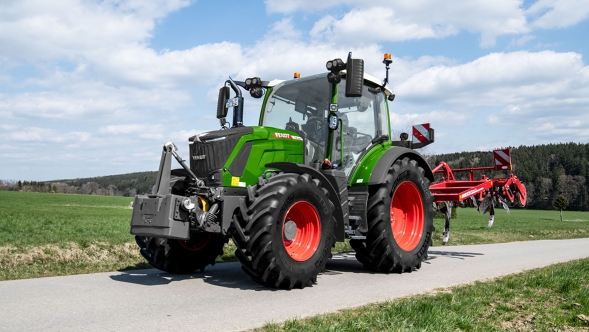

Fendt 300 Vario Gen5
When it's simply part of the family.
You bear responsibility for your farm, your family, your animals, your fields. You don’t think in days, but in seasons. Not in operating hours, but in generations. This is exactly what it was built for: the Fendt 300 Vario Gen5. It is there, when you need it, reliably in any weather and at any time of day. Like a good friend who understands you without words. Strong, when you need strength. Sensitive, when it comes to precision. It is more than just modern technology. It's part of your everyday life. Part of your family. The new Fendt 300 Vario Gen5 is more than just a tractor.
Unlimited versatility and more performance in a new design.
The new Fendt 300 Vario Gen5 is impressive not only with its modern design, but also with a variety of innovative technologies – including the Fendt DynamicPerformance (DP) added performance concept, which now delivers an additional 10 hp for all models in the series, if required. This provides more power exactly when it is needed. With up to seven independent hydraulic valves – including the two or three mid valves, which are provided via the multi-coupler for front loaders – the machine offers maximum versatility and is ideally equipped for a wide range of applications. The FendtONE driver's workplace connects the field and the office through a unified user interface. It is designed intuitively and enables simple, efficient work. The new rotating titanium seat, complemented by a sophisticated suspension concept and the spacious VisioPlus cab with excellent all-round vision – ideal for front loader work, provides noticeably more comfort. The modern lighting concept with daytime running lights, LED spotlights and GroundVision drawbar lighting rounds off the driving experience and increases both safety and working comfort.
The highlights of the new Fendt 300 Vario Gen5
up to
20°
rotatable for maximum comfort
When it's cosier in the tractor than on the sofa.
The new Fendt 300 Vario Gen5 with outstanding driving and working comfort thanks to the new Titanium seat.
FendtONE
1
System – full control
When it adapts to your way of working.
The new Fendt 300 Vario Gen5 with ‘working track’ lane type - without any field boundaries.
up to
10 hp
intelligent added performance
When very good is even better.
The new Fendt 300 Vario Gen5 has all the equipment you need, with 10 hp more thanks to Fendt Dynamic Performance.
Fendt Quality
100%
future-oriented
When you think about the future with it.
The new Fendt 300 Vario Gen5 that stands for lasting value across generations.

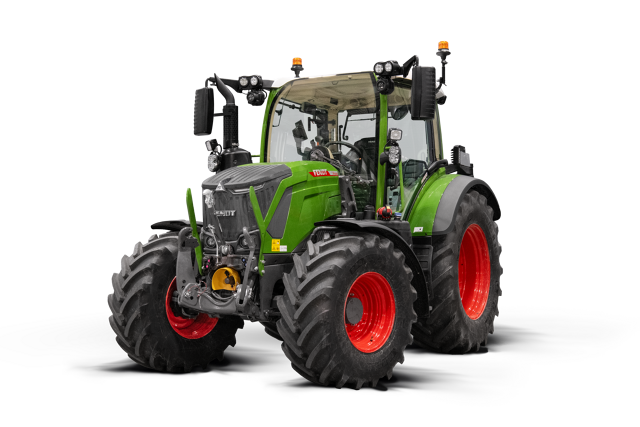

The new Fendt 300 Vario Gen5
Higher performance
Sustainable technology
Enormous flexibility
Comfortable cab
Front loader expert
Model overview
Rated power with DP ECE R 120 (kW/hp): Power specification relevant for homologation and vehicle papers
Engine and transmission
The Fendt 300 Vario Gen combines compact design with impressive drive technology. The efficient AGCO Power engine delivers powerful performance at low speeds and is impressive with the Fendt DynamicPerformance concept. The steplessly variable Vario transmission ensures jerk-free, soil-friendly driving and adapts continuously at any speed without interruptions in tractive power – from sensitive manoeuvring to transport at 40 km/h. Intelligent control systems such as TMS and limit load control 2.0 guarantee optimum efficiency. A drive system that perfectly combines performance, comfort and durability.
Powerful engine: ACGO Power 44 HD
Behind the compact design of the Fendt 300 Vario Gen5 lies a real powerhouse: the AGCO Power 44 HD engine. The 4-cylinder engine with a cubic capacity of 4.4 litres delivers an impressive maximum output of up to 152 hp – ideal for versatile use in the field, in transport or for municipal tasks. Thanks to an injection pressure of 1,800 bar and electronic engine control, the engine power of the AGCO Power 44 HD is precisely and efficiently called up at any time. At the same time, the automatic valve clearance adjustment by hydrotappet ensures particularly smooth and low-vibration engine operation. In road transport, the Fendt 300 Vario Gen5 reaches a top speed of up to 40 km/h at just 1,550 rpm – ideal for economical driving. For demanding towing work, a maximum torque of 650 Nm at 1,500 rpm is available. Providing a balanced combination of performance, efficiency and manoeuvrability, the Fendt 300 Vario Gen5 is the ideal solution for anyone who expects maximum performance in a wide range of applications every day.
40 km/h
Top speed
1,550 rpm
low engine speed at a speed of 40km/h
Fendt DynamicPerformance (DP)
The extra performance that stays
With the Fendt DynamicPerformance concept, all models in the Fendt 300 Vario series have up to 10 hp increased power for increased productivity and efficiency.

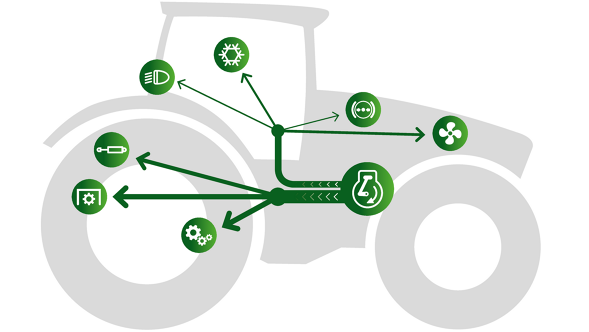

In contrast to classic boost concepts, Fendt DynamicPerformance automatically recognises when auxiliary consumers such as the fan, compressed air supply, air-conditioning system or hydraulic pump require additional power. This compensates Fendt DP in a targeted manner, thus ensuring higher productivity through consistent work performance.
Whether in soil cultivation, for PTO work, in transport or during PTO work as if with a forage mixing wagon, Fendt DP is always available when you need it. This allows you to efficiently use more performance – permanently and reliably.
In contrast to classic boost concepts, Fendt DynamicPerformance automatically recognises when auxiliary consumers such as the fan, compressed air supply, air-conditioning system or hydraulic pump require additional power. This compensates Fendt DP in a targeted manner, thus ensuring higher productivity through consistent work performance.
Whether in soil cultivation, for PTO work, in transport or during PTO work as if with a forage mixing wagon, Fendt DP is always available when you need it. This allows you to efficiently use more performance – permanently and reliably.
Efficiently refuelled, clean on the road
Long working days without interruption? No problem for the Fendt 300 Vario Gen5. With its generous 210-litre diesel tank and 23-litre AdBlue tank, it offers maximum operating time with minimum refuelling effort. An integrated fuel pre-filter with thermostatic valve ensures reliable operation even at low temperatures. The Fendt 300 Vario Gen5 is also ideally equipped for emissions: The modern exhaust gas after-treatment consisting of a diesel oxidation catalytic converter (DOC), a passive diesel particulate filter (DPF) and SCR technology meets the Stage V exhaust emissions standard.

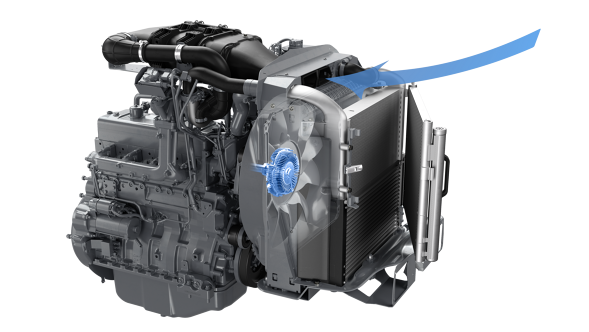

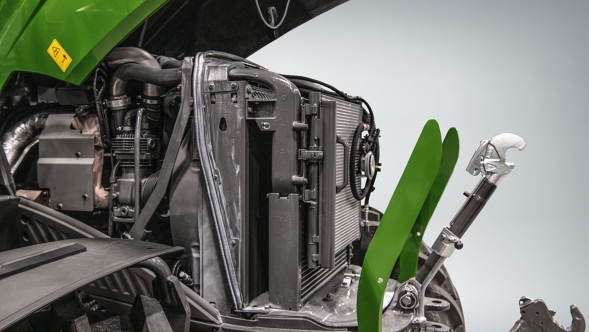

Stay cool when it’s hot
A compact cooler package with large intercooler, swivelling air condenser and cooling grille with hexagonal holes guarantees optimum airflow and maximum cooling performance. The tidy construction with even cooler floor prevents dirt deposits and facilitates maintenance. The electronically controlled Visctronic fan adapts precisely to the actual cooling requirement – this reduces noise, saves fuel and increases driving comfort. Additionally, each cooler can be controlled individually, which enables particularly quiet and efficient work. This ensures that the Fendt 300 Vario Gen5 always remains cool, efficient and low-maintenance, even for dusty applications – for maximum reliability and efficiency in daily use.
30 years of tangible experience – Fendt Vario gears
The Fendt 300 Vario Gen5 has more than 30 years of experience with the steplessly variable Vario transmission – and that is evident in every application. The transmission ensures maximum driving comfort, maximum efficiency and uninterrupted power transmission. The tractor accelerates from 0 to 40 km/h in just one driving range – quietly, fuel-efficiently and without interrupting tractive power. The Vario transmission adapts continuously to any work situation and enables optimum engine utilisation. Engine speed and driving speed can be controlled completely independently of each other. Due to the constant power connection, you are also safe on the road safely. A separate oil pan and long maintenance intervals also increase efficiency: A transmission oil change is only required every 2 years or 2,000 operating hours – without any special oil.
Achieving more at low speed
The limit load system 2.0 and the Tractor Management System (TMS) means you can always work in the optimal range. The automatic limiting load determines how much the engine may drop under load before the transmission intervenes, while TMS affects the engine speed and transmission. You only specify the speed and the tractor takes over the rest. This saves fuel, increases productivity and even inexperienced workers achieve strong results immediately.
PTO & hydraulics
The Fendt 300 Vario Gen5 is convincing with a powerful hydraulic system that delivers up to 110 l/min via a load sensing pump. Up to seven independent electronic control units enable maximum flexibility for a wide range of implements and applications. The intuitive operation, individual assignability and colour coding ensure maximum comfort and safety. In addition, a rear PTO with three speeds is available for the implement drive – for full performance in every application.
The right speed for every task
The rear PTO of the Fendt 300 Vario Gen5 offers three speeds (540 / 540E / 1000 rpm) and can therefore be used flexibly for a wide range of applications. The direct connection to the crankshaft with only one gear stage ensures efficient power transmission with minimal power loss. Thanks to the bevelled PTO stub, coupling of implements is particularly comfortable. Depending on the application requirements, the Fendt 300 Vario Gen5 can optionally be equipped with a 1000 rpm economy PTO (540 / 100 / 100E rpm), a ground speed PTO (540 / distances 1000 rpm) or a flange PTO (540 / 540E / 1000 rpm) with different flange shafts. On request, a front PTO at 1000 rpm is also available, whose wet coupling significantly reduces noise emissions and wear. If it is not needed, it can be completely disconnected from the drivetrain by switching seasonal, which prevents drag losses and reduces wear even further.
Automatic function and stationary mode
The automatic function of the rear PTO in the Fendt 300 Vario Gen5 enables particularly easy and efficient operation. The switching on and off of the PTO can be controlled automatically by assigning keys on the speed control lever – depending on the position of the rear power lift. In stationary mode, a saved PTO speed can be started when the PTO is externally activated. For example, when filling the slurry tanker, getting into the cab becomes superfluous.

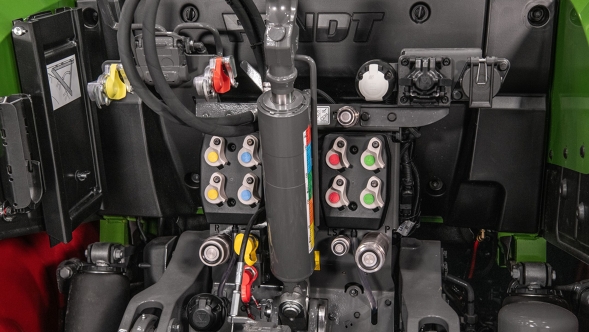

More hydraulics.
More options.
With up to seven electronically controlled, double-acting EHS valve, you are ideally equipped for every challenge. Two or three of them are available to the front loader via the multi-coupler. The load sensing pump delivers 110 l/min exactly as required – efficient and powerful. Thanks to colour-coded, self-closing valve caps with one-hand operation and low coupling forces, coupling is quick and clean. The hydraulics are conveniently adjusted via the dashboard or terminal, with freely assignable controls, time and priority functions as well as sensitive start-up control. The valves can be operated comfortably and sensitively via the linear modules, the crossgate lever or the 3-L Joystick. Thanks to the colour coding, you can always see which EHS valve is assigned, which prevents incorrect operation. The separate oil circuit protects the transmission and hydraulics – for less maintenance, more service life and maximum reliability. Another advantage: The full suitability for bio-hydraulic oil makes the Fendt 300 Vario Gen5 the first choice in terms of environmental compatibility.
110 l/min
Flow rate
Up to 7
independent hydraulic valves

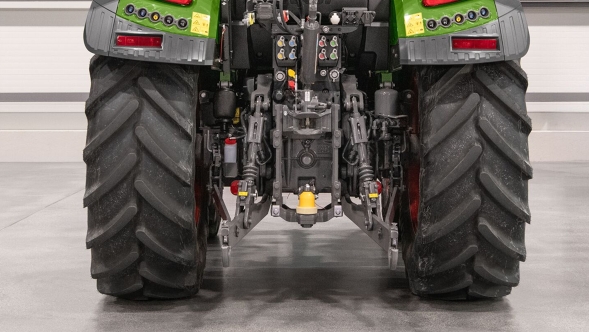

Strong, precise, comfortable.
The rear power lift of the Fendt 300 Vario Gen5 is strong, easy to use and ideal for many applications. With a lifting capacity of 5,960 daN, it reliably lifts even heavy implements. The electronic hoist regulator (EHR) with comfort controls makes working particularly pleasant. The automatic function is also practical: The PTO switches on or off automatically when raising or lowering. This saves time and control movements. Thanks to the external operation on both sides, implements can be mounted quickly and safely. When driving on the road, the active vibration dampening ensures more peace and safety – the tractor remains stable, even with heavy implements. A mechanical lock prevents accidental operation in the cab. The parking position of the lower link not only creates more space for implements with a bottom hitch or PTO connection, but also ensures extra safety when driving on the road.
Perfect contour following

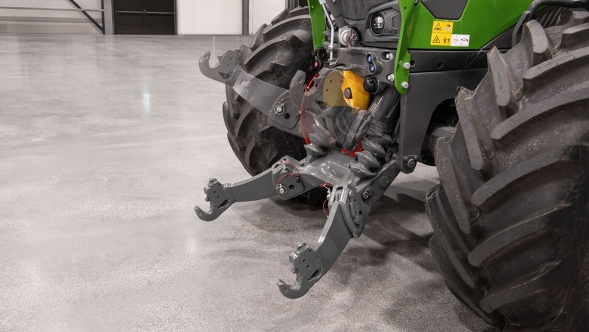

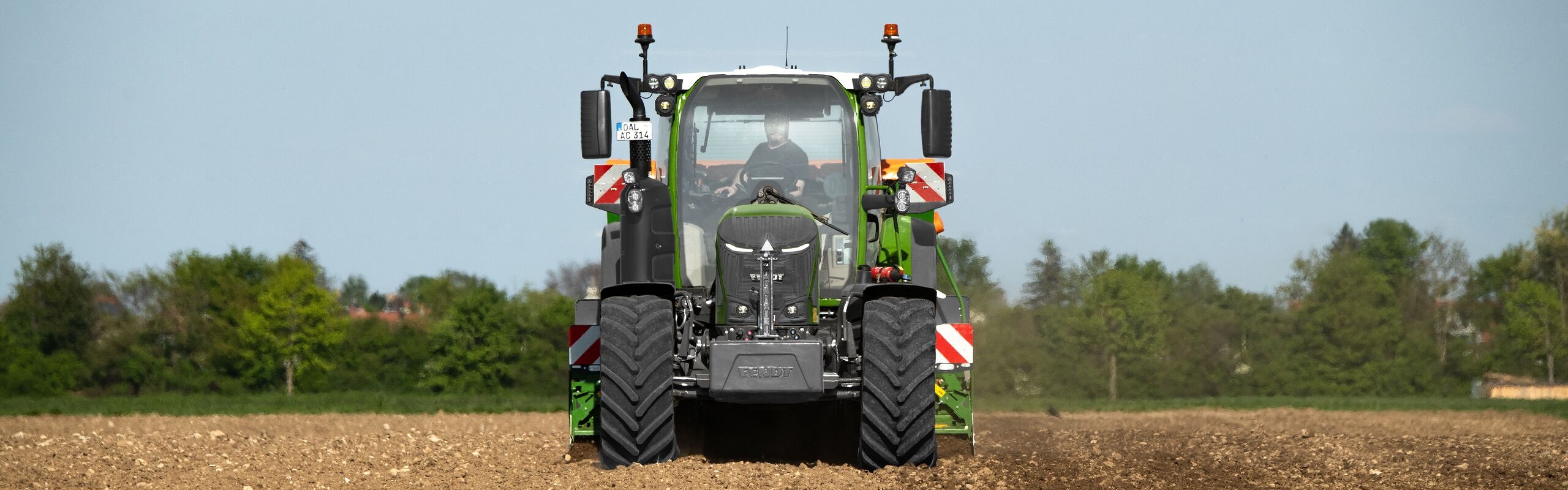

The front power lift of the Fendt 300 Vario Gen5 is fully integrated into the waisted half-frame and is impressive with its compact design – for maximum manoeuvrability and a short front projection. With a lifting capacity of 3,130 daN and three available variants – standard, with position control as well as position control and relief control – it is ideally equipped for a wide range of applications. The load relief control in particular offers clear advantages: The implement can be suspended with a load pressure defined in the terminal. So it follows exactly the ground contour, which e.g., when mowing, the quality of the feed is avoided, as inserting into the sward is avoided. At the same time, the transferred weight to the front axle increases traction and prevents drift on the slope. The constant load pressure also ensures uniform clearing performance in winter service. Folding lower link, integrated side protection, vibration damping and cylinder protection via bellows complete the sophisticated overall concept.
Safely delay when it matters
The trailer brake assistant (TBA) detects critical situations and stabilises the team by automatically controlling the pneumatic brake of the trailer or implement. This keeps the trailer taut and prevents dangerous shifting.

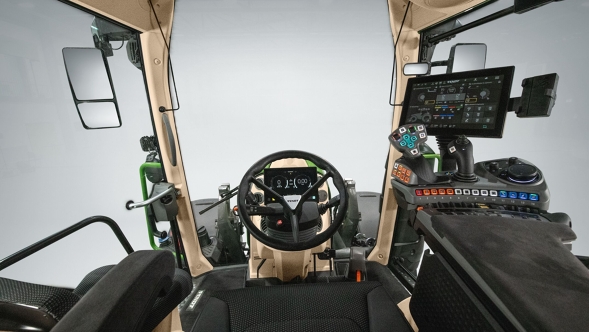

Cab
The cab of the Fendt 300 Vario Gen5 is the daily workplace for many farmers. The swivelling super comfort seat Titanium ensures relaxed work, even on long days of use. The ergonomic arrangement of all FendtONE controls enables intuitive control. The well-tuned cab suspension ensures maximum driving comfort on the road and in the field. GroundVision supports precise work in the dark, and with the new Apple CarPlay integration, the connection between work and everyday digital life is seamless. Optionally, even with Category 4, the cab offers the best possible protection against dust, aerosols and vapours while pesticides are applied. The combination of comfort, safety, overview and modern technology makes the Fendt 300 Vario Gen5 a workplace to which you can look forward to every day.

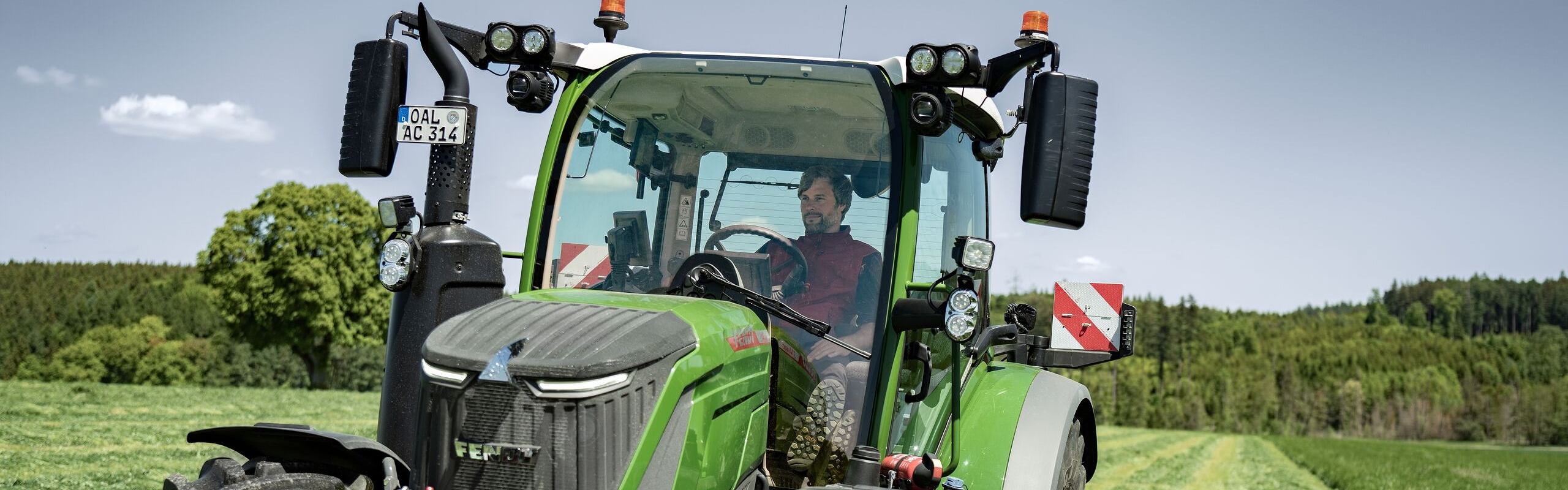

VisioPlus cab for best visibility
Anyone who spends as many hours a day in the tractor deserves a workplace that can do more. The VisioPlus cab of the Fendt 300 Vario Gen5 is convincing with a generous glass surface and an impressive vertical 77° field of view – perfect for precise work with the front loader. Thanks to sophisticated cross illumination, the already excellent overview is maintained even in the dark and disturbing shadows are prevented. The heated front window made of laminated safety glass (LSG) prevents the risk of poor visibility in the cold, and the window made of LSG provides even more safety and pleasant peace in the interior.

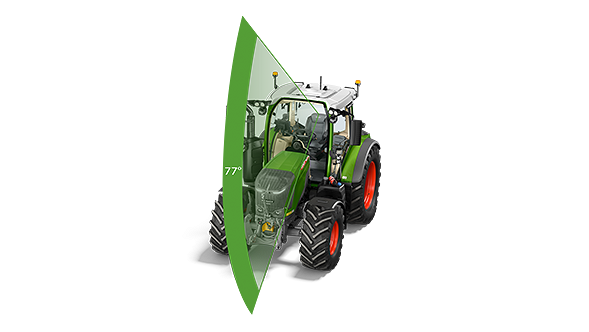

77°
vertical field of view
Everything in view
Whether for daily use on the field, road transport or precise manoeuvring in confined spaces – a good all-round view is crucial for safe and efficient work. The structure of the VisioPlus cab with generous glass surfaces and narrow pillars forms the perfect basis for an exceptionally wide field of view. With a horizontal all-round view of 323°, an almost unrestricted view is possible. For additional support, optional electrically adjustable and heated primary mirrors are available, which can be conveniently adjusted from the cab. In addition, heated wide-angle mirrors are optionally available to ensure clear visibility even in unfavourable weather conditions such as cold, rain or fog.

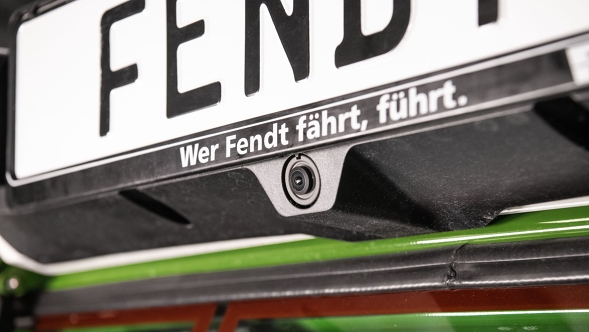

High-resolution rear camera
A special highlight: the integrated rear camera. It provides a razor-sharp image on the terminal, ensuring maximum overview and security – when coupling implements, when reversing or in the field.
Safe through day and night
The LED headlights of the Fendt 300 Vario Gen5 provide powerful low beam and high beam with minimum energy consumption – for the best visibility in the dark. Two visibility LED light strips as daytime running lights complete the new design of the bonnet.
In the rear, LED rear lights with dynamic indicators not only ensure a high-quality design, but also maximum visibility in road traffic. When things suddenly get tough, the brake light assistant reacts at lightning speed: it activates the brake lights automatically when the brakes decelerate – even without active braking by the driver. This is not only the way to protect yourself, but also the subsequent traffic.
In the rear, LED rear lights with dynamic indicators not only ensure a high-quality design, but also maximum visibility in road traffic. When things suddenly get tough, the brake light assistant reacts at lightning speed: it activates the brake lights automatically when the brakes decelerate – even without active braking by the driver. This is not only the way to protect yourself, but also the subsequent traffic.

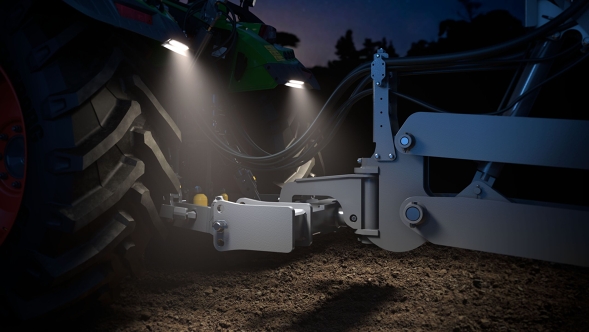

GroundVision: When the night becomes the work day
The previously extensive range of work lights of the Fendt 300 Vario is now being supplemented by another innovation. With the new GroundVision spotlights, the work area behind the tractor remains optimally illuminated even in the dark. Integrated fender spotlights deliver up to 1,700 lumens – for a clear view of the rear mounting area and the area immediately behind the vehicle – for maximum control with every movement.
The system shows its strengths, especially when working at night with the disc harrow or when monitoring the pick-up on forage wagons or balers. The targeted illumination of the rear implement area ensures full control, increases work safety and increases productivity – even during long periods of operation deep into the night
The system shows its strengths, especially when working at night with the disc harrow or when monitoring the pick-up on forage wagons or balers. The targeted illumination of the rear implement area ensures full control, increases work safety and increases productivity – even during long periods of operation deep into the night

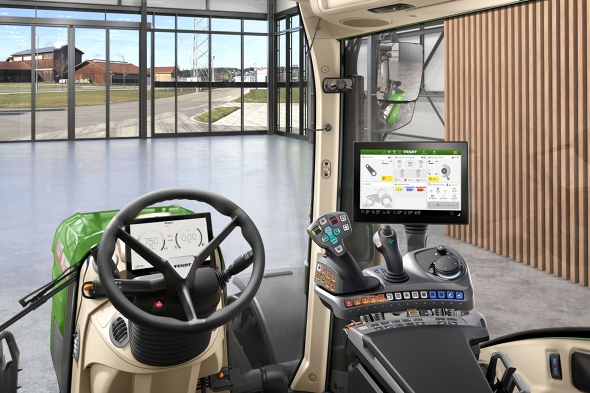

One is simple: FendtONE.
Working is even more fun with the FendtONE workplace in the Fendt 300 Vario Gen5. The high-resolution dashboard and the individually configurable terminal offer an intuitive user interface that can be perfectly adapted to the needs of the driver. All operating elements are ergonomically combined in the armrest – clearly arranged, within reach and logically arranged. The multi-functional joystick and the 3L-Joystick enable precise control with flexible key assignment. This makes daily work not only easier, but also significantly more efficient. FendtONE onboard in the tractor combines FendtONE offboard in the office to create a consistent digital working environment – for more clarity, control and comfort in every field.

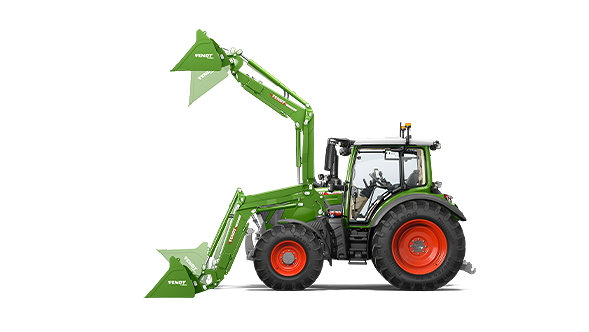

The ideal front loader tractor
Whether on the farm, in the stable or in the field – front loader use is part of everyday daily work for many farmers. The Fendt 300 Vario Gen5 is designed for this: compact, manoeuvrable and extremely precise driving. Thanks to overlay steering, stop & go function, the perfect view of the work area through the curved front window into the roof and the precise control via the 3L-Joystick, it offers ideal conditions for precise, safe and comfortable working with the front loader. The Fendt Cargo 4.75 is perfectly matched to the 300 Vario Gen5 and sets new standards in front loader work. To increase efficiency in daily use, the loader uses intelligent technology, up to three separate valves, a new multi-coupler and an optimised design. Comfort, safety and control are reaching a new level. This enables superior performance under all conditions.

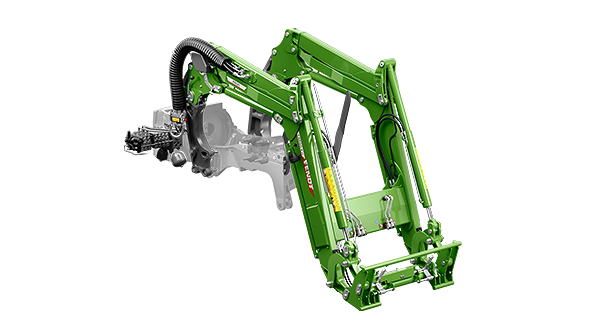

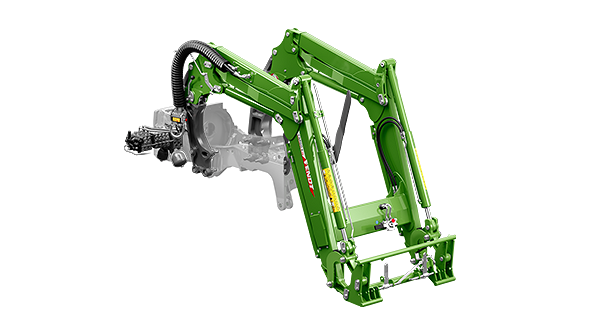

Fendt Cargo 4.75
Approximately 2.1 t maximum lifting power and an lifting height of about 4.15 m characterise the Fendt Cargo 4.75. Thanks to Cargo Lock, the new multi-coupler with automatically closing dirt flap and shut-off supports with tooth profile, tool-free attaching and detaching are particularly efficient and safe. They are controlled ergonomically via the crossgate lever or optionally via the 3L-Joystick. In addition to the mechanical tool lock, there is also a hydraulic version, which can be conveniently locked and unlocked from the tractor in any position. For standard requirements, the S arm has been optimised for best visibility and low weight. Sensitive parts such as the valve technology are well protected, integrated in the frame. For versions with the 3rd valve or the Profi variants, there’s an arm with a higher crossbeam to safely accommodate the additional components. Implements such as a lightweight buckets, universal buckets, pallet forks, large bale forks or round baler clamps, the Cargo Gen 2 is robust, productive and optimally matched to the tractor. An additional hydraulic function on the tool can be particularly efficient for front loaders with a 3rd valve can be operated simultaneous lifting, tipping and, for example, gripping with a bale clamps or gripper buckets. With the Fendt Cargo 4.75 Compact, the arm is closer to the tractor’s centre of gravity, which further increases driving stability and comfort.
Fendt Cargo 4.75 Profi
Equipped with numerous intelligent functions, the Fendt Cargo 4.75 Profi front loader makes everyday work noticeably easier. These include a dynamic, integrated weighing function, limitable work areas and a memory function for the arm and tool position. The shake function supports unloading, while the final position damping reduces material losses. When working in darker areas, the available work lights on the arm optimally illuminate the working area and the implement at any height. The front loader and its functions can be controlled intuitively via the 3L-Joystick and the 12" terminal. In addition, the weighing is automatically documented in the terminal and the maintenance interval display always keeps the remaining time at hand until the next necessary maintenance – for maximum control, comfort and productivity in daily use.
Fendt Care service packages for even more planning security
Get advice from your dealer now on Fendt Care tariffs!
Would you like to find the best possible Fendt Care tariff for you to secure your machine for emergencies? Our Fendt dealers are there to help and advise you with their expertise. Using the dealer search, you will find the right Fendt dealer in your area.

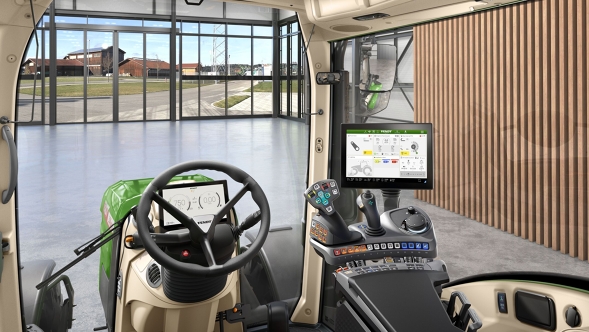

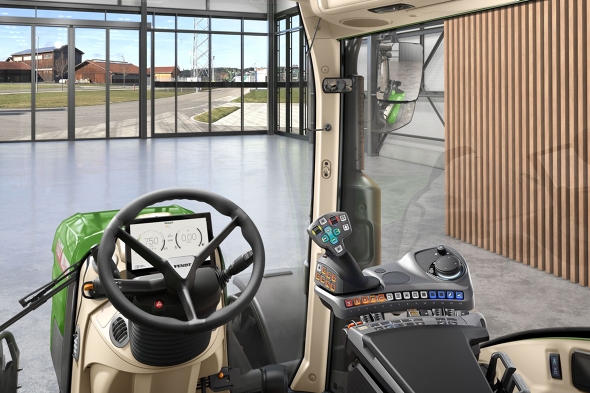

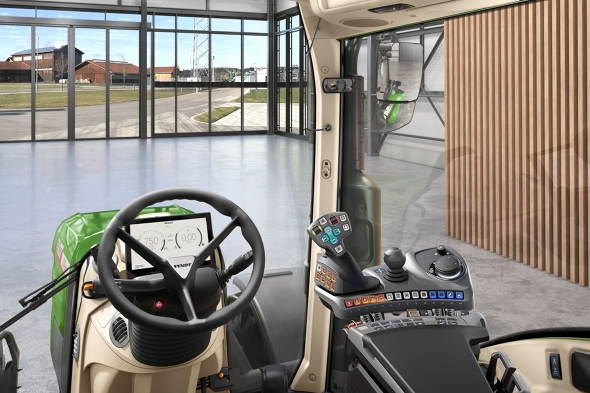

Power Setting 1
- A pair of rockers (1st+2nd linear modules) for operating the EHS valves
- 10" Dashboard
Power Setting 2
- A pair of rockers (1st+2nd linear modules) for operating the EHS valves
- Cross-gate lever
- 10" Dashboard

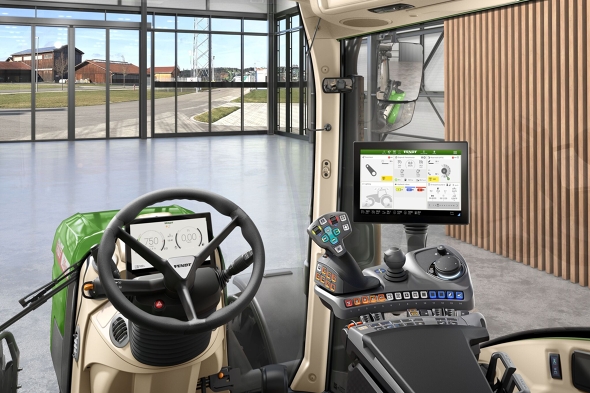

Profi Setting 1*
- A pair of rockers (1st+2nd linear modules, 3rd+4th optional linear modules) for operating the EHS valves
- Cross-gate lever
- 10" Dashboard
- 12” Terminal (optional)
- 12" terminal in the roof partially recessed (optional)
*The illustrations show standard equipment with optional front power lift module.
Profi Setting 2*
- A pair of rockers (1st+2nd linear modules, 3rd+4th optional linear modules) for operating the EHS valves
- 3L-Joystick
- 10" Dashboard
- 12" terminal
- 12" terminal in the roof partially recessed (optional)
*The illustrations show standard equipment with optional front power lift module.
Profi+ Setting 1*
- A pair of rockers (1st+2nd linear modules, 3rd+4th optional linear modules)
- Cross-gate lever
- 10" Dashboard
- 12" terminal
- 12" terminal in the roof partially recessed (optional)
*The illustrations show standard equipment with optional front power lift module.
Profi+ Setting 2*
- A pair of rockers (1st+2nd linear modules, 3rd+4th optional linear modules)
- 3L-Joystick
- 10" Dashboard
- 12" terminal
- 12" terminal in the roof partially recessed (optional)
*The illustrations show standard equipment with optional front power lift module.
Technical specifications – Fendt 300 Vario Gen5
Smart Farming Solutions from Fendt
For those who want to work even more efficiently
Guidance with FendtONE.
Precise use of machinery for sustainable soil protection and optimised use of resources - that's guidance with Fendt. Turning modes, guidance types and automatic headland management take the strain off the driver. This leaves more concentration for the essentials, making precise work easy even on long working days.
Agronomy with FendtONE.
Tractor and implement generate data. Data that is important for documentation. This also requires field boundaries and way lines to be standardised across the entire fleet. Creating tasks and receiving work reports will become essential as processes become increasingly automated. Seamless documentation means future-proofing. This is agronomy with Fendt.
Telemetry with FendtONE
Real-time machine data is required to maintain an overview of the fleet at all times, optimise machine deployment and prevent hold-ups. You can obtain this with the help of Fendt telemetry solutions. This gives you an overview of your fleet at all times and from any location, allowing you to analyse and manage it optimally.
Machine control with FendtONE.
Tractor and implement - an inseparable unit that is optimally and intuitively integrated into the FendtONE operating concept. The full potential of the combination can only be utilised when the tractor and attachment can communicate with each other. The Fendt machine control system makes it child's play to control partial width sections and work the sections with pinpoint accuracy.
