Fendt Tigo: Defies anything
Fendt Tigo MR Profi.

Stay on top of things

The similarity of the front side of Fendt Tigo with a trough has a very specific reason. The operator always has a perfect view in the loading space through the forward sloping body design. With a loading capacity of 31 m³ to 50 m³ (DIN) you can transport your harvested crop quickly and efficiently. At 50 m³ (DIN), the Tigo MR 100 Profi really plays out this strength, as a loading wagon specially designed for hay.

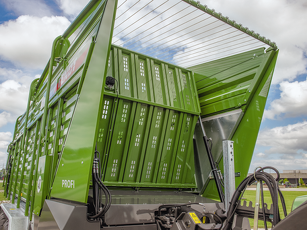

The first component of VarioFill is the bulkhead

More compact, easier, more manoeuvrable and shorter by at least 1 meter than other loading wagons in its class. With its 80° pivoting multi-functional bulkhead, the Fendt Tigo is one of a kind when it comes to loading. Using the space above the loading unit creates 6m³ more capacity while the vehicle length is still short. The completely closed frame of the bulkhead offers maximum stability in turn. The combination of weight saving and compact size make Fendt Tigo the payload champion. Combined with the Fendt tractor, it becomes an unbeatable team. You can profit from better road holding during transport through ideal weight distribution and optimum tongue weight.

The second component of VarioFill is the automatic loading

Always exercise the right pressure with the Fendt Tigo. With the bulkhead acting both as a loading and feeding wall, plus integrated automatic loading and unloading system, every cubic metre of the loading volume is put to best use. Adjust the 2-step automatic loading and continuously adjust the compression pressure of the feed from the terminal. The pre-compacting pressure can be customised optimum to the feed structure with this unique system. Whether it is higher pressure for a maximum loaded wagon or lower pressure to avoid crumbling losses in hay – as soon as the selected compression pressure is reached in the pressure sensor of the hydraulic cylinder, the scraper floor automatically sets itself in motion. If the complete loading space is filled, the bulkhead moves gradually forward.

The third component of VarioFill is the automatic unloading

Manual removal of feed residues at the end of the day is not required. The VarioFill makes the unloading a relaxed affair. The unloading process starts with pressing a button. The trunk lid is opened and then the scraper floor and the bulkhead start simultaneously. The multifunctional wall gently pushes the feed stock through the declining movement and reduces the load

of the scraper floor chains. The bulkhead presses the last feed wedge actively to the scraper floor through the arching position arising in the end position and ensures
that the vehicle is properly emptied.

The Fendt Tigo leaves nothing to chance.
Fendt Tigo MS and MR.

Robust and stable

The Fendt Tigo MS and MR ensure maximum stability and service life. The robust and solid all-steel body with closely-packed side stanchions is directly screwed

together with the chassis frame and the profile frame bolted above. This makes it the most stable and the most compact loading wagon of its class.

The Fendt Tigo leaves nothing to chance.
Fendt Tigo MS and MR.

High volume

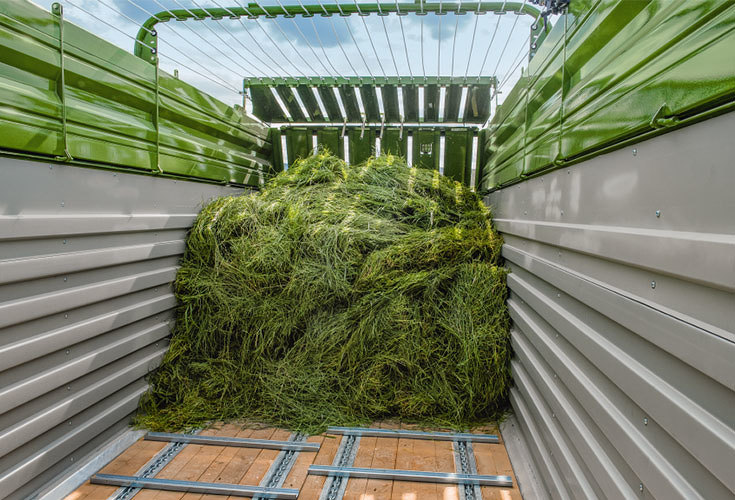

For the best hay compaction every time, the Fendt Tigo MS has an optional superstructure made of hot-dip galvanised C profile steel. So you compress your hay

better but also make best use of the full loading capacity of max. 70 m³. The excellent efficiency is particularly noticeable over longer distances.

The Fendt Tigo leaves nothing to chance.
Fendt Tigo MS and MR.

The collapsible dry feed assembly can be folded in and out from the cab. Transiting is therefore no problem, and for hay harvesting the loading space can be quickly extended.

Fast loading – Tigo MS and MR

The Tigo MS and MR support you as you need it. Both models are available with or without automatic loading. With the two 2-stage automatic loading systems you can work with two different compressions. Gentle compression is applied using a bar, while moderate compression is applied by the entire loading flap. The feed is pushed from the bottom to the very top. When the entire loading space is full, the bar or tailgate presses upwards and automatically sets the scraper floor in motion for a short time, which pushes the forage back. The control unit gives you an acoustic signal when the wagon is full. This not only takes the strain off you, but ensures that the wagon is filled to optimum capacity.

Straight or crosswise - the Fendt Tigo does the job.
Fendt MS and MR.

The right angle

The impregnated wood scraper floor on the Fendt Tigo MS and MR models guarantees an efficient, easy loading and unloading process. The forage wagon uses its power to best effect. The perfect arrangement of the conveyor elements requires less power for loading, which means less fuel consumption.

The right speed

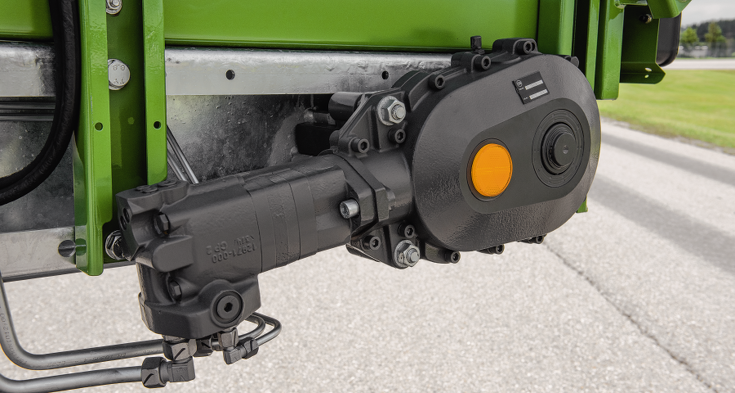

Keep calm even in hectic situations with this forage wagon. The hydraulic 1-speed scraper floor drive, also available as 2-speed, can be adjusted depending on the

crop and weight. The continuously adjustable form feed speed guarantees you the fastest possible emptying. The Fendt Tigo MS and MR are also equipped with a scraper floor return on models with feed rollers. This drive sets you up for even the toughest tasks.

Transverse or straight

All Fendt Tigo models with feed rollers can optionally be equipped with a hydraulically driven cross conveyor belt. Switchable for left or right unloading, with a belt width of 700 mm, the feed stock can be unloaded

directly on the feed table in the barn or sent to a fanning mill. For normal loading wagon use, the cross conveyor belt can easily be pivoted under the wagon bed.

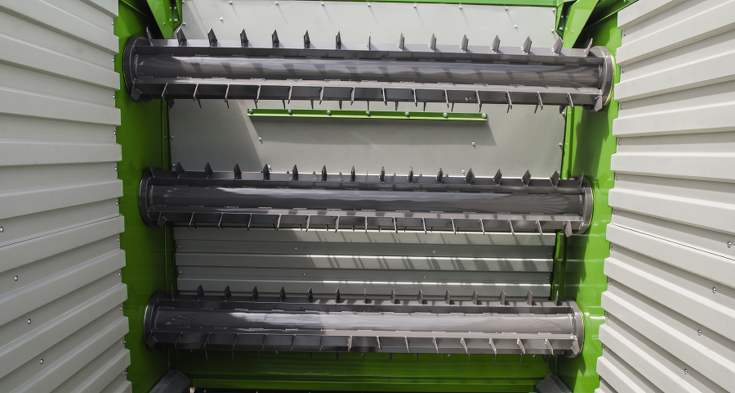

All Fendt Tigo MS and MR models can be equipped with 2 or 3 feed rollers. For more load volume, the individual rollers can be simply extended towards the back.

With the four 10 mm thick round steel chains of the large Tigo MS, MR and all MR Profi models, with 50 t breaking load you are prepared for even the toughest applications. The small Tigo MS and MR models provide support with two scraper floor chains and 25 t breaking load. You can also opt to equip the smaller models with four chains and offset scraper bars.

The optional two-stage scraper floor drive of the impregnated wooden scraper floor unloads quickly and safely.

The right distribution

A consistent crop output while unloading improves the performance while compacting in the silo. You can create a uniform blanket of feed on the silo with the high-performance profile of the closed feed rollers. Grass, maize or even whole plant silage are meticulously separated from the feed stock. The Fendt Tigo ensures such a precise unloading process. In order to keep the system streamlined, the drive train shafts are enclosed in the frame. The simple design of the rollers at the rear offers you the flexibility of additional 2 m³ more loading space.

The most versatile of all the loading wagons.
Fendt Tigo ST and S.

Super manoeuvrable, super powerful

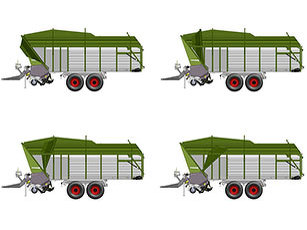

The Fendt Tigo ST and S are absolute professionals. Choose from 3 different loading capacities from 22 m³ to 29 m³. The Tigo 35 S or ST is an agile single-axle model, while the 40 and 50 are powerful tandem axle models. The gentle swing-arm unit results in the best quality feed – ideal for your grazing stock. The optional acoustic level indicator helps you keep an eye on loading. This saves the driver having to get out and check.

Your forage harvesting partner

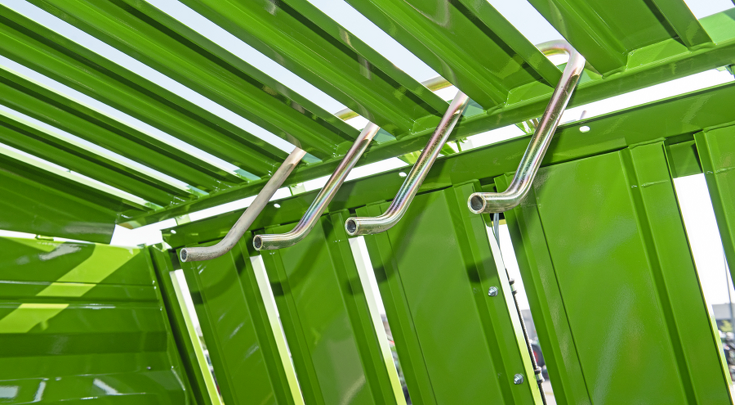

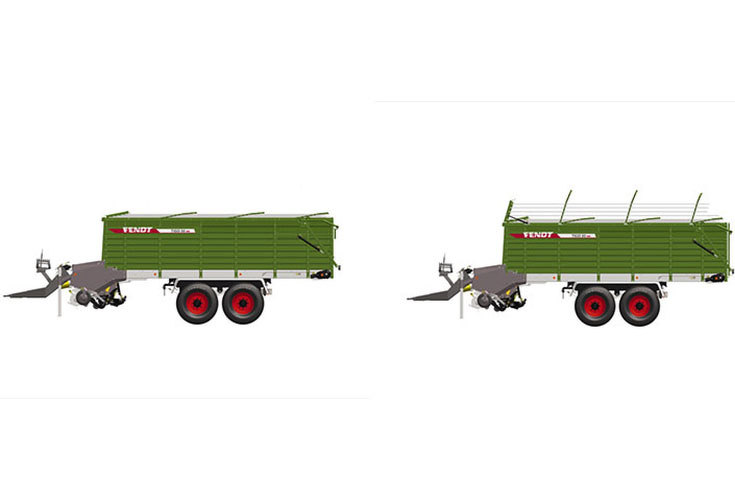

With the Tigo ST and S you have the choice between 2 different builds and a whole host of practical features. The Tigo is fitted with a collapsible dry feed assembly as standard – making even the smaller Tigo models extremely efficient and powerful. Choose the optional full steel construction for maximum stability, with every bit of silage unloaded. You can opt for the hay loading bundle for perfect hay or straw loading. This includes a compaction wall at the front and additional tubular bars and steel cables instead of conventional ropes.

Equipped for altitudes

The Tigo ST series was developed especially for highaltitude work. These draught loading wagons meet the most demanding requirements of hilly regions – the Tigo ST makes light work of steep traverses and tough terrain. With a platform height around 25 cm lower than the Tigo S, Tigo ST models have a particularly low centre of gravity. What's more, the extra wide track of 2.12 m means that Tigo ST models are incredibly stable. This ensures safe, stable and easy handling – even in extreme situations.

Top-class stability

Despite the low unladen weight, the Tigo ST and S are particularly stable. It's all thanks to the uniquely stable chassis frame. The flexible welded design is both twist and torsion-resistant in both directions. The Tigo S and ST overcome even the toughest conditions with the stable chassis with a single or tandem axle or a tandem axle and leaf suspension.

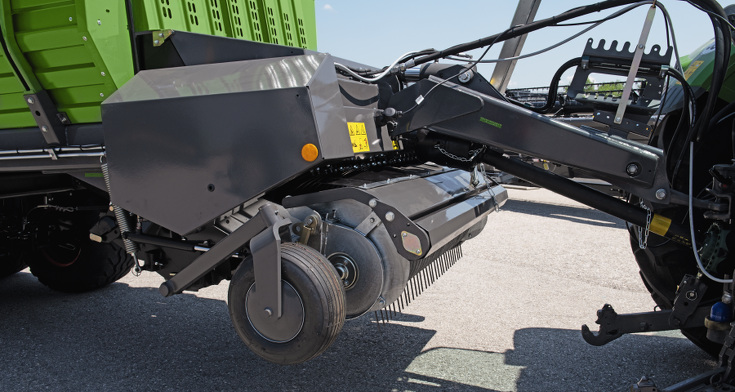

You can also opt to have the cutter unit pivot hydraulically from its working position to service mode.

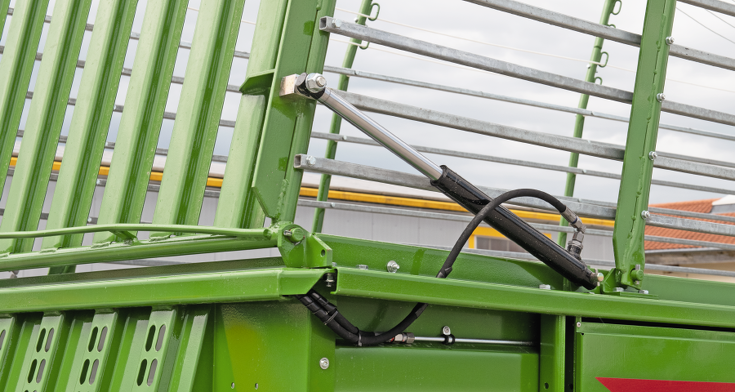

Another option is to have the collapsible dry feed assembly folded in and out hydraulically.

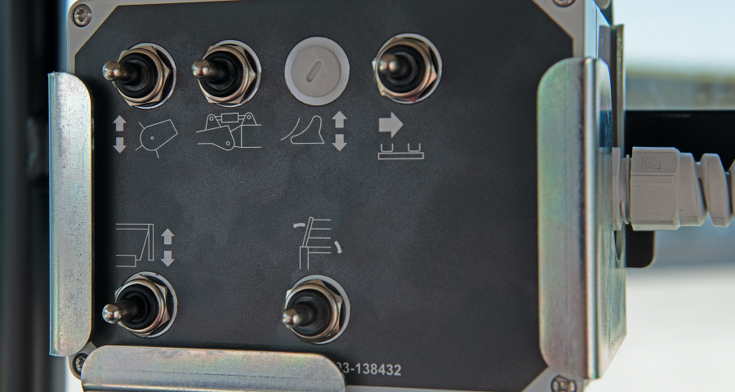

The electromagnetic quick-controls give you all the functions you need from the comfort of the driver's seat.

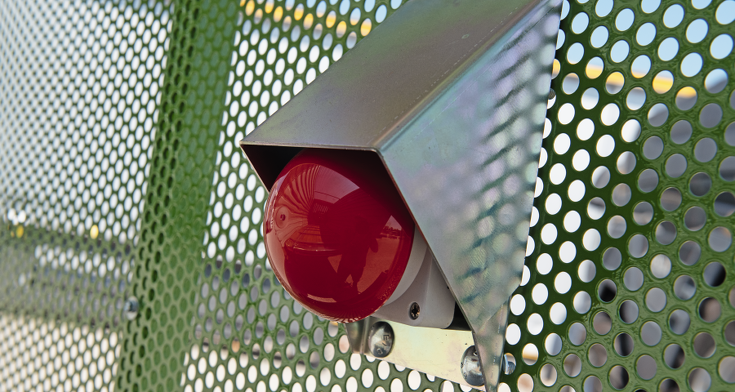

And an optional acoustic level indicator is controlled by a capacity sensor on the rear wall.

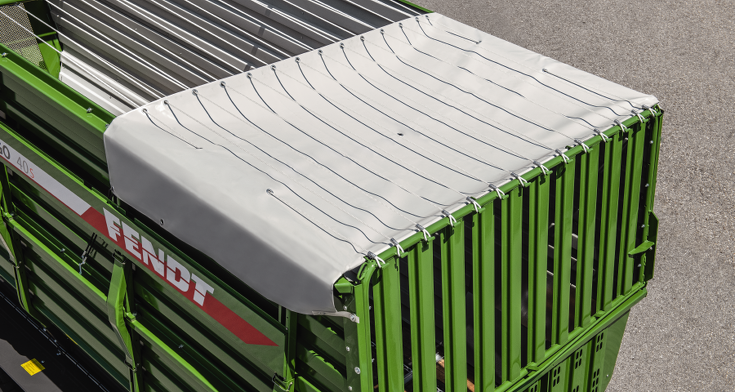

The optional tarpaulin curtain at the front keeps the feed securely in the loading space.

A hydraulic articulated drawbar gives the Tigo S a clearance of up to 70 cm.
